Technical Overview

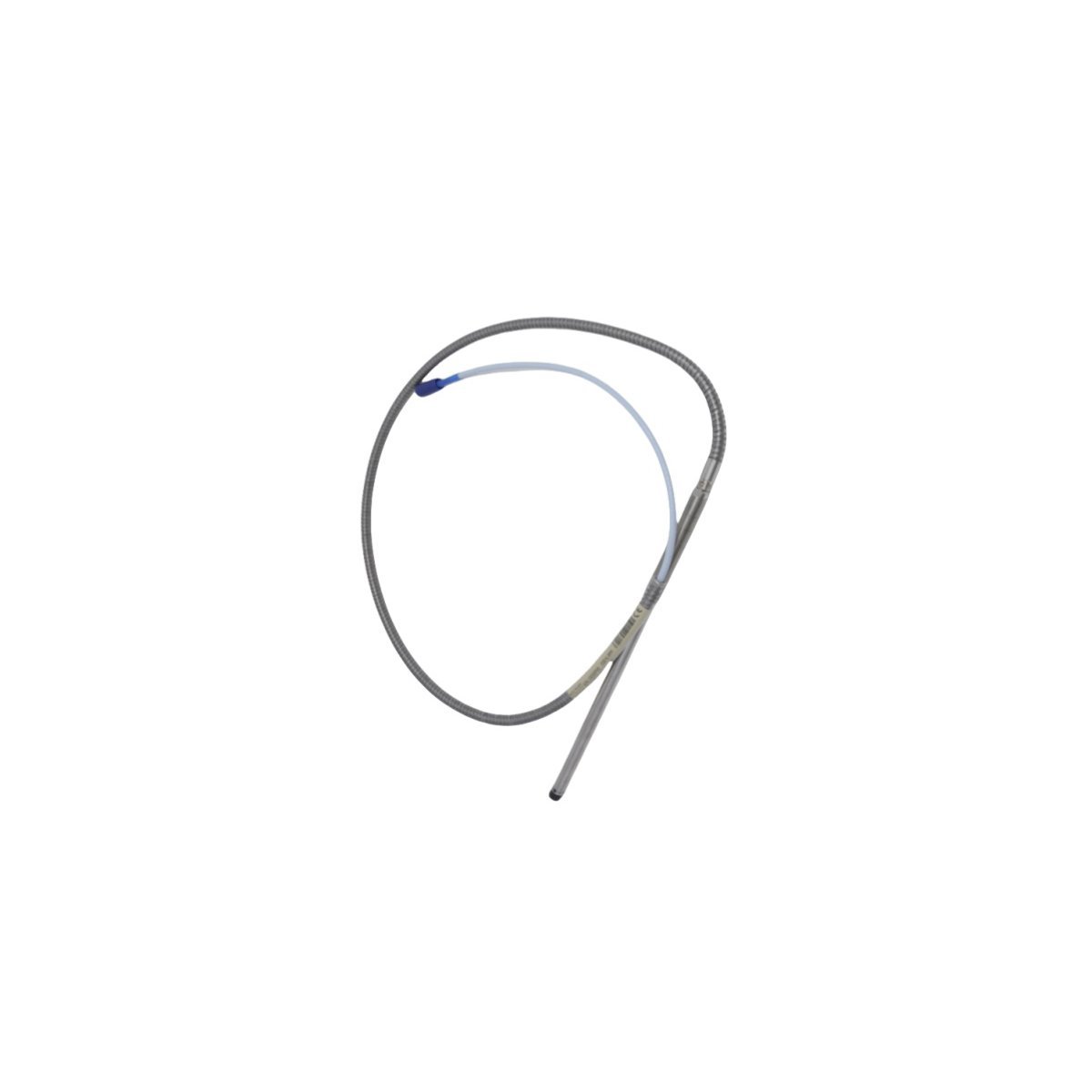

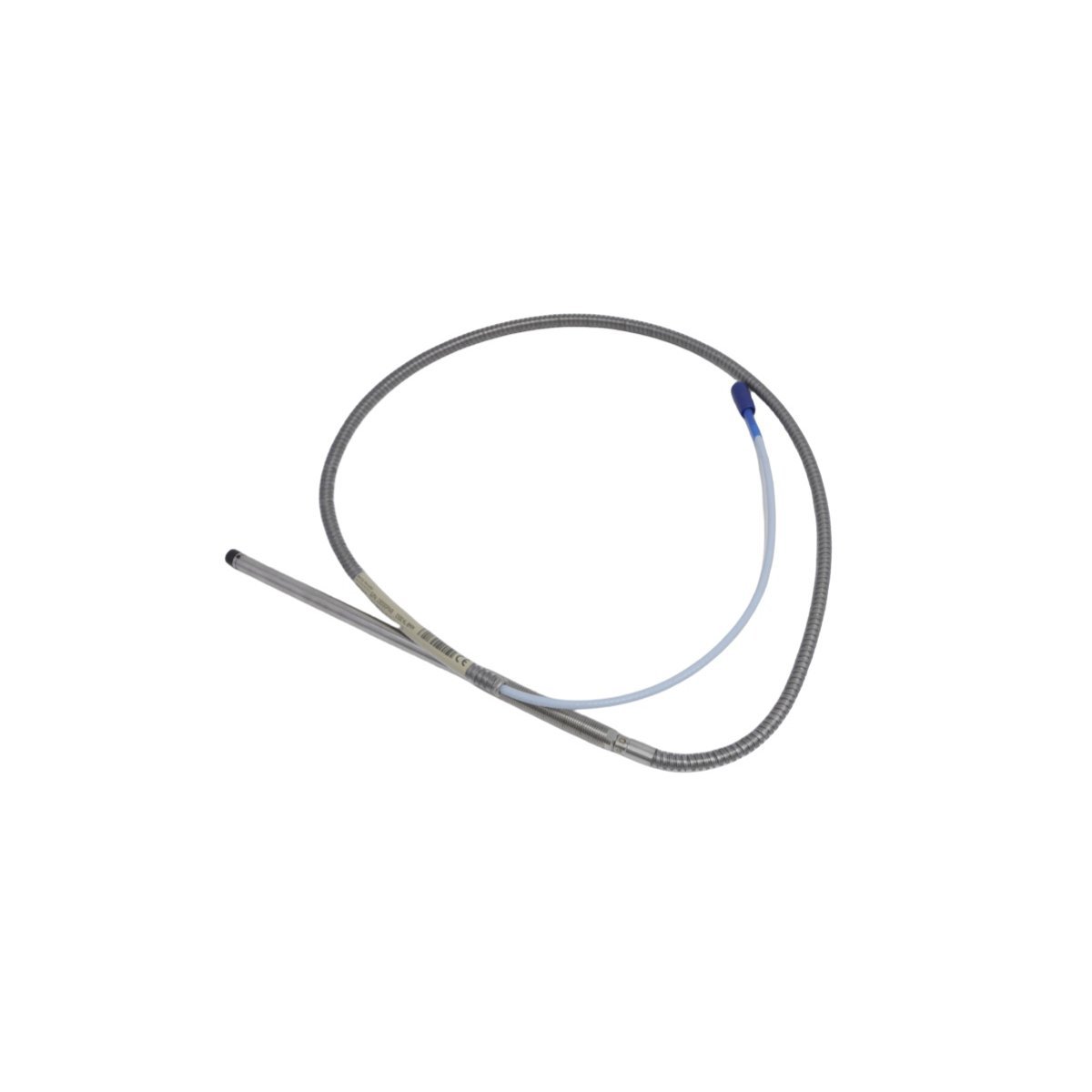

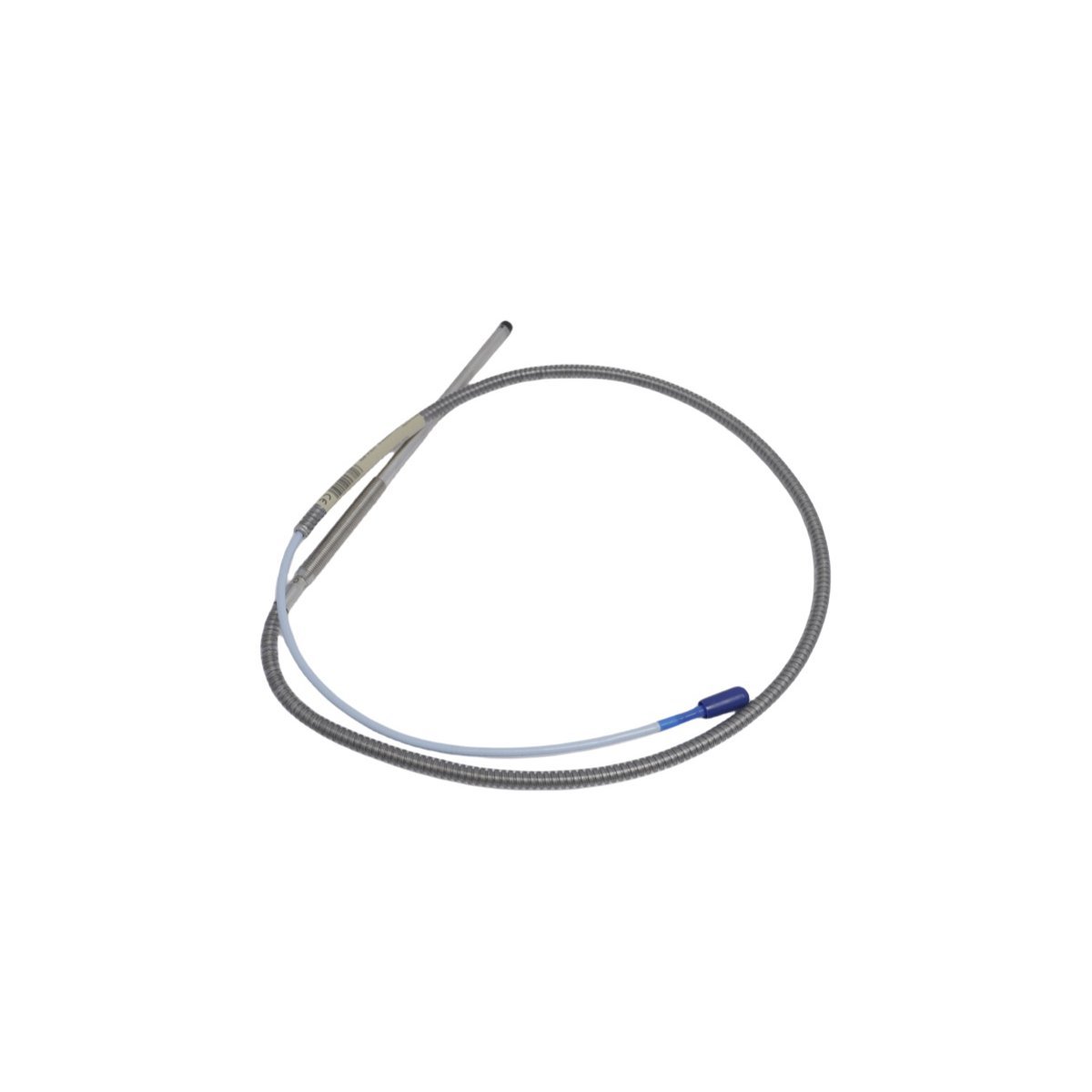

The Bently Nevada 330104-13-20-10-02-05 is a high-precision, non-contact proximity sensor within the trusted 3300 XL 8 mm family—engineered for mission-critical machinery protection and condition monitoring in industrial automation, power generation, oil & gas, and heavy manufacturing environments. Designed to deliver exceptional stability and repeatability, this probe operates on eddy-current principles to accurately measure dynamic and static displacement of ferromagnetic targets with sub-micron resolution. Its robust construction ensures reliable performance under extreme thermal gradients, high vibration, and electromagnetic interference—common challenges in turbine, compressor, and motor applications.

Integrated into the 3300 XL monitoring system architecture, the 330104-13-20-10-02-05 features optimized frequency response (0–10 kHz) and low phase shift, enabling precise shaft orbit analysis, vibration trending, and real-time gap monitoring. The probe’s 8 mm diameter sensing face provides an ideal balance between measurement range (typically 2.0 mm), sensitivity (approximately 7.87 V/mm), and spatial resolution—making it especially suited for journal bearing clearance verification and axial position control. Factory-calibrated and traceable to NIST standards, it eliminates field recalibration requirements and supports seamless integration with Bently Nevada 3500, 3300, and System 1 platforms via compatible前置器 (proximitor) modules.

Key Features

• High-Stability 8 mm Sensing Element: Precision-machined stainless steel housing with ceramic insulator for long-term drift resistance and corrosion resilience in harsh industrial settings.
• System-Optimized Compatibility: Fully interoperable with Bently Nevada 3300 XL proximitors (e.g., 330180-50-00, 330180-90-00) and 3500 rack-based monitoring systems.
• IEC 61000-4 EMC Certified: Meets stringent electromagnetic compatibility standards for operation in electrically noisy plant environments without signal degradation.
• Extended Temperature Range: Rated for continuous operation from –30 °C to +120 °C ambient, with optional high-temp variants available upon request.
• Quick-Connect M12 Interface: IP67-rated connector simplifies installation, reduces wiring errors, and supports hot-swap maintenance without system downtime.

Specifications

• Part Number: 330104-13-20-10-02-05
• Manufacturer: Bently Nevada (a Baker Hughes company)
• Type: 3300 XL 8 mm Proximity Probe
• Warranty: 24 months limited warranty covering material and workmanship defects under normal industrial use
