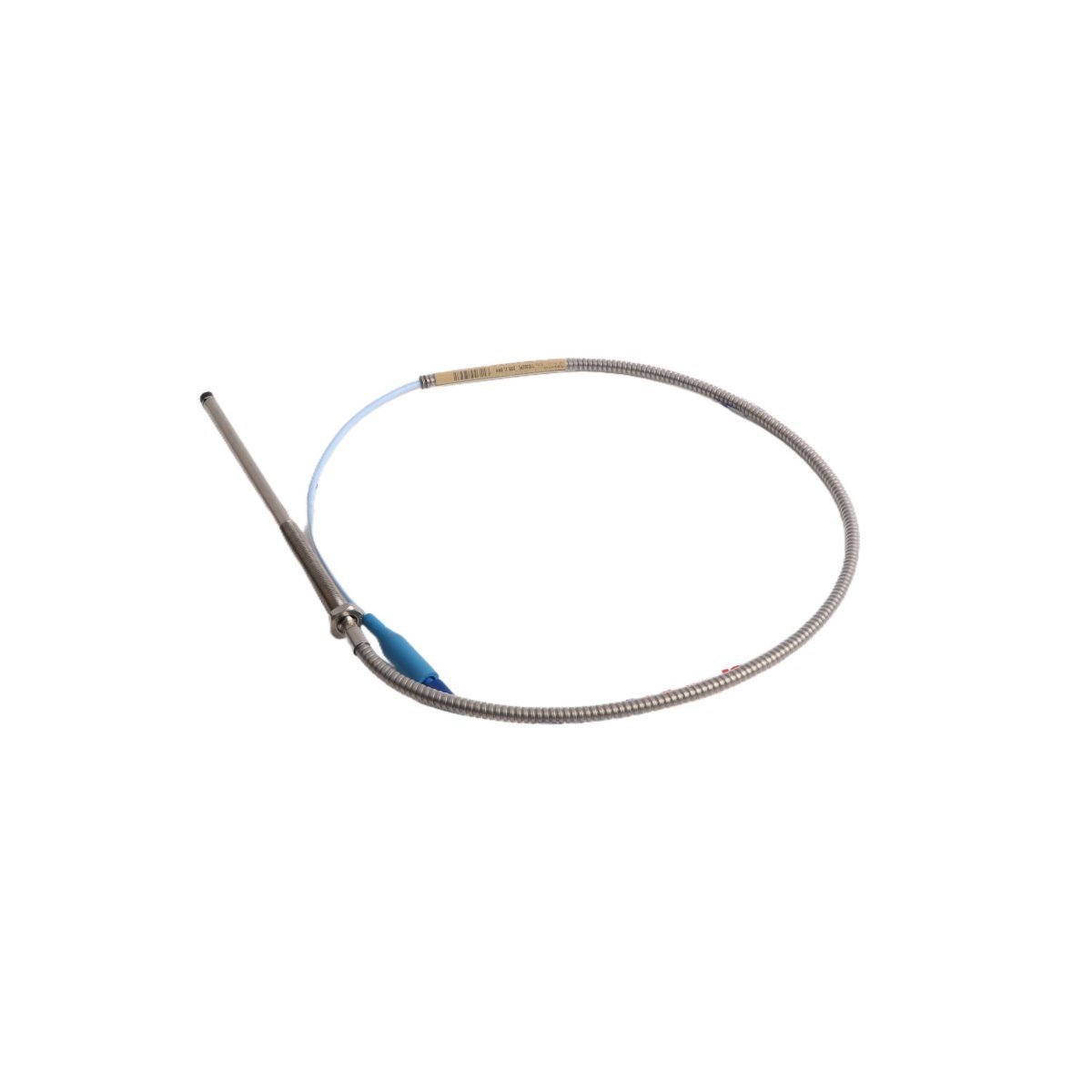

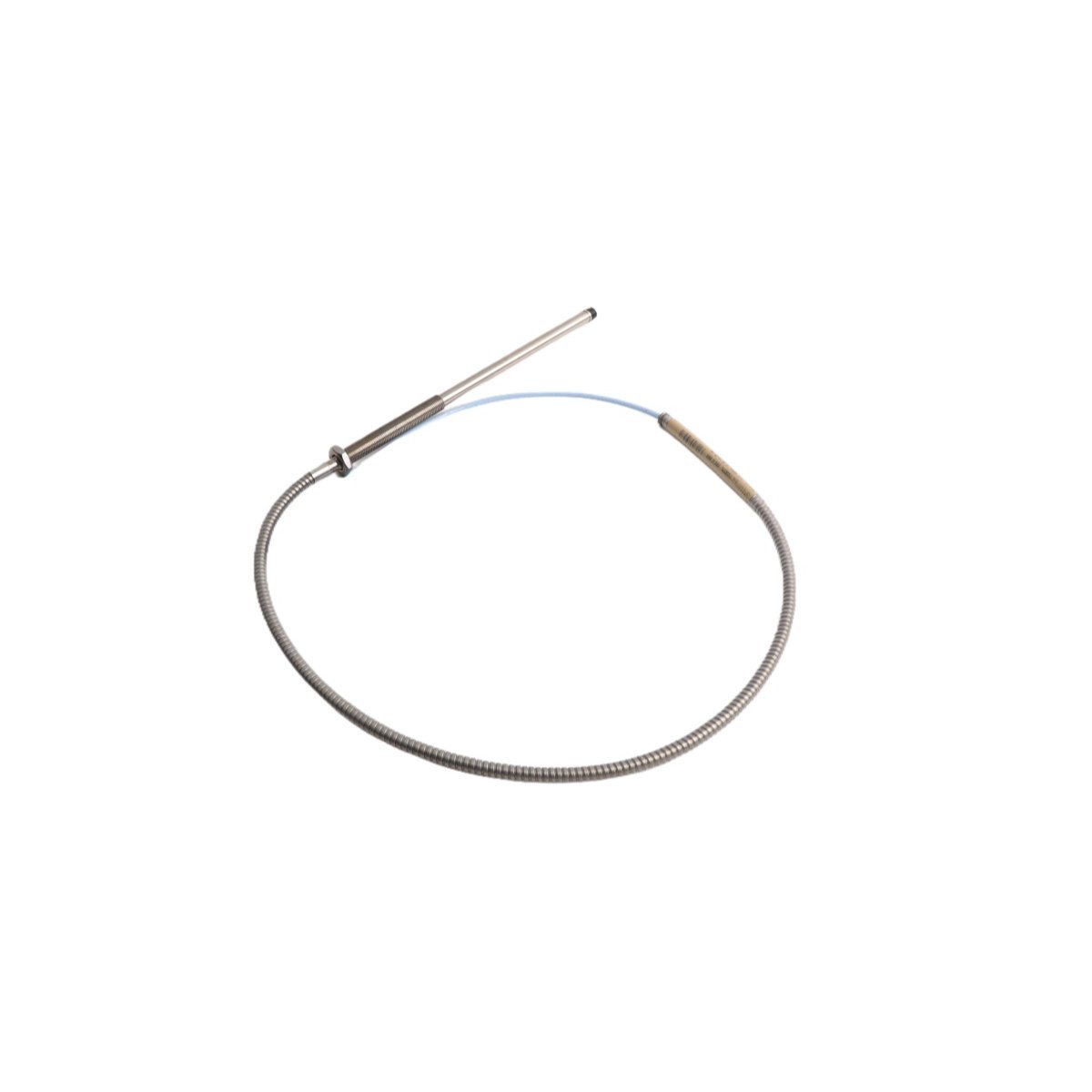

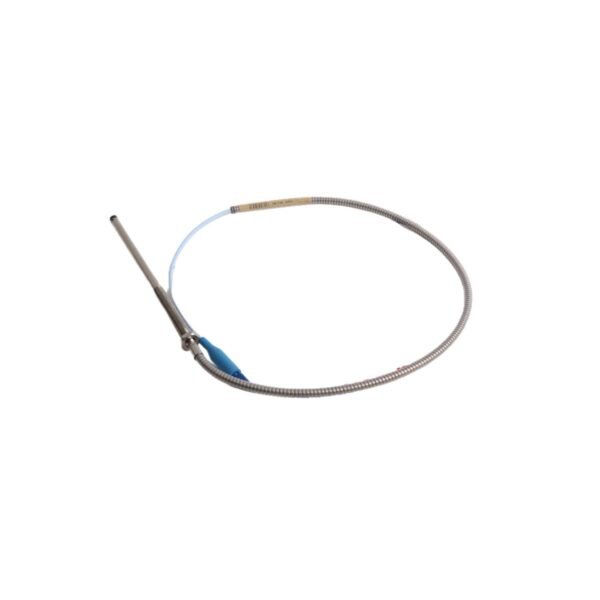

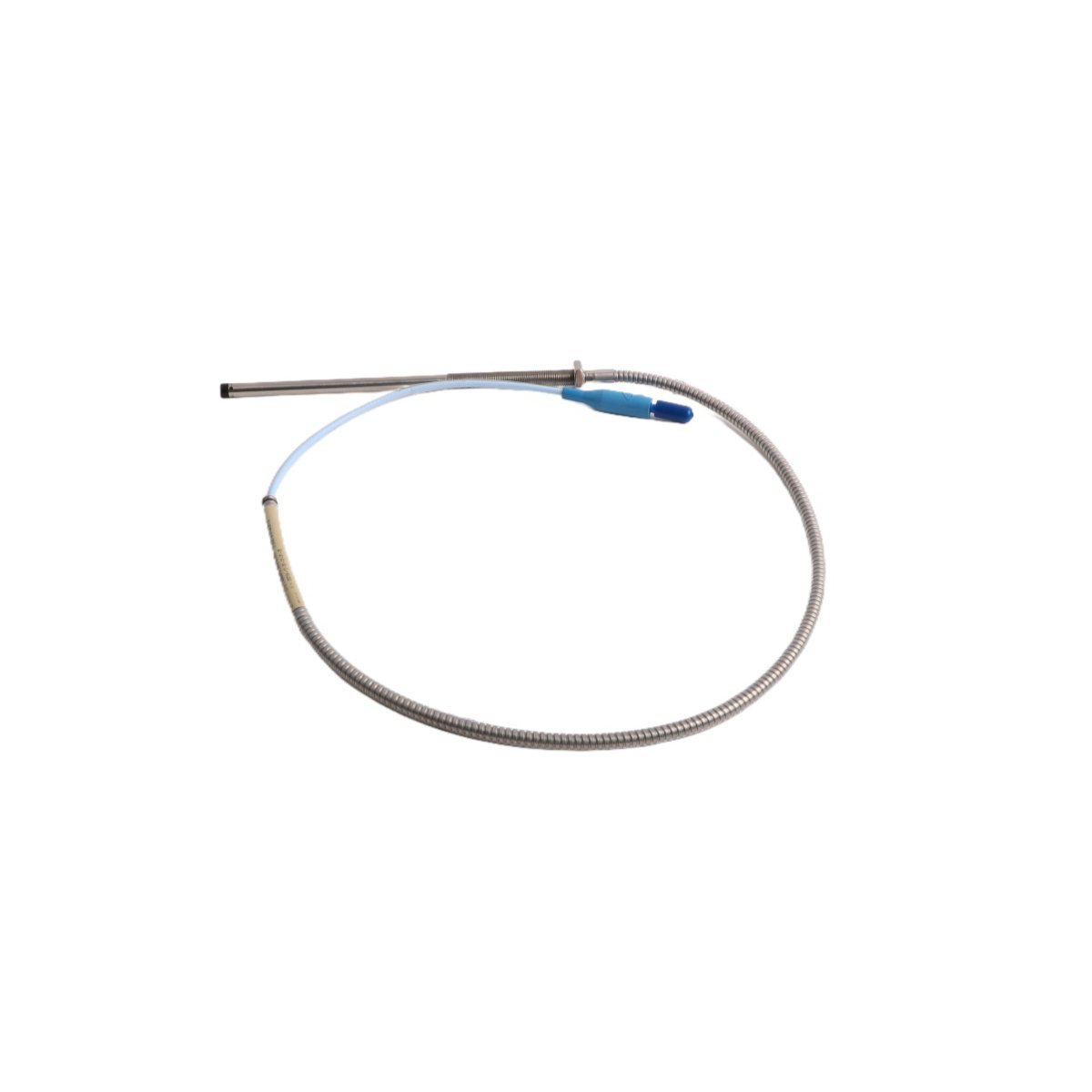

The Bently Nevada 330104-12-20-10-02-00 is a high-precision, industrial-grade proximity transducer belonging to the renowned 3300 XL family of eddy-current sensing systems. Manufactured by Baker Hughes (formerly Bently Nevada), this 8 mm diameter sensor delivers exceptional linearity, temperature stability, and electromagnetic interference (EMI) immunity for mission-critical machinery protection and condition monitoring applications. Engineered to meet stringent API 670 (4th and 5th Editions) and ISO 10816 standards, the transducer operates on the principle of high-frequency eddy-current displacement measurement—detecting minute changes in the gap between the probe tip and conductive target surfaces with sub-micron resolution. Its robust stainless steel construction, hermetically sealed ceramic insulator, and integrated coaxial cable ensure long-term reliability in harsh environments characterized by extreme temperatures (–30 °C to +120 °C ambient), high vibration, oil immersion, and aggressive chemical exposure. The 330104-12-20-10-02-00 is designed exclusively for use with Bently Nevada 3300 XL series monitors—including the 3300/16, 3300/22, and 3500 system platforms—and requires calibration against its matching extension cable and monitor channel to achieve factory-specified accuracy. As a new, unused OEM product, it ships in original factory packaging with full traceability documentation and complies with RoHS, CE, and ATEX directives where applicable. This transducer is ideal for users seeking plug-and-play compatibility, repeatable performance across decades of service life, and seamless integration into enterprise-wide asset health management ecosystems.

Detailed Specifications

Key Features

• OEM-Exact Calibration & Traceability: Delivered with NIST-traceable calibration certificate and individual serial-numbered calibration data, ensuring compliance with API 670 verification requirements and eliminating field recalibration delays.
• Enhanced Environmental Resilience: Hermetically sealed ceramic tip and PTFE-insulated coaxial cable provide superior resistance to moisture ingress, oil saturation, thermal shock, and corrosive hydrocarbons—validated per MIL-STD-810G environmental testing protocols.
• Plug-and-Play System Integration: Fully compatible with all 3300 XL monitor modules and legacy 3300 rack-based systems; supports automatic sensor identification (ASID) when used with 3500/22M or newer monitors.
• Ultra-Stable Output Performance: Advanced coil winding and temperature-compensated electronics deliver drift of less than 0.05% FSR/°C across the full operating range—critical for long-term trend analysis and alarm integrity.
• Optimized Electromagnetic Immunity: Meets IEC 61000-4-3 Level 3 (10 V/m) radiated immunity and IEC 61000-4-4 Level 4 (4 kV EFT) for operation in electrically noisy turbine halls, compressor stations, and power generation facilities.
• Sustainable Lifecycle Support: Backed by Baker Hughes’ global technical support network, spare parts availability, and firmware update pathways—ensuring operational continuity for 20+ years of service life.
• Regulatory-Ready Documentation: Includes complete OEM datasheet, installation manual, hazardous area certification (if applicable), and cybersecurity statement (IEC 62443-3-3 compliant design).

Applications

• Rotating Machinery Protection: Shaft vibration, axial position, and differential expansion monitoring on steam/gas turbines, centrifugal compressors, and large electric motors in oil & gas, power generation, and petrochemical plants.
• Condition-Based Maintenance (CBM): Enabling early detection of imbalance, misalignment, bearing wear, rubs, and resonance events via high-fidelity time-waveform and spectrum analysis in predictive maintenance programs.
• API 670-Compliant Machinery Guarding: Primary and redundant shaft displacement sensing for critical trains requiring dual-channel 4–20 mA or relay outputs meeting SIL 2 functional safety requirements.
• Hydroelectric & Pumped Storage Systems: Monitoring thrust bearing wear and runner wobble under variable hydraulic loads and extended duty cycles.
• Aerospace Ground Test Facilities: High-accuracy dynamic response characterization of jet engine components during qualification testing under controlled laboratory conditions.
• Marine Propulsion Monitoring: Shaft orbit analysis and journal bearing clearance tracking aboard LNG carriers, cruise vessels, and naval platforms exposed to salt-laden atmospheres.
• Renewable Energy Infrastructure: Gearbox and main bearing monitoring in utility-scale wind turbines—leveraging the transducer’s immunity to electromagnetic noise from power converters and grid fluctuations.
