Description

Technical Overview

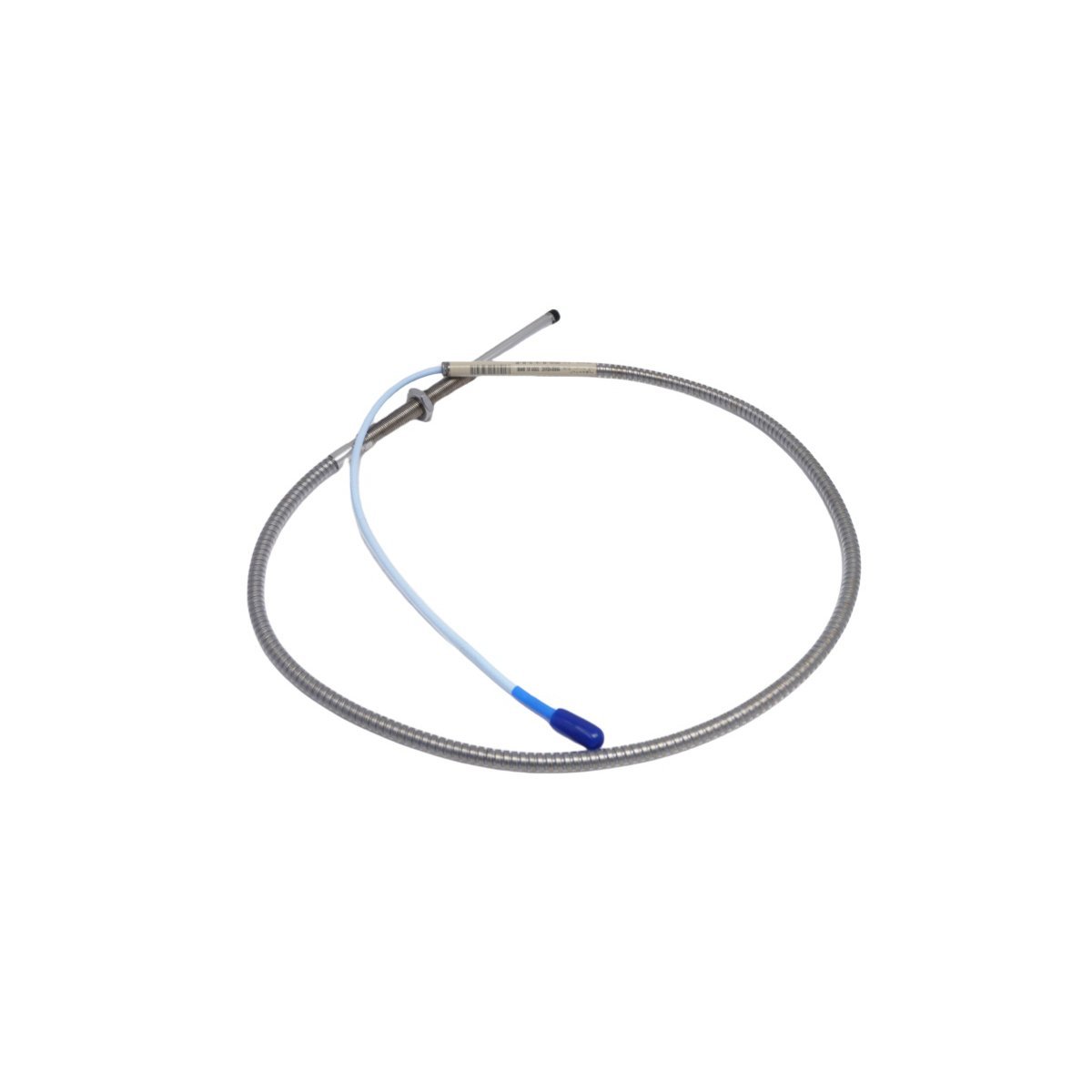

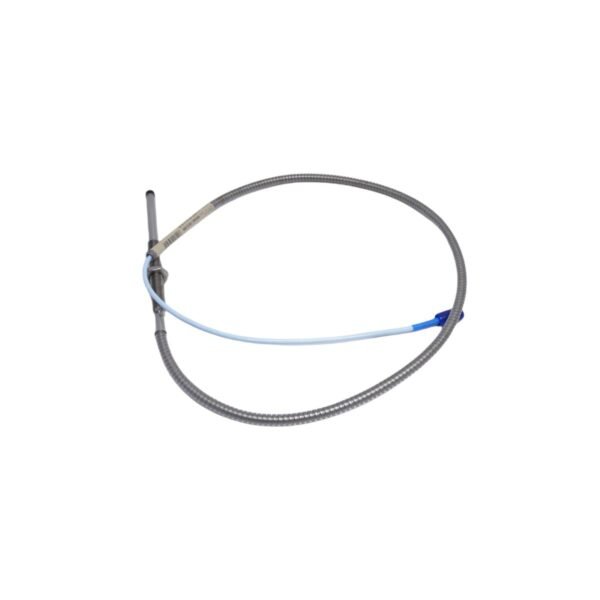

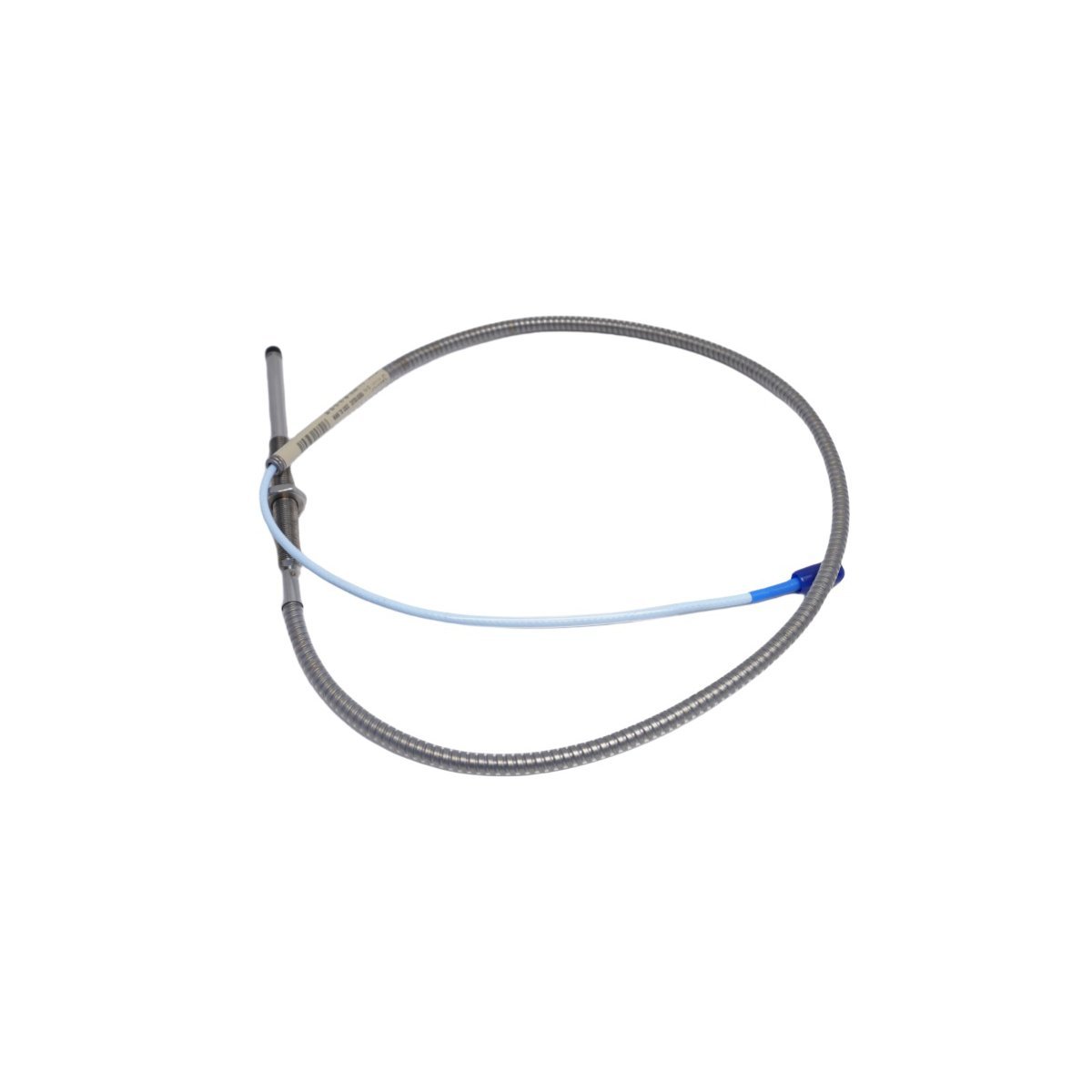

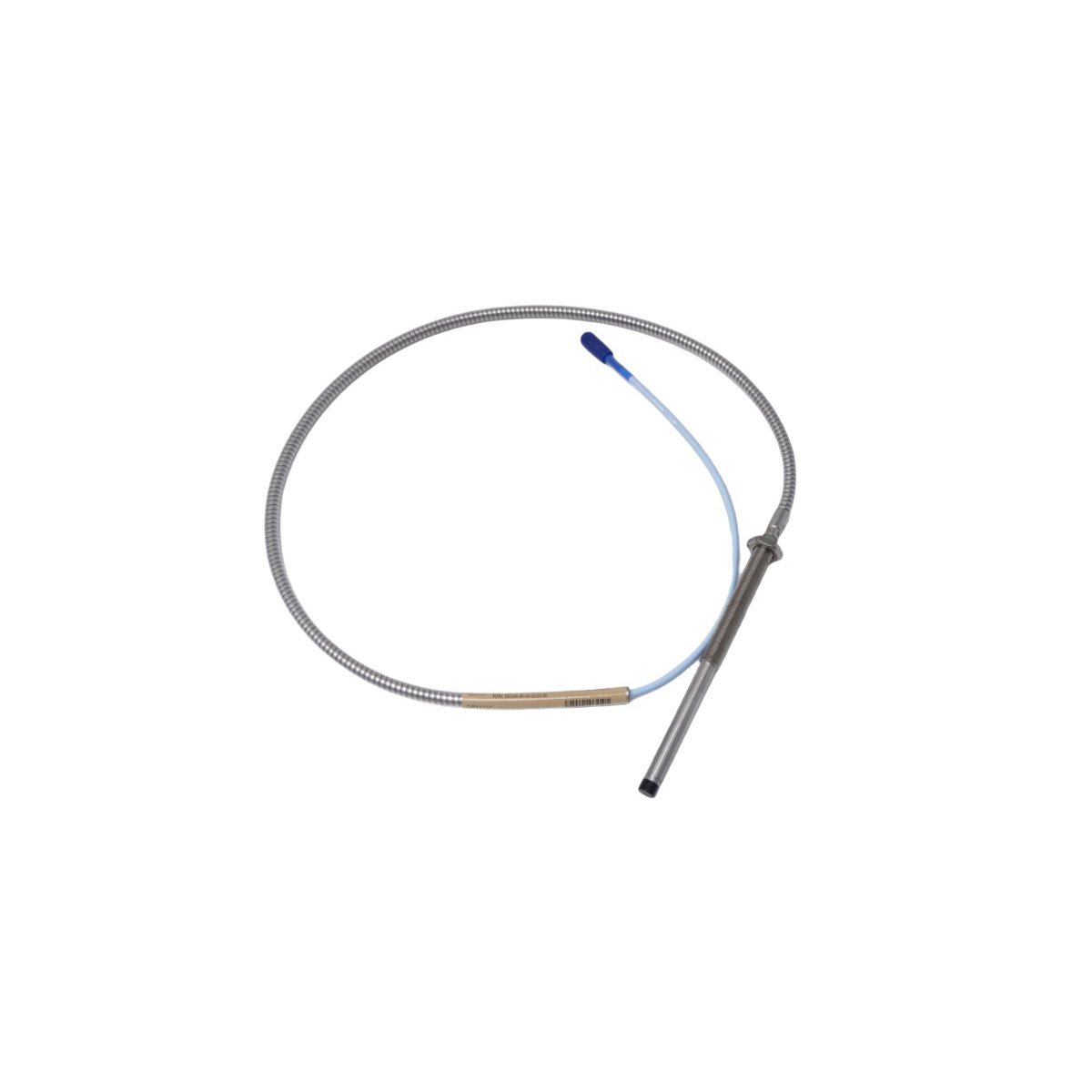

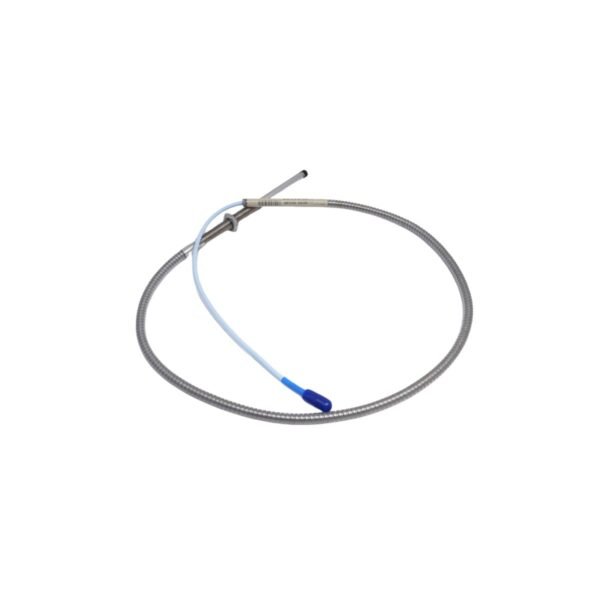

The Bently Nevada 330104-06-25-05-02-00 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in mission-critical rotating machinery. Manufactured by Baker Hughes (under the Bently Nevada brand—a globally recognized leader in condition monitoring and predictive maintenance solutions), this probe is part of the trusted 3300 XL sensor family, specifically optimized for use with the 3300 XL 8 mm probe system architecture. Designed to meet stringent API 670 (4th Edition) and ISO 10816 standards, the 330104-06-25-05-02-00 delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity across demanding operational environments—including high-temperature, high-vibration, and corrosive atmospheres typical of power generation, oil & gas, petrochemical, and heavy industrial facilities. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with full calibration documentation, including sensitivity (mV/mil), linearity error (±0.3% FS typical), and frequency response (0–10 kHz). The probe features a robust stainless steel (AISI 416) housing with an integral 8 mm diameter sensing tip, hermetically sealed to IP67 ingress protection, ensuring long-term reliability in harsh mechanical and environmental conditions. As a new, unused OEM product, it is shipped in original factory packaging with anti-static safeguards and complies fully with RoHS 3 and REACH directives. Backed by a standard 24-month limited warranty from the date of shipment, this probe supports seamless integration into existing Bently Nevada 3300/3500/3600 monitoring systems and is compatible with all 3300 XL extension cables and proximitor modules.

Detailed Specifications

Key Features

• OEM-Grade Calibration & Traceability: Factory-calibrated to NIST-traceable standards with individual calibration certificate (including dynamic linearity plot, sensitivity verification, and thermal drift data).
• Enhanced Thermal Stability: Proprietary coil winding and core material composition minimize sensitivity drift across extreme ambient temperature fluctuations—critical for turbine and compressor monitoring.
• Robust Mechanical Integrity: Precision-machined AISI 416 stainless steel housing with ceramic-filled epoxy encapsulation ensures resistance to shock (500 g peak), vibration (50 g RMS), and chemical exposure.
• Optimized Electromagnetic Compatibility (EMC): Integrated RF filtering and shielded coaxial construction provide superior immunity to EMI/RFI from VFDs, SCR drives, and high-power switching equipment.
• Plug-and-Play Integration: Fully compatible with Bently Nevada 3300 XL Proximitor modules (e.g., 3300 XL 50710-00-00-00), 3500/40M monitors, and System 1™ software without configuration or scaling adjustments.
• Long-Term Reliability: Hermetic sealing and gold-plated contacts ensure >15-year service life under continuous operation, validated per MIL-STD-810G environmental stress screening.
• Global Support Ecosystem: Backed by Baker Hughes’ worldwide network of certified service centers, technical support engineers, and spare parts logistics—ensuring rapid resolution and lifecycle management.

Applications

• Steam & Gas Turbines: Radial vibration monitoring of journal bearings, axial position (thrust) measurement, and differential expansion analysis in utility and industrial cogeneration plants.
• Centrifugal Compressors: Shaft displacement and orbit analysis in upstream oil & gas facilities, LNG trains, and refinery process units—enabling early detection of imbalance, misalignment, and bearing wear.
• Large Electric Motors & Generators: Rotor eccentricity, air gap monitoring, and dynamic runout assessment for critical 5+ MW drive systems in mining, pulp & paper, and water infrastructure.
• Aeroderivative Engines: High-frequency vibration surveillance for marine propulsion and emergency power generation where compact size and wide bandwidth are essential.
• Pumps & Fans: Continuous shaft position feedback for variable-speed applications operating under transient load conditions, supporting predictive maintenance strategies aligned with ISO 18436-2 certification requirements.
• Research & Test Benches: High-fidelity dynamic testing of rotating assemblies in academic, OEM, and third-party validation laboratories requiring metrological-grade repeatability and traceable uncertainty budgets.
