Description

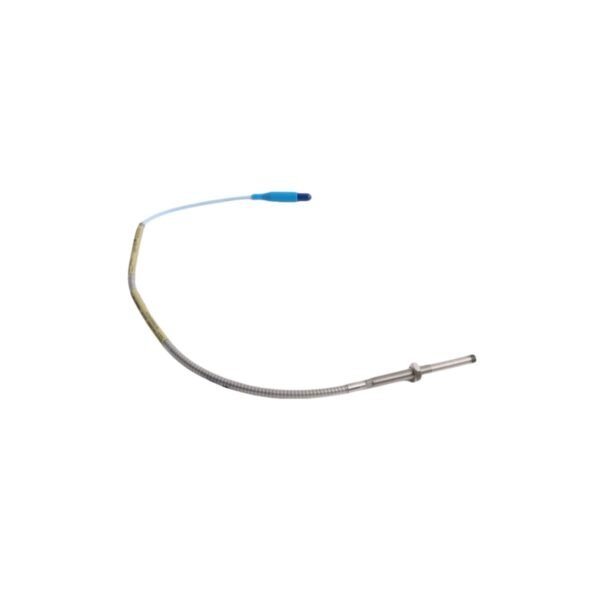

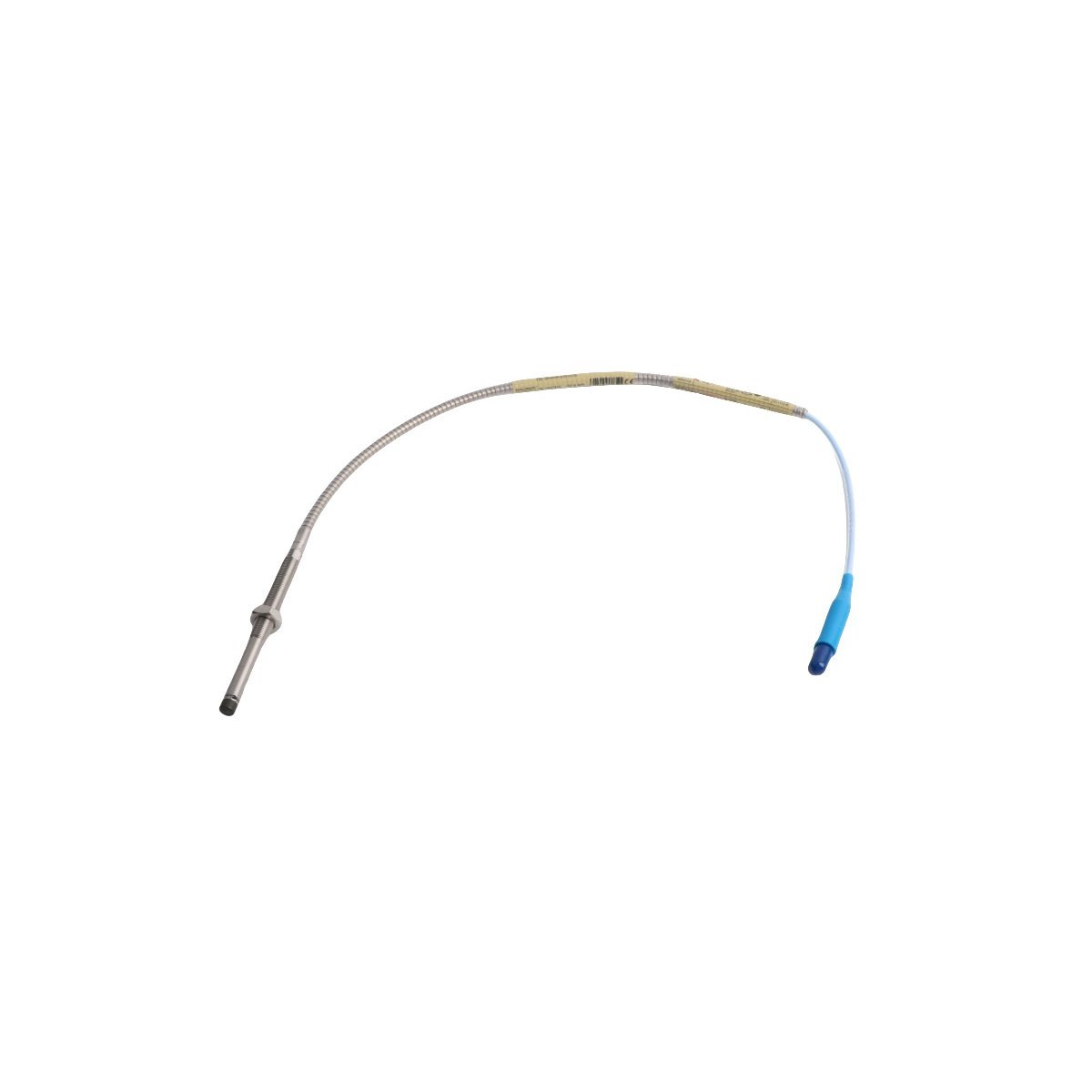

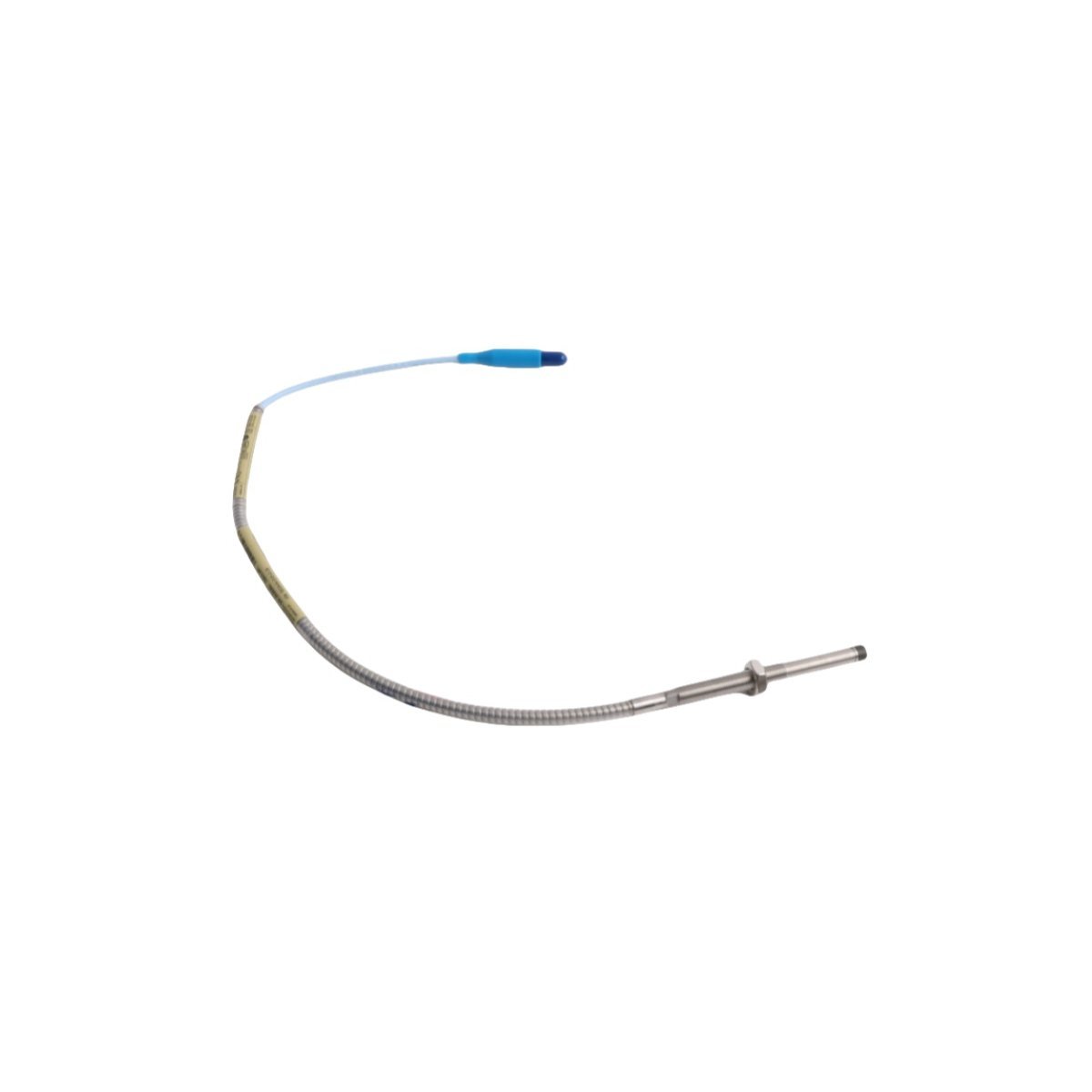

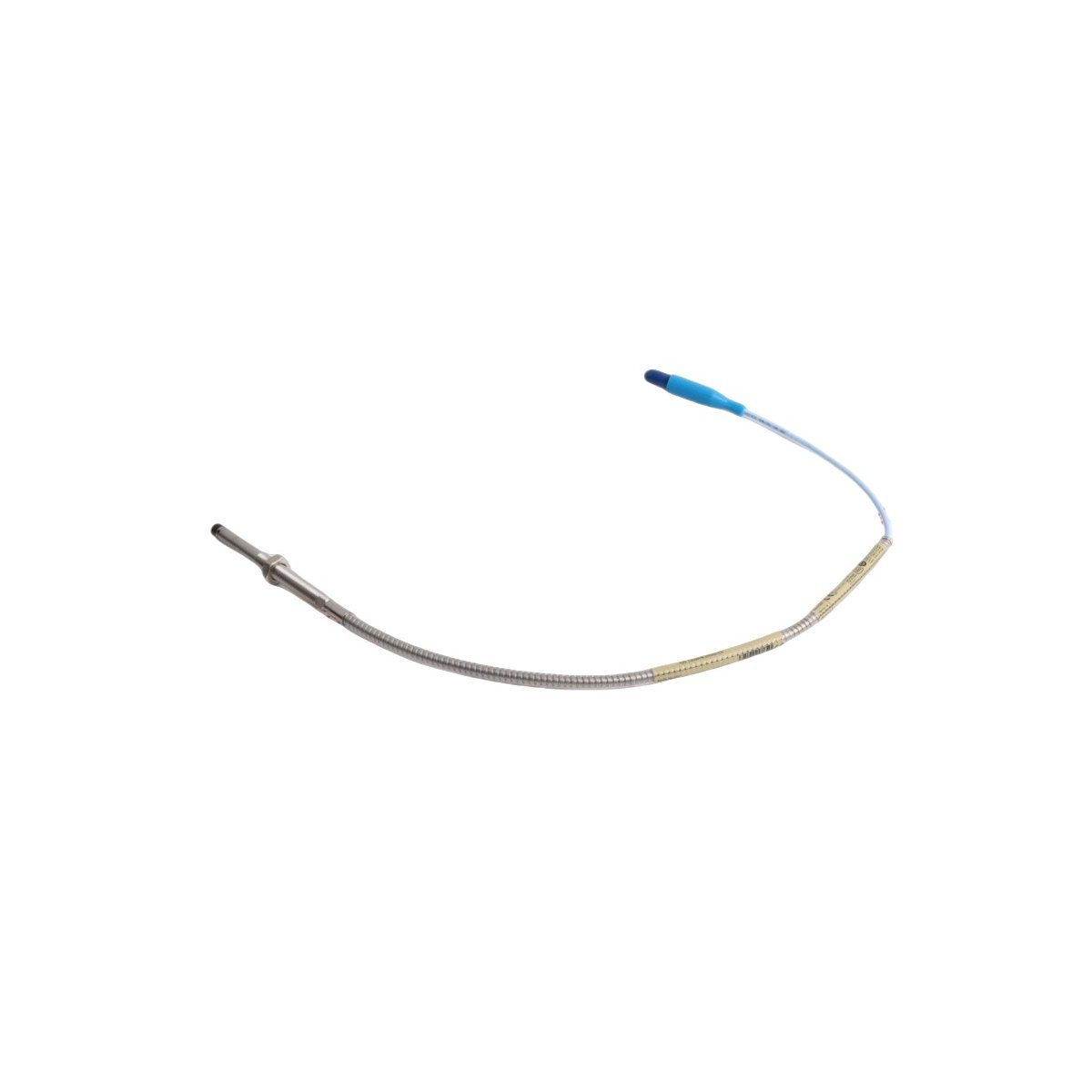

330104-04-10-05-01-00 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
This is a non-contact eddy-current proximity probe designed for continuous displacement and vibration monitoring of rotating machinery.
Moreover, it delivers high-resolution analog output for shaft position, vibration, and axial thrust in turbomachinery and critical rotating equipment.
Therefore, it is integrated into condition monitoring systems where precision, reliability, and long-term stability are required.

### Technical Specifications

### Typical Applications
– Monitoring shaft vibration in steam and gas turbines
– Measuring axial position and thrust bearing wear in centrifugal compressors
– Detecting rotor runout and dynamic clearance in large electric motors
– Providing input to emergency shutdown systems in critical rotating equipment

### FAQ
What is the standard cable length for this probe?
The probe includes a fixed 5-meter coaxial cable with integral connector.

Is this probe compatible with all 3300 XL monitoring systems?
Yes, it is fully compatible with 3300 XL 16-channel and 3300 XL 2-channel monitors and preamps.

Does the probe require calibration before installation?
No—each probe is factory-calibrated and supplied with a unique calibration certificate traceable to NIST standards.

Can it be used in hazardous areas?
Not inherently; use requires appropriate intrinsic safety barriers or certified explosion-proof enclosures per site classification.

What is the operating temperature range?
–30 °C to +120 °C for the probe tip and body; cable rating depends on jacket material (standard PVC: –20 °C to +70 °C).
