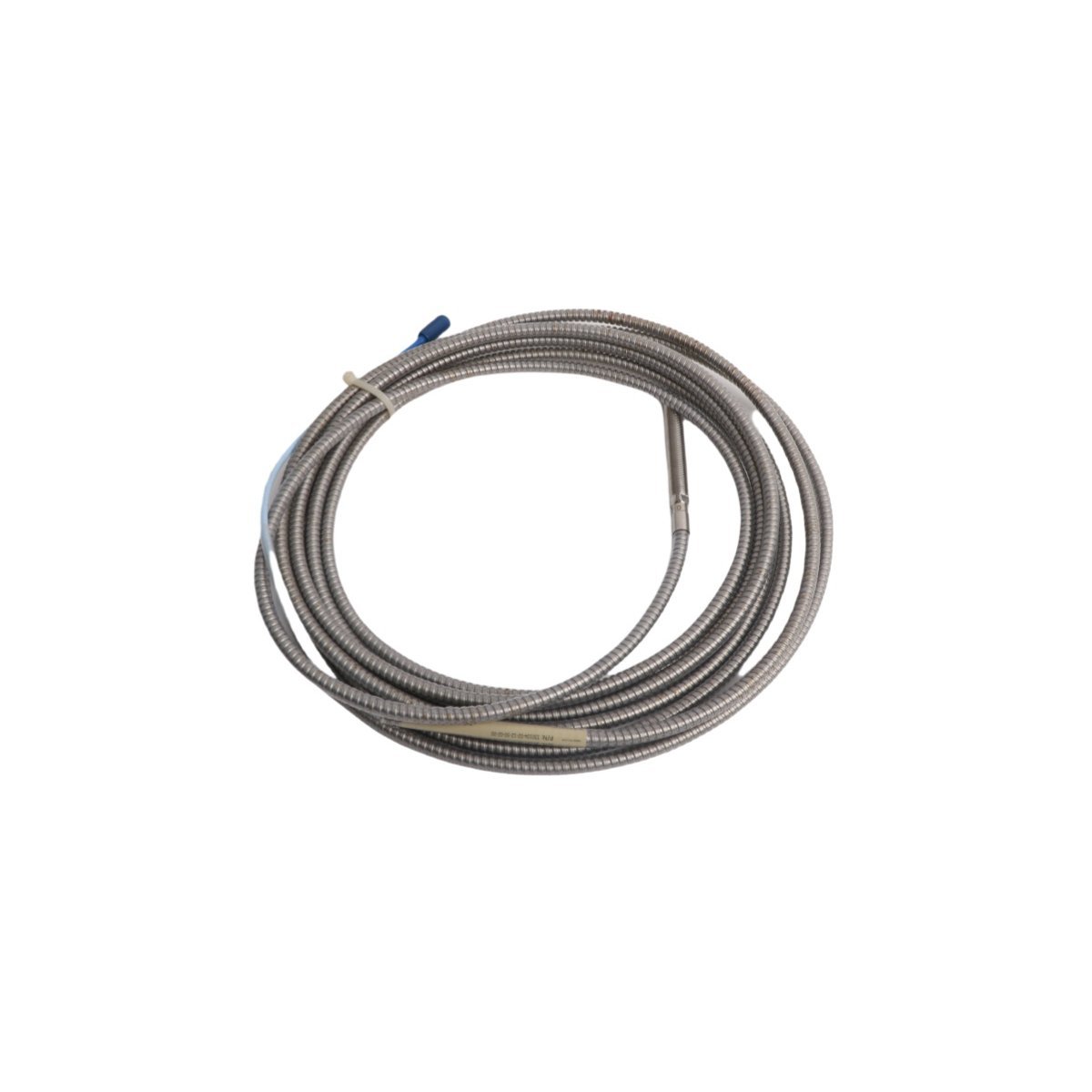

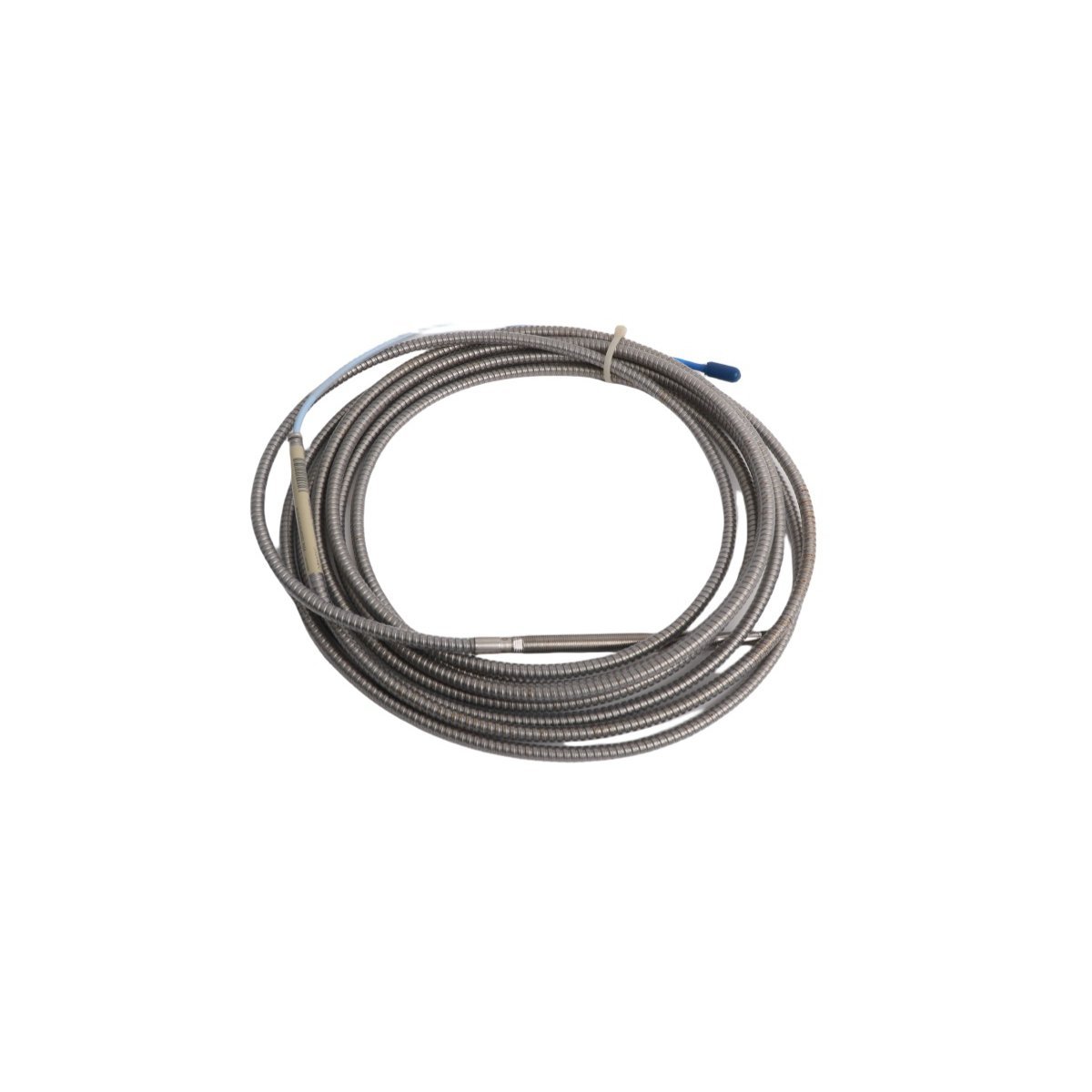

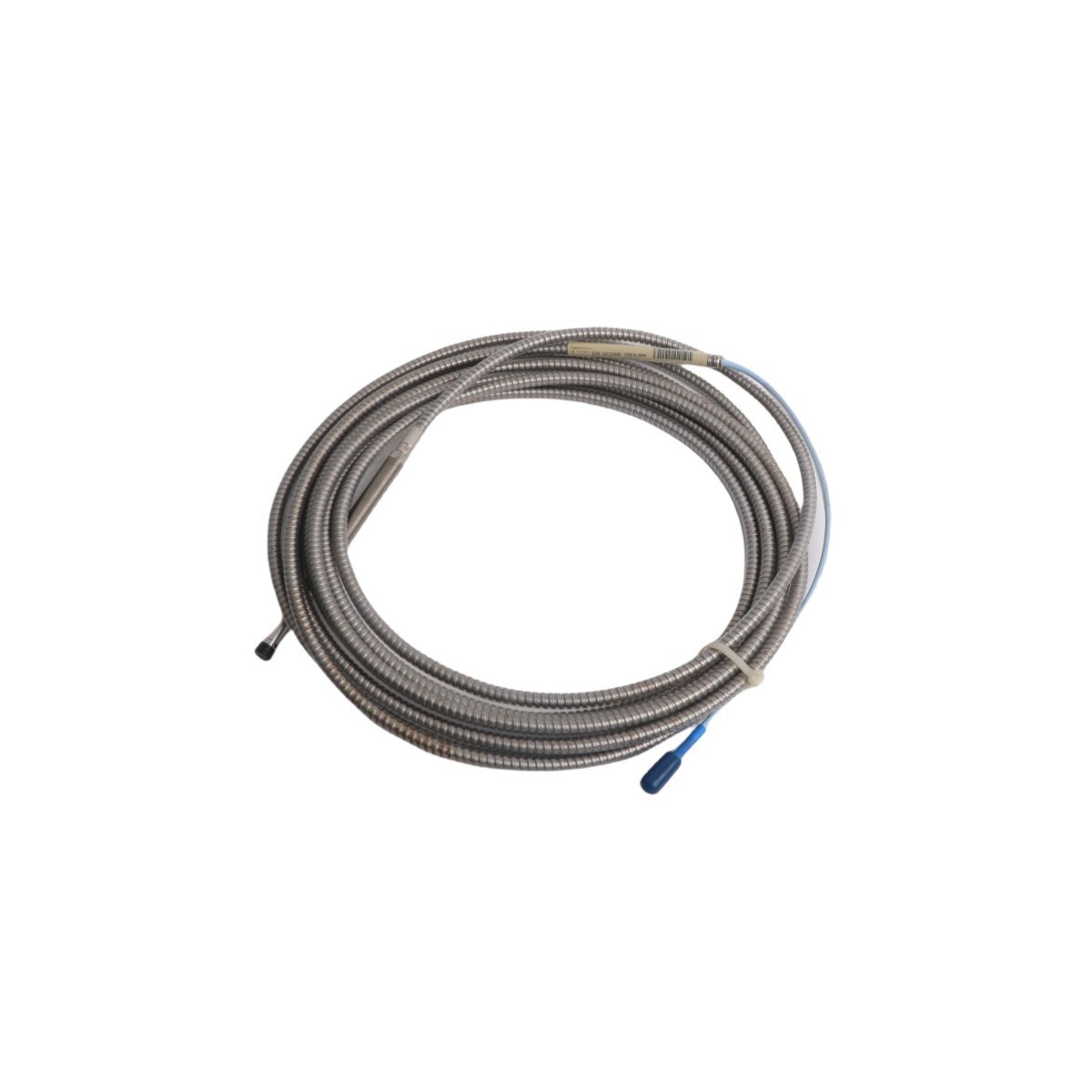

The Bently Nevada 330104-02-24-10-01-00 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and position monitoring in critical rotating machinery applications. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring since 1961—this probe is part of the trusted 3300 XL series, specifically designed to deliver exceptional signal fidelity, thermal stability, and long-term reliability in harsh industrial environments. The model utilizes an 8 mm diameter active sensing element with integrated coaxial cable termination, optimized for use with Bently Nevada 3300/3500 series monitor systems. It operates on the eddy-current principle, enabling highly accurate measurement of shaft displacement, vibration amplitude, axial position, and gap voltage without mechanical contact—thereby eliminating wear, friction, or signal degradation over time. Each unit undergoes rigorous factory calibration per ISO 17025-accredited procedures and is traceable to NIST standards. The probe is supplied in new, factory-fresh condition, individually serialized, and packaged in anti-static, moisture-resistant materials to ensure integrity from production through commissioning. Backed by a comprehensive 24-month limited warranty covering material defects and workmanship, this probe supports predictive maintenance strategies, regulatory compliance (including API 670), and operational excellence across oil & gas, power generation, petrochemical, and turbomachinery sectors. Designed and manufactured in the United States, it adheres to stringent ASME, IEEE, and IEC 61000-6-2 electromagnetic compatibility requirements, ensuring robust performance amid high EMI/RFI noise environments.

Detailed Specifications

Key Features

• High-Fidelity Signal Integrity: Precision-machined stainless-steel housing and proprietary coil winding technology minimize phase shift and harmonic distortion, delivering sub-micron resolution and repeatable accuracy across temperature gradients.
• Thermal Stability: Compensated design maintains sensitivity drift ≤ ±0.05%/°C over full operating range—critical for turbine and compressor monitoring where ambient fluctuations exceed 90°C.
• Robust Mechanical Construction: Hermetically sealed ceramic insulator, corrosion-resistant 316L stainless steel body, and reinforced cable strain relief ensure >10-year service life in high-vibration, high-humidity, and chemically aggressive settings.
• Plug-and-Play Integration: Fully compatible with Bently Nevada 3300/3500 monitors, System 1 software, and third-party DCS/SCADA platforms via standard 4–20 mA or Modbus RTU interfaces (with appropriate interface modules).
• Factory Calibration Certificate Included: Each probe ships with a NIST-traceable calibration report documenting linearity error (<±0.5%), frequency response (DC to 10 kHz), and temperature coefficient verification.
• Optimized for Critical Machinery: Engineered to meet API 670 Category 3 requirements for high-speed compressors, steam/gas turbines, centrifugal pumps, and large electric motors—supporting ISO 10816-3 and ISO 20816-1 vibration severity assessments.
• Eco-Conscious Manufacturing: Compliant with RoHS 3 Directive 2015/863 and REACH Regulation (EC) No. 1907/2006; lead-free soldering, halogen-free insulation, and recyclable packaging reduce environmental footprint.

Applications

• Turbomachinery Monitoring: Real-time axial position, thrust bearing wear detection, and differential expansion analysis in steam turbines, gas turbines, and air compressors.
• Rotating Equipment Protection: Overspeed shutdown, bearing clearance verification, and rub detection in centrifugal and axial-flow pumps used in refineries and chemical processing plants.
• Power Generation Systems: Generator rotor eccentricity, stator core vibration, and exciter shaft runout monitoring in nuclear, combined-cycle, and hydroelectric facilities.
• Oil & Gas Infrastructure: Critical monitoring of reciprocating compressor crossheads, turboexpander shafts, and LNG train drivers—meeting API RP 1174 and ISA 84.01 safety lifecycle requirements.
• Predictive Maintenance Programs: Enabling early fault identification (e.g., misalignment, imbalance, looseness, resonance) as part of IIoT-enabled digital twin and analytics platforms.
• Regulatory Compliance & Auditing: Supporting mandatory API 670, ISO 13373-1, and ANSI/ISA-18.2 alarm management frameworks for rotating equipment health reporting and audit readiness.
• Retrofit & Modernization Projects: Seamless replacement for legacy 3300 non-XL probes or competitor transducers—reducing downtime during control system upgrades and brownfield expansions.
