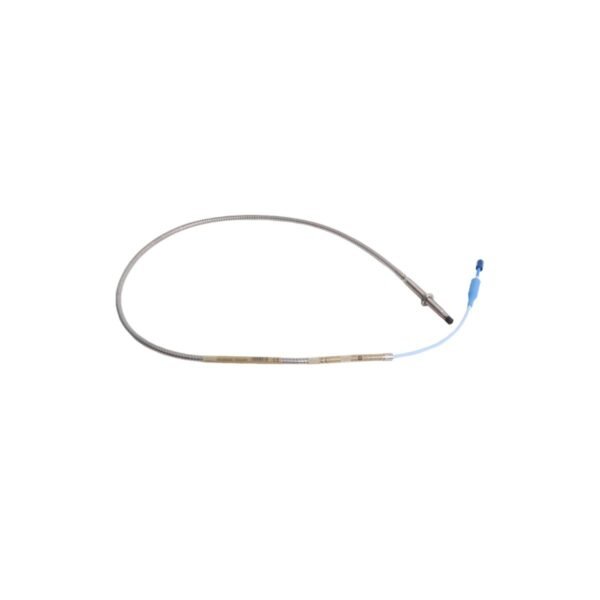

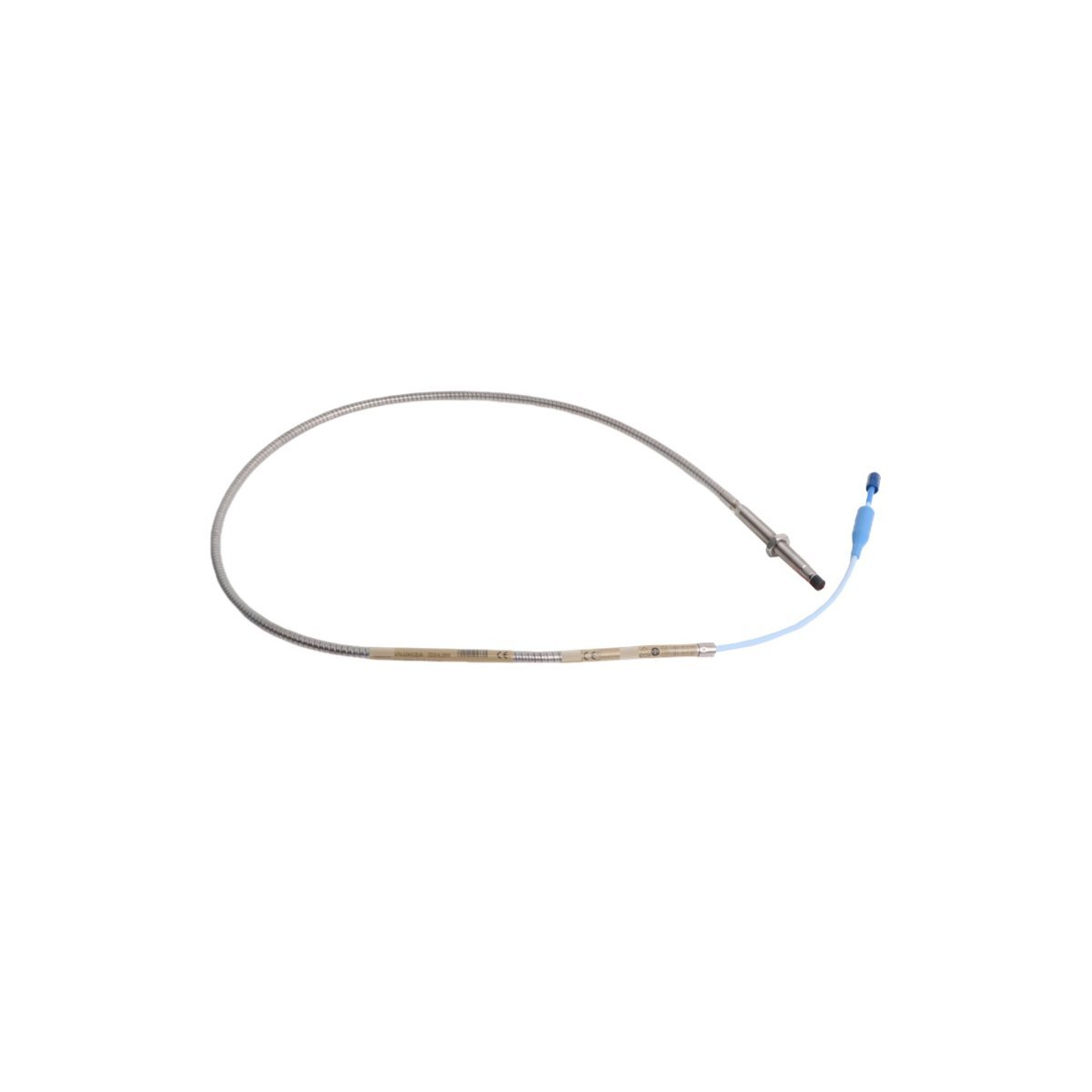

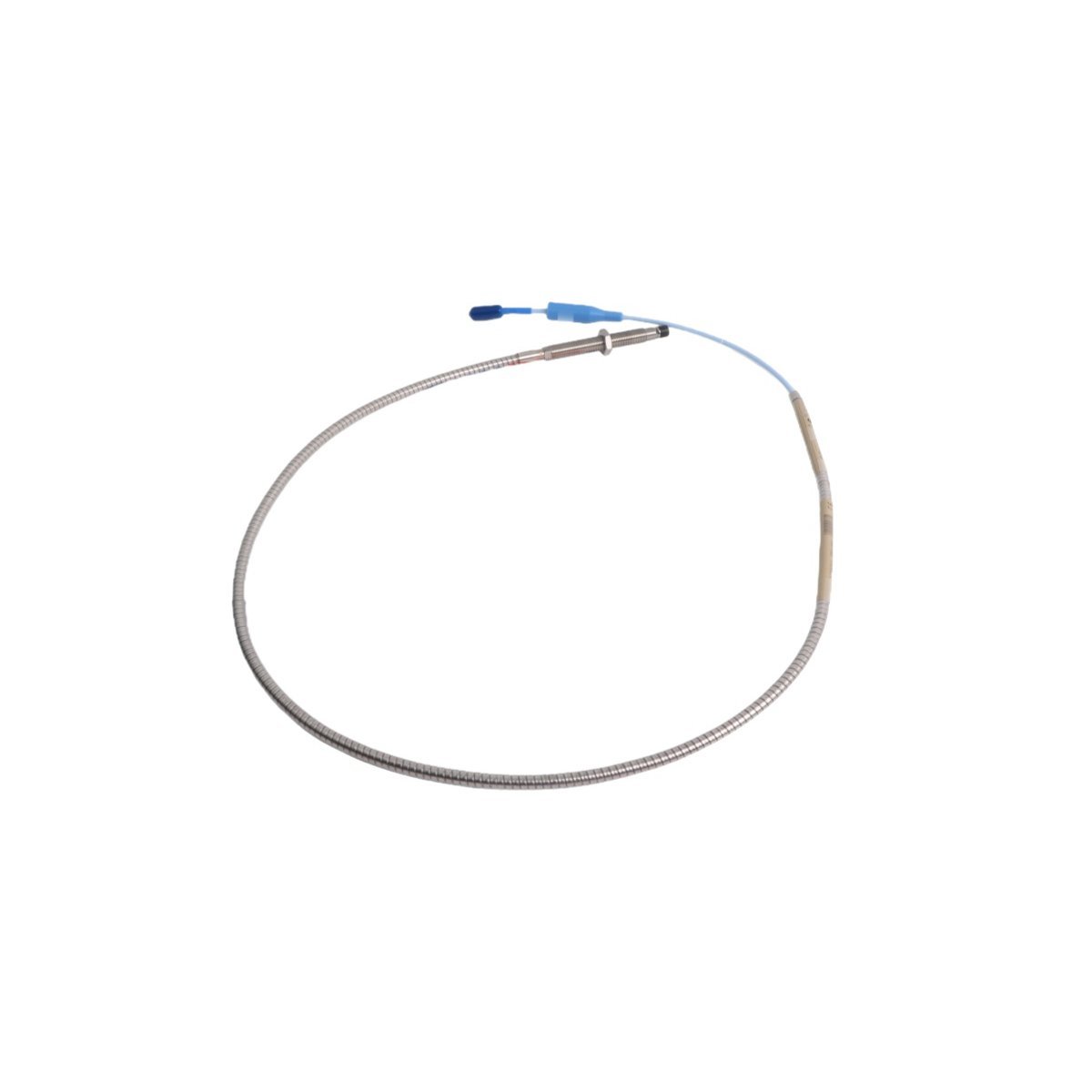

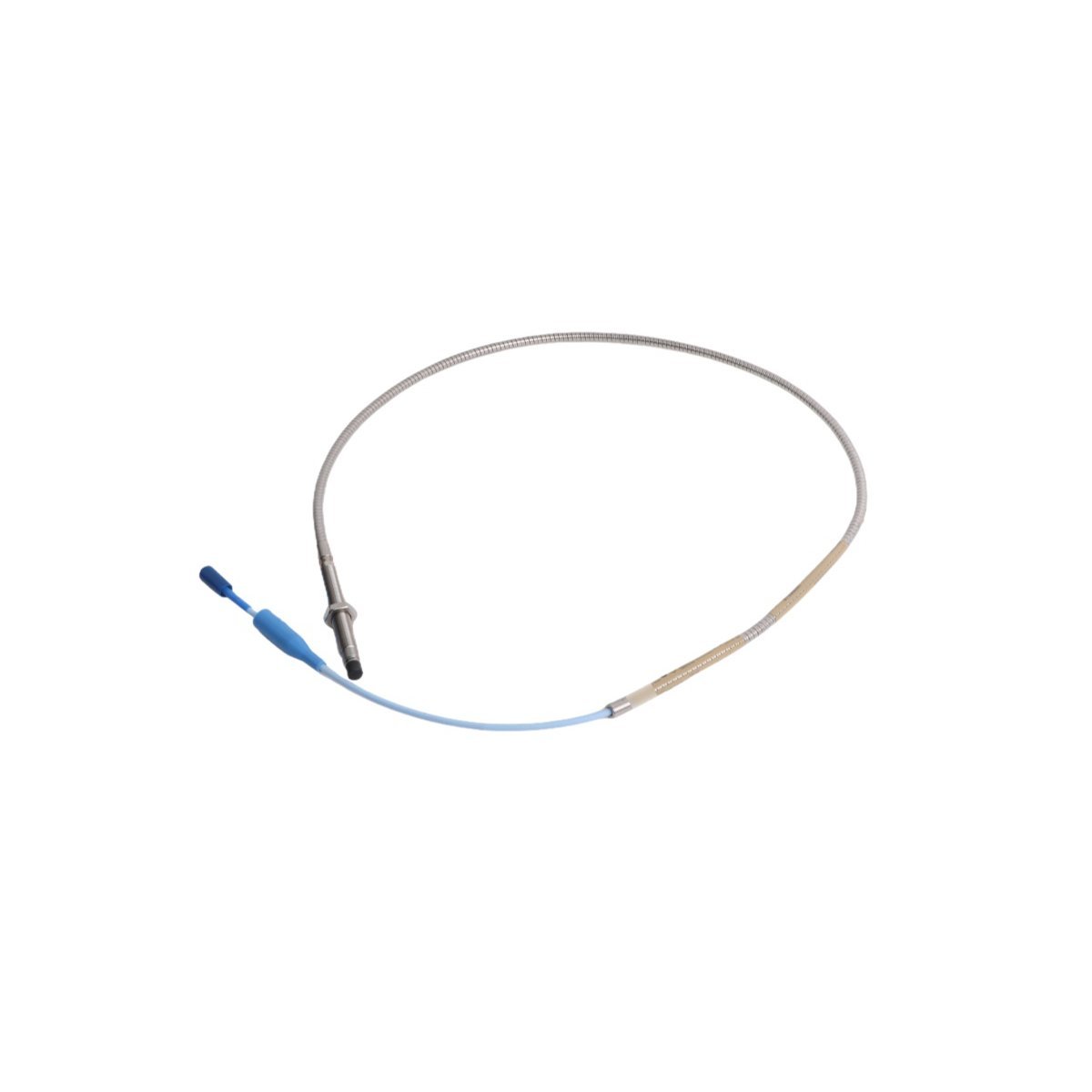

The Bently Nevada 330104-01-12-05-01-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset protection and condition monitoring since 1961—this probe is part of the trusted 3300 XL series, specifically designed to deliver exceptional signal fidelity, thermal stability, and long-term reliability in demanding environments. As a key component of the 3300 XL 8 mm sensor system, the 330104-01-12-05-01-05 integrates seamlessly with 3300 XL extension cables and monitors (e.g., 3300 Rack, 3500 System) to form a complete eddy-current sensing solution compliant with API RP 670 (4th Edition) and ISO 10816 standards. This probe operates on the principle of electromagnetic induction: a high-frequency oscillator generates a magnetic field at the probe tip; changes in the distance between the probe and a conductive target (typically ferromagnetic shaft material) induce measurable variations in coil impedance, which are linearly converted into calibrated voltage outputs (typically –2 VDC to –18 VDC). Its robust construction features a stainless steel housing, PTFE-insulated coaxial cable, and hermetically sealed electronics—ensuring immunity to oil, steam, chemical exposure, and mechanical shock. Designed for permanent installation in turbine, compressor, motor, and generator applications, this probe supports predictive maintenance strategies by enabling real-time detection of shaft orbit, runout, bearing wear, misalignment, and rotor dynamics anomalies. All units are factory-calibrated using certified traceable standards and undergo rigorous environmental stress screening—including thermal cycling from –40 °C to +121 °C and vibration testing per MIL-STD-810G—to guarantee performance consistency across decades of service life.

Detailed Specifications

Key Features

• High-Fidelity Signal Integrity: Optimized coil geometry and precision-wound copper windings deliver superior linearity (< ±0.5% full scale), low hysteresis (< 0.1%), and minimal temperature drift (< 0.02%/°C), ensuring measurement repeatability across wide ambient fluctuations.
• Robust Industrial Construction: 316 stainless steel probe body with ceramic insulator and gold-plated connector contacts resist corrosion, abrasion, and thermal degradation—even in hydrocarbon-rich or high-humidity turbine enclosures.
• Extended Cable Integration: Integral 5-meter low-capacitance coaxial cable eliminates field splicing, reduces noise susceptibility, and maintains signal-to-noise ratio > 80 dB across the entire frequency bandwidth (0–10 kHz).
• API 670-Compliant Calibration: Each unit is individually calibrated against NIST-traceable standards using automated test fixtures; includes serialized calibration certificate with sensitivity, linearity, and phase response data.
• Plug-and-Play Compatibility: Fully interoperable with all Bently Nevada 3300 XL monitoring systems—including 3300 Rack, 3500/22M, and 3500/42M monitors—enabling seamless integration without configuration overhead.
• Enhanced Environmental Resilience: Rated IP68 for submersion up to 3 meters and validated for continuous operation in explosive atmospheres (ATEX/IECEx Zone 1), making it ideal for offshore platforms and petrochemical facilities.
• Long-Term Stability Guarantee: Less than 0.1% zero-shift and < 0.2% sensitivity drift over 5 years of continuous operation—backed by Baker Hughes’ global service network and technical support infrastructure.

Applications

• Steam and Gas Turbines: Monitoring thrust position, differential expansion, casing relative growth, and shaft vibration in power generation and combined-cycle plants per ISO 10816-3 Class U requirements.
• Centrifugal Compressors: Detecting surge onset, blade pass frequency harmonics, and radial/axial shaft displacement in oil & gas transmission, refining, and LNG liquefaction facilities.
• Large Electric Motors and Generators: Measuring air-gap variation, rotor eccentricity, and bearing pedestal motion to prevent catastrophic winding failure or insulation breakdown.
• Aero-Derivative Engines: Supporting health monitoring programs in marine propulsion and emergency backup systems where compact size and high-frequency response (up to 10 kHz) are mission-critical.
• Pulp & Paper Machinery: Providing reliable shaft position feedback for calender rolls, dryer cans, and refiners operating in high-temperature, high-moisture environments.
• Water/Wastewater Pump Stations: Enabling predictive maintenance on vertical turbine pumps and large centrifugal units subject to cavitation, imbalance, and hydraulic loading transients.
• Condition Monitoring Systems (CMS) Integration: Serving as primary sensors in enterprise-level CMS deployments leveraging Bently Nevada System 1™ software for trend analysis, alarm management, and machine learning–driven diagnostics.
