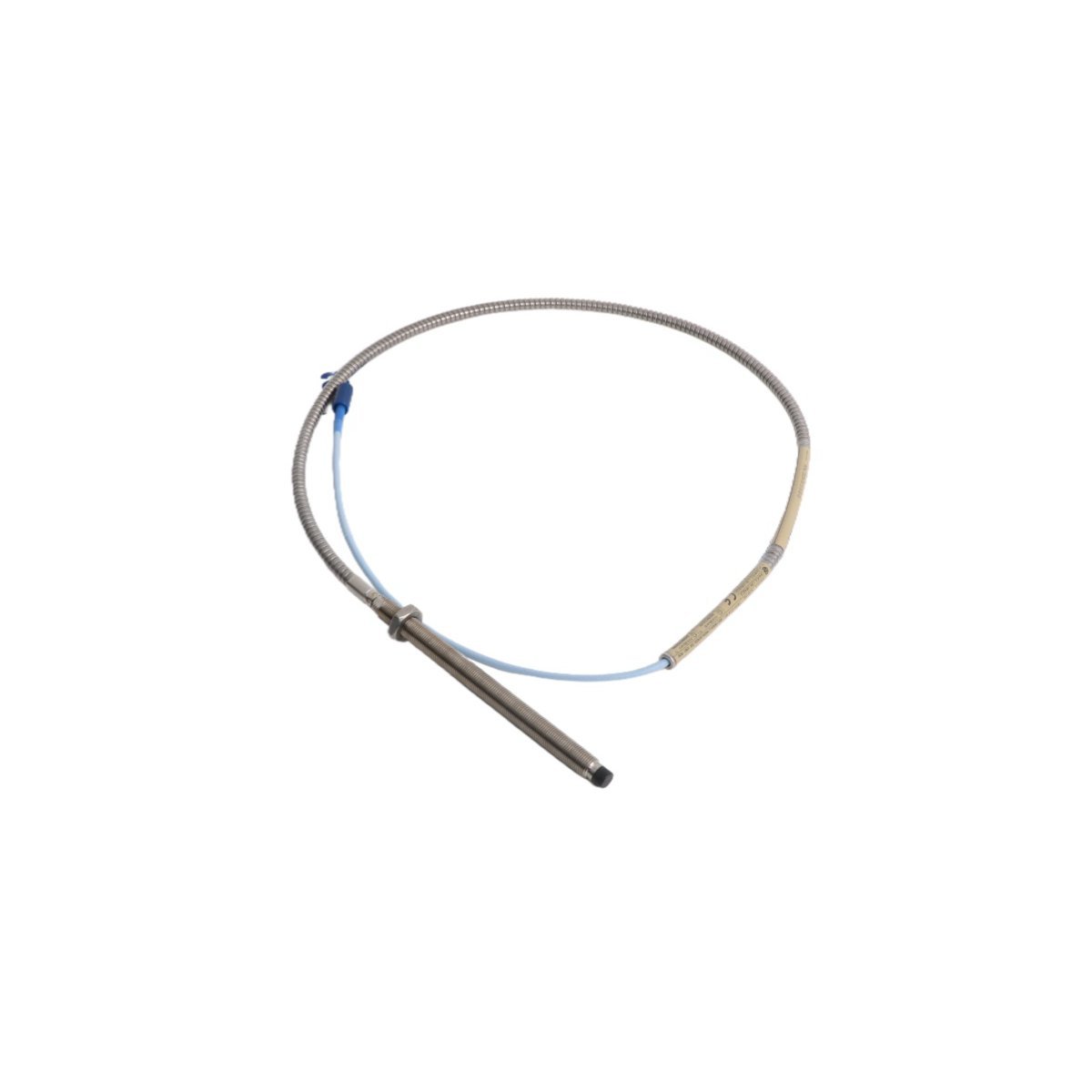

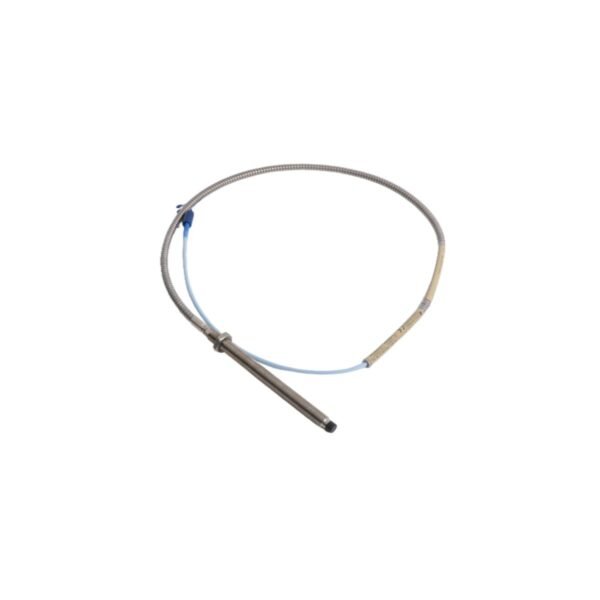

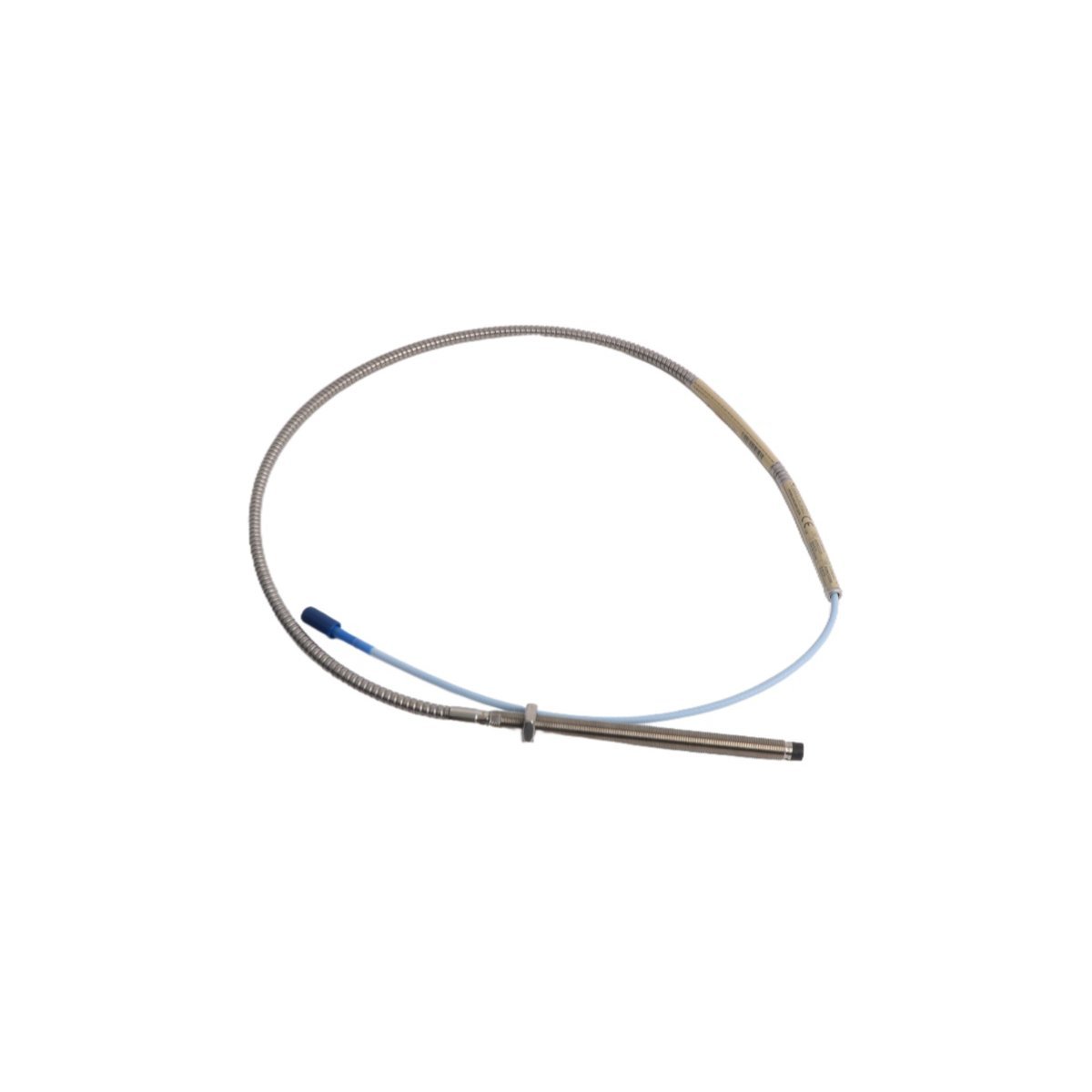

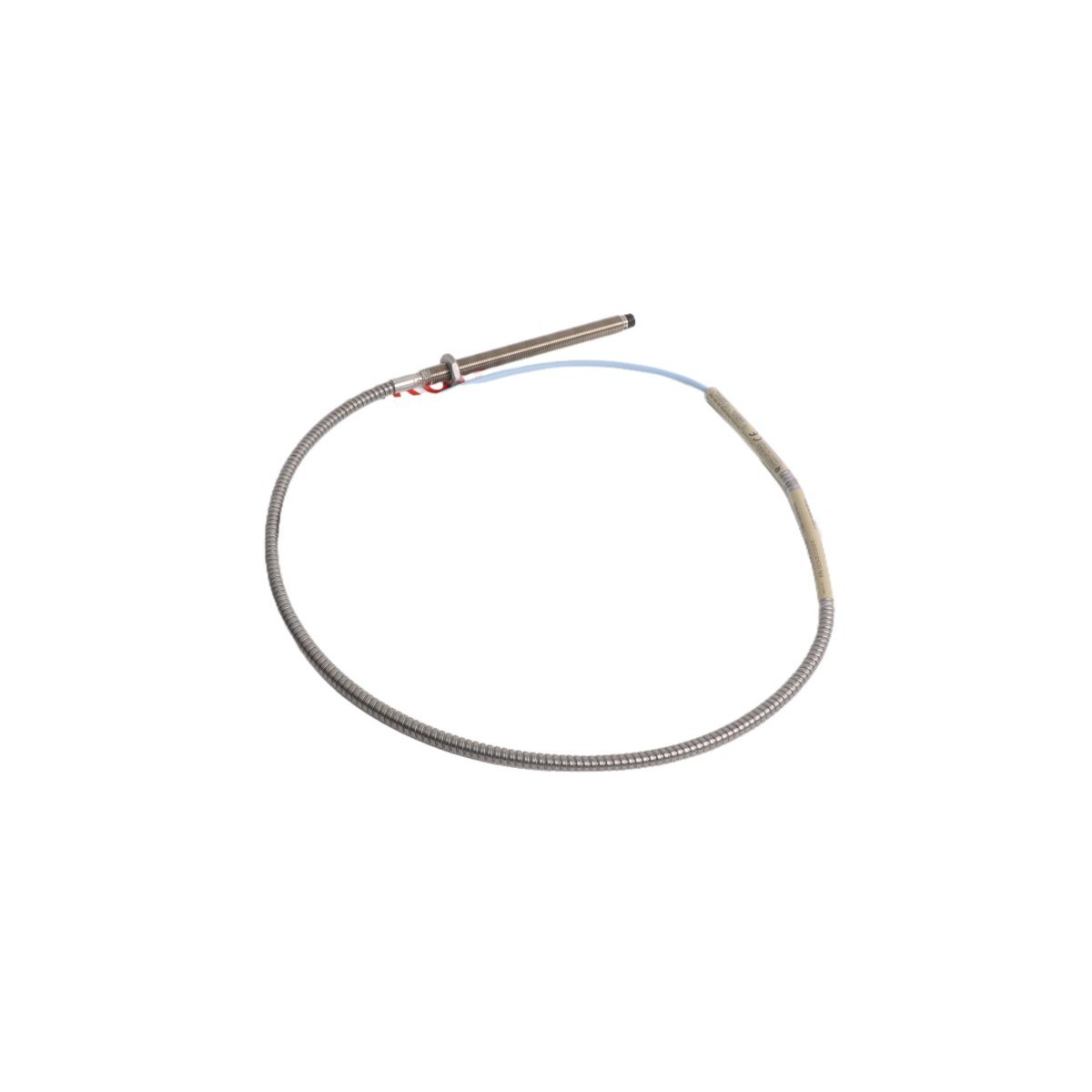

The Bently Nevada 330104-00-13-05-02-05 Proximity Probe is a high-precision, industrial-grade eddy-current sensor engineered for continuous, non-contact displacement and vibration monitoring of rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset condition monitoring and predictive maintenance solutions, this probe forms an integral component of the 3300 XL series proximity transducer systems. Designed to operate reliably in harsh industrial environments—including high temperatures, electromagnetic interference, and mechanical shock—the 330104-00-13-05-02-05 delivers exceptional linearity, repeatability, and thermal stability across its full measurement range. Its robust stainless steel construction, hermetically sealed design, and optimized coil geometry ensure long-term accuracy and immunity to environmental contaminants such as oil, steam, dust, and moisture. This probe is calibrated to interface seamlessly with Bently Nevada 3300 XL 50/55/75 series monitors and compatible data acquisition systems, enabling real-time shaft orbit analysis, radial vibration trending, differential expansion detection, and axial position verification. As a factory-new, original-equipment-manufacturer (OEM) product, it complies fully with ISO 10816, API 670 (4th Edition), and IEC 61000-6-2/6-4 electromagnetic compatibility standards. Each unit undergoes rigorous 100% functional testing at the manufacturing facility in Minden, Nevada, USA—ensuring traceable calibration, documented sensitivity (7.87 V/mm or 200 mV/mil), and compliance with NIST-traceable metrology protocols.

Detailed Specifications

Key Features

• OEM Precision Calibration: Factory-calibrated to exact Bently Nevada 3300 XL system specifications, ensuring plug-and-play compatibility without field recalibration.
• Hermetic Sealing & Corrosion Resistance: IP68-rated housing with welded stainless steel construction prevents ingress of process fluids, hydrocarbons, and particulates—ideal for refinery, power generation, and marine applications.
• Thermal Stability: Integrated temperature-compensation circuitry maintains sensitivity drift below ±0.05%/°C over the full operating range—critical for turbine and compressor monitoring where ambient fluctuations exceed 80 °C.
• High-Fidelity Signal Integrity: Low-noise, shielded internal cabling and gold-plated RF connectors minimize EMI/RFI susceptibility and preserve signal-to-noise ratio (>80 dB) even in electrically noisy switchgear environments.
• API 670 Compliance Ready: Meets all mandatory requirements for Machinery Protection Systems (MPS), including fault detection thresholds, response time (<5 ms), and redundancy support for critical trains.
• Extended Service Life: Rated for >100,000 hours MTBF under continuous operation; validated through accelerated life-cycle testing per MIL-STD-810G.
• Traceable Metrology: Each probe ships with a serialized calibration certificate referencing NIST-traceable standards and full test report (including phase linearity, frequency sweep, and thermal hysteresis data).

Applications

• Steam and Gas Turbines: Monitoring radial vibration, shaft orbit, and thrust position in GE, Siemens, Mitsubishi, and Alstom OEM turbines—supporting ISO 10816-3 Class A/B severity assessments.
• Centrifugal Compressors: Detecting surge onset, bearing wear progression, and casing distortion in petrochemical, LNG, and air separation plants compliant with API RP 686 guidelines.
• Large Electric Motors & Generators: Providing differential expansion feedback and rotor eccentricity measurement for synchronous machines exceeding 5 MW output capacity.
• Hydroelectric Units: Enabling continuous shaft runout tracking and guide bearing clearance verification in vertical Francis and Kaplan turbine installations.
• Reciprocating Machinery: Capturing crosshead displacement and cylinder liner wear signatures in large-bore natural gas compressors and marine diesel engines.
• Critical Pump Trains: Supporting API 610-compliant vibration protection for API BB3, BB5, and VS4 pumps in offshore platforms and chemical processing facilities.
• Research & Development Test Stands: Serving as a reference-grade displacement sensor in university and OEM durability labs for modal analysis, balancing validation, and control algorithm development.
