Description

Technical Overview

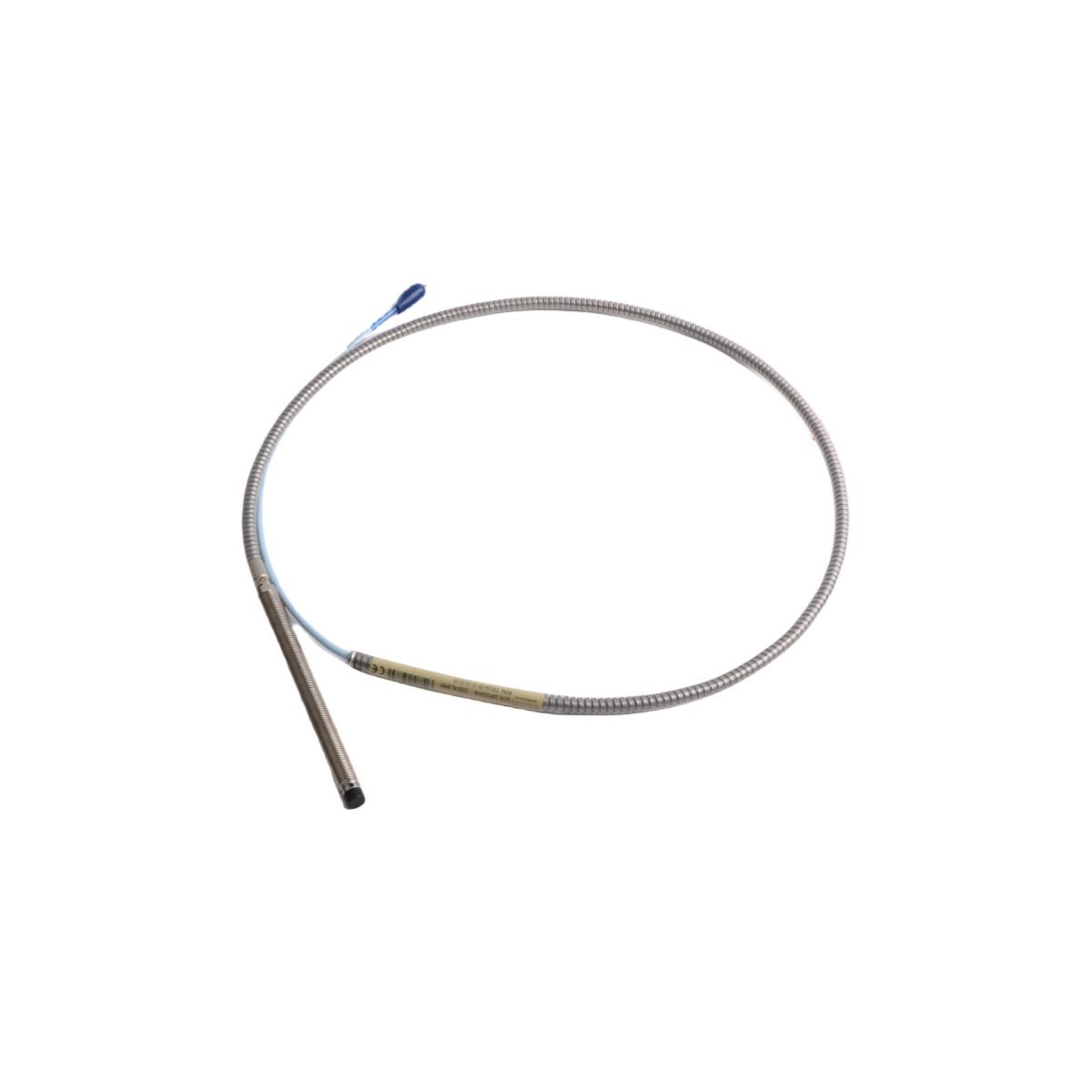

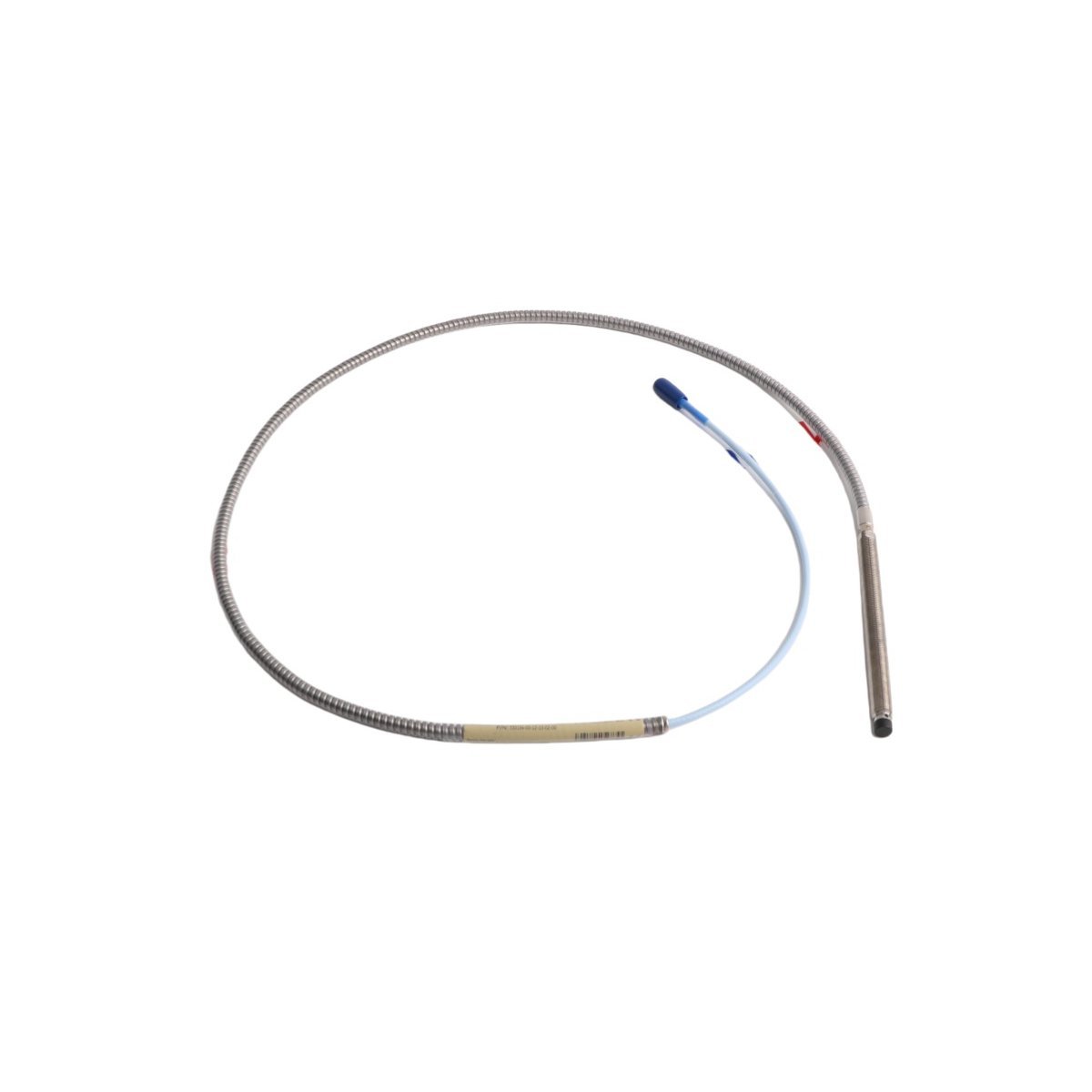

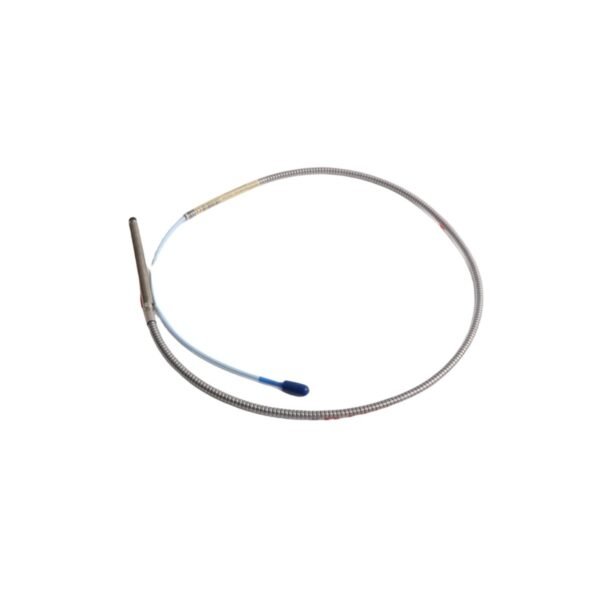

The Bently Nevada 330104-00-12-10-02-00 is a high-precision, non-contact eddy-current proximity probe engineered for critical machinery condition monitoring and protection systems. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset reliability and predictive maintenance solutions—this probe forms an integral component of the 3300 XL 8 mm sensor system family. Designed for continuous, real-time measurement of shaft vibration, axial position, and differential expansion in rotating equipment, the 330104-00-12-10-02-00 delivers exceptional linearity, thermal stability, and signal integrity across demanding industrial environments. Its robust construction adheres to stringent IEC 61508 SIL 2 functional safety requirements and meets API 670 (4th Edition) standards for machinery protection systems. The probe operates on the principle of eddy-current displacement sensing, utilizing a high-frequency oscillator circuit that generates a stable electromagnetic field; changes in target distance modulate the field’s impedance, which is linearly converted into a calibrated DC voltage output (typically –2 to –18 VDC). This model is supplied in new, factory-fresh condition, rigorously tested per OEM specifications prior to shipment, and backed by a comprehensive 24-month limited warranty covering material defects and workmanship. Assembled in the United States, it reflects Bently Nevada’s commitment to precision engineering, traceable quality control, and compliance with ISO 9001:2015 certified manufacturing processes. With a compact cylindrical form factor optimized for confined mounting spaces, the probe integrates seamlessly with 3300 XL extension cables and 3300 series monitors—including the 3300/16, 3300/20, and 3500 vibration monitoring systems—enabling scalable, modular system architecture for both legacy retrofits and greenfield installations.

Detailed Specifications

Key Features

• Precision Calibration & Traceability: Each unit is individually calibrated using NIST-traceable standards and shipped with a unique calibration certificate documenting sensitivity, linearity error (<±0.5% full scale), and thermal drift performance.
• Enhanced Thermal Stability: Advanced coil winding and core material selection minimize sensitivity drift to <0.05%/°C over operating range—critical for turbine and compressor applications experiencing wide ambient fluctuations.
• Robust Mechanical Design: Corrosion-resistant 316L stainless steel housing with integrated strain relief and hermetically sealed connector ensures longevity in high-vibration, high-humidity, and chemically aggressive environments.
• Optimized Electromagnetic Compatibility (EMC): Meets IEC 61000-4-3 (Radiated Immunity) and IEC 61000-4-6 (Conducted Immunity) standards, reducing susceptibility to EMI from VFDs, RF transmitters, and arc welding operations.
• Plug-and-Play Integration: Fully compatible with Bently Nevada 3300 XL extension cables (e.g., 330130-00-00-10-02-00) and all 3300-series monitors without configuration or scaling adjustments—reducing commissioning time and human error.
• Extended Service Life: Rated for >100,000 hours MTBF (Mean Time Between Failures) under continuous operation, validated through accelerated life testing per MIL-STD-781.
• Global Regulatory Compliance: Certified for hazardous locations (ATEX, IECEx), marine (DNV-GL), and nuclear-grade auxiliary systems (10 CFR 50 Appendix B compliant documentation available upon request).

Applications

• Steam and Gas Turbines: Monitoring radial vibration of high-speed shafts (>10,000 RPM), thrust collar position, and bearing housing relative displacement in power generation and combined-cycle plants.
• Centrifugal Compressors & Pumps: Detecting imbalance, misalignment, and bearing wear in petrochemical, refining, and LNG facilities where process continuity is mission-critical.
• Aero-Derivative Engines: Providing accurate shaft orbit analysis and start-up/shutdown clearance monitoring for aviation-derived industrial gas turbines.
• Electric Motors & Generators: Enabling predictive maintenance of sleeve bearings and detecting rotor eccentricity or stator-to-rotor rub conditions in large frame motors (>5 MW).
• Rolling Mills & Paper Machinery: Measuring roll position and deflection in high-load, high-temperature metallurgical and pulp & paper production lines.
• Condition Monitoring Systems (CMS) Integration: Serving as primary input sensors for enterprise-wide reliability platforms such as Bently Nevada System 1, GE Digital Predix, and OSIsoft PI System—supporting advanced analytics, digital twin modeling, and failure mode prediction.
• Safety Instrumented Systems (SIS): Deployed in dual-channel or triple-redundant configurations for emergency shutdown (ESD) logic solvers compliant with IEC 61511, protecting personnel and infrastructure against catastrophic mechanical failure.
