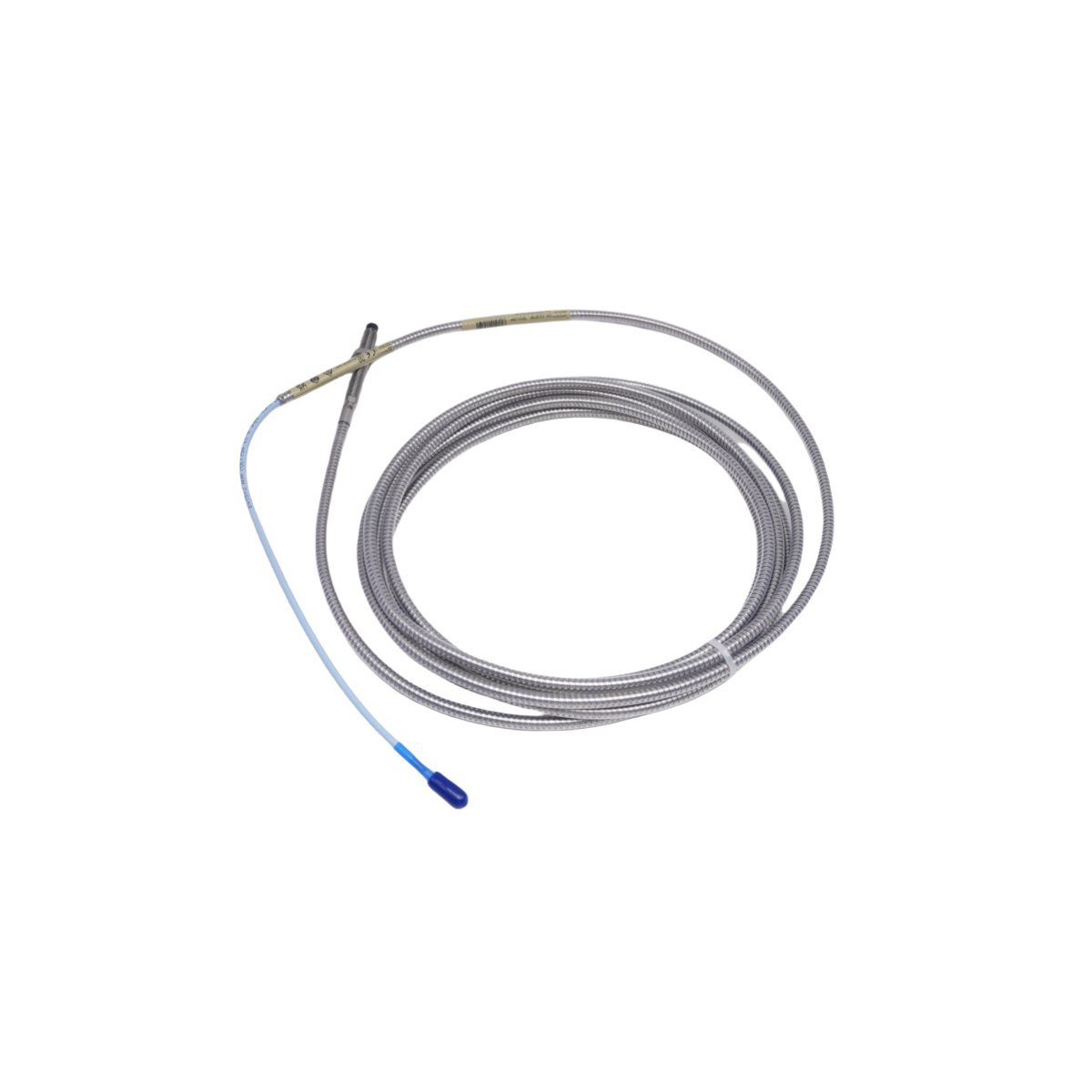

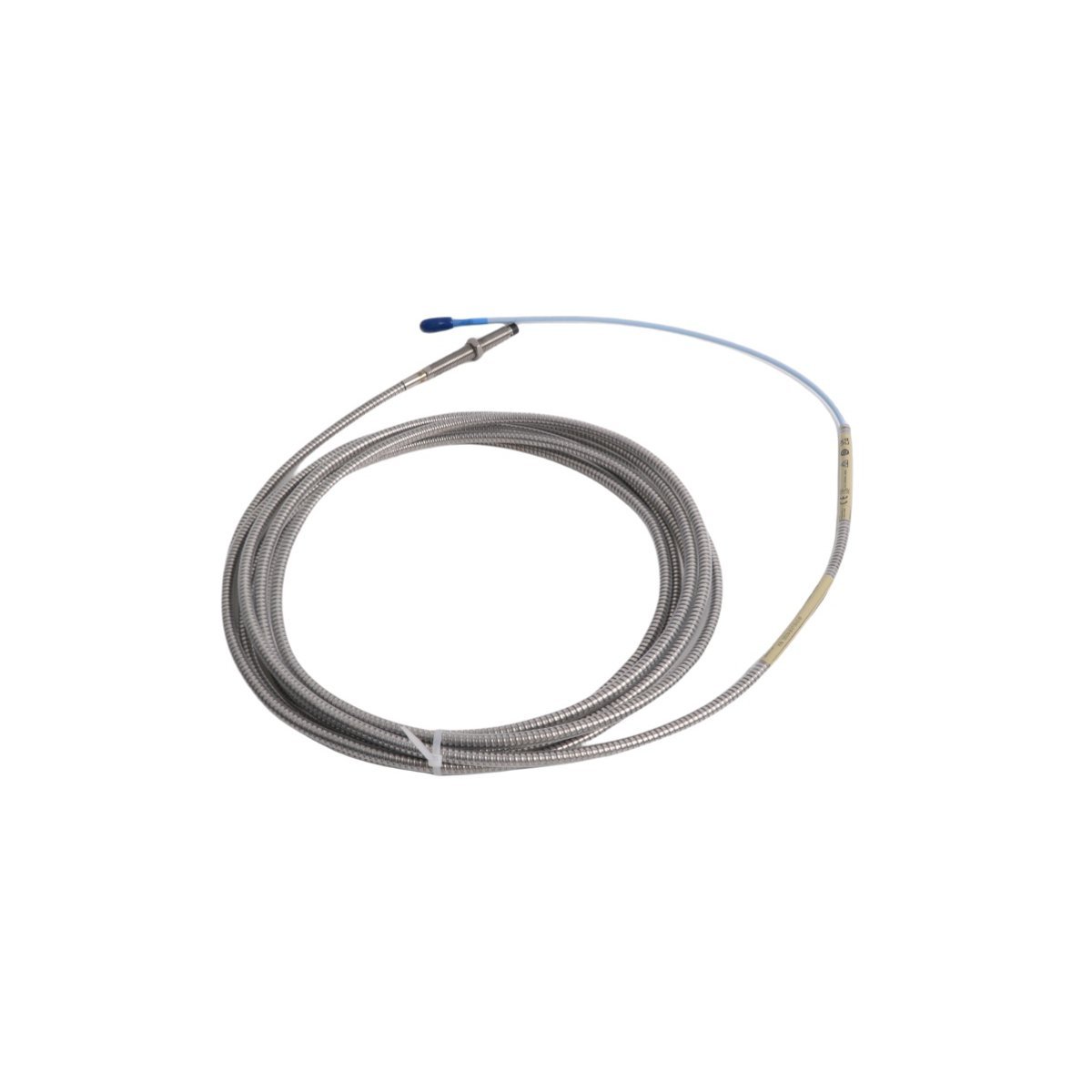

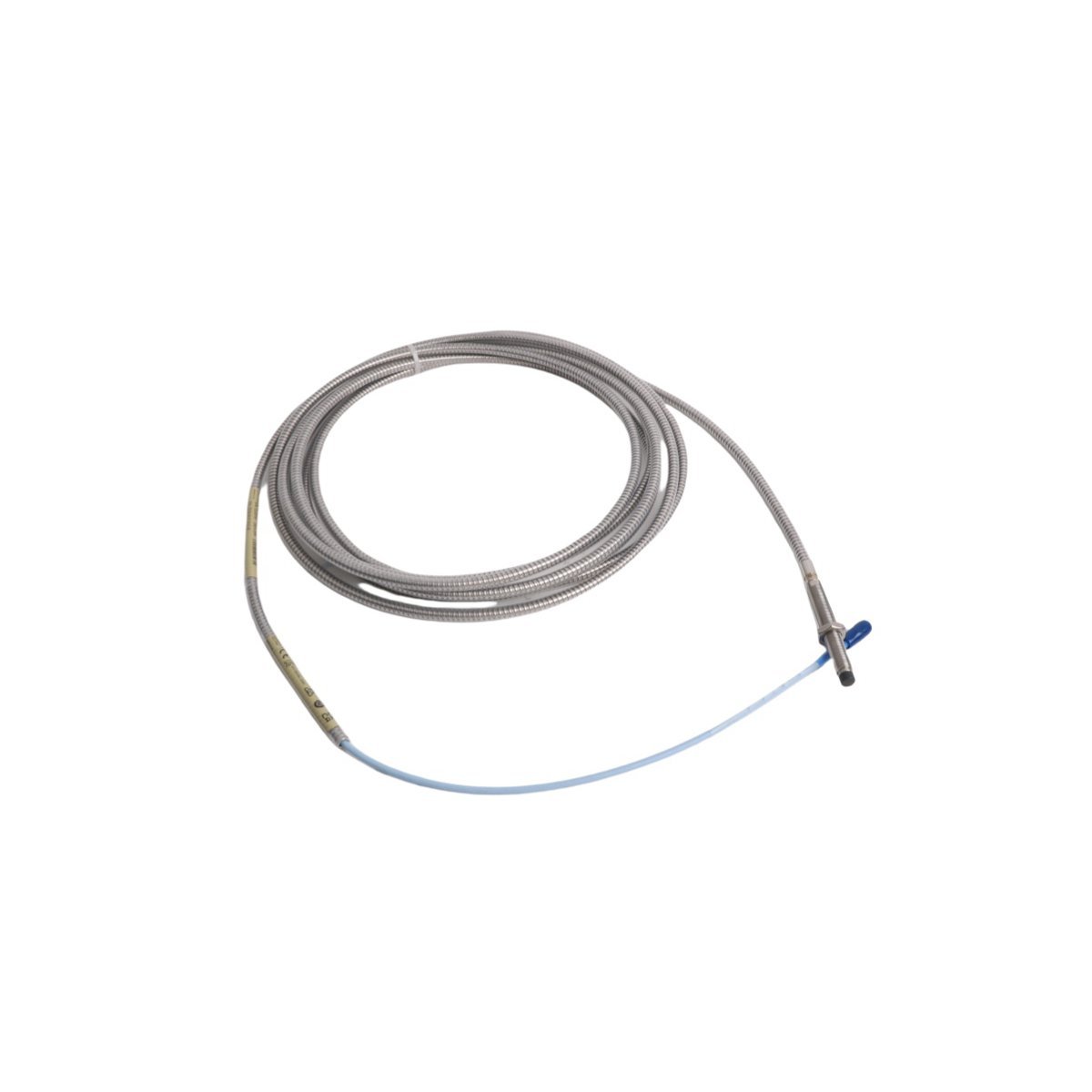

The Bently Nevada 330104-00-07-50-02-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset condition monitoring and predictive maintenance solutions, this probe forms an integral component of the industry-standard 3300 XL 8 mm sensor system. Designed to operate within the rigorous demands of power generation, oil & gas, petrochemical, and heavy industrial environments, the 3330104-00-07-50-02-05 delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity across extended temperature ranges. Its robust construction features a stainless steel housing with a PTFE-insulated, low-noise coaxial cable optimized for signal integrity over distances up to 9 meters (when used with compatible 3300 XL extension cables and前置amplifiers). The probe operates on the eddy-current principle, providing highly accurate measurements of shaft radial vibration, axial position, differential expansion, and thrust collar movement—enabling real-time diagnostics and early fault detection. All units are factory-calibrated to meet API 670 (4th Edition) and ISO 10816 standards, ensuring compliance with global machinery protection requirements. This probe is supplied new, in original factory packaging, and is backed by a comprehensive 24-month limited warranty covering material defects and workmanship under normal use and proper installation conditions.

Detailed Specifications

Key Features

• Precision 8 mm Sensing Technology: Optimized for high-resolution measurement of small mechanical displacements with ±0.5% linearity error across full calibrated range.
• Enhanced Thermal Stability: Advanced coil winding and core materials minimize sensitivity drift (<0.05%/°C) across operational temperatures—critical for turbine and compressor monitoring.
• EMI/RFI Immunity: Integrated triple-shielded coaxial cable and proprietary grounding architecture ensure reliable operation in electrically noisy plant environments (e.g., near VFDs, switchgear, and large motors).
• Corrosion-Resistant Construction: 316 stainless steel probe body and PTFE jacketed cable provide long-term durability in aggressive chemical, high-humidity, and marine-exposed installations.
• Plug-and-Play Integration: Fully compatible with Bently Nevada 3300 XL preamplifiers (e.g., 3300 XL 50 mV/mm or 200 mV/mm models), 3500/40M monitors, and System 1™ software platforms without recalibration.
• Factory-Calibrated & Traceable: Each unit includes NIST-traceable calibration certificate with individual sensitivity, linearity, and frequency response data—ensuring audit readiness and regulatory compliance.
• Optimized Cable Geometry: Low-capacitance, impedance-matched RG-174/U cable reduces signal attenuation and phase shift, preserving dynamic response up to 10 kHz bandwidth.
• Global Support Infrastructure: Backed by Baker Hughes’ worldwide service network—including application engineering, field commissioning, training, and spare parts logistics.

Applications

• Steam and Gas Turbines: Monitoring radial vibration of high-speed shafts, bearing housing relative motion, and thrust position in base-load and peaking units.
• Centrifugal Compressors & Pumps: Detecting imbalance, misalignment, bearing wear, and surge precursors via shaft orbit analysis and axial float measurement.
• Electric Generators & Motors: Measuring air-gap variation, rotor eccentricity, and frame vibration to prevent catastrophic stator-rotor contact.
• Petrochemical Process Rotating Equipment: Continuous monitoring of critical pumps, fans, and blowers operating in hazardous areas requiring intrinsic safety or explosion-proof compliance.
• Power Transmission Systems: Assessing gear mesh dynamics, coupling health, and torsional vibration in combined-cycle and renewable-integrated plants.
• Condition-Based Maintenance Programs: Feeding real-time data into predictive analytics platforms (e.g., Baker Hughes Asset Suite, GE Digital Predix) for remaining useful life (RUL) estimation and maintenance optimization.
• Regulatory Compliance Monitoring: Supporting mandatory API 670-compliant machinery protection systems (MPS) for Class I, II, and III rotating equipment in O&G refineries and LNG facilities.
