330104-00-06-10-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes
Description
330104-00-06-10-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes
### Product Description

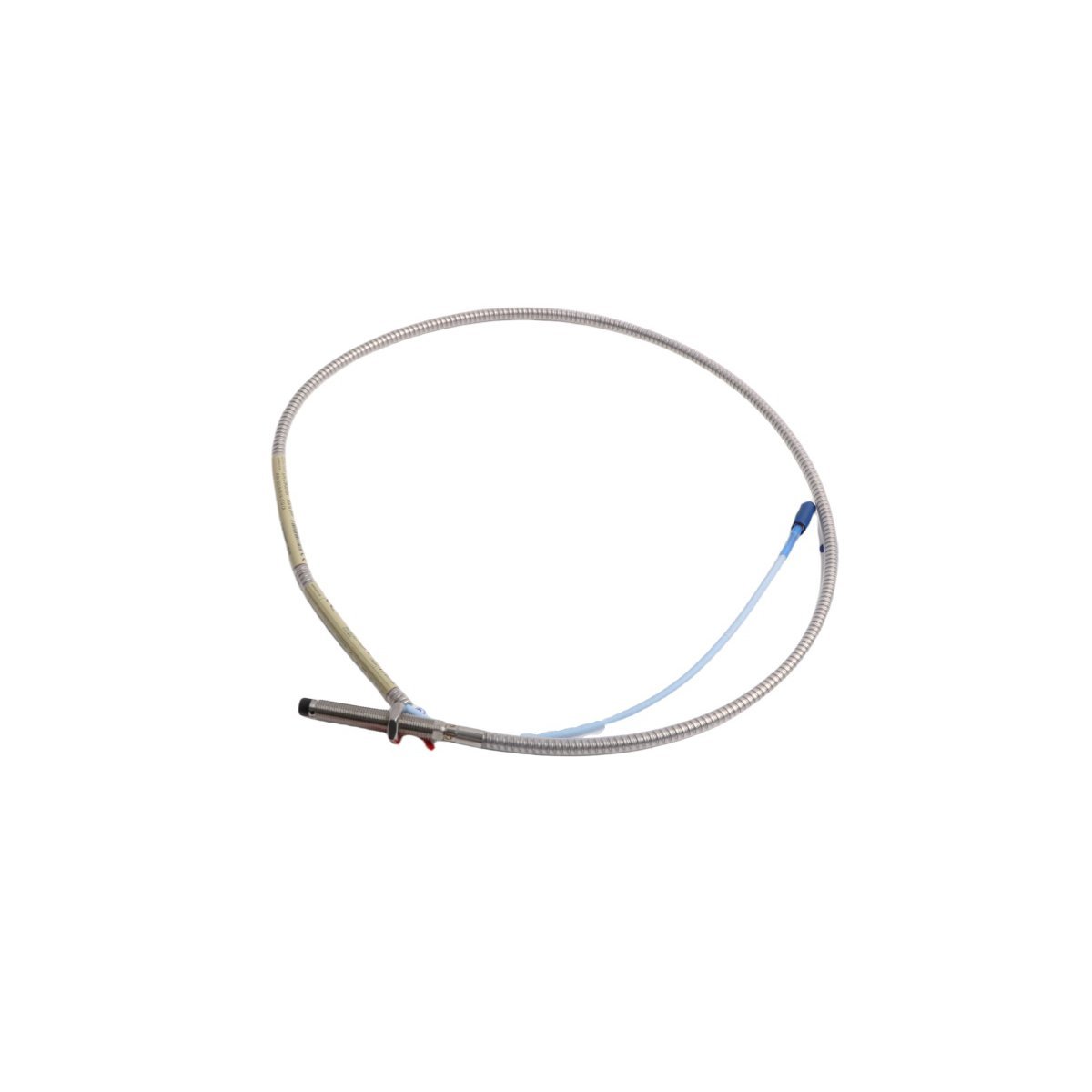

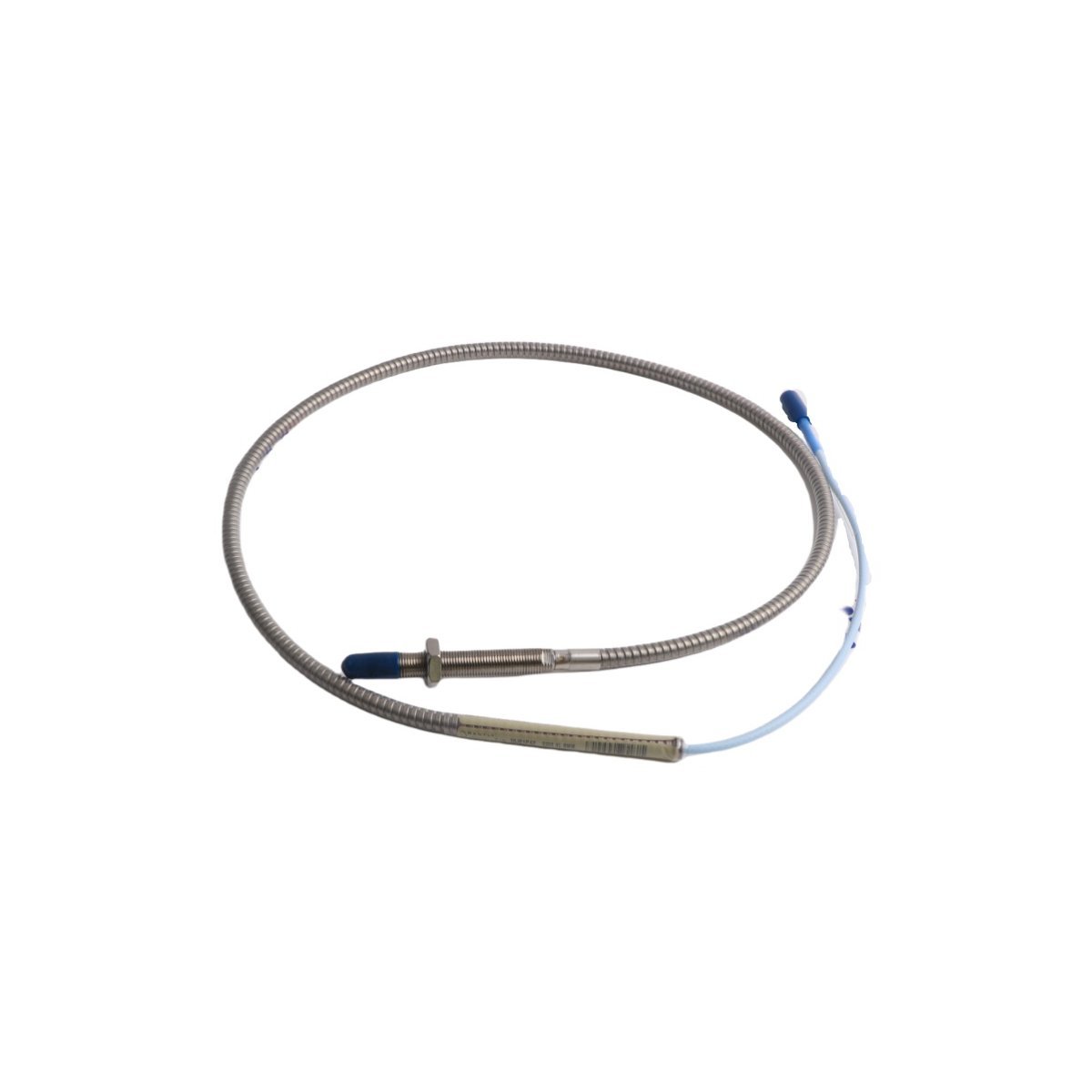

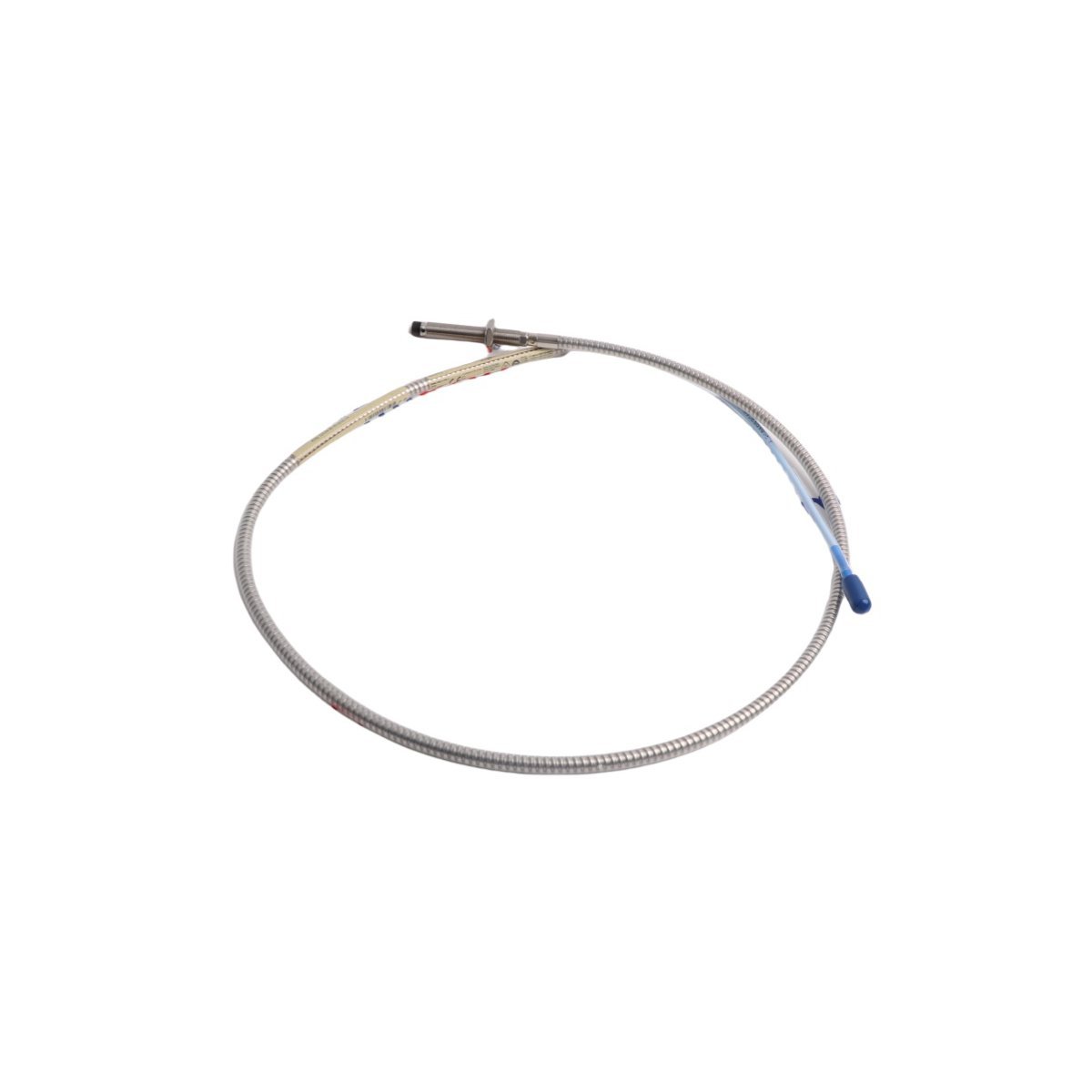

The 330104-00-06-10-02-05 is a non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL series. It delivers high-fidelity displacement and vibration measurements for rotating machinery.
Moreover, it is engineered for continuous monitoring of shaft position, vibration, and speed in harsh industrial environments. Therefore, it supports predictive maintenance and machine protection systems in critical turbomachinery applications. In addition, its robust construction ensures stable performance under high temperature, pressure, and electromagnetic interference.
### Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (a Baker Hughes business) |
| Product Type | Proximity Probe (Eddy-Current) |
| Product Number | 330104-00-06-10-02-05 |
| Country of Origin | United States |
| Weight | 0.12 kg (0.26 lb) |
| Dimensions (L × Ø) | 120 mm × 8 mm (4.72 in × 0.31 in) |
### Typical Applications
– Steam and gas turbine shaft vibration and axial position monitoring
– Compressor and centrifugal pump rotor dynamic analysis
– Generator and motor bearing housing and shaft displacement measurement
– Turboexpander and blower shaft orbit and runout assessment
### FAQ
What is the standard output signal?
A 4–20 mA current loop or voltage output compatible with 3300 XL 8 mm extension cables and monitors.
Is calibration required before installation?
Yes—probe sensitivity must be verified using the system’s calibration procedure per API 670.
Can this probe operate in hazardous areas?
No—it is not intrinsically safe or explosion-proof; use only in non-classified locations unless paired with appropriate barriers and certified components.
What is the maximum operating temperature?
The probe body is rated to +120 °C (248 °F) continuously, with short-term exposure up to +150 °C (302 °F).
Does it require a specific前置器 (proximity driver)?
Yes—it must be used with a 3300 XL 8 mm system monitor or compatible 3300 series前置器 (e.g., 3300/50, 3300/25).
### SEO Title
Bently Nevada 330104-00-06-10-02-05 Proximity Probe
### Meta Description
Bently Nevada 330104-00-06-10-02-05 3300 XL 8 mm proximity probe delivers precise shaft displacement data for turbomachinery protection. Request datasheet or technical support today.
Additional information
| Weight | 0.14 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 113 x 2 x 1.5cm |
