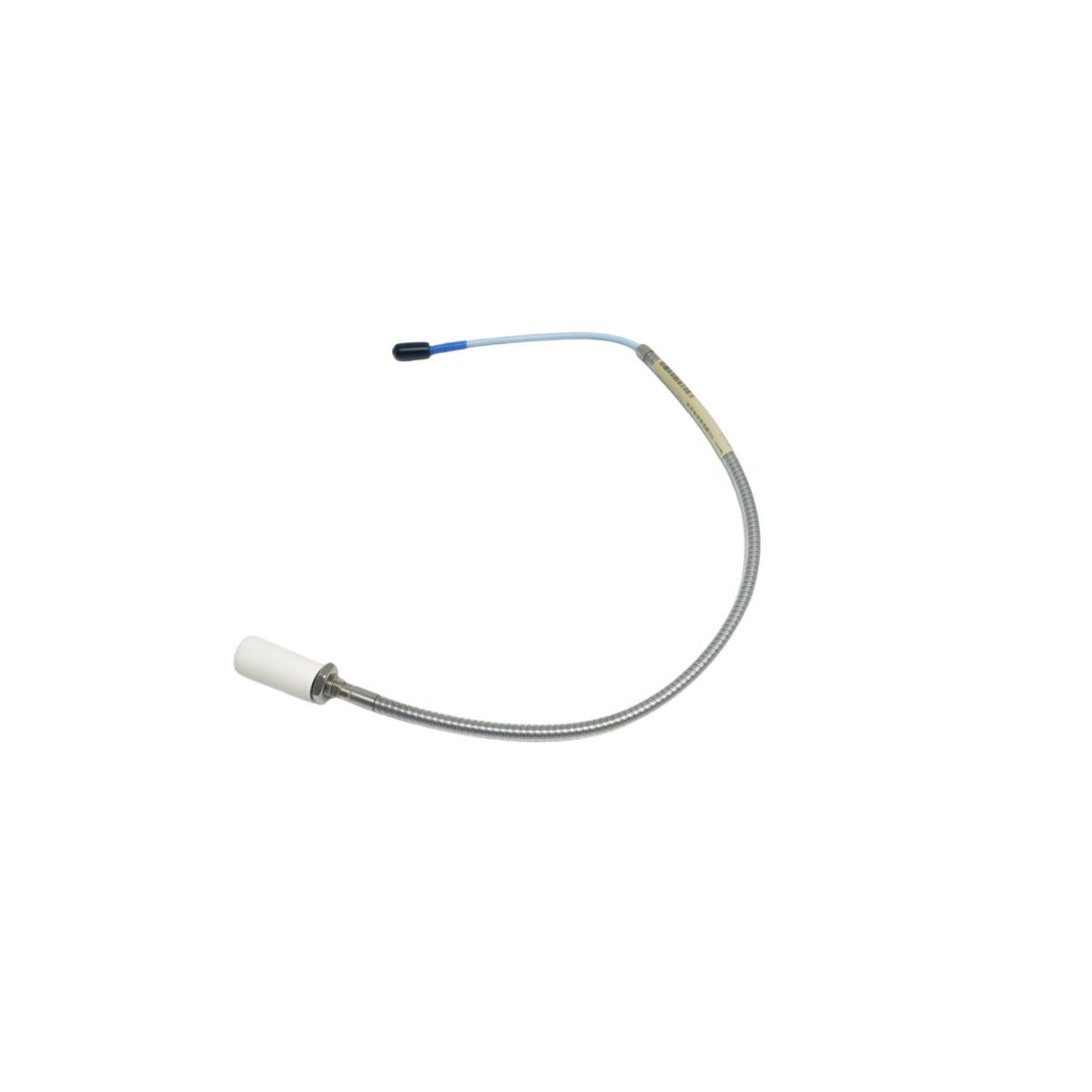

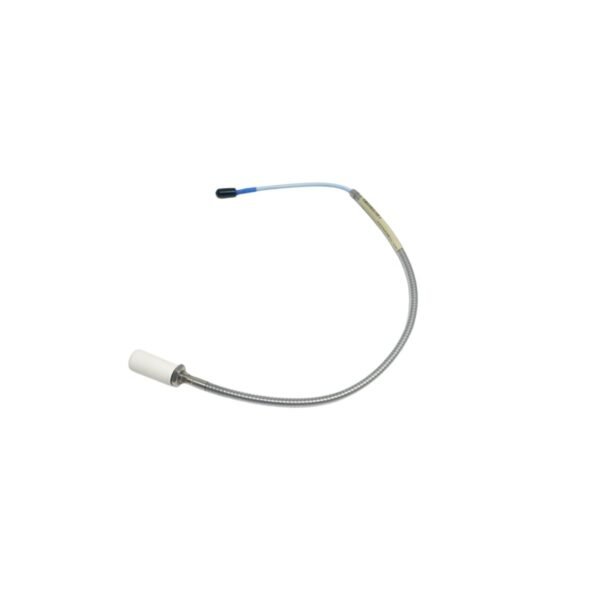

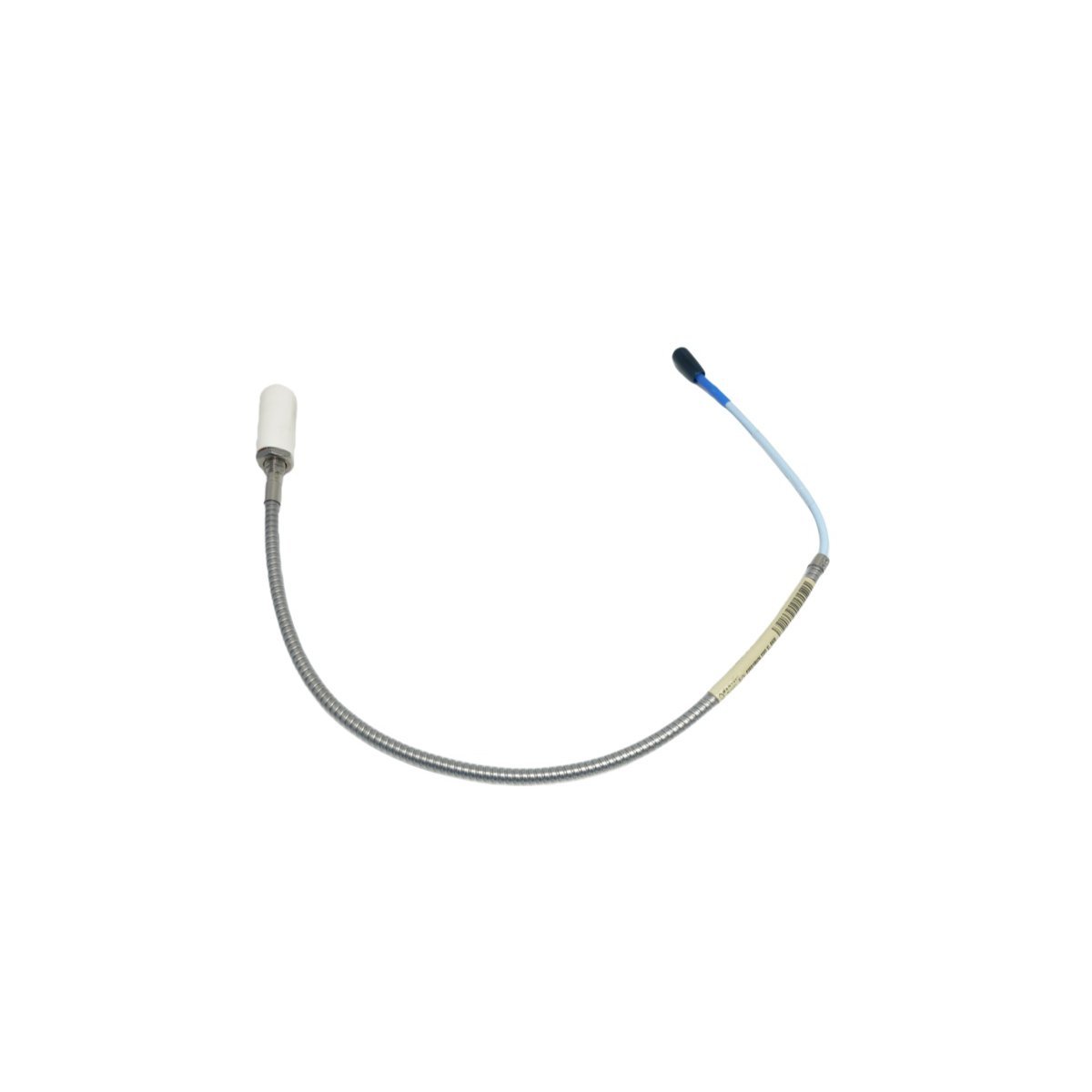

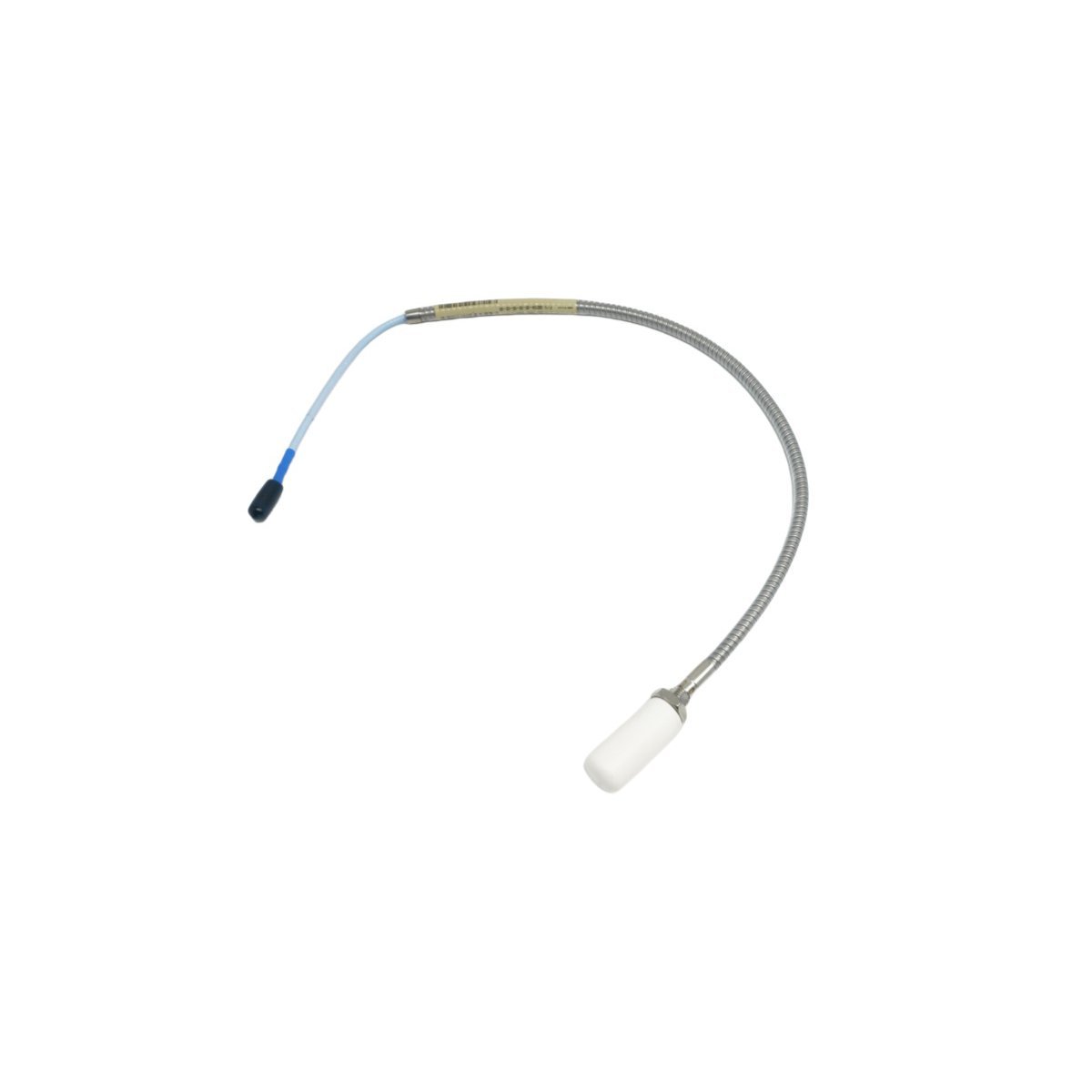

The Bently Nevada 330104-00-03-10-01-00 is a high-precision, non-contact proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe forms a critical component of the industry-standard 3300 XL Monitoring System family. Designed specifically for integration with 3300 XL series前置器 (proximity transducers) and system interfaces, the 330104-00-03-10-01-00 delivers exceptional signal fidelity, thermal stability, and long-term repeatability under demanding industrial conditions—including high temperatures, electromagnetic interference (EMI), and mechanical shock environments. Its robust 8 mm diameter active sensing element enables optimal resolution for medium-to-large turbomachinery applications such as steam turbines, gas turbines, centrifugal compressors, and large electric motors. The probe operates on the eddy-current principle, generating a high-frequency electromagnetic field that interacts with conductive target surfaces—typically ferromagnetic or non-ferrous shaft materials—to produce a linear, analog voltage output proportional to the gap distance. This model is supplied new, factory-calibrated, and fully traceable to NIST standards, ensuring compliance with API 670 (4th Edition) and ISO 10816 requirements for machinery protection systems. As part of Baker Hughes’ certified OEM ecosystem, it guarantees seamless interoperability, diagnostic compatibility, and full firmware/software support across all 3300 XL platforms—including rack-mounted monitors, portable data collectors, and enterprise-level Asset Health Management (AHM) systems.

Detailed Specifications

Key Features

• Extended Life (XL) Design: Enhanced coil encapsulation and thermally stable epoxy formulation ensure >10-year operational life in continuous service, significantly reducing unplanned downtime and recalibration frequency.
• High Immunity to EMI/RFI: Precision-wound, shielded sensor coil and proprietary grounding architecture minimize noise coupling—even in high-voltage switchyards or variable-frequency drive (VFD) environments.
• Optimized for API 670 Compliance: Meets all mandatory requirements for machinery protection systems including linearity, temperature coefficient (<0.02%/°C), and dynamic response per Section 4.3.2.
• Interchangeable Calibration: Fully compatible with all 3300 XL extension cables and前置器 (e.g., 3300 XL 50 mV/mm or 200 mV/mm transducers); no reconfiguration required upon replacement.
• Robust Mechanical Construction: Stainless steel (316 SS) probe body, ceramic insulator, and hermetically sealed connector withstand aggressive chemical exposure, vibration fatigue, and thermal cycling.
• Plug-and-Play Integration: Pre-terminated cable with standardized connector ensures rapid installation and eliminates field soldering errors—reducing commissioning time by up to 40%.
• Diagnostic Readiness: Supports advanced health monitoring via built-in sensor diagnostics (SDD) when paired with 3300 XL 20-series monitors, enabling early detection of cable faults, probe degradation, or mounting loosening.
• Global Regulatory Compliance: Certified to CE, UKCA, ATEX II 2G Ex ia IIC T4 Ga, IECEx, and RoHS 2011/65/EU directives for hazardous area deployment.

Applications

• Steam and Gas Turbines: Monitoring radial vibration at bearing housings, thrust collar position, and differential expansion between casing and rotor in power generation plants (coal, nuclear, combined-cycle).
• Centrifugal Compressors & Pumps: Detecting shaft orbit instability, rubs, misalignment, and bearing wear in oil & gas refineries, petrochemical facilities, and LNG terminals.
• Large Electric Motors & Generators: Assessing air-gap eccentricity, rotor bar faults, and frame resonance in 5 MW+ industrial drives and synchronous generators.
• Aerospace Ground Test Stands: High-fidelity transient analysis during engine run-up, spin testing, and modal analysis under controlled laboratory conditions.
• Marine Propulsion Systems: Critical shaft alignment verification and vibration trending aboard naval vessels, cruise liners, and LNG carriers operating under severe salt-spray and shock-loading conditions.
• Wind Turbine Gearboxes: Supplemental high-frequency vibration monitoring at high-speed shafts where accelerometer bandwidth limitations exist.
• Research & Development Labs: Benchmarking rotating machinery dynamics, validating FEA models, and calibrating test rigs requiring sub-micron displacement resolution and DC-coupled response.
• Legacy System Upgrades: Drop-in replacement for aging 3300 non-XL probes—enabling extended service life and enhanced diagnostics without hardware or software modification.
