330103-17-22-10-12-05 | Bently Nevada | Bently Nevada330103-17-22-10-12-05 3300 XL 8 mm Probes

### Product Description

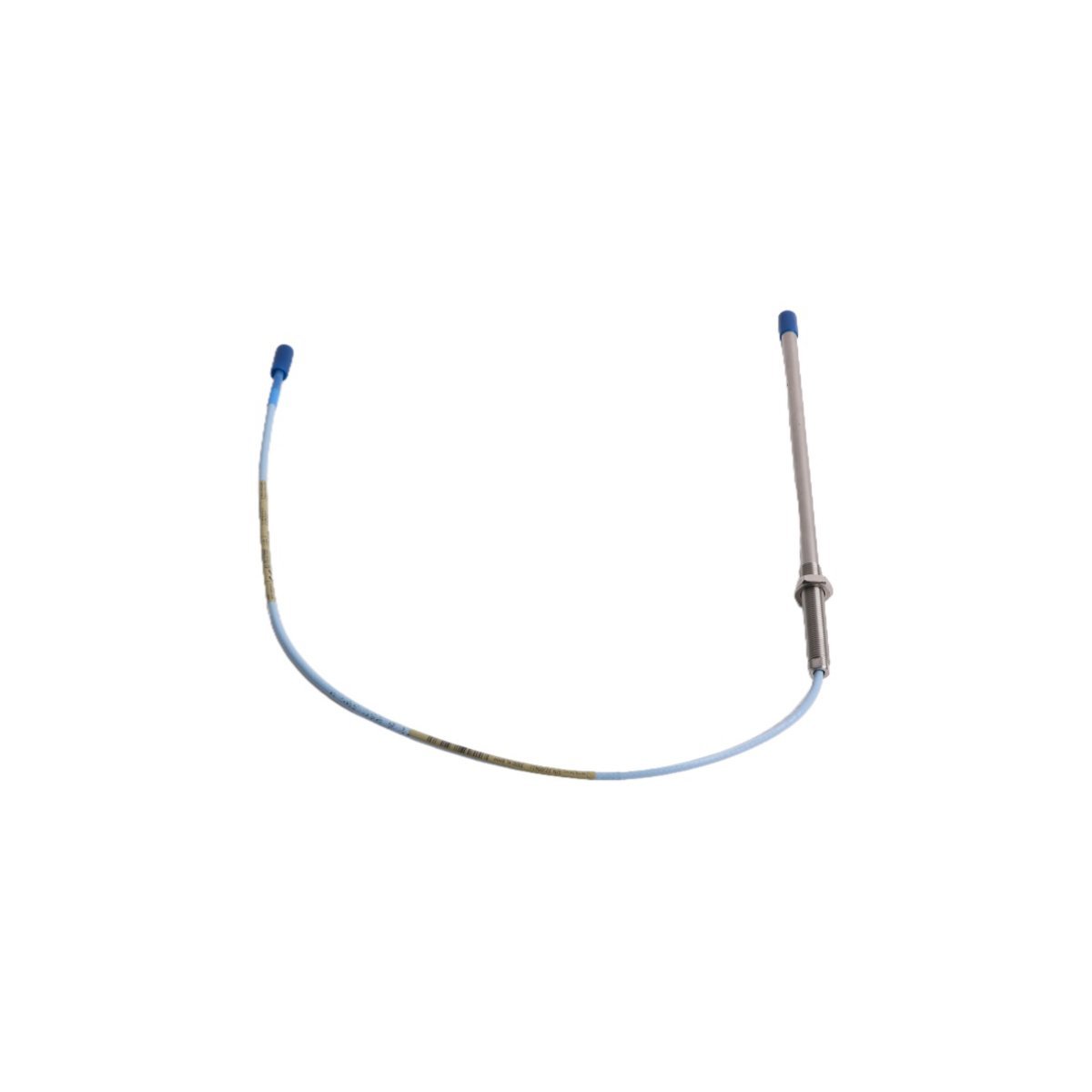

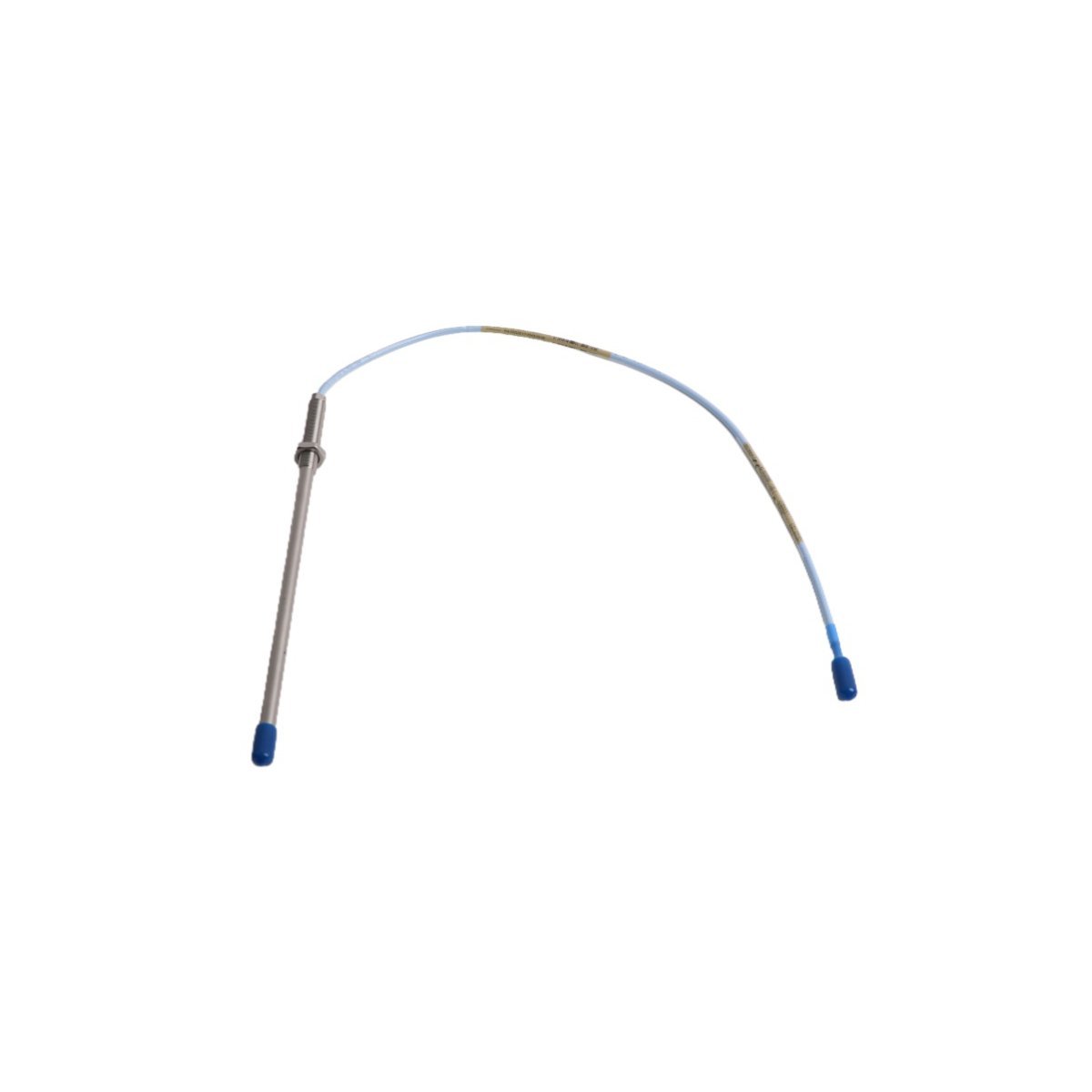

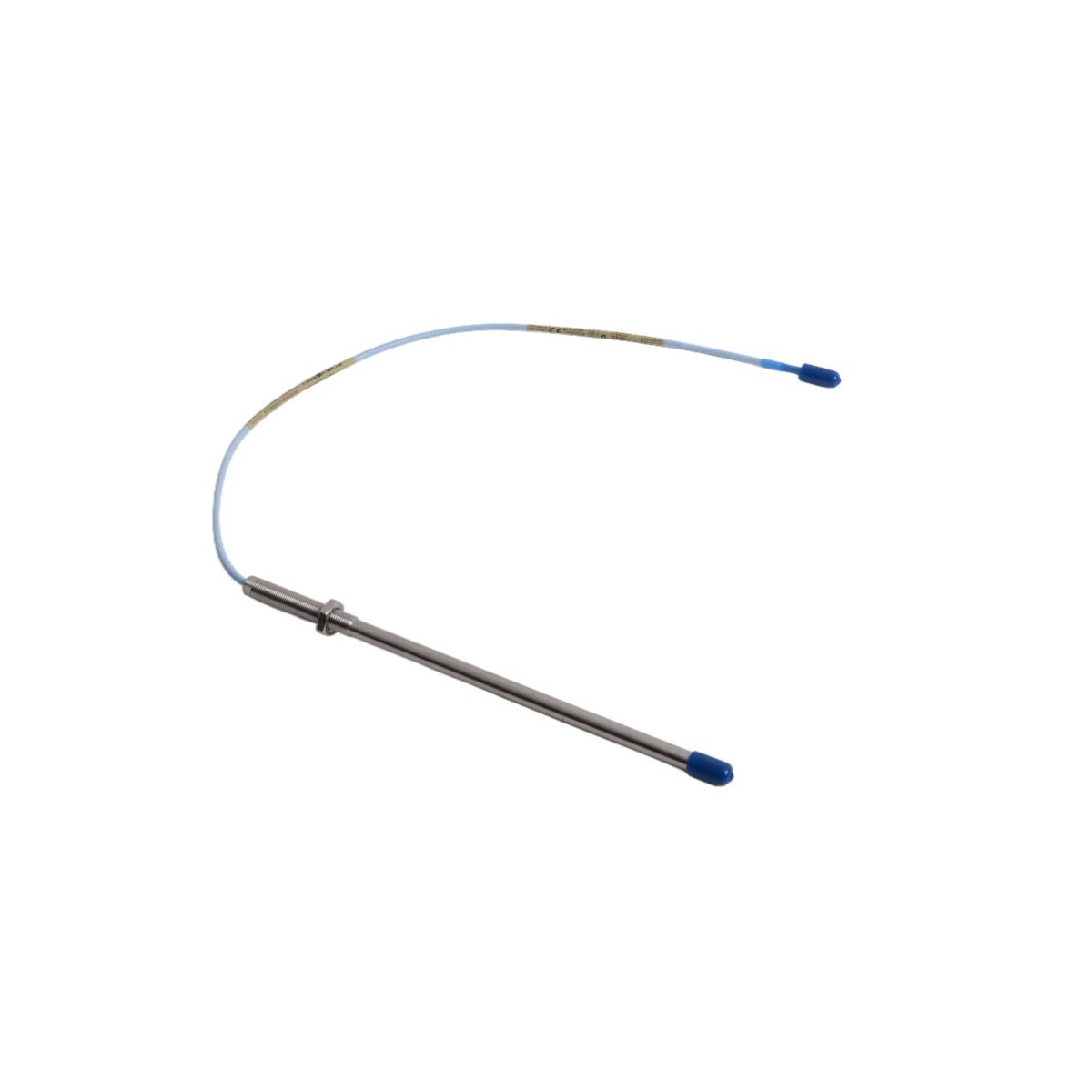

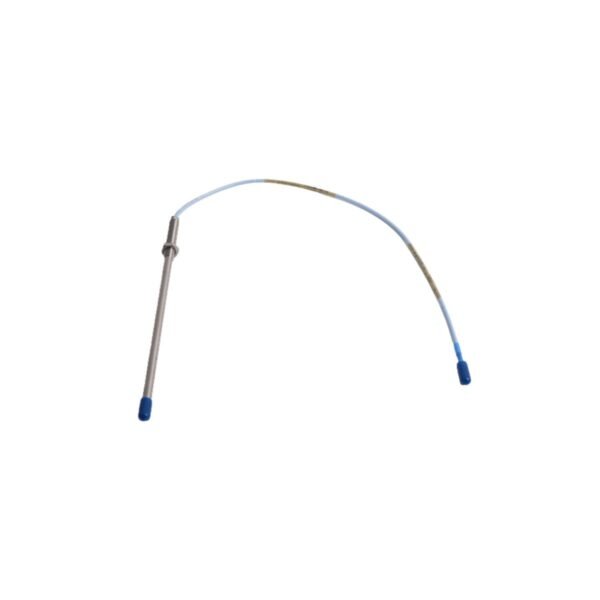

This is a non-contact eddy-current proximity probe from the Bently Nevada 3300 XL series, designed for shaft vibration and position monitoring.
Moreover, it delivers high-resolution displacement measurements in harsh industrial environments where reliability and repeatability are critical.
Therefore, it is commonly installed on rotating machinery such as steam turbines, compressors, and large motors for continuous condition monitoring.

### Technical Specifications

### Typical Applications
– Steam turbine shaft vibration and axial position monitoring
– Centrifugal compressor radial and thrust bearing monitoring
– Large electric motor rotor position and dynamic runout measurement
– Gearbox input/output shaft displacement tracking

### FAQ
What is the standard operating temperature range?
–40 °C to +125 °C ambient, per API 670 requirements.

Is this probe compatible with 3300/50 or 3300/16 monitors?
Yes, it is fully compatible with all 3300 series monitors using standard 3300 XL extension cables.

Does the probe require calibration with its matching extension cable?
Yes, factory calibration is performed with a specific 5-meter extension cable; substitution requires system recalibration.

What is the nominal sensitivity?
8.0 mV/µm (200 mV/mil) at 120 Hz, per ASTM E2567.

Can it be used in hazardous areas?
No — this probe is not intrinsically safe or explosion-proof; use only in non-hazardous locations unless paired with certified barriers.
