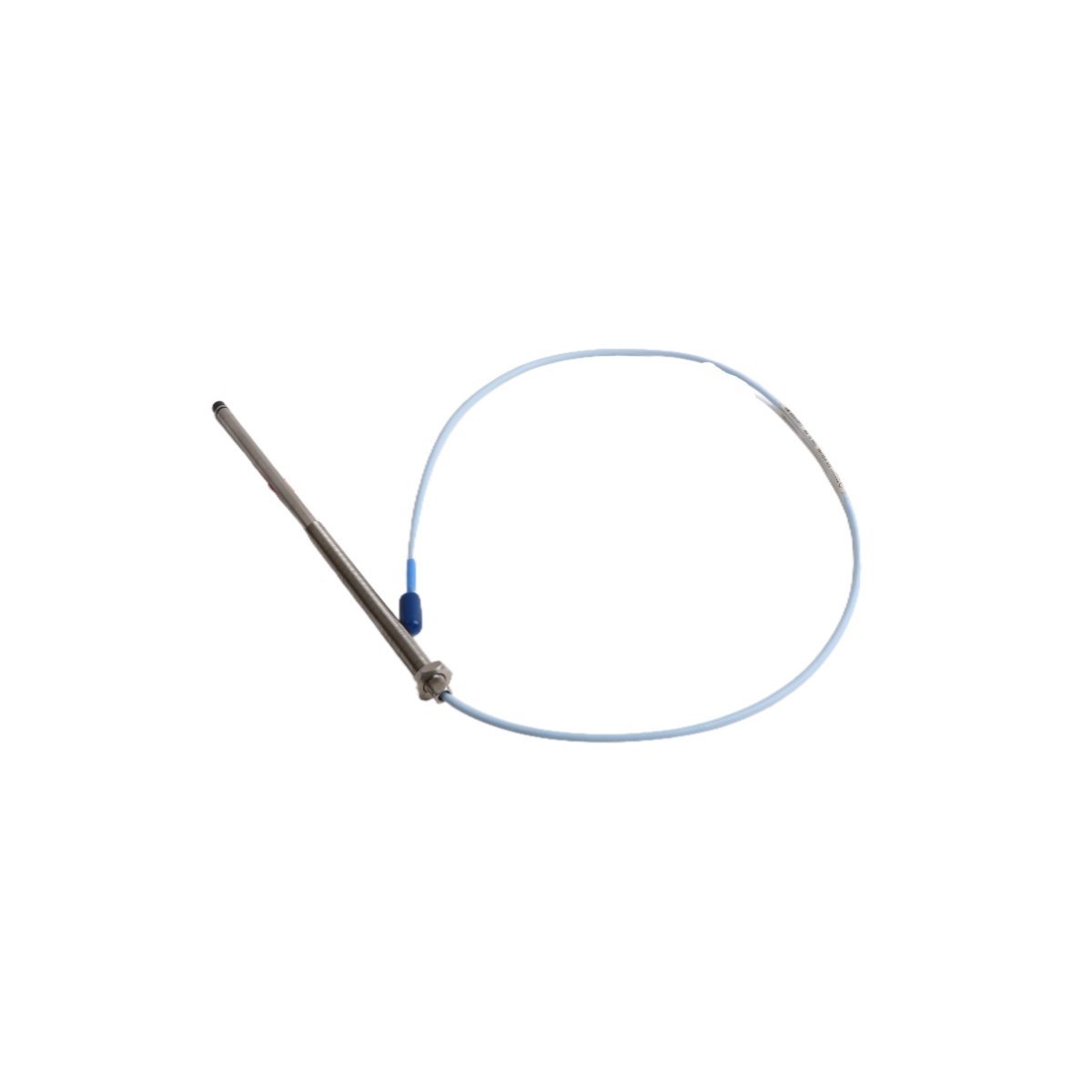

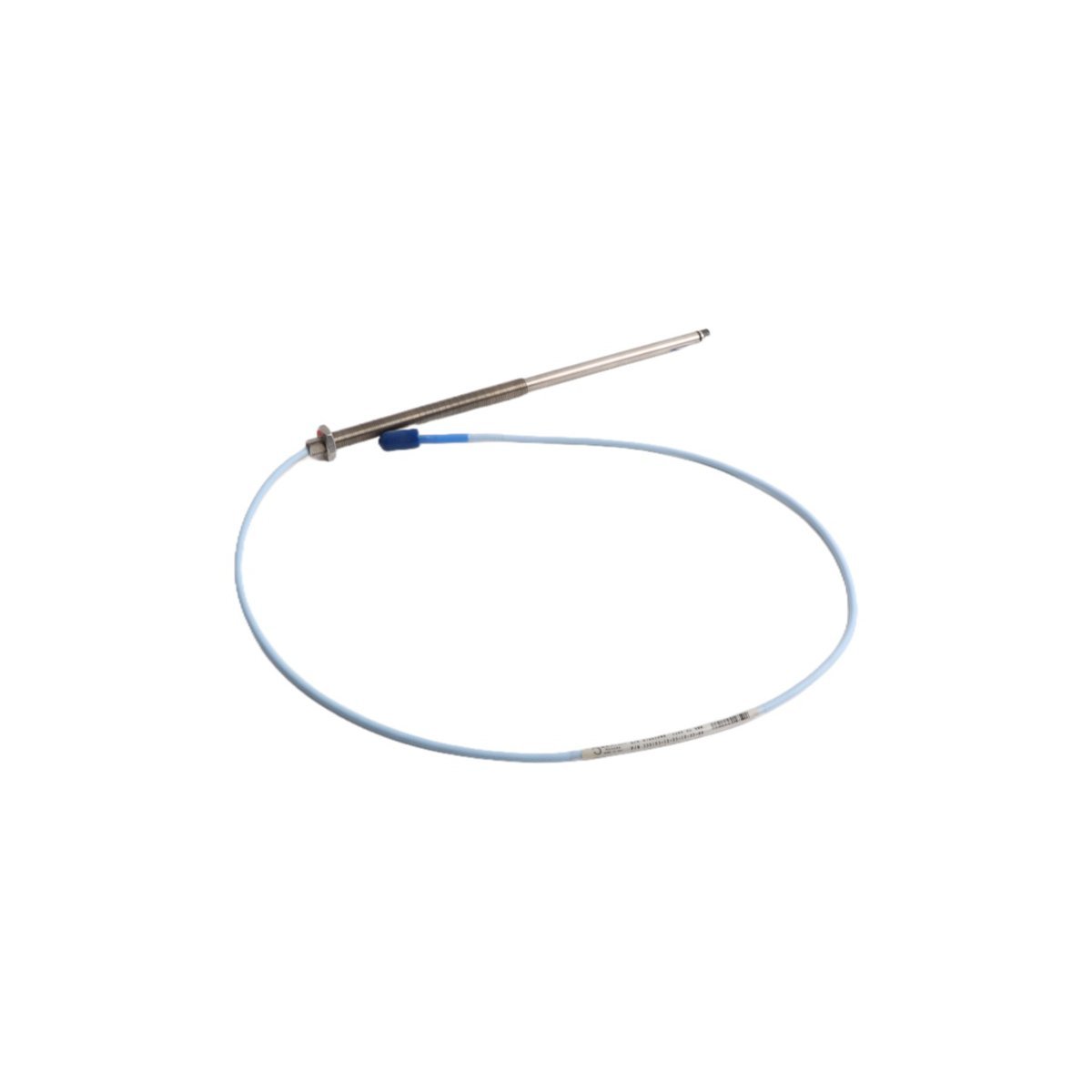

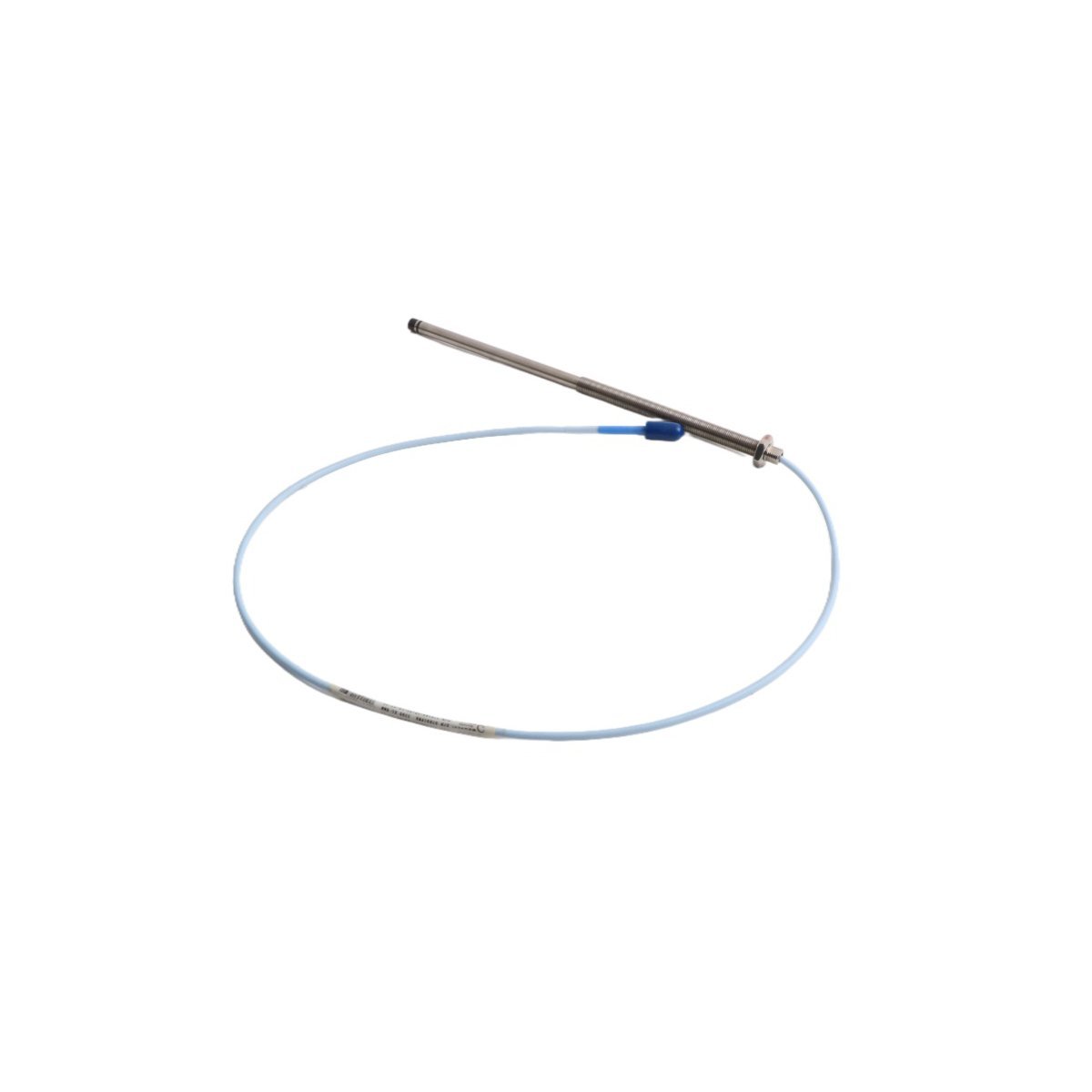

The Bently Nevada 330103-12-16-10-02-05 is a high-precision, non-contact eddy-current proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in critical rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe is part of the industry-standard 3300 XL 8 mm sensor family—renowned for exceptional stability, repeatability, and immunity to environmental contaminants such as oil mist, steam, and electromagnetic interference. Designed for integration with the 3300 XL monitoring system architecture, the probe delivers linear output across its calibrated range with minimal temperature drift (70 dB). Its robust stainless steel housing (AISI 316L) and hermetically sealed ceramic insulator ensure long-term reliability in harsh industrial environments—including power generation turbines, centrifugal compressors, large motors, and gearboxes operating at temperatures from –40 °C to +125 °C ambient. Each unit undergoes rigorous factory calibration per ISO 10816 and API 670 standards, with traceable NIST-certified documentation provided. The probe is supplied new, never refurbished or reconditioned, and carries a comprehensive 24-month limited warranty covering material defects and workmanship under normal use and proper installation conditions.

Detailed Specifications

Key Features

• Factory-Calibrated Precision: Each probe is individually calibrated using laser interferometry and traceable to NIST standards, ensuring ≤±0.3% linearity deviation across its operational range—critical for compliance with API RP 670 (4th ed.) and ISO 20816-1.
• Hermetic Ceramic Insulation: Proprietary high-density alumina ceramic barrier prevents moisture ingress and dielectric breakdown, delivering >100,000 hours MTBF even in saturated steam or high-humidity turbine casings.
• EMI/RFI Immunity: Integrated multi-layer shielding (copper + Mu-metal) and balanced differential signaling suppress common-mode noise up to 150 V/m at 1 GHz—validated per IEC 61000-4-3 and MIL-STD-461G.
• Thermal Stability Engineering: Dual-compensated coil design and low-CTE housing minimize thermal zero-shift (<0.25 µm/°C) and sensitivity drift—essential for differential expansion measurements in combined-cycle plants.
• Corrosion-Resistant Construction: Electro-polished AISI 316L stainless steel housing resists pitting and crevice corrosion in aggressive chemical process environments, including offshore oil & gas platforms.
• Plug-and-Play System Integration: Fully compatible with 3300 XL 25 mm and 50 mm extension cables, 3300 XL 16-channel monitors (3300/16), and Bently Nevada System 1™ software for automated health assessment and alarm trending.
• Extended Service Life: Rated for 20+ years of continuous operation without recalibration when installed per Bently Nevada Technical Bulletin 115-01-002, reducing lifecycle cost of ownership by up to 40% versus competitive probes.

Applications

• Steam and Gas Turbines: Monitoring radial vibration (bearing journals), thrust collar position, and differential expansion between casing and rotor in GE, Siemens, and Mitsubishi heavy-duty turbines.
• Centrifugal Compressors & Pumps: Detecting imbalance, misalignment, and bearing wear in petrochemical, refining, and LNG liquefaction facilities compliant with API 617 and API 610.
• Large Induction and Synchronous Motors: Measuring air-gap eccentricity, rotor bar faults, and shaft orbit analysis in >5 MW drive systems for mining conveyors and marine propulsion.
• Hydroelectric Generators: Continuous axial position tracking of generator rotors subject to thermal growth during load cycling, meeting IEEE C50.13 requirements.
• Aerospace Test Cells: High-bandwidth transient response enables capture of blade-pass frequency harmonics and surge detection in jet engine ground-test rigs.
• Nuclear Power Plant Auxiliary Systems: Qualified for safety-related Class 1E applications per IEEE 323 and IEEE 344, supporting ASME OM Code Section 12 surveillance programs.
• Wind Turbine Gearboxes: Retrofit deployment on high-speed shafts for early-stage gear tooth fault detection via envelope demodulation of proximity signals.
