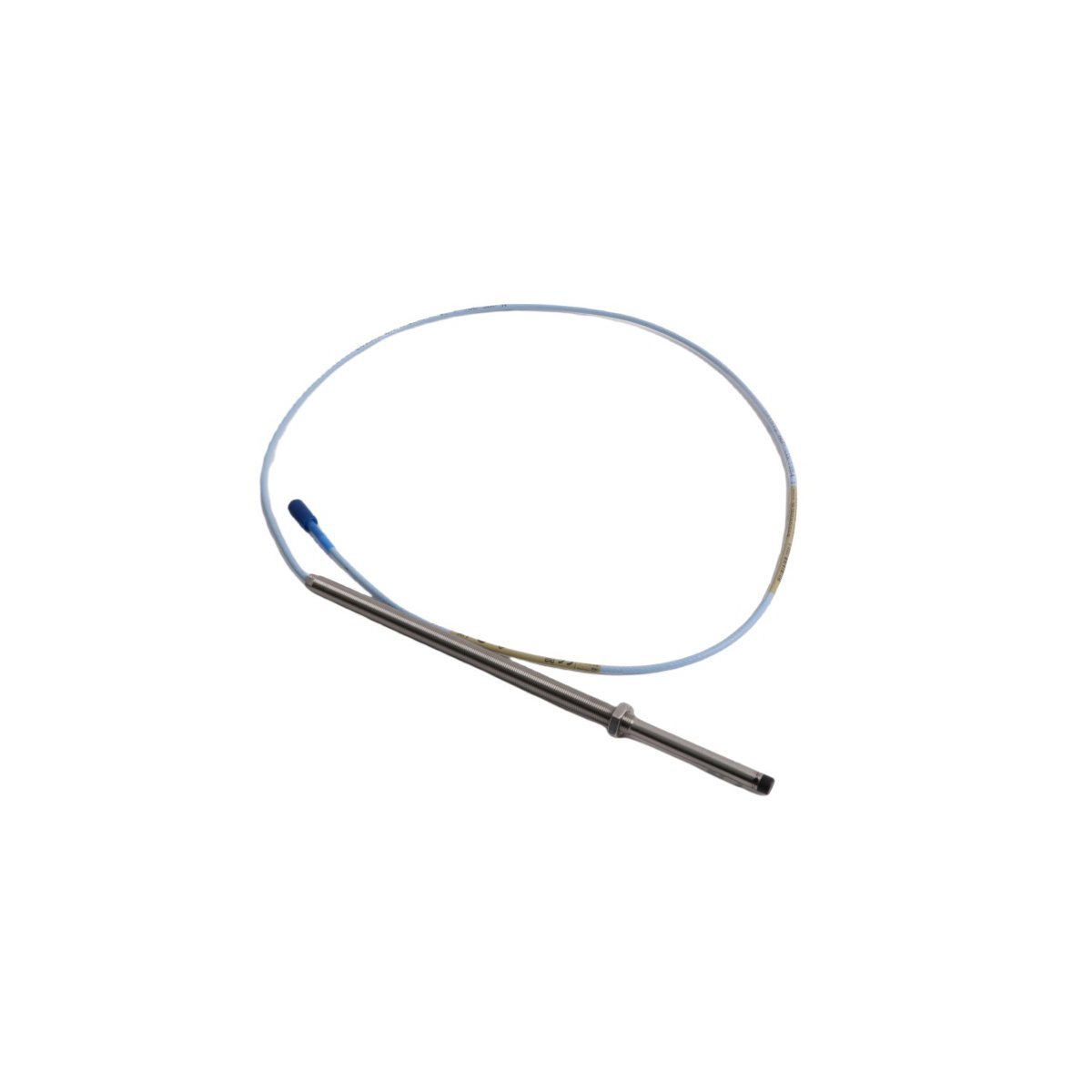

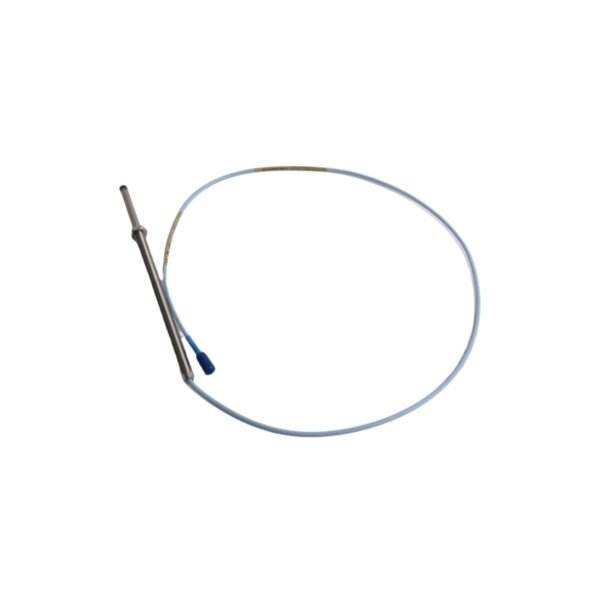

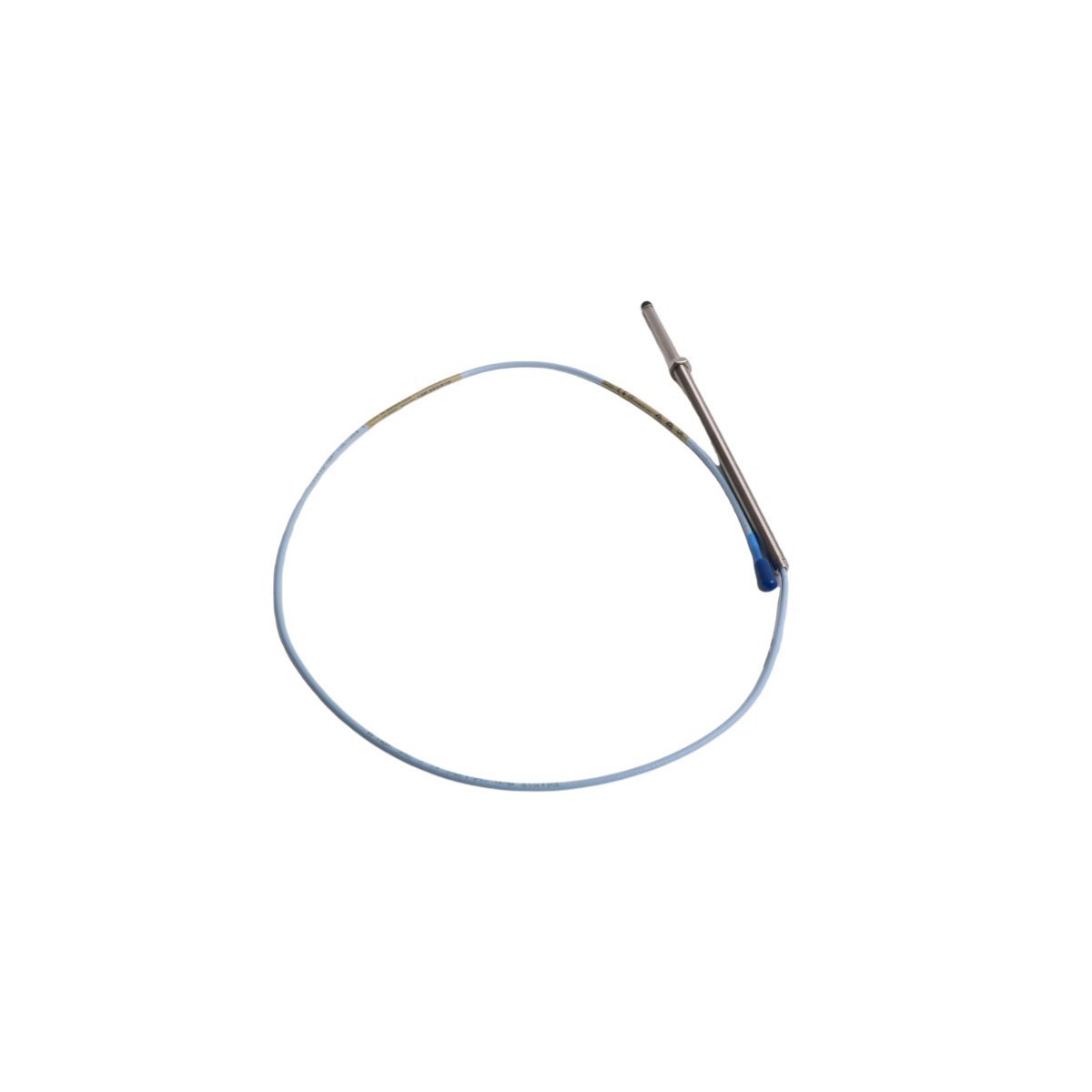

The Bently Nevada 330103-06-25-10-02-00 Proximity Probe is a high-precision, industrial-grade eddy-current sensor engineered for continuous, non-contact measurement of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe forms the foundational sensing element of the widely deployed 3300 XL and 3500 asset protection systems. Designed to operate reliably in harsh environments—including high temperatures, electromagnetic interference, oil mist, and mechanical shock—the 330103-06-25-10-02-00 delivers exceptional linearity, repeatability, and thermal stability across its full measurement range. Its robust stainless steel construction, hermetically sealed ceramic insulator, and optimized coil geometry ensure long-term calibration integrity and immunity to environmental degradation. The probe is supplied in new, factory-fresh condition—fully tested, calibrated, and certified to meet API 670 (4th Edition) and ISO 10816 standards for machinery protection systems. Each unit carries a comprehensive 24-month limited warranty against material and workmanship defects, underscoring Baker Hughes’ commitment to quality and operational uptime. Originating from the United States, this probe adheres to stringent ASME, RoHS, and REACH compliance requirements. With compact dimensions of 6.35 mm (0.25 in) diameter and 101.6 mm (4.0 in) overall length—and a lightweight design weighing only 38 g (1.34 oz)—it enables flexible integration into space-constrained bearing housings and turbine casings without compromising mechanical rigidity or signal fidelity.

Detailed Specifications

Key Features

• Exceptional Signal-to-Noise Ratio: Optimized coil design and low-capacitance coaxial cabling minimize electromagnetic interference (EMI), ensuring clean, high-fidelity output even in electrically noisy turbine halls and compressor stations.
• Thermal Stability: Precision-matched materials and proprietary coil winding techniques reduce thermal drift to less than ±0.5 % of full scale over the entire operating temperature range.
• Hermetic Ceramic Insulation: High-purity alumina ceramic housing provides superior dielectric strength (>10 kV), moisture resistance, and chemical inertness—critical for operation in steam-turbine lube oil environments.
• API 670-Compliant Calibration: Each probe undergoes individual dynamic calibration traceable to NIST standards, with documented sensitivity, linearity (≤±0.3 % FS), and phase response data included in the Certificate of Conformance.
• Vibration-Resistant Construction: Integral strain relief, nickel-plated stainless steel body, and reinforced cable exit prevent microphonic noise and mechanical fatigue under sustained 50 g peak vibration conditions.
• Interchangeability & System Integration: Fully compatible with Bently Nevada 3300 XL, 3500, and System 1 platforms; supports hot-swap capability and automatic probe identification via smart connector technology.
• Long-Term Reliability: Mean Time Between Failures (MTBF) exceeds 100,000 hours—validated through accelerated life testing per MIL-STD-810G for shock, vibration, and thermal cycling.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, thrust position, and differential expansion in HP/IP/LP sections to prevent catastrophic rotor rubs and bearing failures.
• Centrifugal Compressors & Pumps: Detecting imbalance, misalignment, and bearing wear in petrochemical, refining, and LNG facilities where process continuity is mission-critical.
• Aeroderivative Engines: Providing real-time shaft displacement data for health monitoring in power generation peaking plants and marine propulsion systems.
• Large Electric Motors & Generators: Enabling predictive maintenance through continuous assessment of air-gap variation, eccentricity, and frame movement.
• Wind Turbine Gearboxes: Supporting condition-based monitoring of high-speed shaft dynamics in offshore and onshore wind farms subject to variable load profiles.
• Research & Test Benches: Serving as a reference-grade transducer in OEM validation labs for modal analysis, rotordynamics modeling, and certification testing per ISO 1940 and API 617.
