Description

Technical Overview

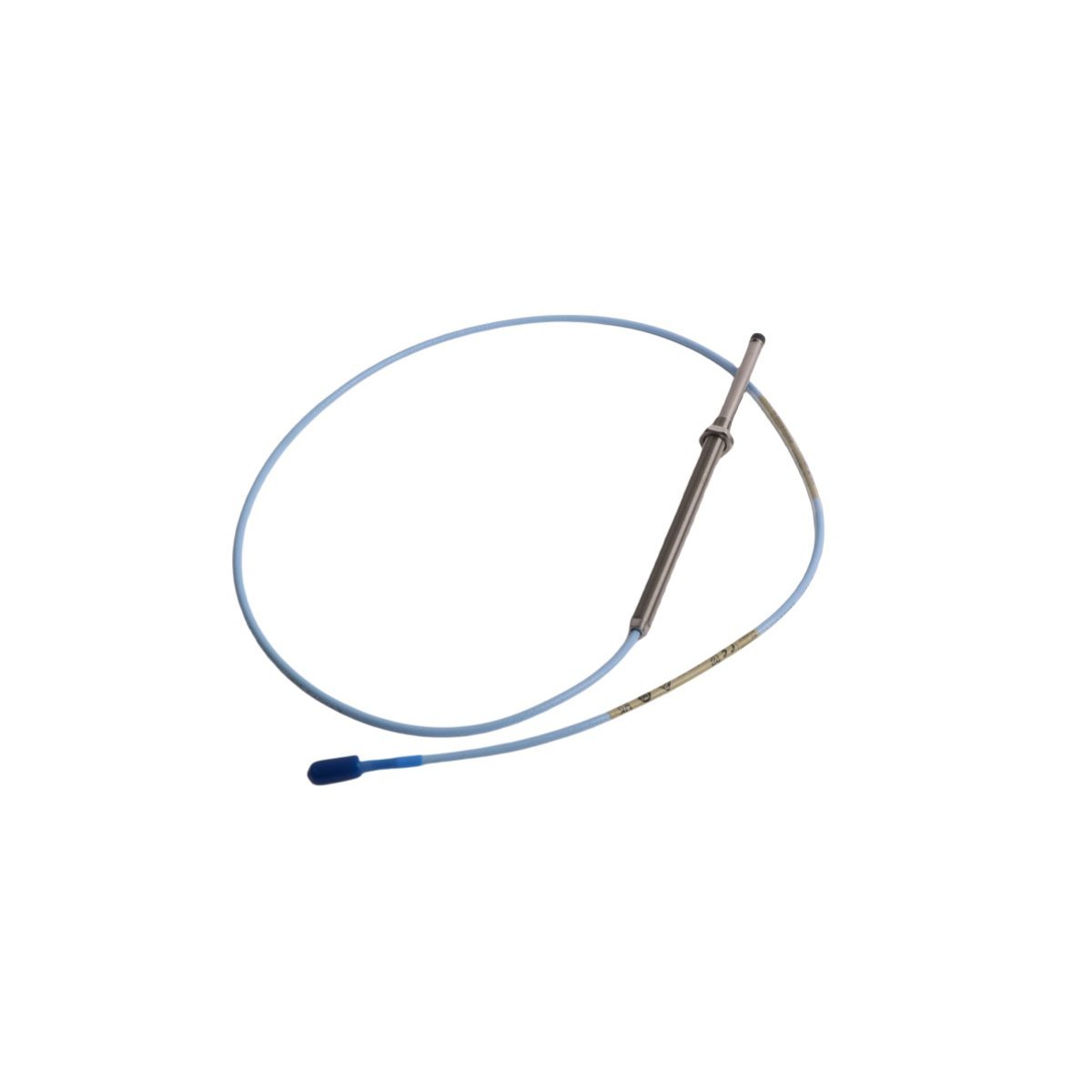

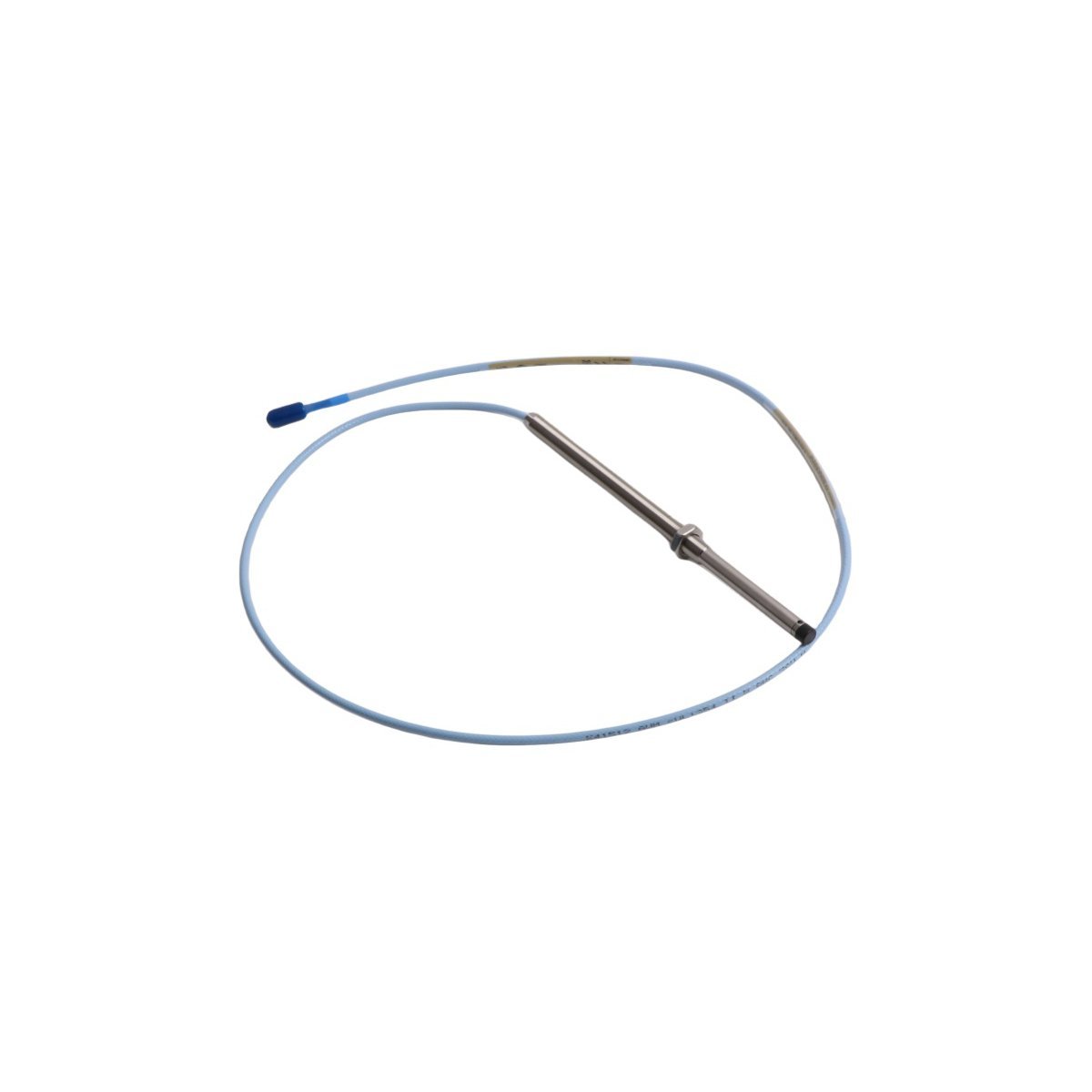

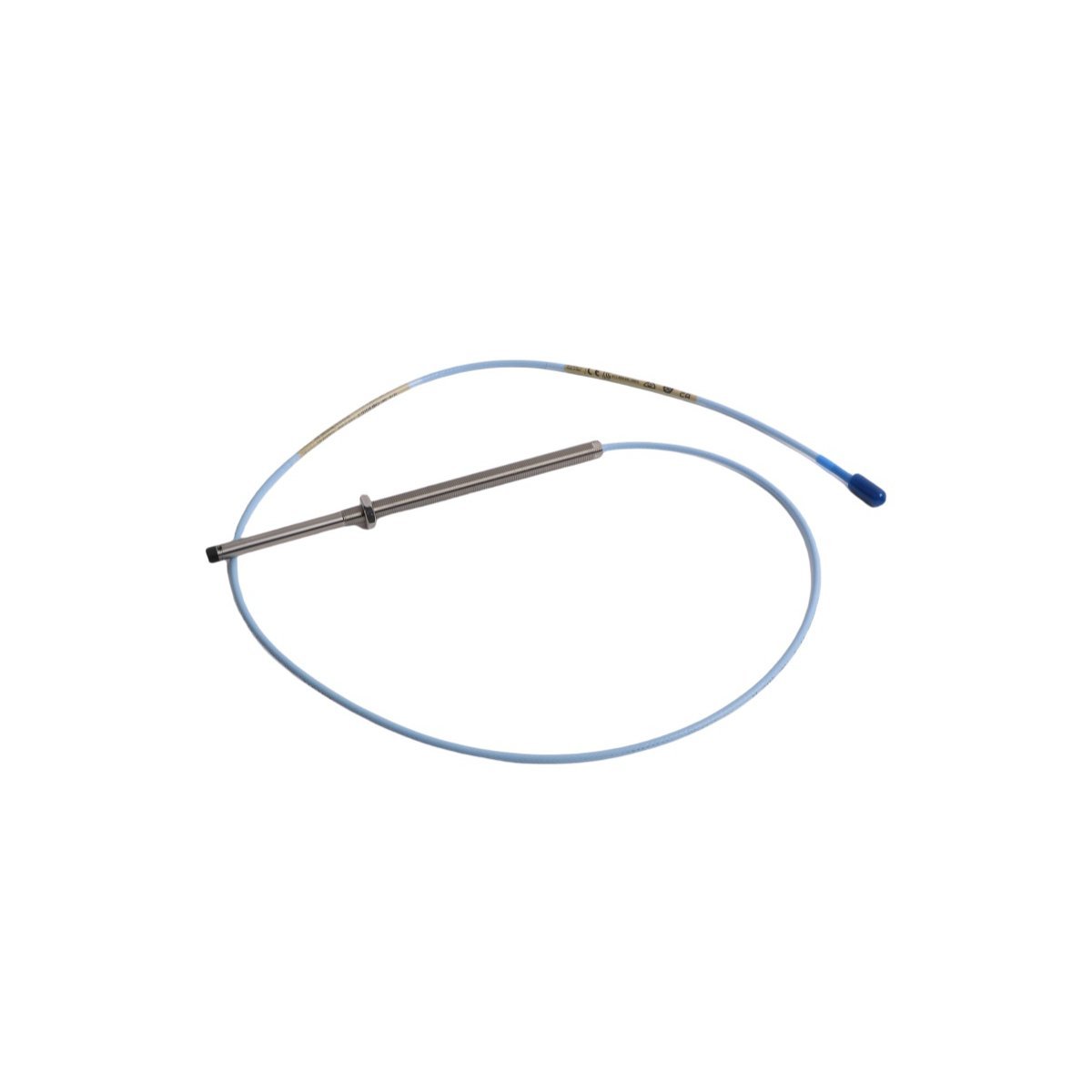

The Bently Nevada 330103-06-20-10-02-00 is a high-precision, non-contact proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in critical rotating machinery. As part of the industry-standard 3300 XL 8 mm sensor family, this probe delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity—making it a cornerstone of modern asset protection and predictive maintenance strategies. Manufactured by Bently Nevada (a Baker Hughes business), this probe integrates seamlessly with the 3300 XL monitoring system architecture, including 3300 XL 8 mm extension cables and 3300 XL 8 mm proximitor transducers. Designed for demanding industrial environments—including power generation, oil & gas, petrochemical, pulp & paper, and marine propulsion systems—the 330103-06-20-10-02-00 meets stringent API 670 (4th Edition) requirements for machinery protection systems (MPS). Its robust construction features a stainless steel housing with a PTFE-insulated, corrosion-resistant sensing tip, ensuring long-term reliability under extreme temperatures, humidity, and mechanical stress. The probe operates on the principle of eddy current displacement measurement, providing analog DC voltage output proportional to target gap changes with sub-micron resolution and <±1% full-scale linearity error across its calibrated range.

Detailed Specifications

Key Features

• OEM-Validated Calibration: Each unit ships with individual calibration certificate (NIST-traceable), confirming linearity, sensitivity, and thermal drift performance over the full operating temperature range.
• Enhanced Thermal Stability: Proprietary coil winding and core materials minimize thermal drift to <±0.05% FS/°C—critical for turbine and compressor applications where ambient temperature fluctuates widely.
• Optimized Mechanical Design: Integral 2.0 m cable eliminates field splicing, reducing failure points; stainless steel 316L housing provides superior corrosion resistance in offshore and chemical processing environments.
• EMI/RFI Immunity: Fully shielded construction and differential signaling ensure stable operation in high-noise settings near VFDs, switchgear, and radio transmitters—validated per IEC 61000-4-3 (10 V/m) and IEC 61000-4-6 (10 V).
• API 670 Compliance Ready: Pre-configured for direct integration into 3300 XL rack-based monitoring systems supporting dual-channel vibration, position, and gap monitoring per API 670 Section 4.4.2.
• Plug-and-Play Compatibility: Interchangeable with all 3300 XL 8 mm proximitor transducers (e.g., 3300 XL 8 mm Proximitor 17–20–01–10–00–00) without recalibration when used with OEM-specified extension cables.
• Sustainable Lifecycle Support: Backed by Baker Hughes’ global service network—including field engineering, calibration labs, and spare parts logistics—with guaranteed component availability for ≥15 years post-manufacture.

Applications

• Steam & Gas Turbines: Monitoring radial vibration (bearing journals), thrust collar position, and differential expansion in utility-scale and industrial turbines compliant with ISO 10816-3 and API 612.
• Centrifugal Compressors: Axial position and vibration detection for integrally geared and pipeline compressors per API 617, enabling early detection of bearing wear, misalignment, and surge onset.
• Large Electric Motors & Generators: Rotor eccentricity, air-gap monitoring, and dynamic runout assessment in >1 MW synchronous machines per IEEE 112 and IEC 60034-14.
• Petrochemical Process Pumps: Critical pump train condition monitoring—including seal chamber vibration and coupling alignment verification—in hazardous Zone 1/21 environments.
• Marine Propulsion Systems: Shaft orbit analysis and thrust bearing health monitoring aboard LNG carriers, cruise vessels, and naval platforms meeting MIL-STD-167-1A and DNV GL Class Rules.
• Wind Turbine Gearboxes: Low-speed shaft vibration trending and main bearing position monitoring in nacelle-mounted gearboxes exposed to wide thermal cycling and variable loads.
• Research & Test Benches: High-fidelity dynamic testing of rotating components in university labs, OEM validation centers, and independent test facilities requiring metrology-grade repeatability.
