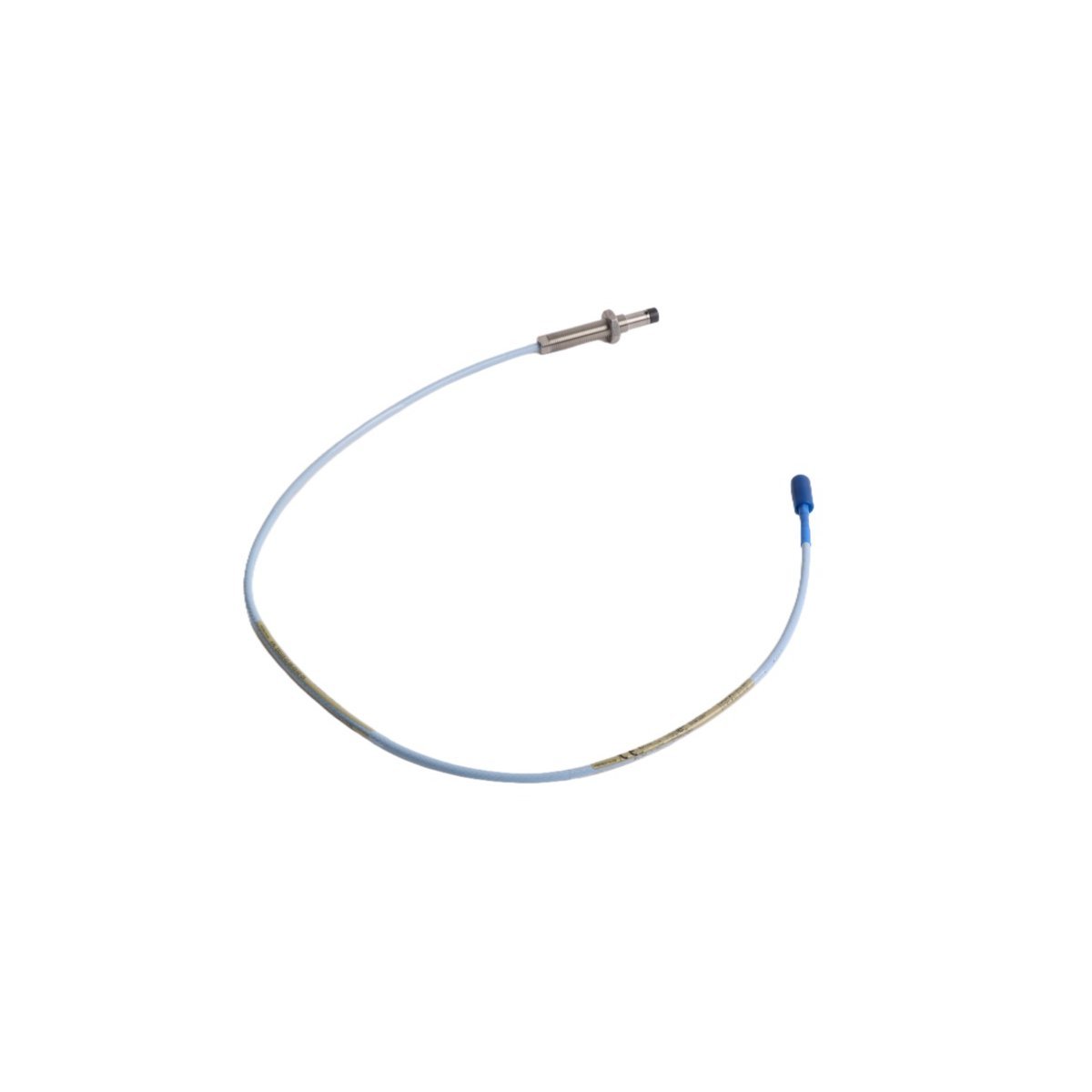

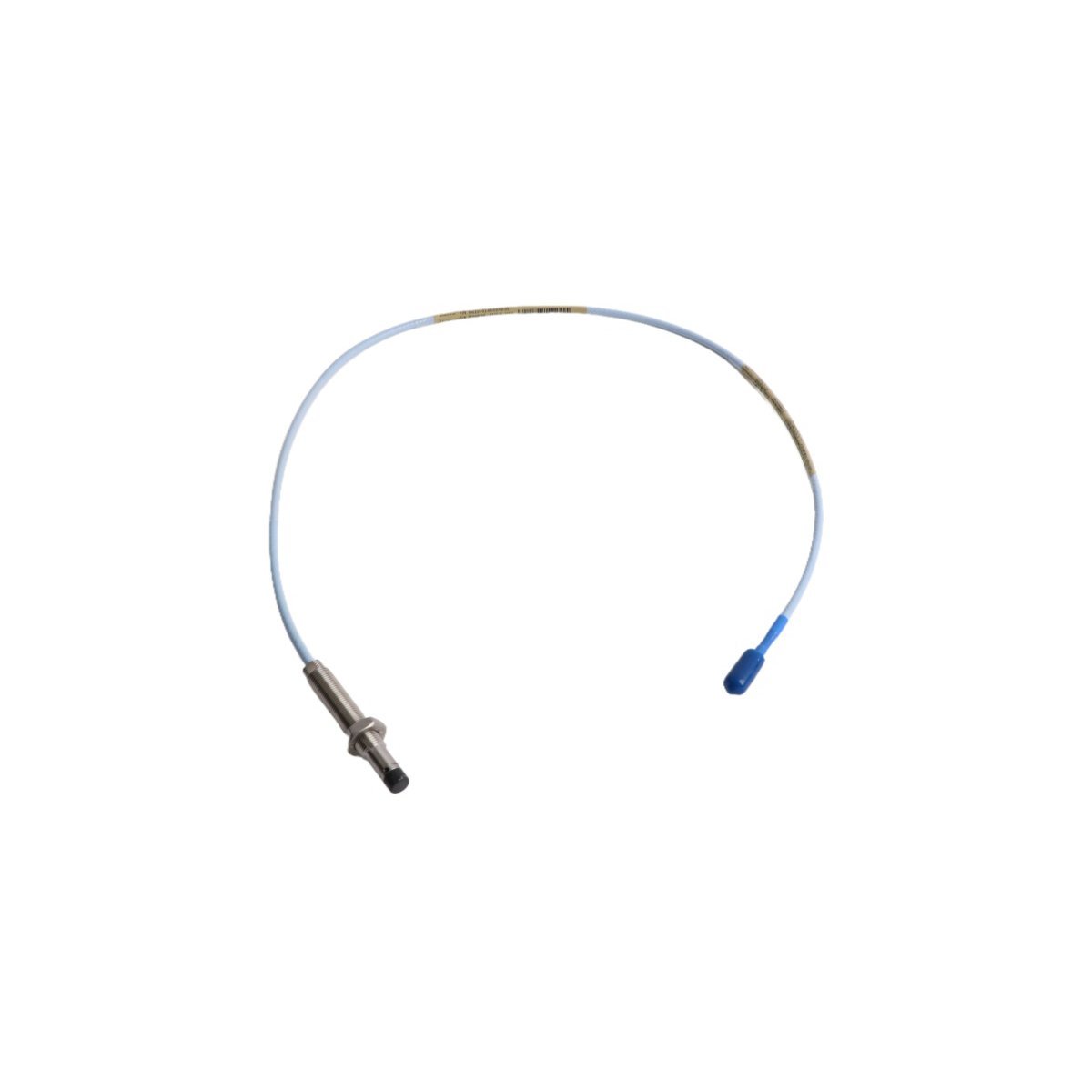

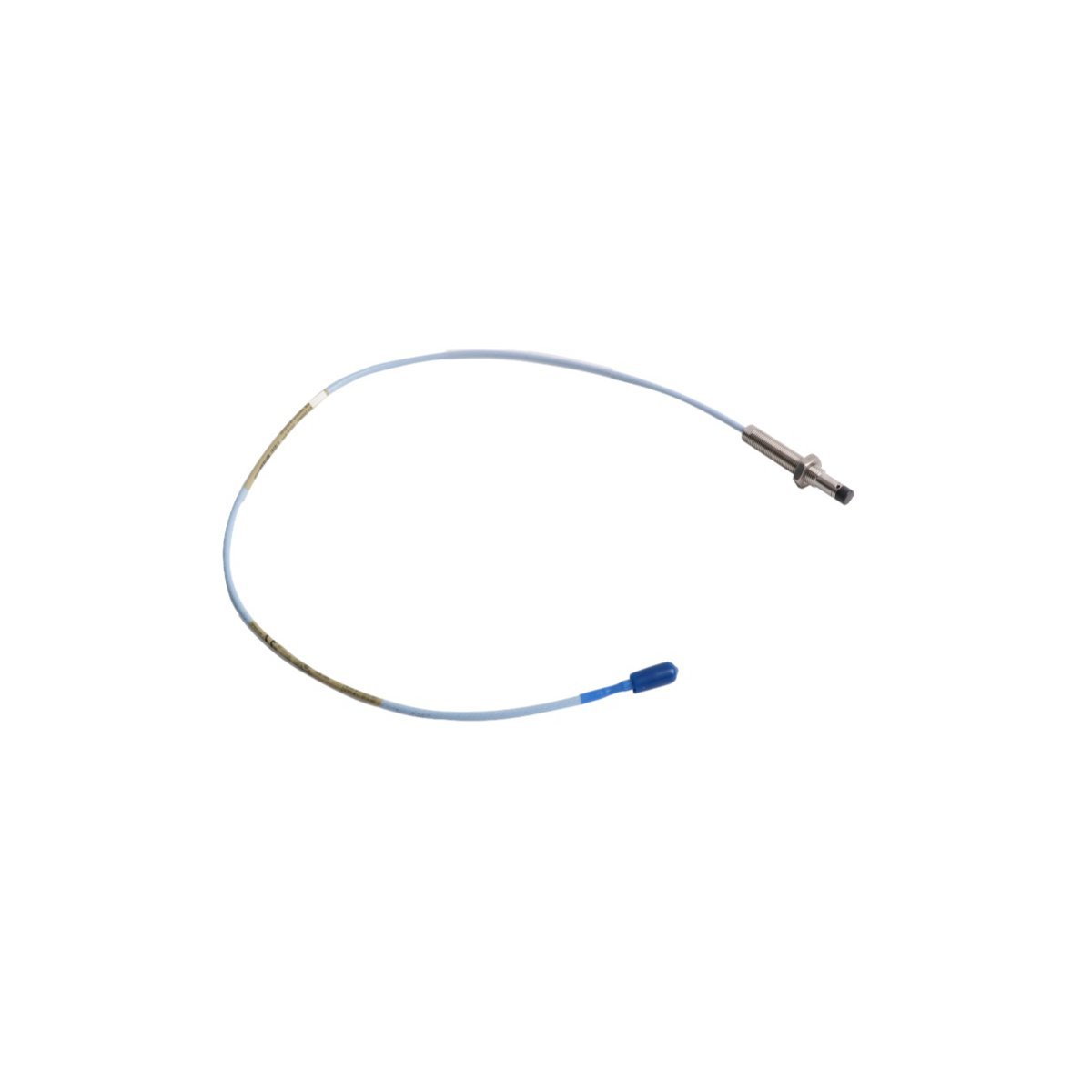

330103-01-06-05-02-05 | Bently Nevada | 3300 XL 8 mm Probe

### Product Description
This is a non-contact eddy current proximity probe designed for continuous vibration and position monitoring of rotating machinery. It forms part of the Bently Nevada 3300 XL sensor system and interfaces directly with 3300 series monitors.
Moreover, it delivers high-resolution displacement measurements for shaft vibration, axial position, and differential expansion in turbomachinery. Therefore, it is routinely deployed in critical monitoring applications where reliability and signal integrity are essential. In addition, its ruggedized construction supports operation in harsh industrial environments including high temperature and electromagnetic noise.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration on steam turbine and gas turbine shafts
– Measuring axial position of compressor and generator thrust collars
– Detecting differential expansion between casing and rotor in large turbines
– Providing input to machine protection systems per API 670

### FAQ
What is the standard cable length for this probe?
The probe ships with a 5-meter integral coaxial cable terminated in a 10-32 UNF connector.

Is this probe compatible with legacy 3300 monitors?
Yes, it is fully compatible with all 3300 series monitors, including 3300/16, 3300/20, and 3300/25.

Does it require a separate extension cable?
No, the 5-meter cable is integral and pre-calibrated; extension cables are not supported or recommended.

What is the operating temperature range?
The probe operates from –30 °C to +120 °C at the tip, with derating above 85 °C for extended life.

Can it be used in hazardous areas?
No, this probe is not intrinsically safe or explosion-proof; use only in non-hazardous locations unless paired with an approved safety barrier system.
