Description

Technical Overview

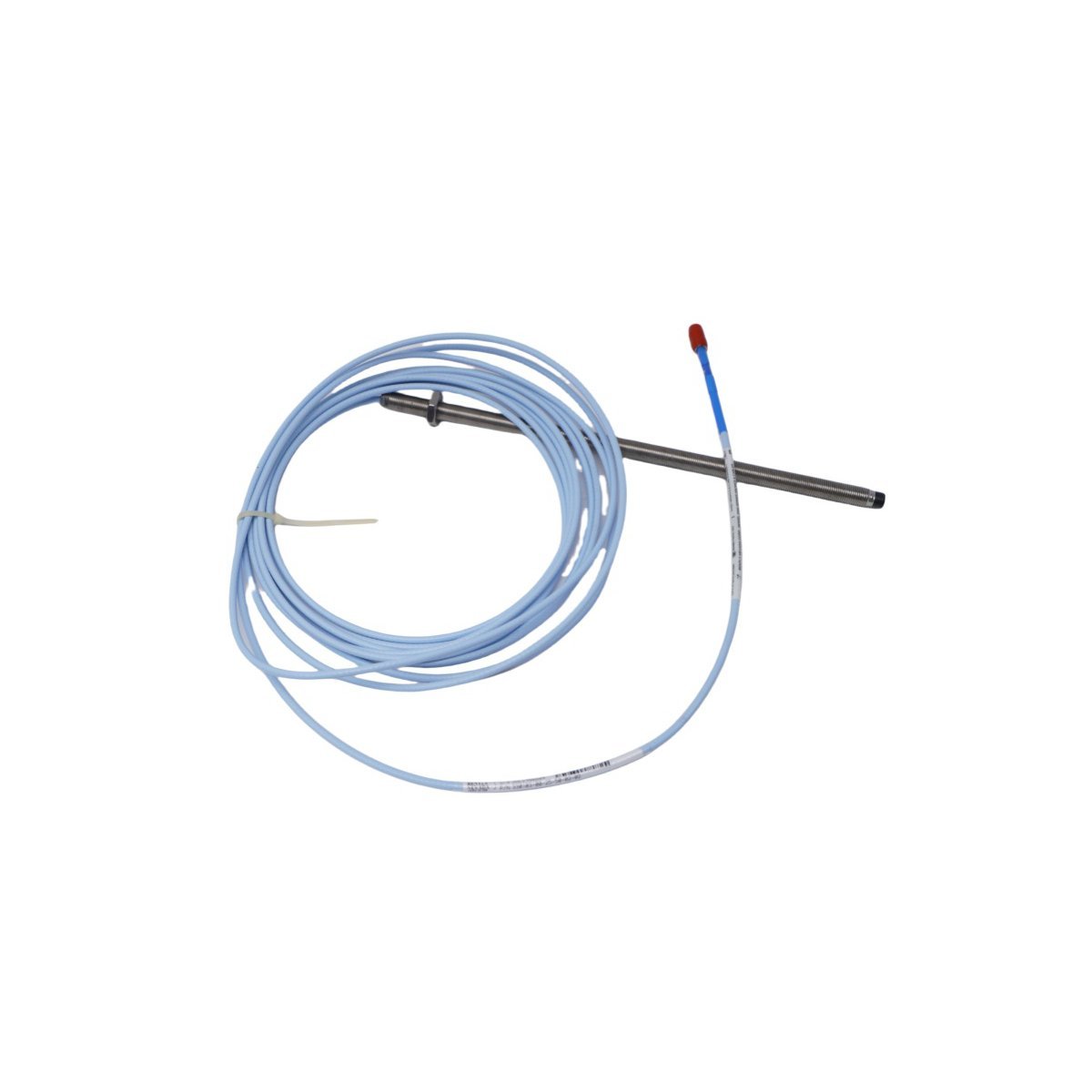

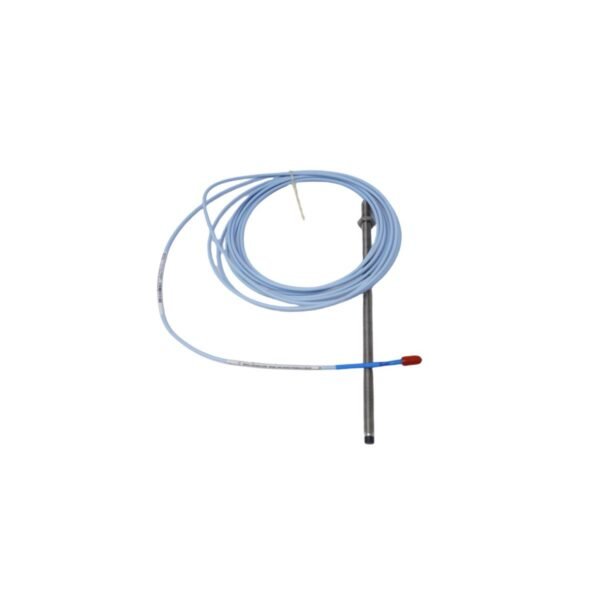

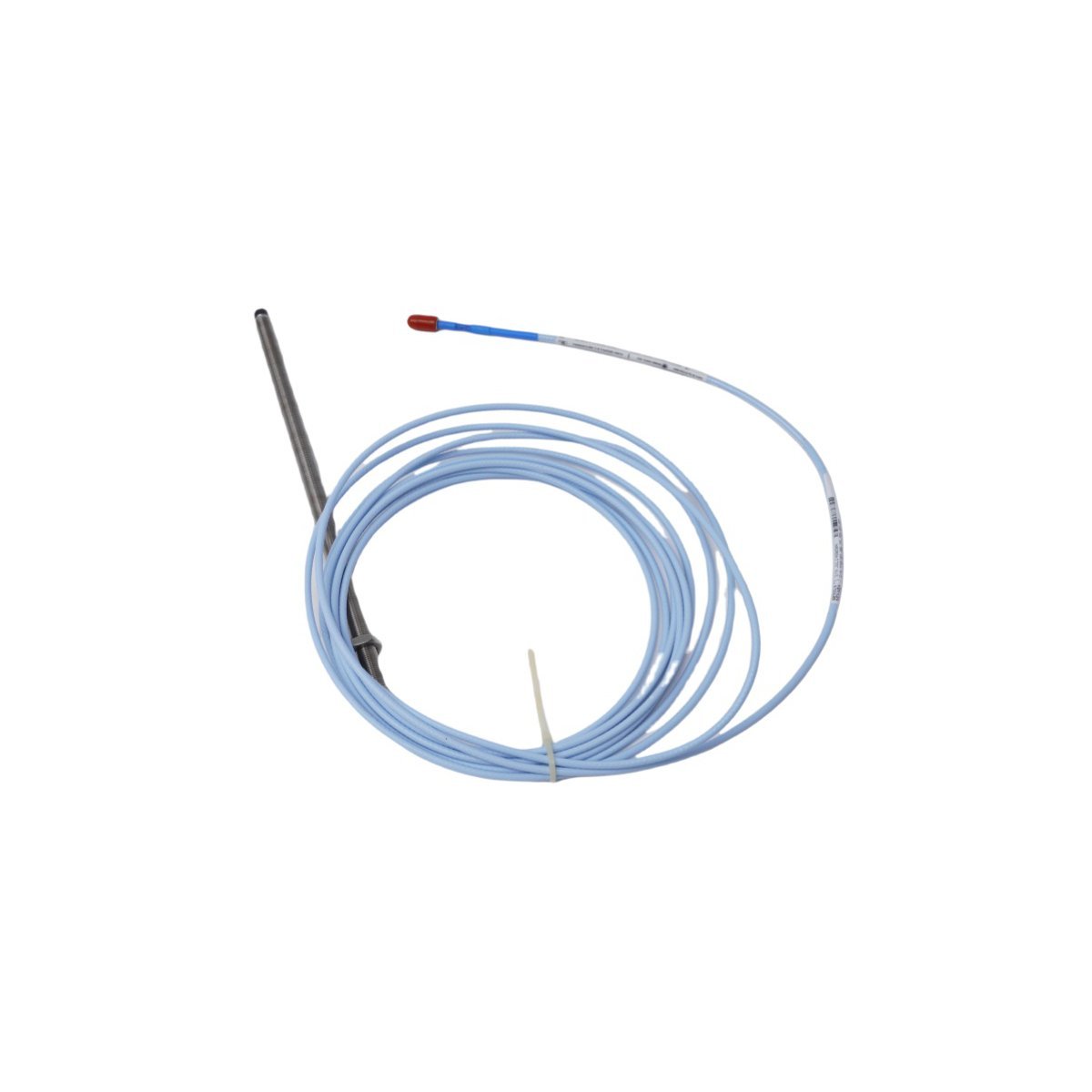

The Bently Nevada 330103-00-25-05-02-00 is a high-precision, industrial-grade proximity probe engineered for non-contact vibration, displacement, and position monitoring in critical rotating machinery applications. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset condition monitoring and predictive maintenance solutions, this probe belongs to the trusted 3300 XL Series—renowned for its exceptional stability, repeatability, and immunity to environmental interference. Designed specifically for integration with the 3300 XL 8 mm sensor system architecture, the probe delivers linear, temperature-compensated output across its calibrated range, ensuring consistent measurement integrity under demanding operational conditions—including elevated temperatures, electromagnetic noise, oil mist, and mechanical vibration. The probe features a robust stainless steel housing, hermetically sealed construction, and an integrated coaxial cable terminated with a standard 3-conductor MIL-C-5015 connector, enabling seamless compatibility with Bently Nevada 3300/3500 series monitors and data acquisition systems. Each unit undergoes rigorous factory calibration per ISO 17025-accredited procedures and is supplied with a traceable calibration certificate. This model is offered in New Surplus (Factory Fresh) condition—meaning it is unused, original manufacturer packaging, fully tested, and backed by a comprehensive 24-month limited warranty. Originating from the United States, the probe adheres to stringent ASME, API, and IEC 61000-4 electromagnetic compatibility standards, making it suitable for deployment in safety-critical infrastructure across power generation, oil & gas, petrochemical, and aerospace sectors.

Detailed Specifications

Key Features

• Extended Life (XL) Design: Enhanced coil winding, thermal stabilization, and advanced epoxy encapsulation extend service life up to 3× longer than legacy 3300 probes—reducing unplanned downtime and lifecycle cost of ownership.
• High Immunity to EMI/RFI: Precision-wound, shielded sensing coil and proprietary grounding architecture minimize susceptibility to electromagnetic interference in electrically noisy environments such as VFD-driven motors and switchgear rooms.
• Temperature Compensation: Integrated thermal compensation circuitry maintains linearity and sensitivity accuracy across the full operating temperature range—critical for turbine casings and compressor housings subject to thermal cycling.
• Hermetic Sealing & Corrosion Resistance: Laser-welded stainless steel (316 SS) housing and fluoropolymer-coated cable ensure long-term reliability in aggressive process environments, including offshore platforms and sour gas applications.
• Plug-and-Play Compatibility: Fully interoperable with Bently Nevada 3300/3500 monitor racks, System 1 software, and third-party DCS/SCADA interfaces via standard 3300 XL preamplifiers (e.g., 330180-50-00).
• Traceable Calibration & Documentation: Supplied with NIST-traceable calibration certificate, serial-number-matched test report, and full compliance documentation for regulatory audits and ISO 55001 asset management programs.
• Optimized for High-Frequency Dynamics: Exceptional bandwidth (0–10 kHz) enables accurate detection of bearing defects, blade pass frequencies, and gear mesh harmonics—supporting advanced diagnostics and machine learning-based prognostics.

Applications

• Steam and Gas Turbines: Radial vibration monitoring of journal bearings, thrust position measurement, and differential expansion analysis in combined-cycle power plants and cogeneration facilities.
• Centrifugal Compressors & Pumps: Shaft displacement monitoring for seal clearance control, surge detection, and alignment verification in refineries, LNG terminals, and chemical processing units.
• Aero-Derivative Engines: Rotor dynamics assessment, tip clearance measurement, and transient event capture during start-up, load changes, and shutdown sequences.
• Large Electric Motors & Generators: Stator-to-rotor air gap monitoring, eccentricity evaluation, and vibration severity trending per ISO 10816-3 and IEEE 112.
• Reciprocating Machinery: Crosshead displacement, piston rod drop, and cylinder liner wear detection in high-pressure hydrogen compressors and syngas units.
• Condition Monitoring Systems (CMS): Core sensor element in enterprise-wide predictive maintenance platforms—integrated with Bently Nevada System 1, GE Digital Predix, and OSIsoft PI System for real-time analytics and digital twin modeling.
• Safety-Critical Rotating Equipment: Compliance-enabling solution for SIL-2 applications per IEC 61508 and API RP 14C in offshore production platforms and subsea control modules.
