330103-00-13-10-12-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

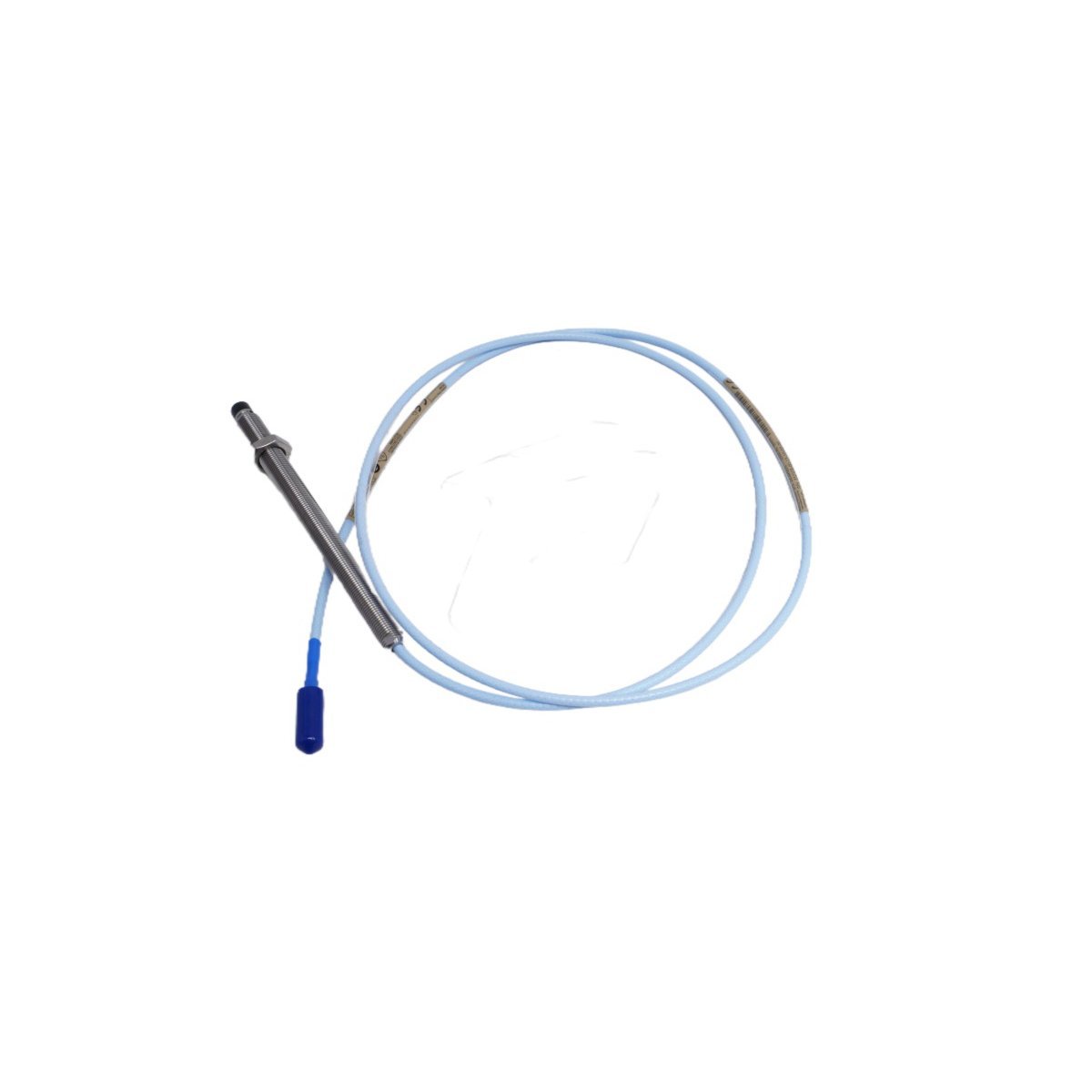

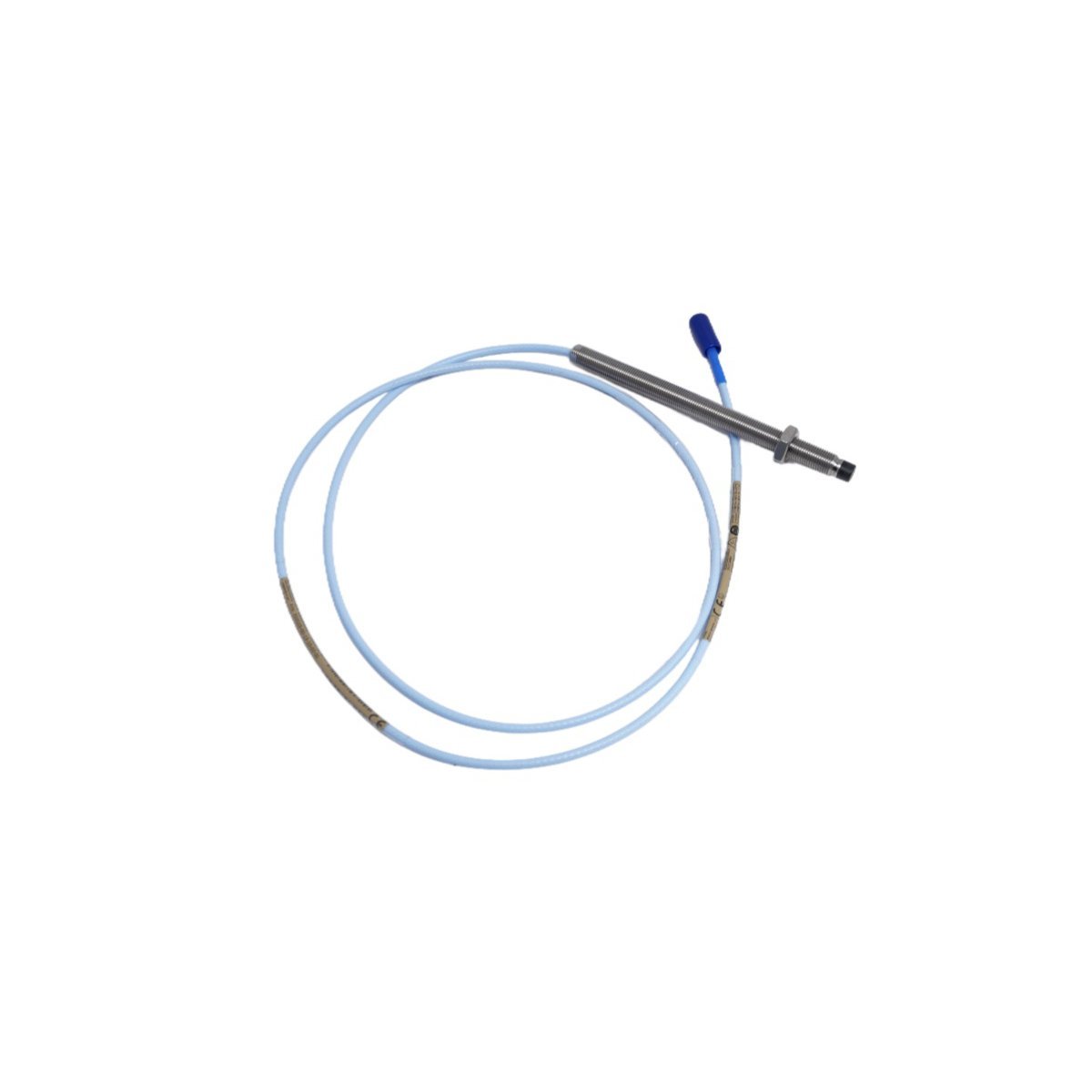

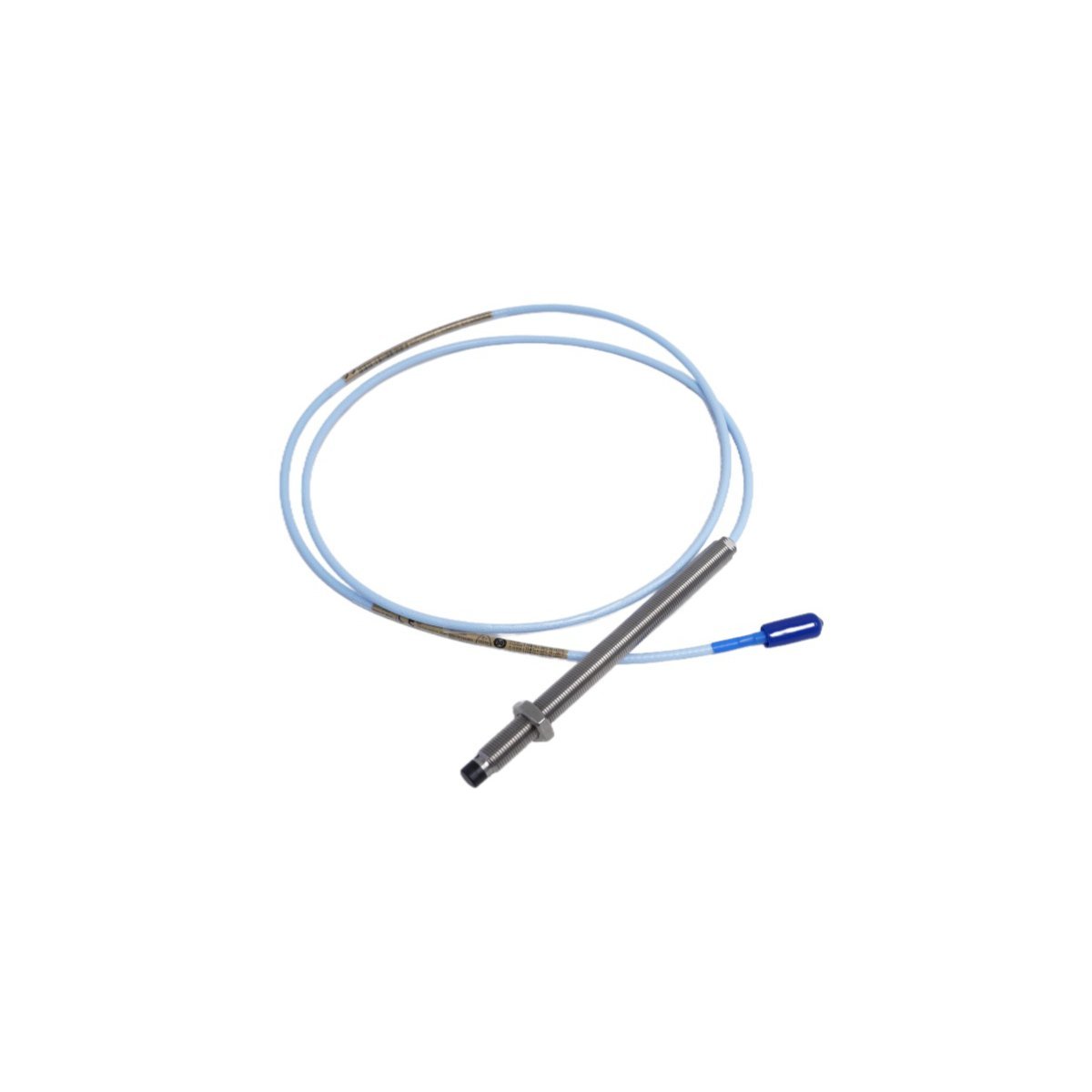

This is a non-contact eddy-current proximity probe designed for continuous displacement and vibration monitoring of rotating machinery.
Moreover, it delivers high-resolution measurements of shaft position, vibration, and gap in harsh industrial environments.
Therefore, it is commonly deployed with 3300 XL 8 mm extension cables and monitors in turbomachinery protection systems.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and axial position of steam turbine shafts
– Measuring differential expansion in gas turbine casings
– Detecting rotor runout and bearing wear in centrifugal compressors
– Providing input signals for machinery protection systems (MPS) per API 670

### FAQ
What is the standard operating temperature range?
−40 °C to +121 °C ambient, with optional high-temperature variants available.

Is this probe compatible with legacy 3300 series monitors?
Yes, it is fully compatible with all 3300, 3300 XL, and 3500 monitor systems.

Does the probe require calibration before installation?
No—factory-calibrated and shipped with individual calibration certificate traceable to NIST.

What cable length does the part number indicate?
The “10” in the suffix denotes a 10-foot (3.05 m) integral cable.

Can it be used in hazardous areas?
Only when installed with approved intrinsically safe barriers and certified system components.
