330103-00-13-05-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

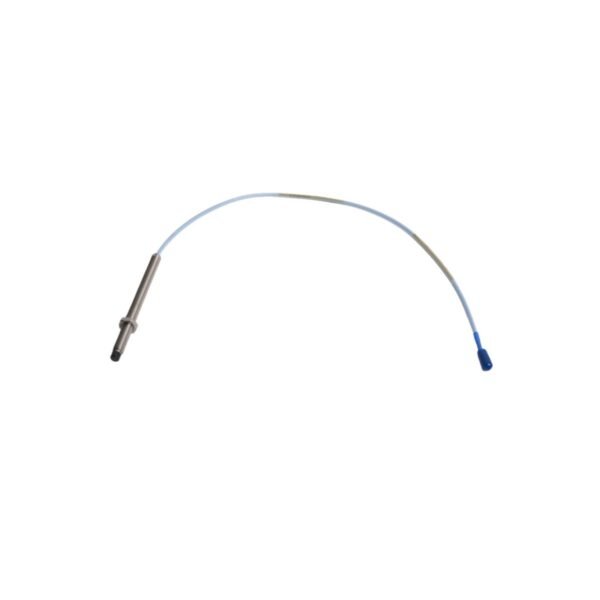

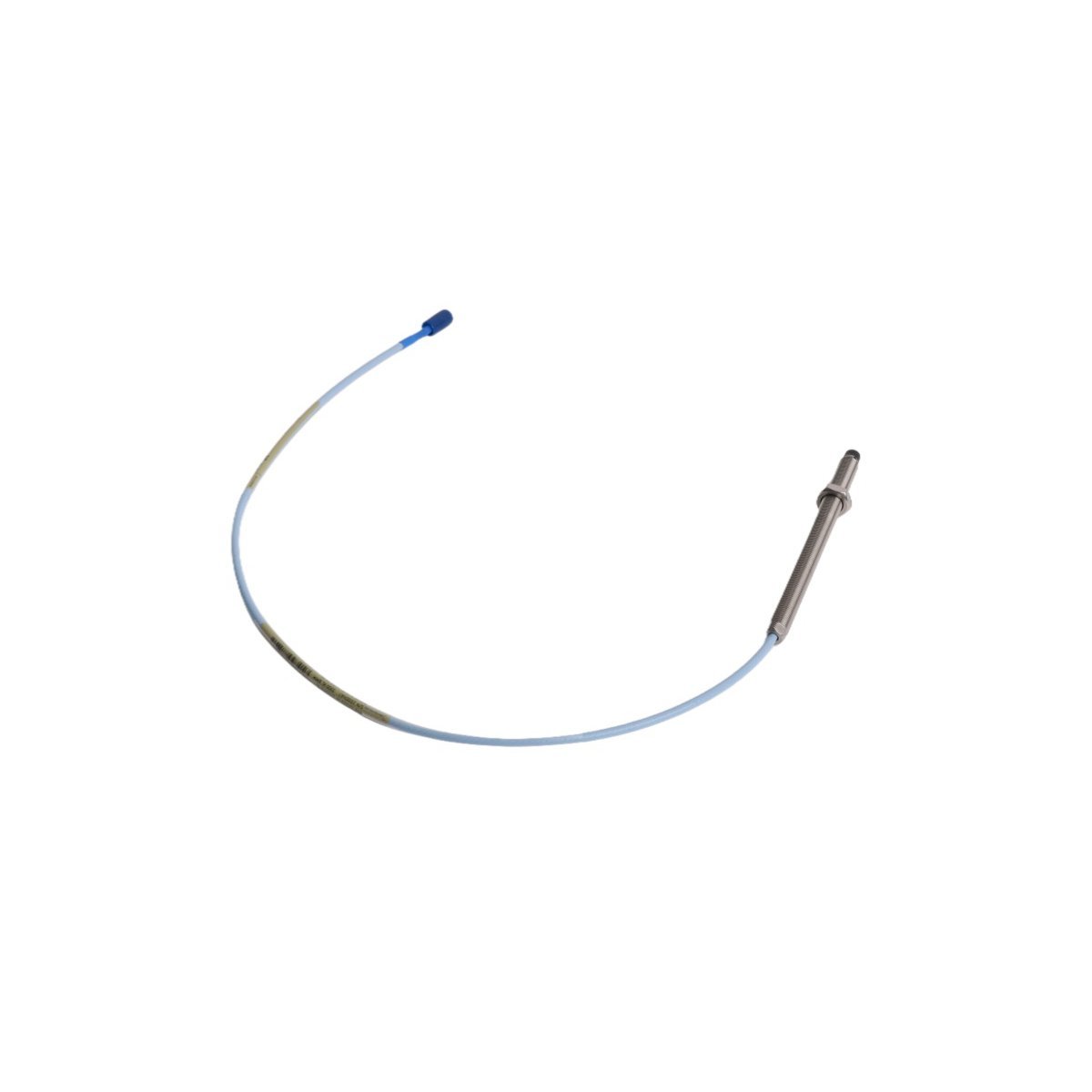

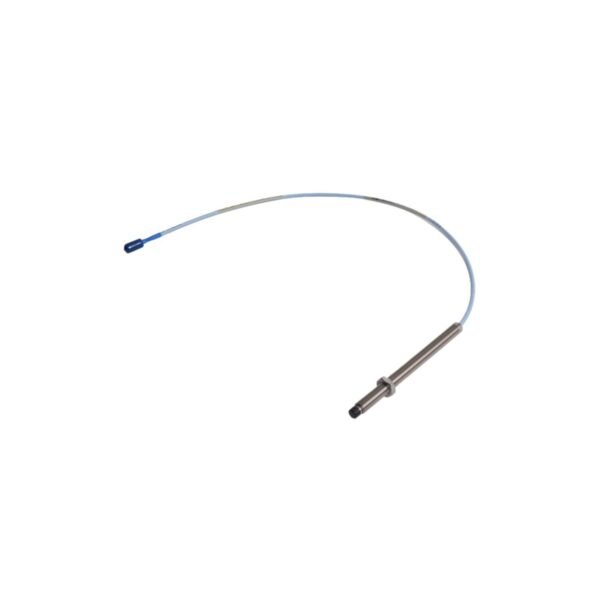

The 330103-00-13-05-02-00 is a non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL series. It delivers high-fidelity displacement and vibration measurements for rotating machinery.
Moreover, it is engineered for continuous monitoring of shaft position, vibration, and axial thrust in critical turbomachinery applications.
Therefore, it integrates directly with 3300 series monitors and supports API 670 compliance. In addition, its robust 8 mm diameter sensing tip ensures stable operation in high-temperature, high-vibration environments.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and shaft position in steam and gas turbines
– Measuring axial thrust position in centrifugal compressors
– Detecting rotor dynamic behavior in large electric motors and generators
– Supporting machine protection and condition monitoring per API 670

### FAQ
What is the standard cable length for this probe?
The probe ships with a 5-meter integral coaxial cable (RG174/U).

Is this probe compatible with legacy 3300 rack systems?
Yes, it is fully compatible with all 3300 series monitors and racks, including 3300 16-channel and 3300 4-channel systems.

Does the probe require calibration before installation?
No—each probe is factory-calibrated and supplied with a certified calibration certificate traceable to NIST standards.

Can it operate in high-temperature environments?
The probe is rated for continuous operation up to +121 °C (250 °F) at the tip; derating applies above that temperature.

What mounting thread does it use?
It features a standard 3/8-24 UNF–2A threaded body for secure mechanical mounting.
