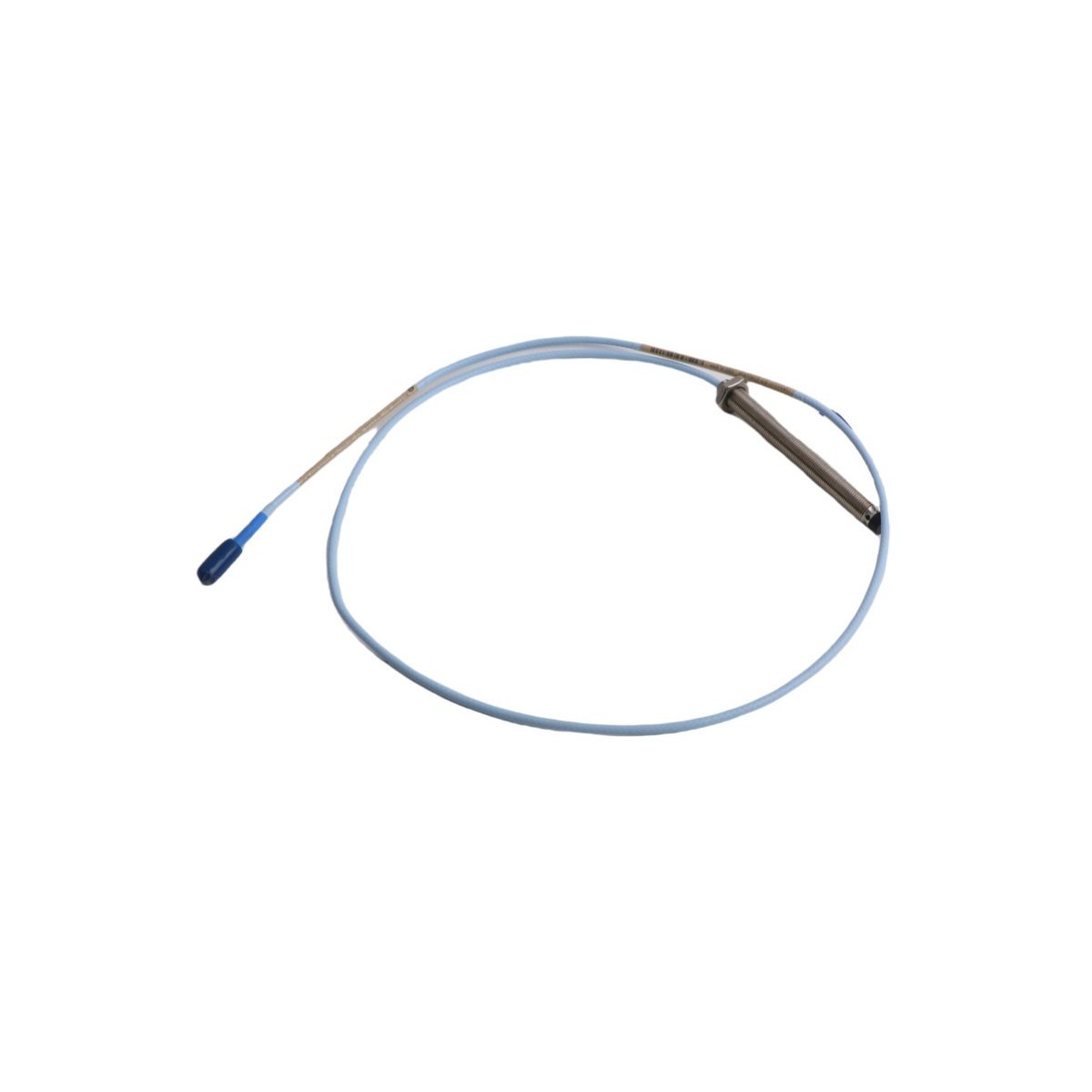

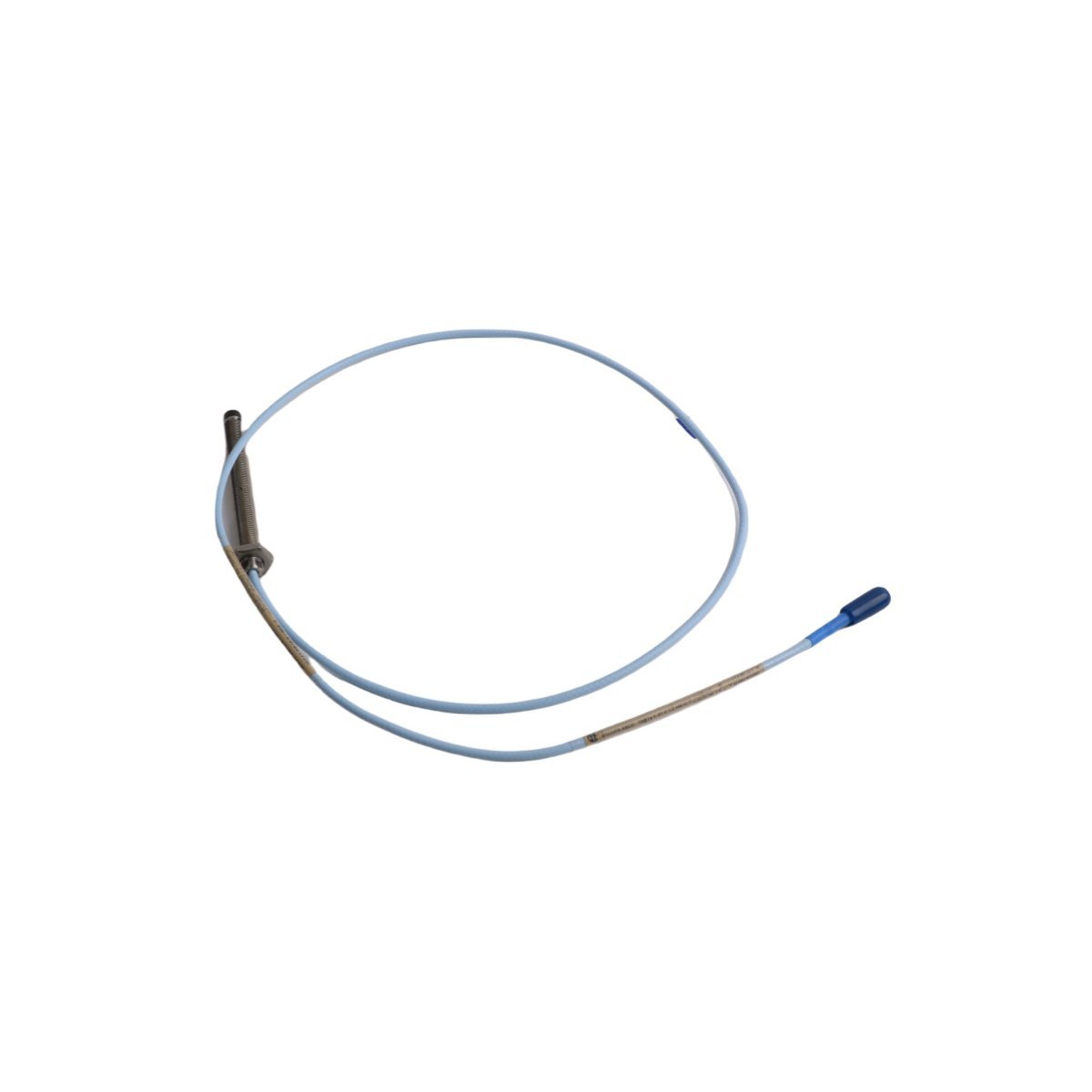

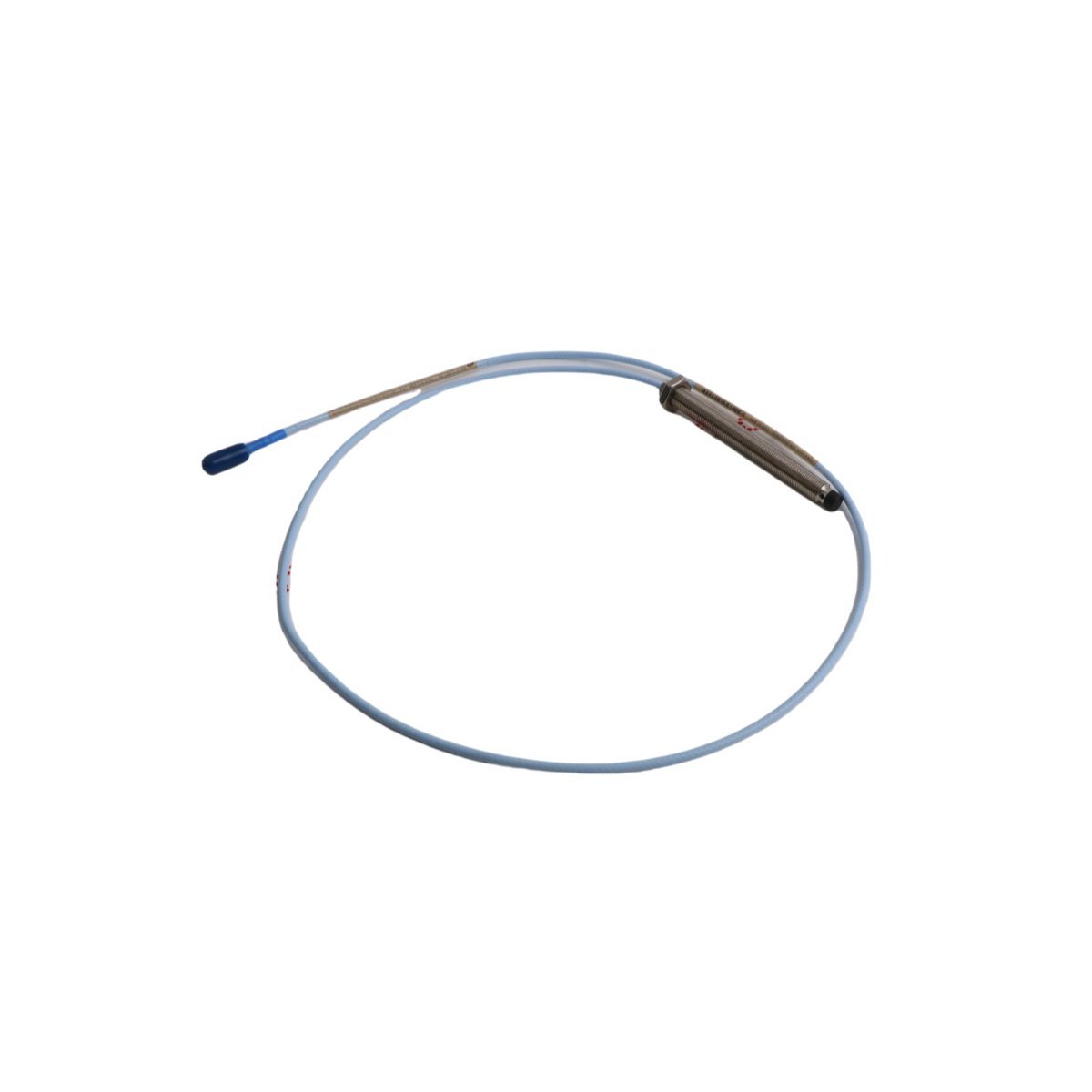

330103-00-10-10-02-05 | Bently Nevada | 3300 XL 8 mm Proximitor Sensor

### Product Description
The 330103-00-10-10-02-05 is a non-contact eddy-current proximity sensor from the Bently Nevada 3300 XL series. It delivers high-stability displacement measurements for rotating machinery shafts and housings.
Moreover, it is engineered for continuous monitoring of vibration, position, and speed in critical turbomachinery applications. Therefore, it integrates directly with 3300 series monitors and legacy protection systems. In addition, its 8 mm probe diameter supports standard API 670 compliance for mechanical integrity verification.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and axial position on steam and gas turbine shafts
– Measuring differential expansion between casings and rotors in power generation turbines
– Detecting shaft eccentricity and keyphasor signals for phase analysis in centrifugal compressors
– Providing input to machinery protection systems (MPS) per API 670 requirements

### FAQ
What is the nominal sensing range of this sensor?
The nominal linear range is 2.0 mm with a sensitivity of 4.0 V/mm.

Is the 330103-00-10-10-02-05 compatible with legacy 3300 monitors?
Yes, it is fully compatible with all 3300 series monitor chassis and 3300 XL 8 mm preamplifiers.

Does this part include the probe, extension cable, and前置器?
No — this part number refers to the complete sensor system: probe, 5 m coaxial extension cable, and 3300 XL 8 mm proximitor (前置器).

Can it be used in hazardous areas?
Only when paired with an approved intrinsic safety barrier and installed per ISA/IEC 60079 standards; the sensor itself is not intrinsically safe.

What material is the probe tip made from?
The probe tip is constructed from PPS (polyphenylene sulfide) encapsulated stainless steel housing.
