Description

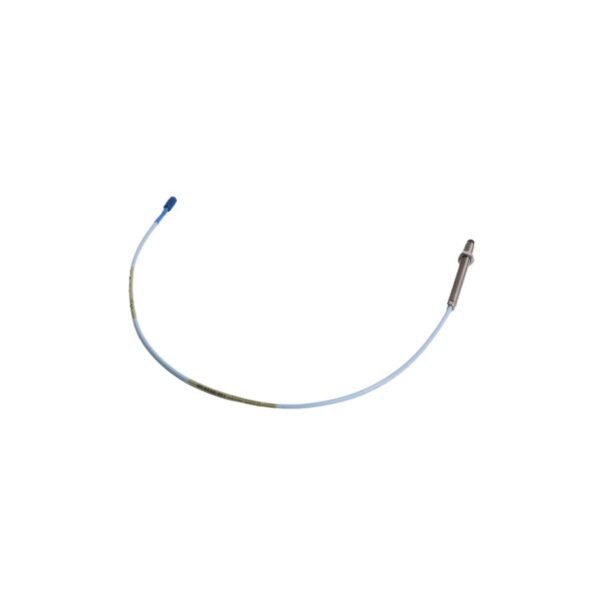

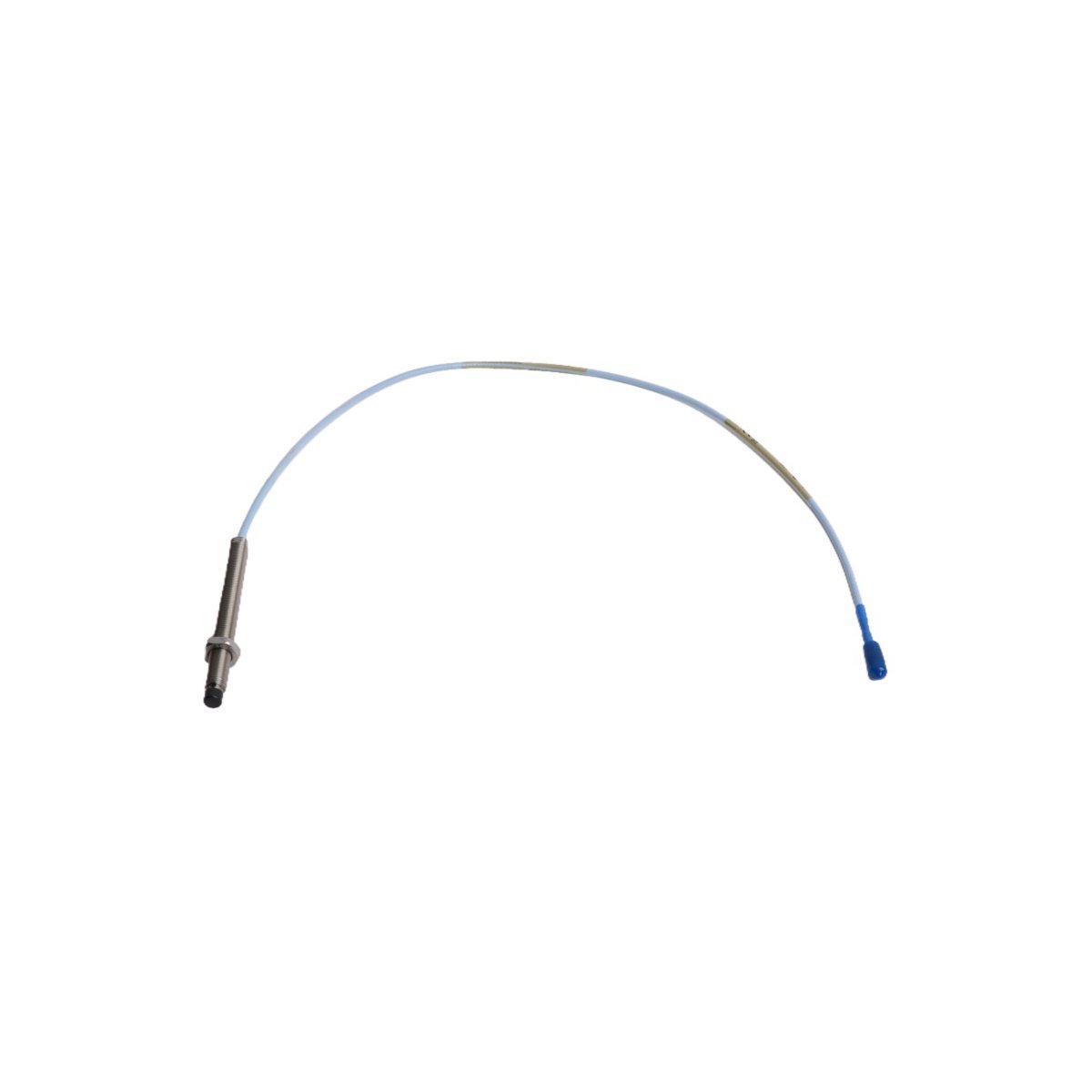

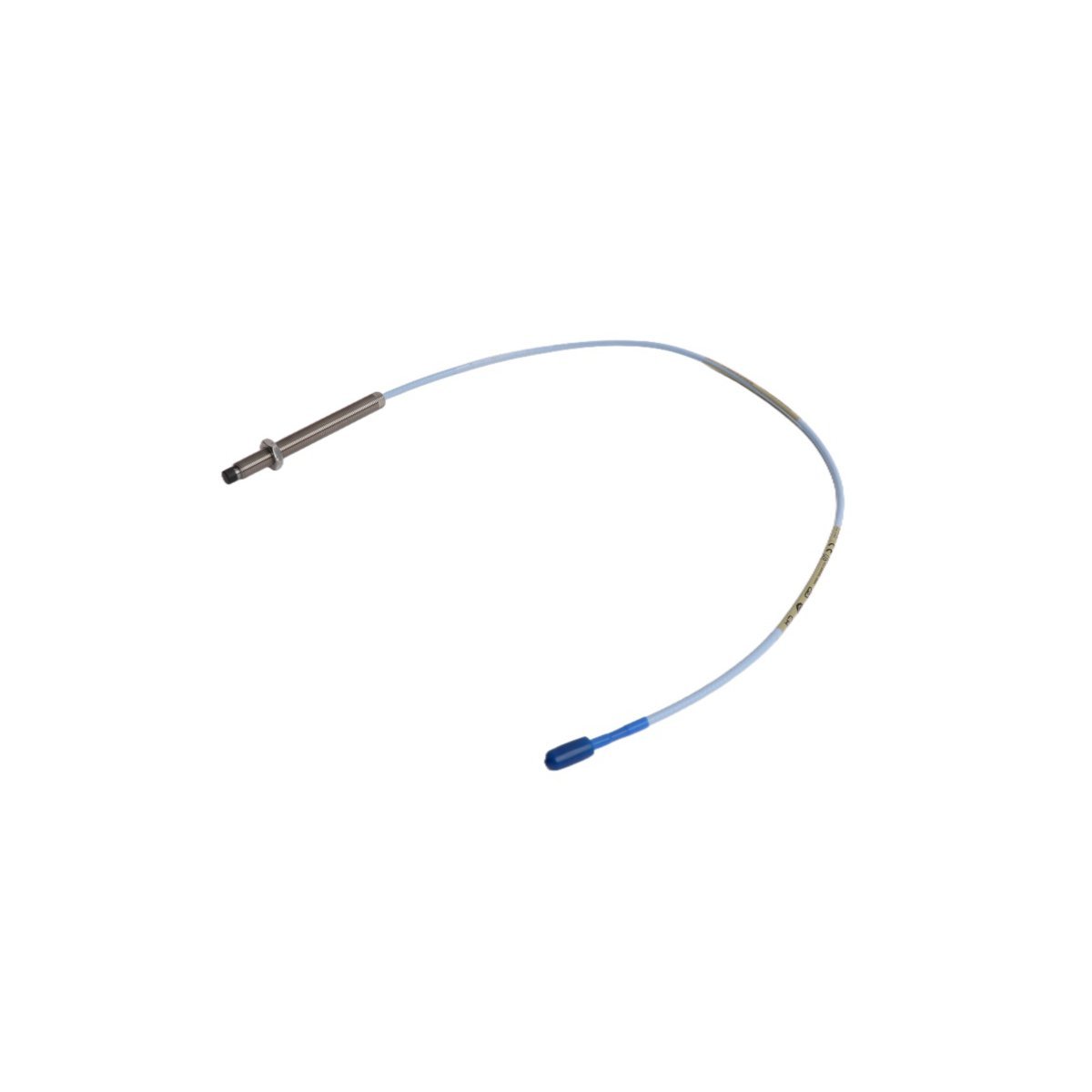

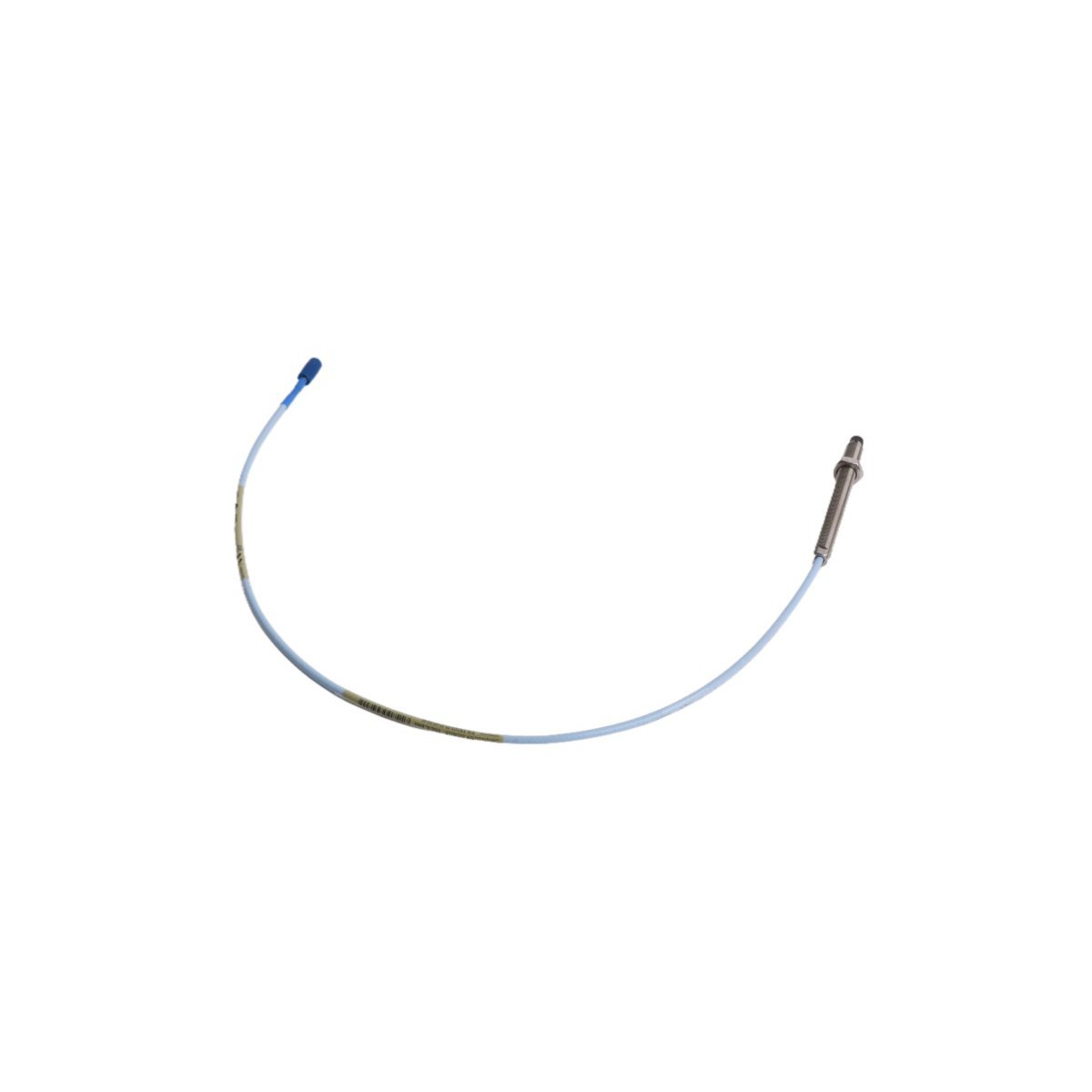

330103-00-10-05-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
The 330103-00-10-05-02-05 is a non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL series. It delivers high-fidelity displacement and vibration measurements for rotating machinery.
Moreover, it is engineered for continuous monitoring of shaft position, vibration, and axial thrust in critical turbomachinery applications. Therefore, it integrates seamlessly with 3300 series monitors and supports API 670 compliance. In addition, its robust 8 mm diameter sensing tip ensures stable performance in high-temperature, high-vibration environments.

### Technical Specifications

### Typical Applications
– Steam and gas turbine shaft vibration and position monitoring
– Compressor axial position and differential expansion measurement
– Motor and generator rotor eccentricity and runout analysis
– Critical pump shaft displacement in oil & gas and power generation

### FAQ
What is the standard cable length for this probe?
The probe includes a 5-meter integrated coaxial cable with a 3300 XL connector.

Is calibration required before installation?
Yes—each probe must be calibrated with its matching extension cable and monitor per API 670 requirements.

Can this probe operate in hazardous areas?
No—it is not intrinsically safe or explosion-proof; use only in general-purpose or classified areas with appropriate barriers.

What temperature range is supported?
The probe operates continuously from –30 °C to +120 °C at the tip, with derating above 85 °C.

Does it require a separate前置 amplifier?
No—the 3300 XL system uses built-in monitor electronics; no external前置 amplifier is needed.
