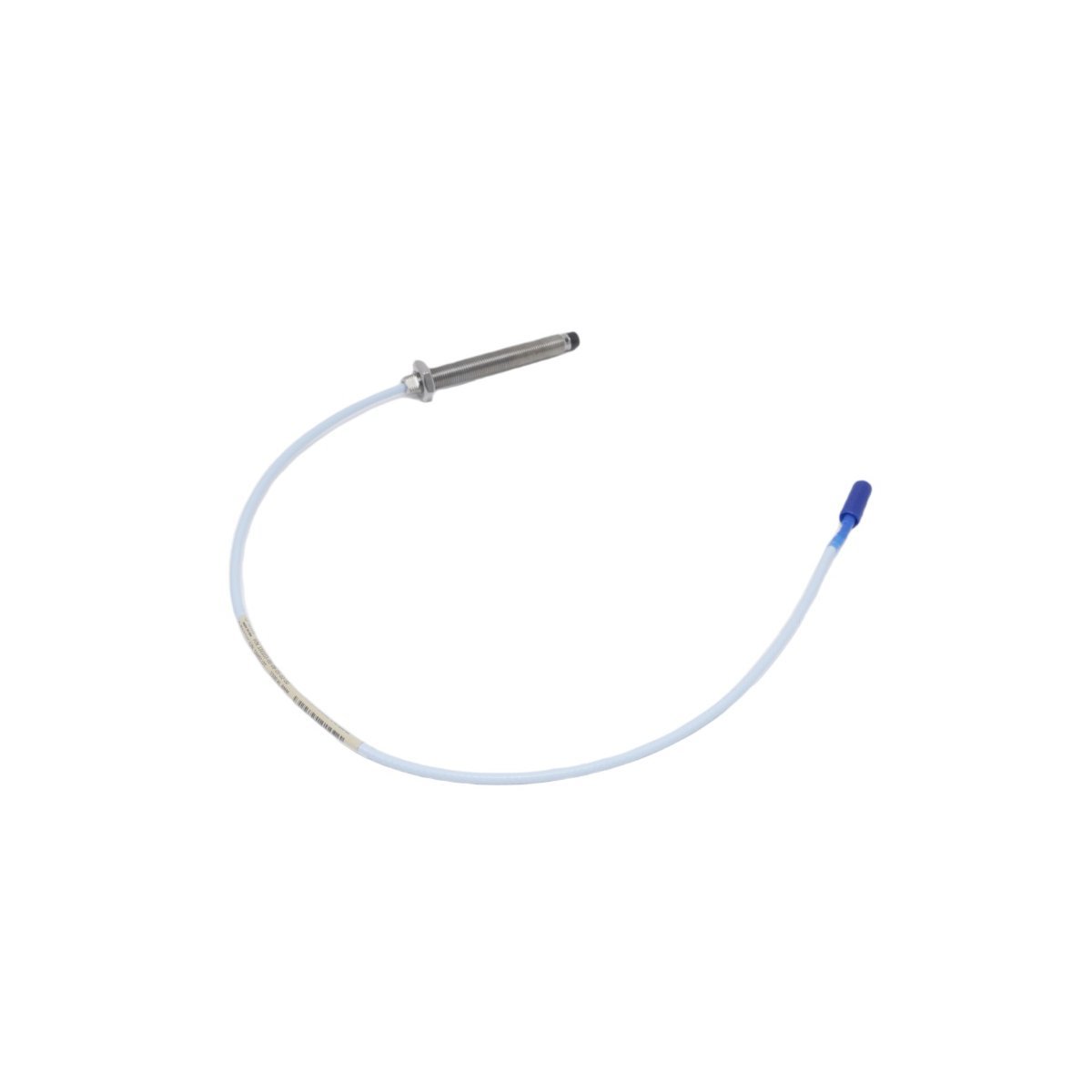

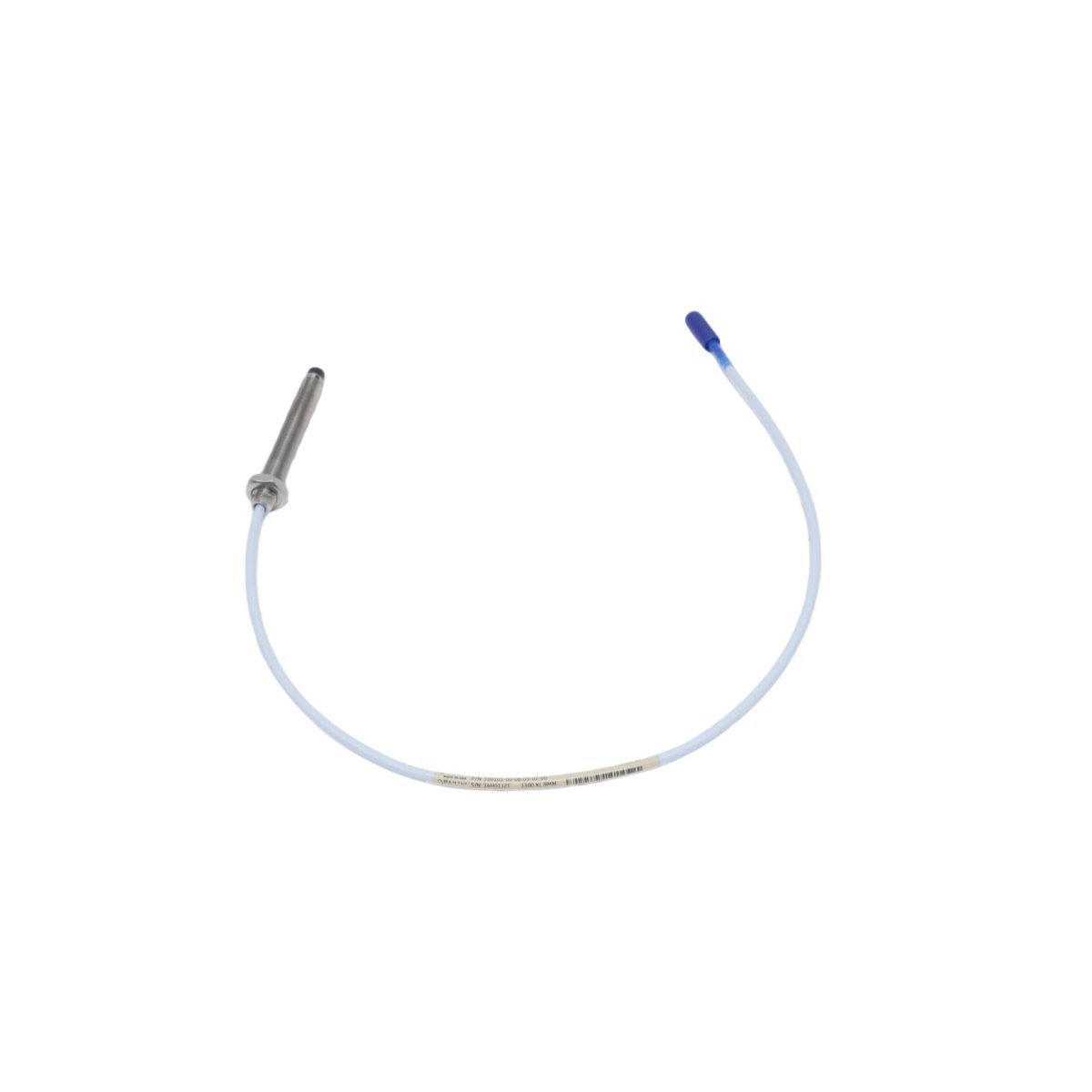

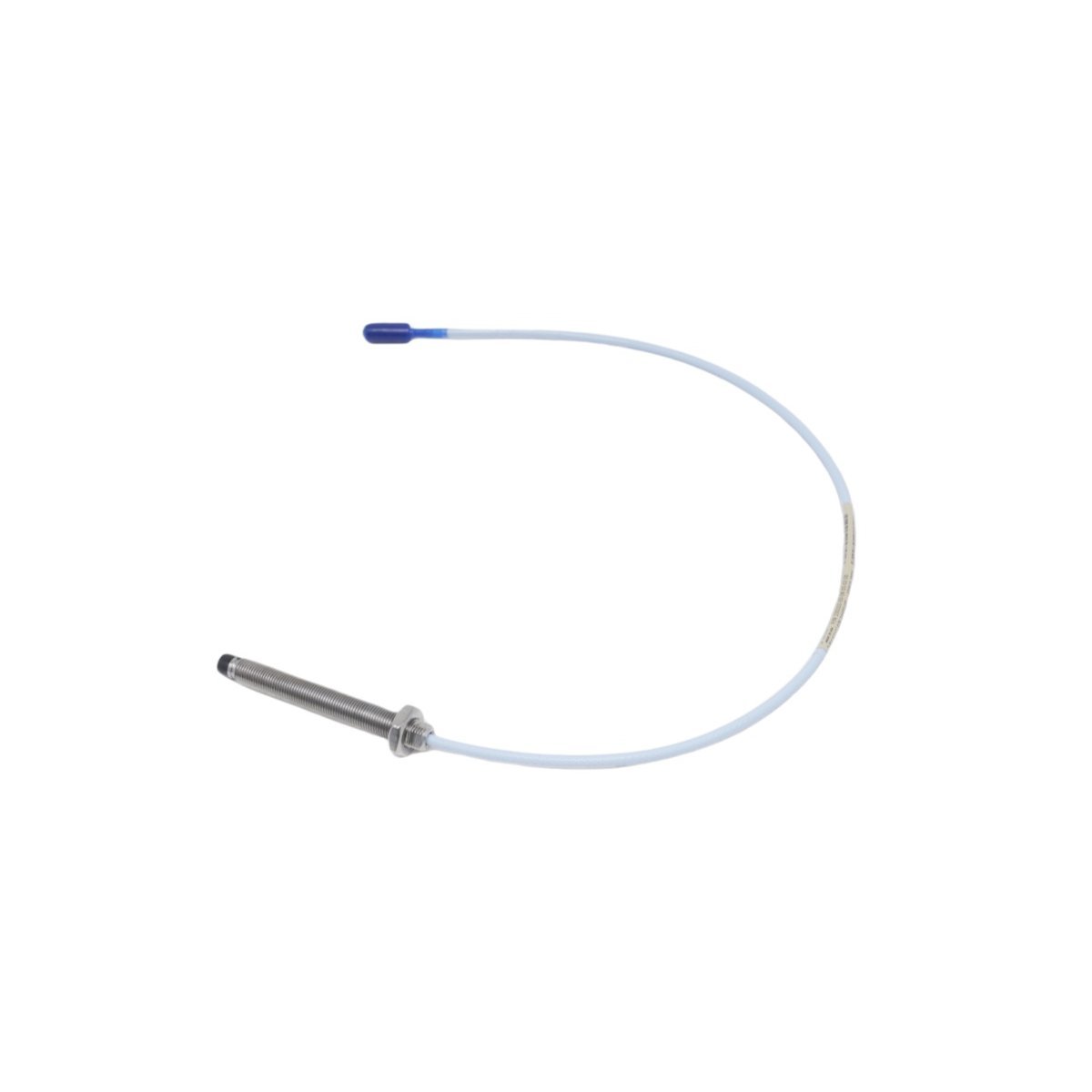

The Bently Nevada 330103-00-08-05-02-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in mission-critical rotating machinery. Manufactured by Baker Hughes (under the Bently Nevada brand), this probe is part of the trusted 3300 XL 8 mm family—renowned globally for exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity. Designed to operate seamlessly with Bently Nevada 3300, 3500, and System 1 condition monitoring platforms, the 330103-00-08-05-02-05 delivers repeatable measurements across demanding environments—including high temperatures, aggressive chemical exposure, and severe mechanical vibration. Each unit undergoes rigorous factory calibration per ISO 10816 and API 670 standards, ensuring traceable accuracy within ±1% full scale over its specified operating range. The probe features a robust stainless steel housing (AISI 316L), integral PTFE-insulated coaxial cable (5 m standard length), and hermetically sealed connector interface compatible with 3300 XL extension cables and前置器 (proximity transducers). Its optimized 8 mm diameter sensing face enables precise targeting of shaft surfaces—even on compact or space-constrained equipment—while maintaining optimal sensitivity (approximately 7.87 V/mm) and a linear range of 2 mm (0.080 in). This model is supplied new, factory-fresh, and fully certified, making it ideal for OEM integration, plant upgrades, or critical spare parts inventory.

Detailed Specifications

Key Features

• Exceptional Thermal Stability: Maintains calibration integrity across wide ambient temperature swings (±0.01% FS/°C drift), eliminating costly field recalibrations in turbine halls or compressor skids.
• EMI/RFI Immunity: Proprietary shielding architecture and differential signal conditioning ensure reliable operation near VFDs, SCR drives, and high-voltage switchgear—meeting IEC 61000-4-3 Level 3 radiated immunity.
• Corrosion-Resistant Construction: AISI 316L stainless steel housing and PTFE insulation provide long-term durability in offshore, petrochemical, and pulp & paper applications exposed to H₂S, chlorine, and caustic washdowns.
• Precision Linear Output: Delivers highly repeatable, low-hysteresis analog voltage output (−2 to −18 V DC) directly proportional to target gap—optimized for integration with PLCs, DCS, and protection systems.
• Plug-and-Play Compatibility: Fully interoperable with all Bently Nevada 3300 XL series前置器 (e.g., 330180-50-00, 330780-90-00) and legacy 3300 systems without firmware updates or adapter modules.
• Traceable Metrology: Supplied with NIST-traceable calibration certificate (including dynamic linearity plot, frequency response curve, and thermal drift data) valid for 24 months from date of manufacture.
• Optimized Mechanical Design: Low-profile, threaded mounting (M10×1.0) enables secure installation on tight-radius bearing housings; integrated cable strain relief prevents torsional fatigue at the probe base.

Applications

• Steam and Gas Turbines: Radial vibration monitoring of HP/IP/LP shafts, thrust position verification, and differential expansion tracking in power generation plants compliant with ANSI/IEEE C37.99 and IEC 60034-27-1.
• Centrifugal Compressors & Pumps: Shaft displacement analysis for anti-surge control, bearing wear detection, and mechanical seal clearance verification in oil & gas refineries and LNG facilities.
• Aeroderivative Engines: High-bandwidth rotor dynamics measurement for flight-critical ground test stands and marine propulsion systems requiring MIL-STD-810G environmental resilience.
• Electric Motors & Generators: Eccentricity, air gap monitoring, and rotor bar fault detection in large frame motors (>5 MW) operating under variable speed drives.
• Wind Turbine Gearboxes: Low-speed shaft runout and planetary carrier displacement monitoring to support predictive maintenance strategies aligned with ISO 13373-1 and GL Guidelines.
• OEM Equipment Integration: Pre-qualified sensor solution for original equipment manufacturers building API 617/612-compliant rotating machinery packages—reducing qualification timelines by up to 60%.
• Condition Monitoring Retrofits: Drop-in replacement for aging proximity probes in legacy Bently Nevada 3300 systems—preserving existing cabling infrastructure while upgrading to XL-series performance and diagnostics.
