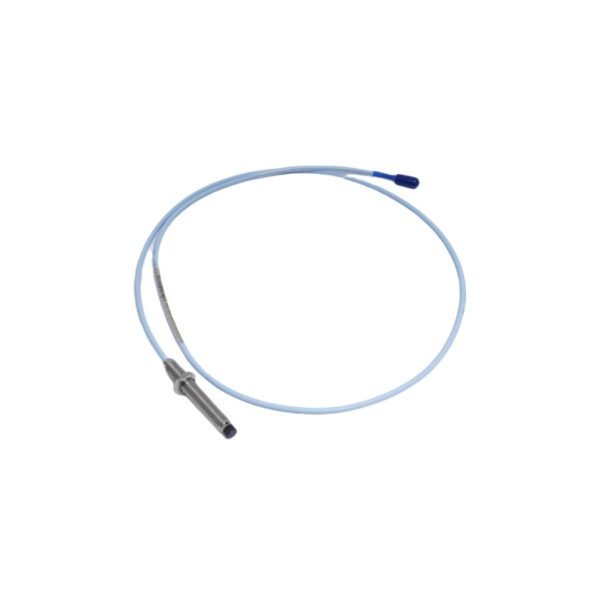

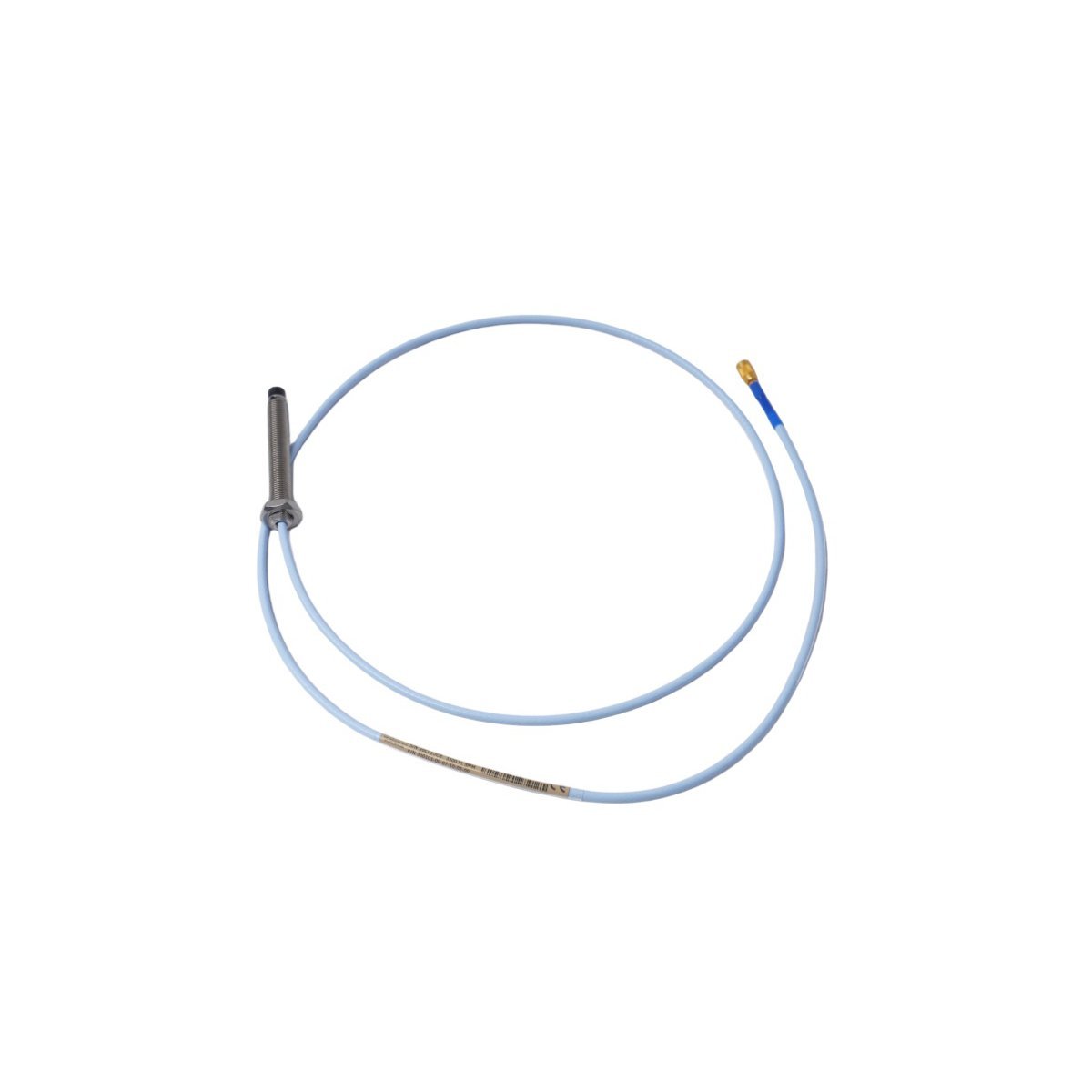

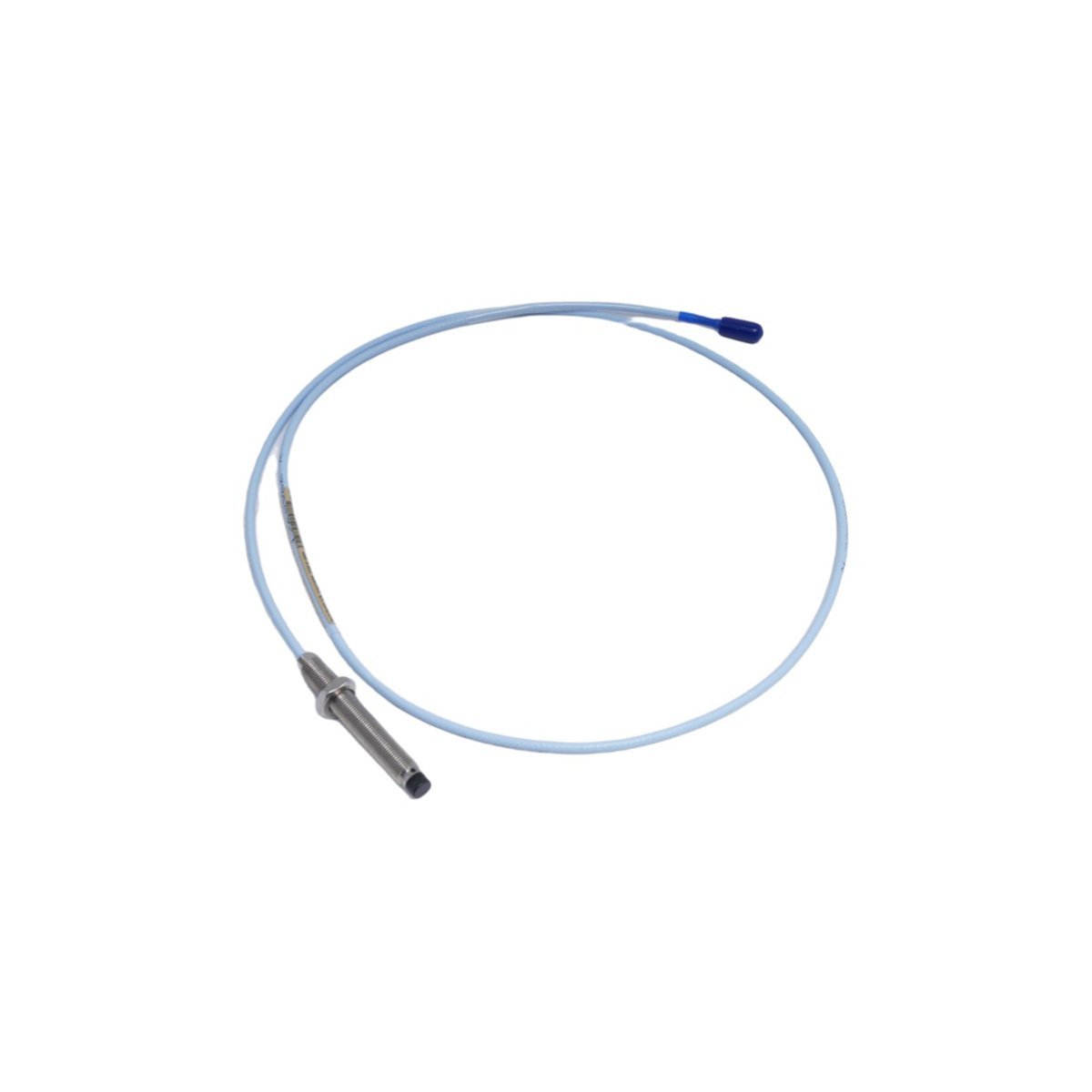

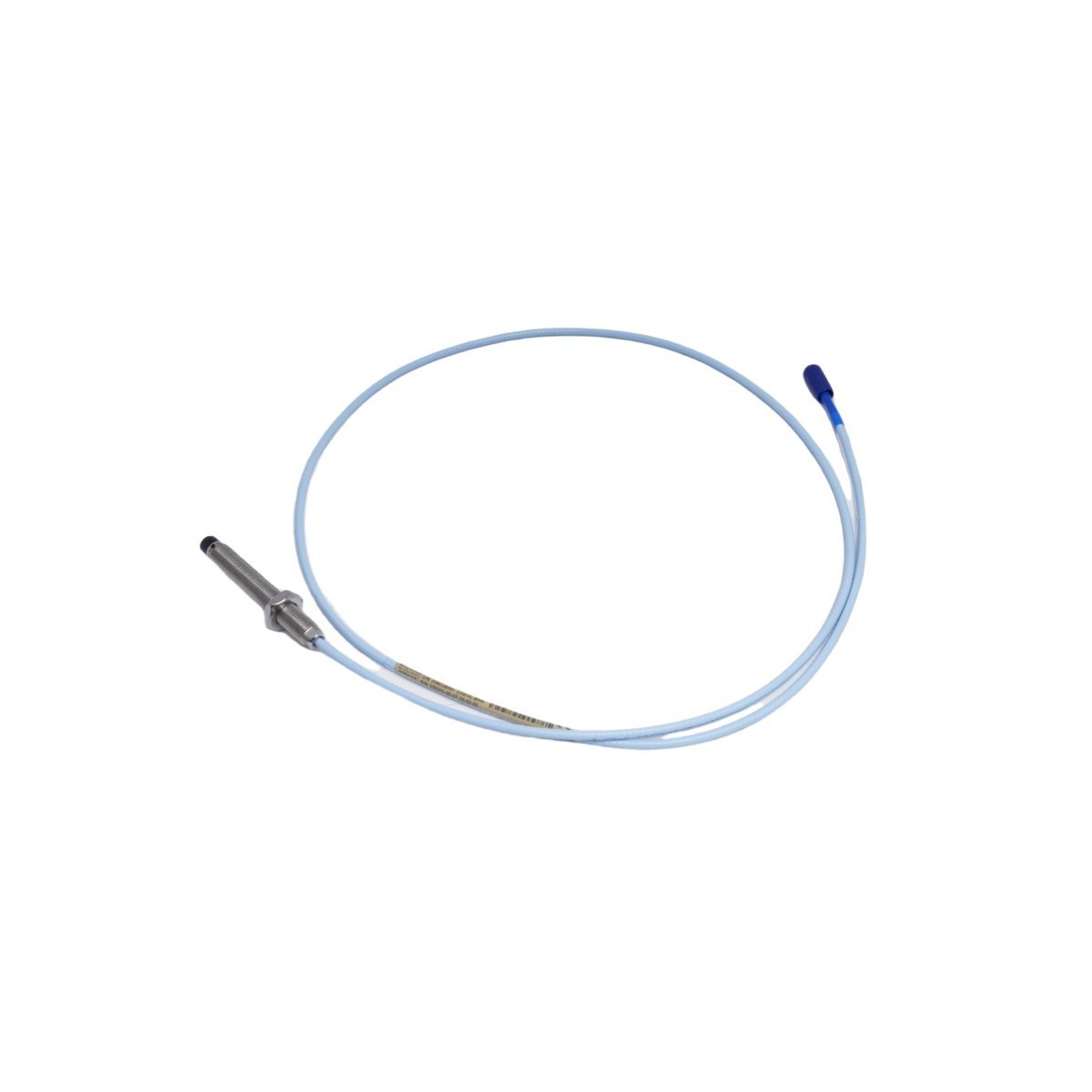

The Bently Nevada 330103-00-07-10-02-05 is a high-precision, non-contact eddy-current proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in critical rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe is part of the industry-standard 3300 XL series—renowned for its exceptional signal stability, temperature resilience, and long-term repeatability. Designed specifically for integration with the 3300 XL 8 mm sensor system architecture, the 330103-00-07-10-02-05 probe delivers optimized sensitivity (approximately 7.87 V/mm or 200 mV/mil) and operates within a linear range of ±2.0 mm (±78.7 mils), ensuring accurate displacement measurements across demanding industrial environments. The probe features a robust stainless steel housing with a PTFE-insulated, high-purity copper coil wound to exacting tolerances, enabling consistent electromagnetic field generation and minimal phase shift across its operational bandwidth (0–10 kHz). Its hermetically sealed construction provides IP67-rated protection against dust, moisture, and oil mist ingress—critical for deployment in turbine halls, compressor stations, and power generation facilities. All units are factory-calibrated per ISO 10816 and API 670 standards, traceable to NIST-certified reference equipment, and undergo 100% functional testing prior to shipment. This probe is supplied in new, unused condition—never refurbished or reconditioned—and backed by a comprehensive 24-month limited warranty covering material defects and workmanship under normal use and proper installation.

Detailed Specifications

Key Features

• Precision Calibration & Traceability: Each unit is individually calibrated using laser-interferometric reference standards; calibration data includes serial-numbered certificate with NIST-traceable uncertainty values (<±0.5% full scale).
• Thermal Stability: Advanced coil winding and thermal-compensated core design minimize output drift—less than 0.05% FS/°C across the full operating range—ensuring reliability in high-temperature turbomachinery applications.
• Robust Mechanical Integrity: Stainless steel housing with integrated strain relief and hermetic glass-to-metal seal withstands mechanical shock (50 g, 11 ms half-sine), vibration (up to 100 g RMS), and aggressive chemical exposure.
• Optimized Electrical Performance: Low-noise, low-capacitance coaxial cable minimizes signal attenuation and EMI susceptibility; compatible with all 3300 XL monitors, including 3300 NSV, 3500, and System 1 platforms.
• Plug-and-Play Integration: Pre-terminated with standard 3300 XL male connector (M12 × 1, 4-pin) and keyed alignment feature—eliminates field termination errors and reduces commissioning time by up to 40%.
• Extended Service Life: Rated for >100,000 hours MTBF (Mean Time Between Failures) under continuous operation; corrosion-resistant surface finish ensures longevity in humid, saline, or hydrocarbon-rich atmospheres.
• Global Regulatory Compliance: Fully compliant with ATEX/IECEx Zone 1 (II 2G Ex db IIC T4 Gb) when used with certified barriers—enabling safe deployment in hazardous areas across oil & gas, petrochemical, and offshore platforms.

Applications

• Steam and Gas Turbines: Monitoring radial vibration and thrust position on HP/IP/LP shafts in combined-cycle and cogeneration power plants per ISO 10816-3 Class U requirements.
• Centrifugal Compressors: Detecting bearing wear, misalignment, and surge onset in pipeline transmission, refinery, and LNG liquefaction systems—supporting API 617 compliance.
• Aeroderivative Engines: Providing high-bandwidth feedback for active magnetic bearing (AMB) control loops and real-time health assessment in aviation-derived industrial turbines.
• Large Electric Motors & Generators: Measuring rotor eccentricity, air-gap variation, and dynamic runout in >5 MW synchronous machines to prevent catastrophic stator-rotor contact.
• Pump Trains & Gearboxes: Enabling differential expansion analysis between casings and rotors in multi-stage boiler feedwater pumps and critical process gear reducers.
• Condition Monitoring Systems (CMS): Serving as primary sensing elements in enterprise-wide Baker Hughes System 1 deployments for AI-driven failure prediction, root cause analysis, and RCM optimization.
• Renewable Energy Infrastructure: Supporting reliability programs for wind turbine main shafts and hydroelectric generator rotors where ambient temperature fluctuations and long maintenance intervals demand ultra-stable sensors.
