Description

330103-00-07-10-01-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

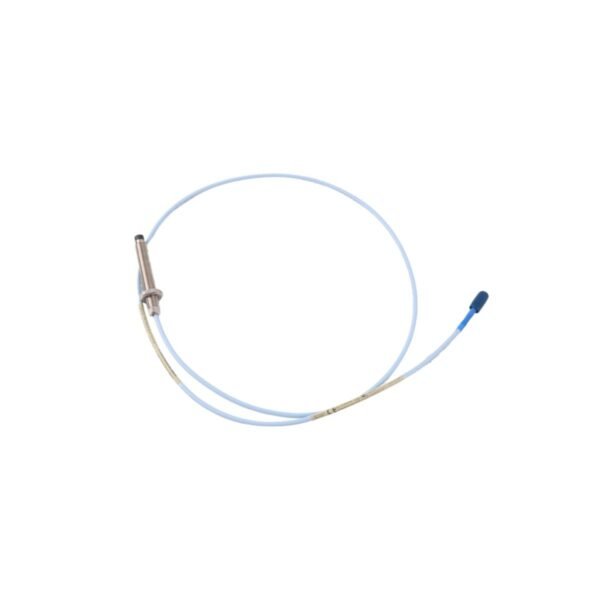

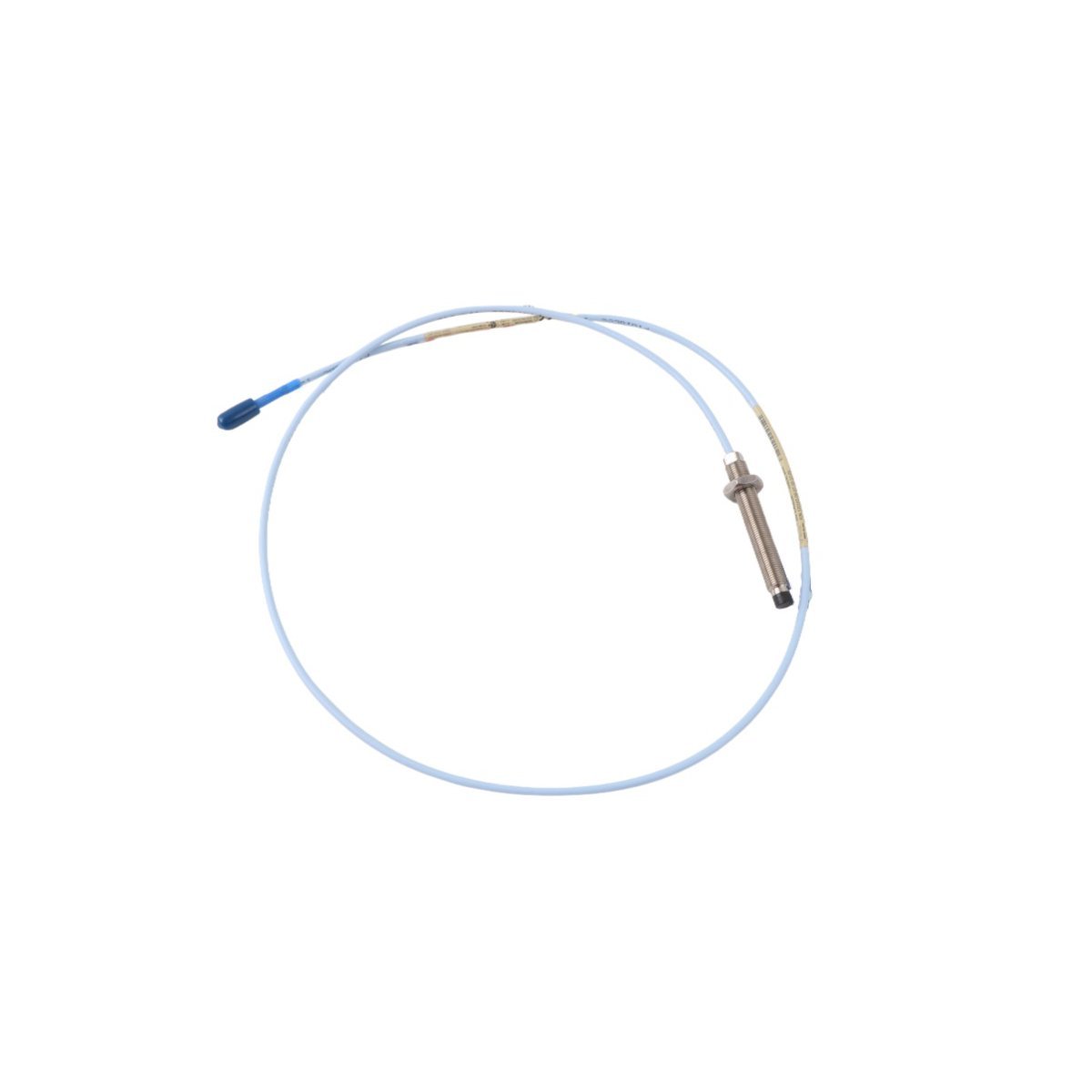

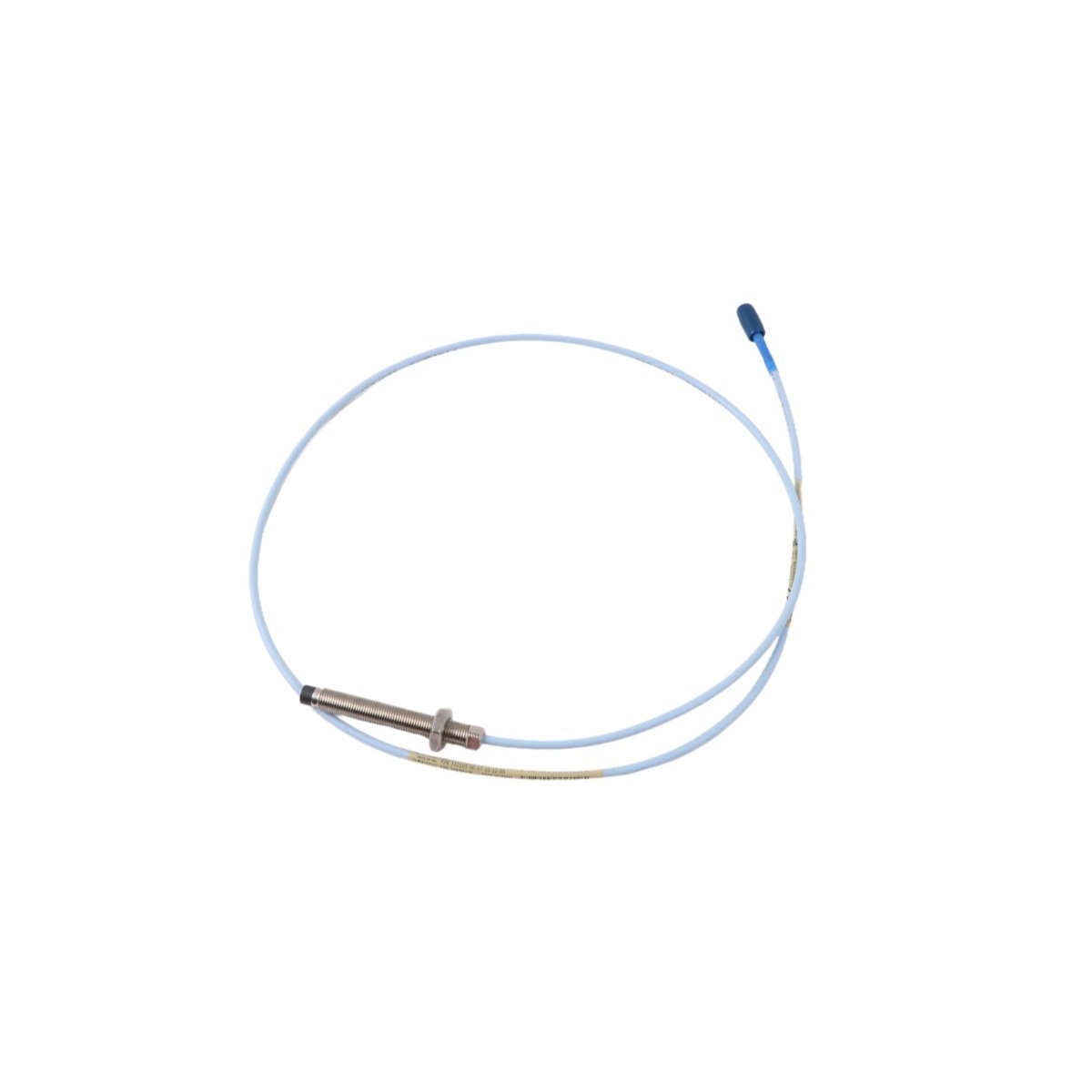

The 330103-00-07-10-01-05 is a non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL series. It delivers high-fidelity displacement and vibration measurements for rotating machinery.
Moreover, it is engineered for continuous monitoring of shaft position, vibration, and axial thrust in critical turbomachinery applications.
Therefore, it integrates directly with 3300 XL monitoring systems to support predictive maintenance and operational integrity. In addition, its 8 mm diameter sensing tip enables precise gap measurement in constrained mechanical spaces.

### Technical Specifications

### Typical Applications
– Steam turbine shaft vibration and axial position monitoring
– Gas compressor radial and thrust bearing displacement measurement
– Centrifugal pump shaft orbit analysis in oil & gas facilities
– Power generation generator rotor runout and eccentricity assessment

### FAQ
What is the standard output signal?
A -2 to -18 V DC negative-slope voltage proportional to target gap.

Is this probe compatible with legacy 3300 monitors?
Yes, it is backward compatible with all 3300 series monitor systems including 3300/16 and 3300/20.

Does the probe require a specific extension cable?
Yes, it must be used with Bently Nevada 3300 XL-rated coaxial extension cables (e.g., 330130-00-00) to maintain calibration.

What is the nominal linear range?
0.25 mm to 2.5 mm (10 mils to 100 mils) with ±1% linearity.

Can it operate in high-temperature environments?
Rated for continuous operation up to +121 °C (250 °F); derating applies above that.
