Technical Overview

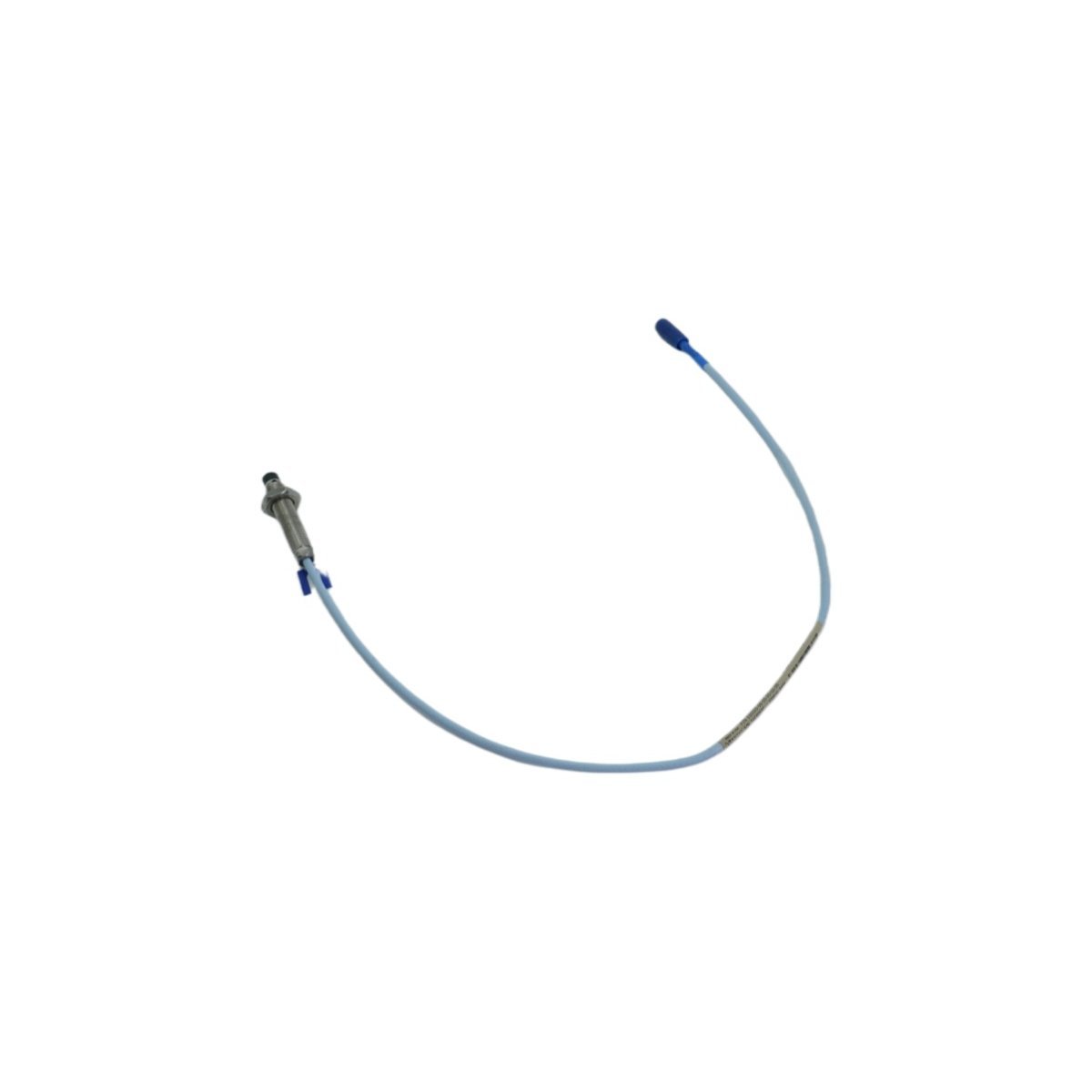

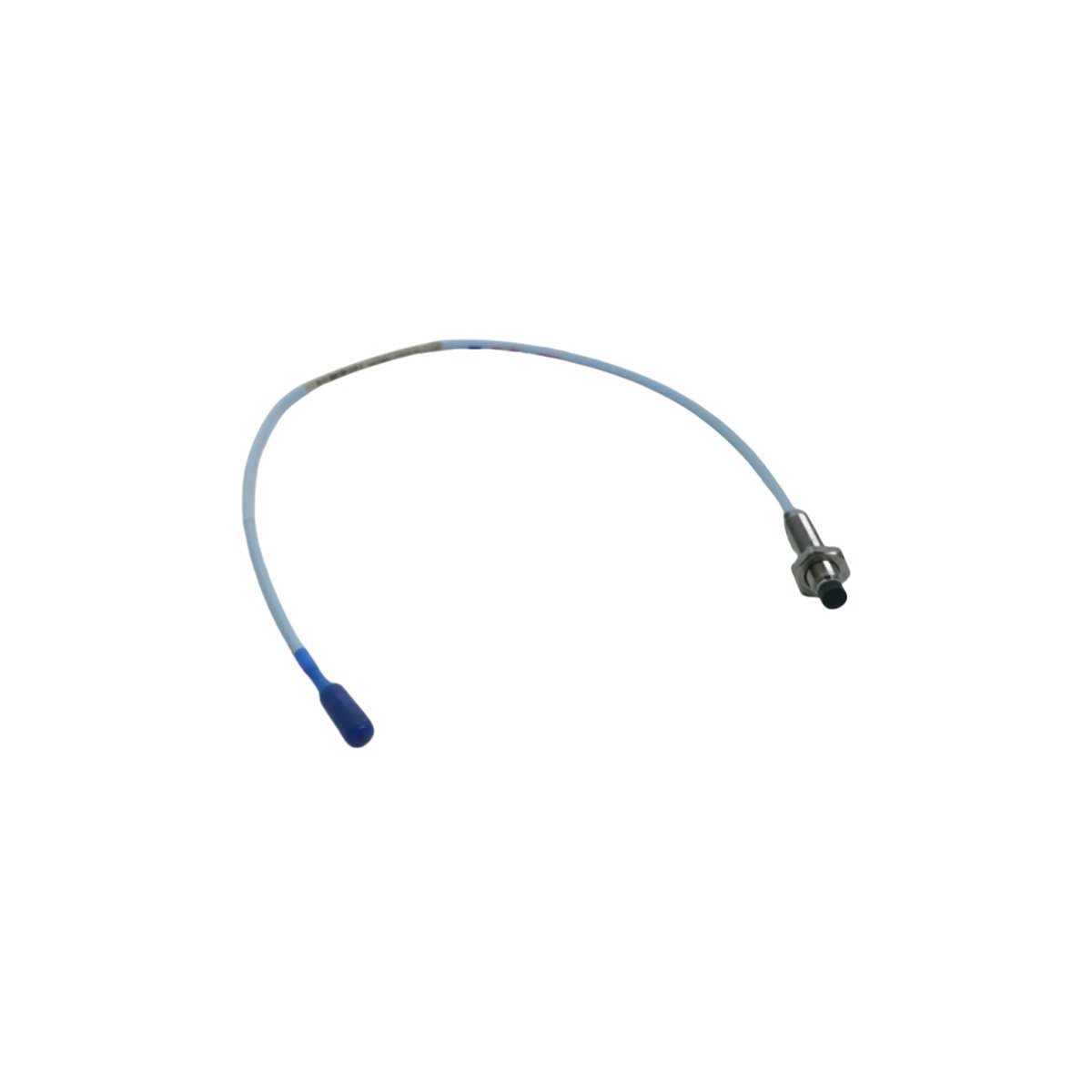

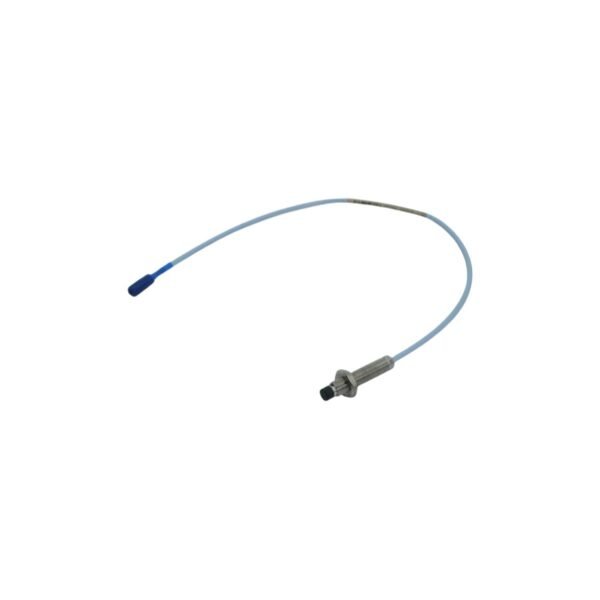

The Bently Nevada 330103-00-05-90-02-00 is a high-precision, non-contact eddy-current proximity probe engineered for critical machinery condition monitoring in demanding industrial environments. As part of the trusted 3300 XL 8 mm sensor family, this probe delivers exceptional linearity, thermal stability, and long-term repeatability—essential for reliable vibration, position, and gap measurements on rotating equipment such as turbines, compressors, motors, and gearboxes. Its robust 8 mm diameter sensing tip ensures optimal signal-to-noise ratio and reduced sensitivity to target material variations, making it ideal for use with standard ferromagnetic shafts and thrust collars.

Designed for seamless integration with Bently Nevada 3300 XL monitoring systems—including the 3300/16, 3300/20, and 3300/25 monitors—the 330103-00-05-90-02-00 operates within a calibrated range of 2.0 mm (0.08 in), with a linear output optimized for ±1.0 mm full-scale displacement. The probe features a 5-meter integrated coaxial cable terminated with a standard 10-32 UNF connector, enabling straightforward installation in confined or high-vibration areas without signal degradation. Its stainless steel housing and hermetically sealed construction meet IP67 ingress protection standards, ensuring consistent performance in harsh conditions involving oil mist, steam, dust, and wide ambient temperature fluctuations (–30 °C to +120 °C).

Key Features

• Precision 8 mm Eddy-Current Sensing: Optimized for high-resolution shaft vibration and axial position measurement with ±0.5% linearity error over full range.
• Integrated 5-Meter Cable: Factory-terminated, low-noise coaxial cable minimizes installation complexity and eliminates field-soldering requirements.
• Rugged Industrial Construction: Stainless steel probe body with PTFE-insulated cable and IP67-rated sealing for reliability in extreme process environments.
• Direct Compatibility: Fully interoperable with Bently Nevada 3300 XL monitoring systems and compatible with legacy 3300 series infrastructure via appropriate前置器 (proximitor) modules.
• Traceable Calibration: Supplied with NIST-traceable calibration certificate, ensuring compliance with ISO 10816 and API 670 standards for machinery protection systems.

Specifications

• Part Number: 330103-00-05-90-02-00
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL 8 mm Proximity Probe
• Warranty: 24-month limited warranty covering material and workmanship defects under normal industrial use
