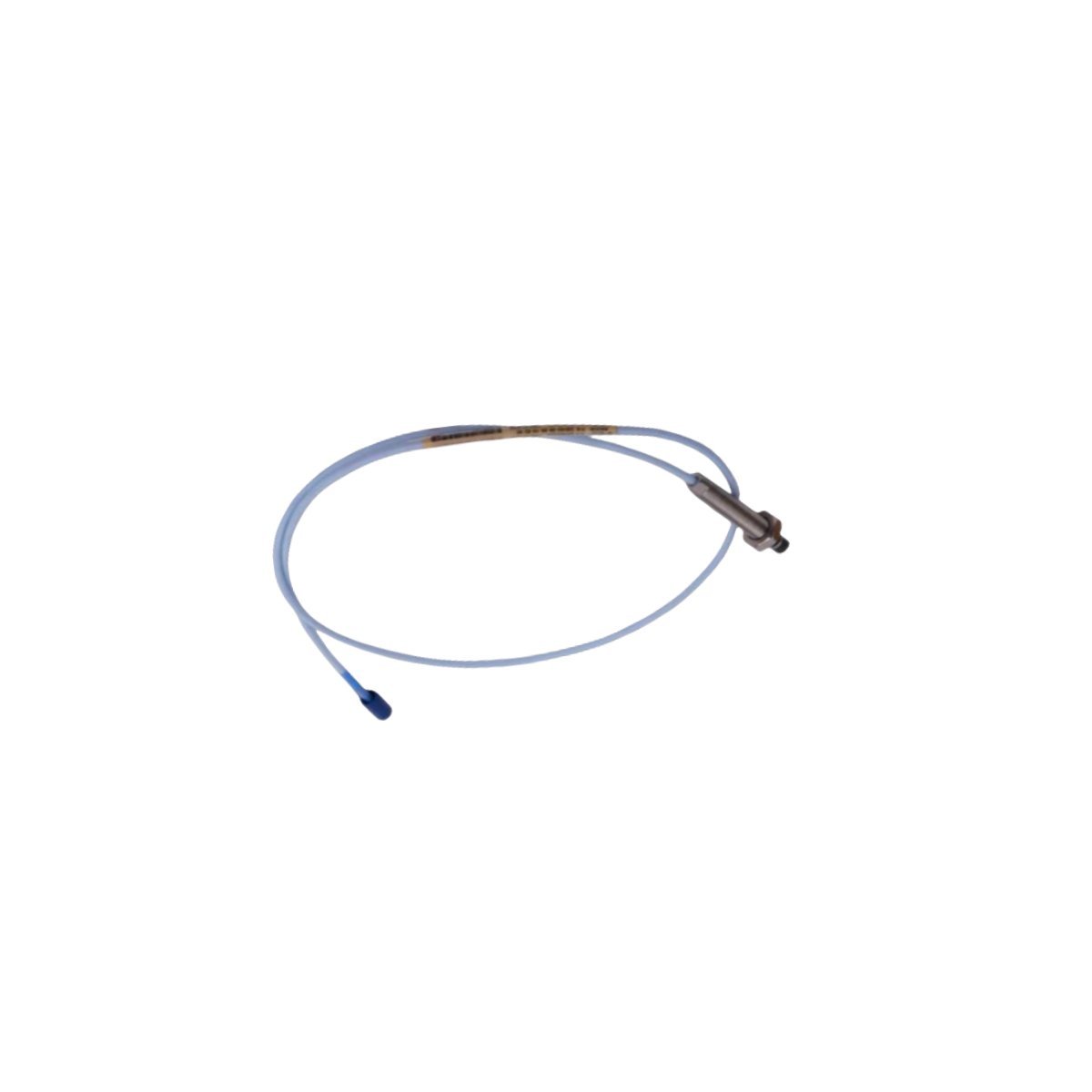

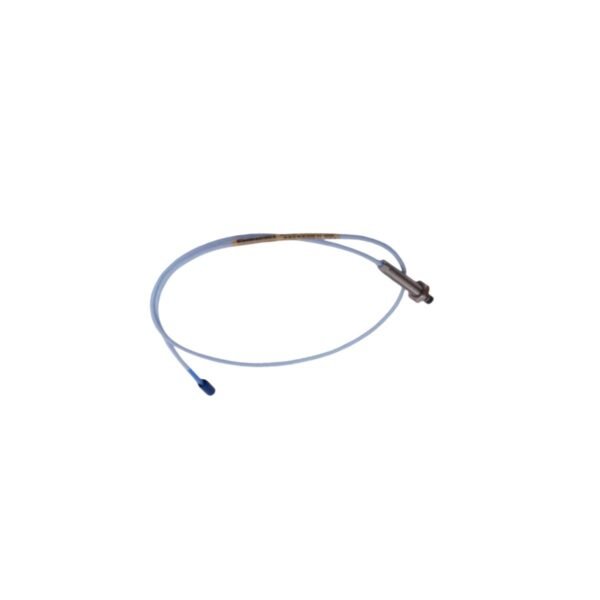

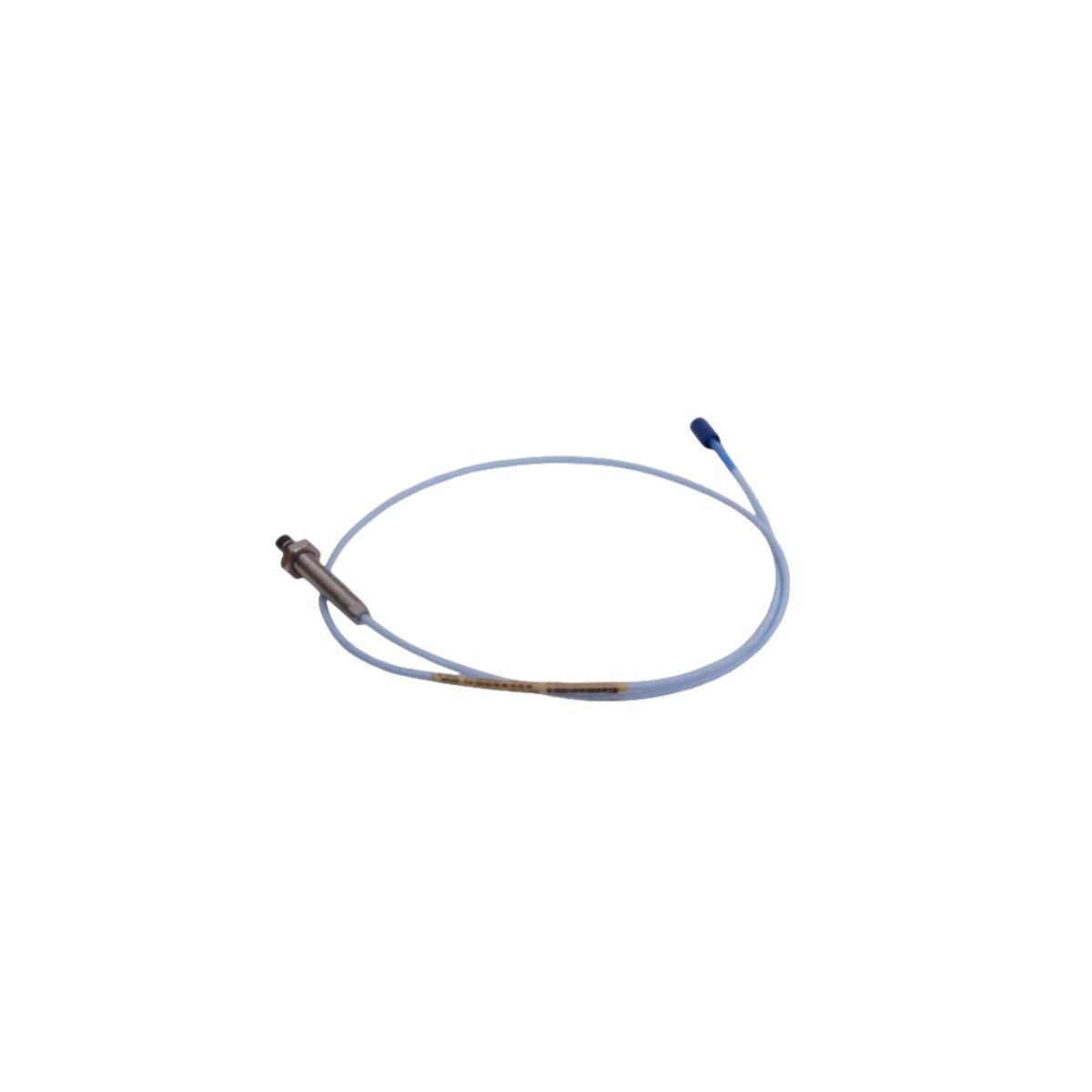

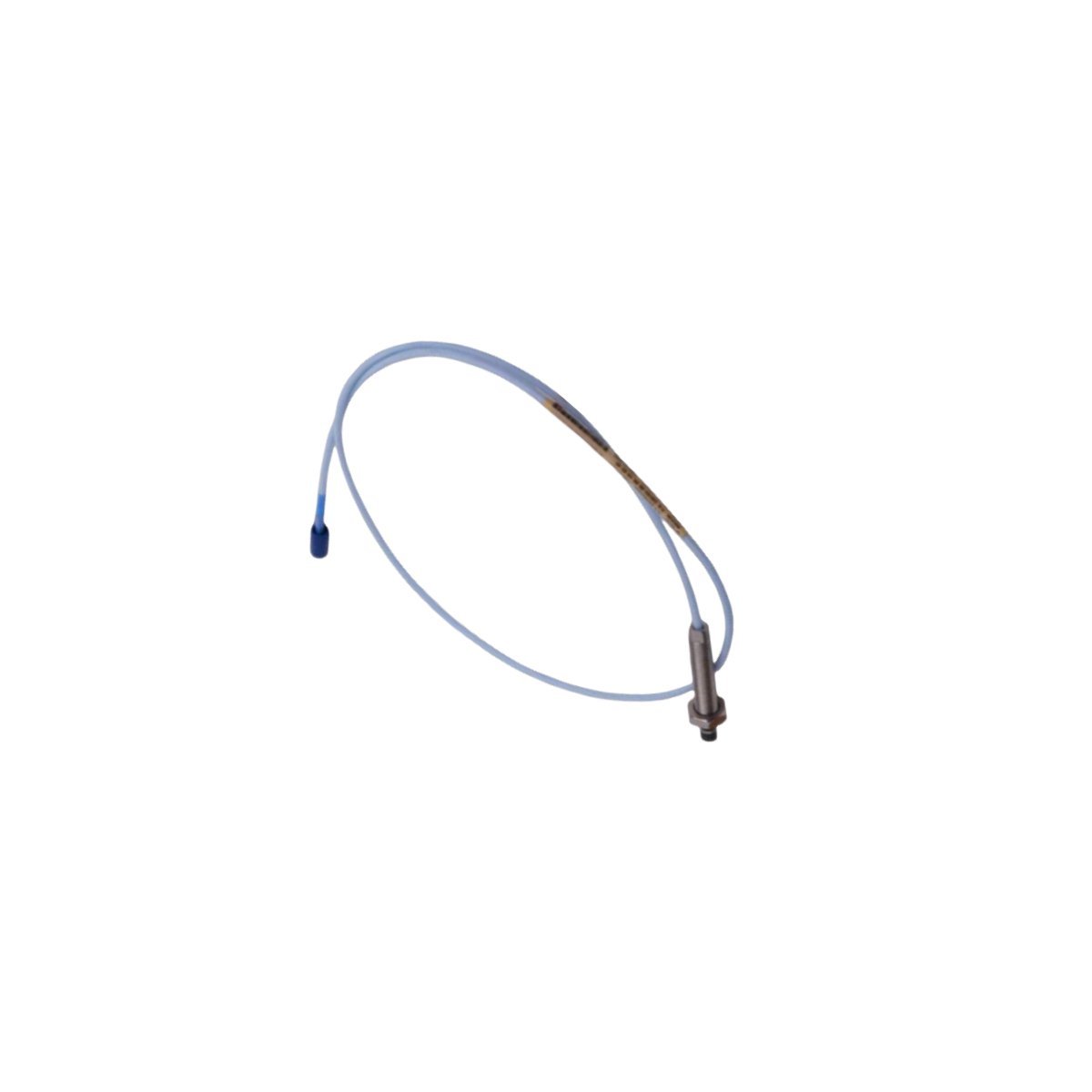

The Bently Nevada 330103-00-05-20-02-CN is a high-performance 3300 XL 8mm extension cable designed to bridge proximity probes and Proximitor sensors for precise machinery vibration analysis. This specialized coaxial link ensures the integrity of eddy current signals in demanding industrial environments.

Precision Telemetry for Machinery Health Monitoring

The 330103-00-05-20-02-CN extension cable serves as a vital signal transmission link within the 3300 XL 8mm Proximity Transducer System. By maintaining a constant 75-ohm impedance, this cable facilitates the accurate transfer of high-frequency eddy current data from the probe tip to the processing electronics. This capability allows the system to monitor shaft vibration and axial position with sub-micron resolution. Consequently, plant engineers can identify subtle mechanical shifts, such as rotor unbalance or bearing degradation, long before they escalate into costly equipment failures.

Engineered for Severe Industrial Environments

Reliability in the field requires hardware that can withstand extreme stressors; therefore, Bently Nevada utilizes a durable Fluorinated Ethylene Propylene (FEP) jacket for the 330103-00-05-20-02-CN. This material provides exceptional resistance against moisture, corrosive industrial chemicals, and high-temperature lubricants typically found in turbine housings. Furthermore, the cable features advanced shielding to effectively reject electromagnetic interference (EMI), ensuring that signal noise does not compromise the accuracy of the 3500 series monitoring system. This robust construction supports continuous operation in power generation, oil and gas, and heavy manufacturing facilities.

Seamless Integration and Maintenance Efficiency

The 330103-00-05-20-02-CN integrates effortlessly with standard 3300 XL proximity probes and Proximitor sensors, offering the scalability required for modern Turbine Supervisory Instrumentation (TSI). Its standardized Click-Loc connectors ensure a secure, vibration-resistant coupling that maintenance teams can install quickly without specialized tools. Moreover, the gold-plated terminals provide a low-resistance interface that prevents oxidation over long service lives. By utilizing this dependable extension cable, industries can streamline their predictive maintenance workflows and maximize the uptime of mission-critical rotating assets.

Key Technical Characteristics

• Optimized Coaxial Impedance: Features a precise 75-ohm design to prevent signal reflection and data attenuation.
• Durable FEP Insulation: Offers superior protection against chemical exposure and thermal degradation in harsh zones.
• High-Fidelity Shielding: Eliminates interference from surrounding electrical equipment to maintain clean vibration signals.
• Gold-Plated Interconnects: Guarantees a reliable, corrosion-free electrical contact for long-term monitoring stability.
• Vibration-Resistant Coupling: Employs Click-Loc connectors to maintain link integrity under constant mechanical stress.
• Standardized 3300 XL Fitment: Ensures full compatibility with Bently Nevada 3500 series racks and transducer hardware.
