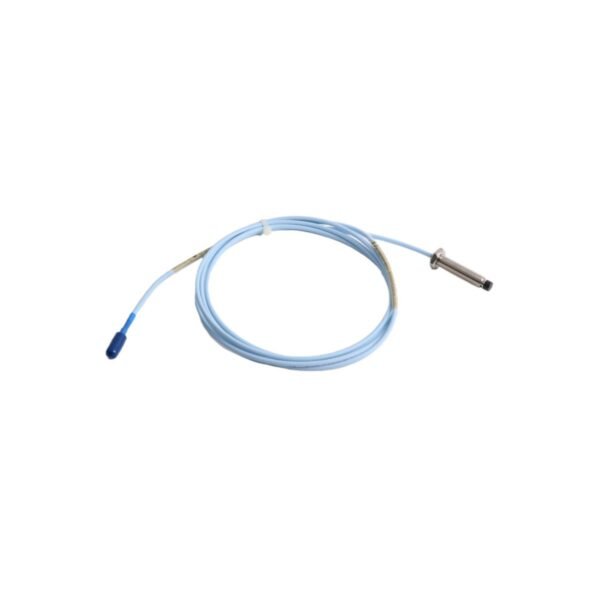

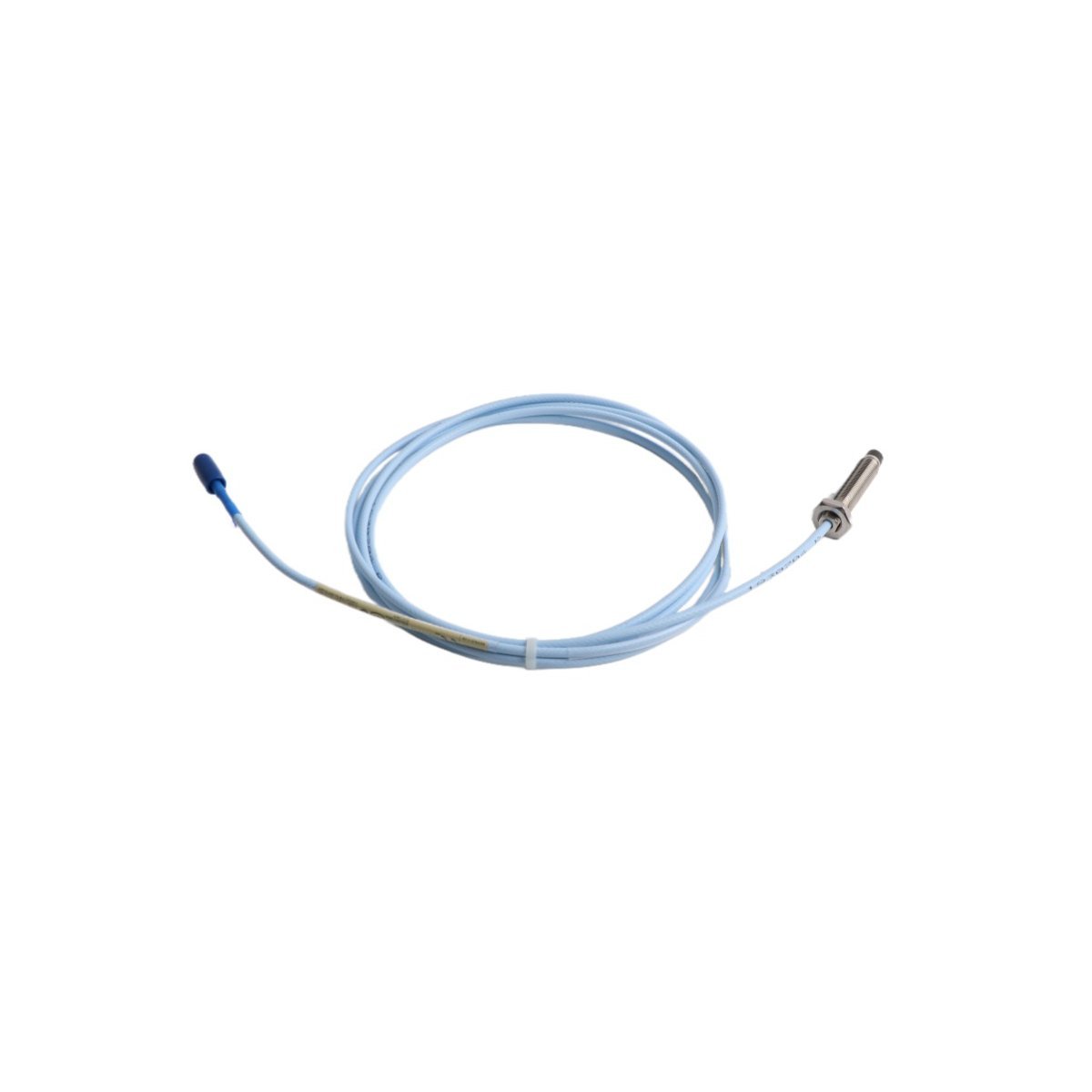

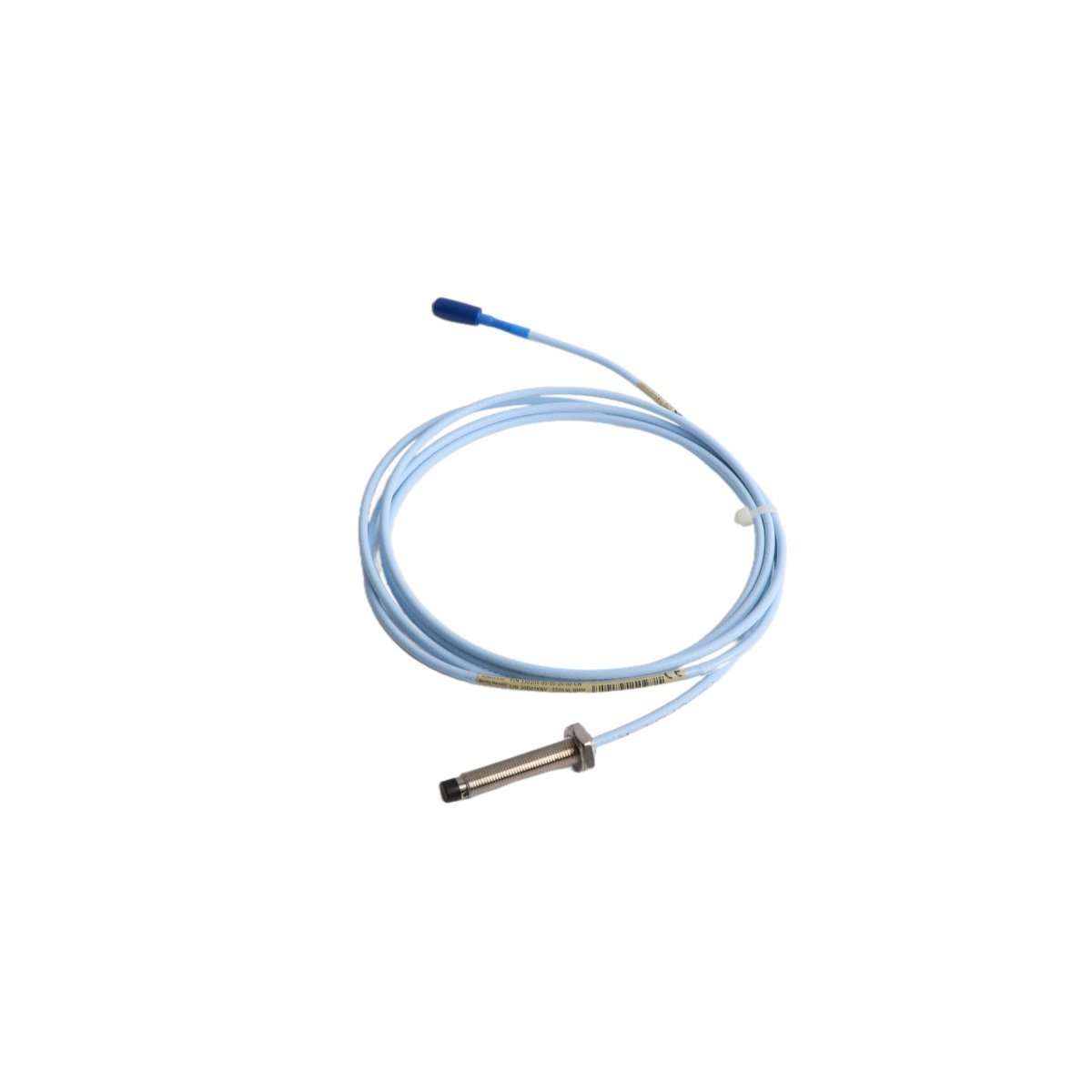

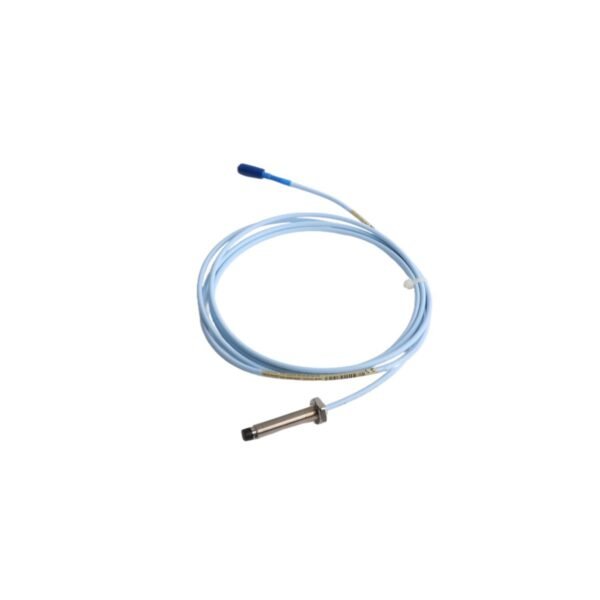

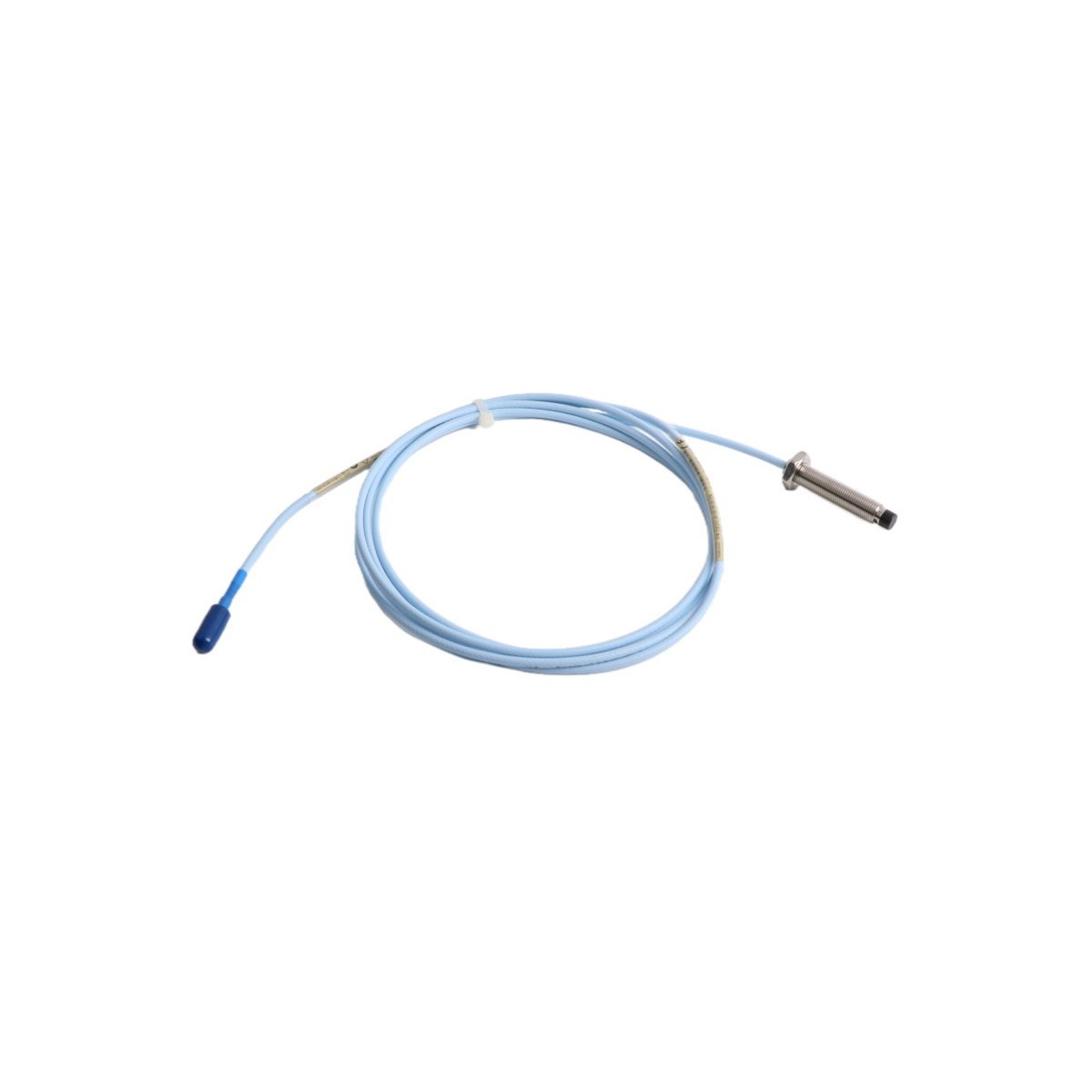

The Bently Nevada 330103-00-05-20-02-00 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in mission-critical rotating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring since 1961—this probe is part of the trusted 3300 XL series, specifically designed to deliver exceptional stability, repeatability, and immunity to environmental interference. As a calibrated 8 mm diameter eddy-current sensor, it operates on the principle of electromagnetic induction to measure dynamic shaft motion relative to a fixed reference point with sub-micron resolution. The probe is supplied as new, factory-fresh inventory with full traceable calibration documentation compliant with ISO 17025 standards. Each unit undergoes rigorous performance validation—including temperature cycling, linearity verification, and frequency response testing—prior to shipment. Backed by a standard 24-month limited warranty covering material defects and workmanship, the 330103-00-05-20-02-00 ensures long-term reliability across demanding operational environments. With its compact cylindrical housing (12.7 mm diameter × 63.5 mm length), lightweight construction (115 g), and robust stainless steel 316L body, the probe is optimized for installation in space-constrained bearing housings and turbine casings. Originating from the United States—Bently Nevada’s primary manufacturing and calibration facility in Minden, Nevada—the probe meets stringent export compliance requirements (EAR99) and adheres to RoHS 3, REACH, and UL 61010-1 safety directives. Its seamless integration with 3300 XL 200/210/220 series monitors, 3500 system racks, and System 1™ diagnostic software enables real-time data acquisition, spectral analysis, and predictive maintenance workflows essential for Industry 4.0 readiness.

Detailed Specifications

Key Features

• Ultra-Stable Calibration: Factory-calibrated using NIST-traceable equipment with documented linearity error ≤ ±0.3% of full scale and thermal drift < 0.05%/°C over operating range.
• High Immunity to EMI/RFI: Precision-wound coil geometry and double-shielded coaxial cable minimize susceptibility to electrical noise in high-voltage motor control centers and VFD-rich environments.
• Corrosion-Resistant Construction: Hermetically sealed 316L stainless steel probe tip and body withstand aggressive chemical exposure, steam washdowns, and marine atmospheres.
• Plug-and-Play Compatibility: Seamless interoperability with all Bently Nevada 3300 XL monitoring systems, including 3300 XL 200/210/220 Transducers, 3500 Rack Systems, and System 1™ Asset Health Management Software.
• Optimized for High-Speed Machinery: Engineered for accurate measurement on shafts rotating up to 20,000 RPM with minimal phase shift (< 2° at 5 kHz).
• Extended Service Life: Gold-plated connector contacts and polyimide-insulated windings ensure >10-year operational life under continuous duty cycles.
• Comprehensive Documentation: Includes Certificate of Calibration (with serial-numbered test report), RoHS/REACH compliance statement, UL certification mark, and installation best practices guide.

Applications

• Turbomachinery Monitoring: Real-time shaft vibration, axial position, and differential expansion measurement in steam turbines, gas turbines, and centrifugal compressors across power generation and oil & gas facilities.
• Rotating Equipment Protection: Integration into machinery protection systems (MPS) for API 670-compliant shutdown logic on critical pumps, fans, blowers, and motors in petrochemical refineries and LNG terminals.
• Condition-Based Maintenance (CBM): Enabling precise orbit analysis, bump testing, and modal analysis for early detection of imbalance, misalignment, bearing wear, and resonance conditions.
• Aerospace Ground Test Stands: High-fidelity displacement monitoring during engine and gearbox qualification testing where environmental ruggedness and signal fidelity are paramount.
• Research & Development Labs: Used in academic and industrial R&D for experimental rotordynamics studies, active magnetic bearing feedback loops, and control algorithm validation.
• Renewable Energy Infrastructure: Shaft runout and thrust position monitoring in large-scale wind turbine gearboxes and hydroelectric generator sets operating under variable load profiles.
