Description

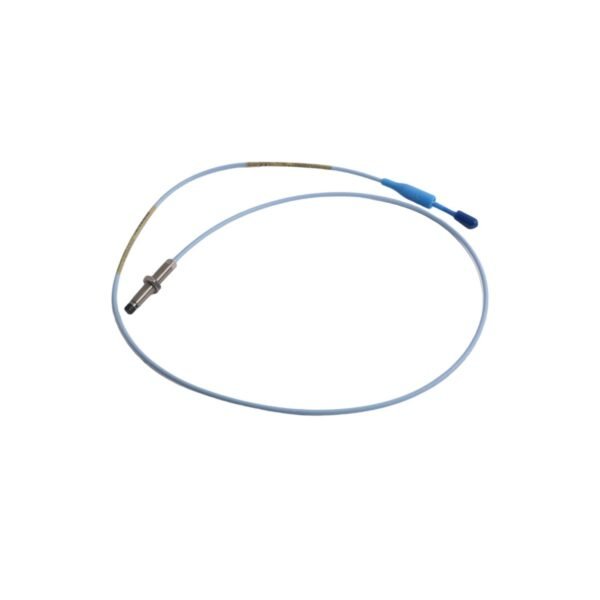

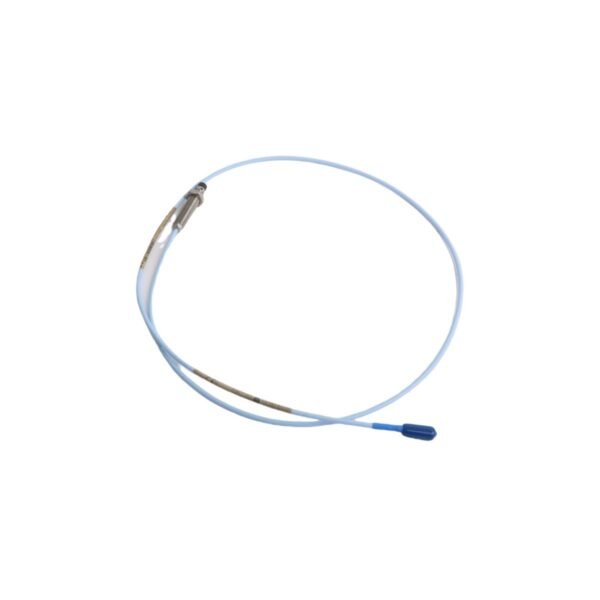

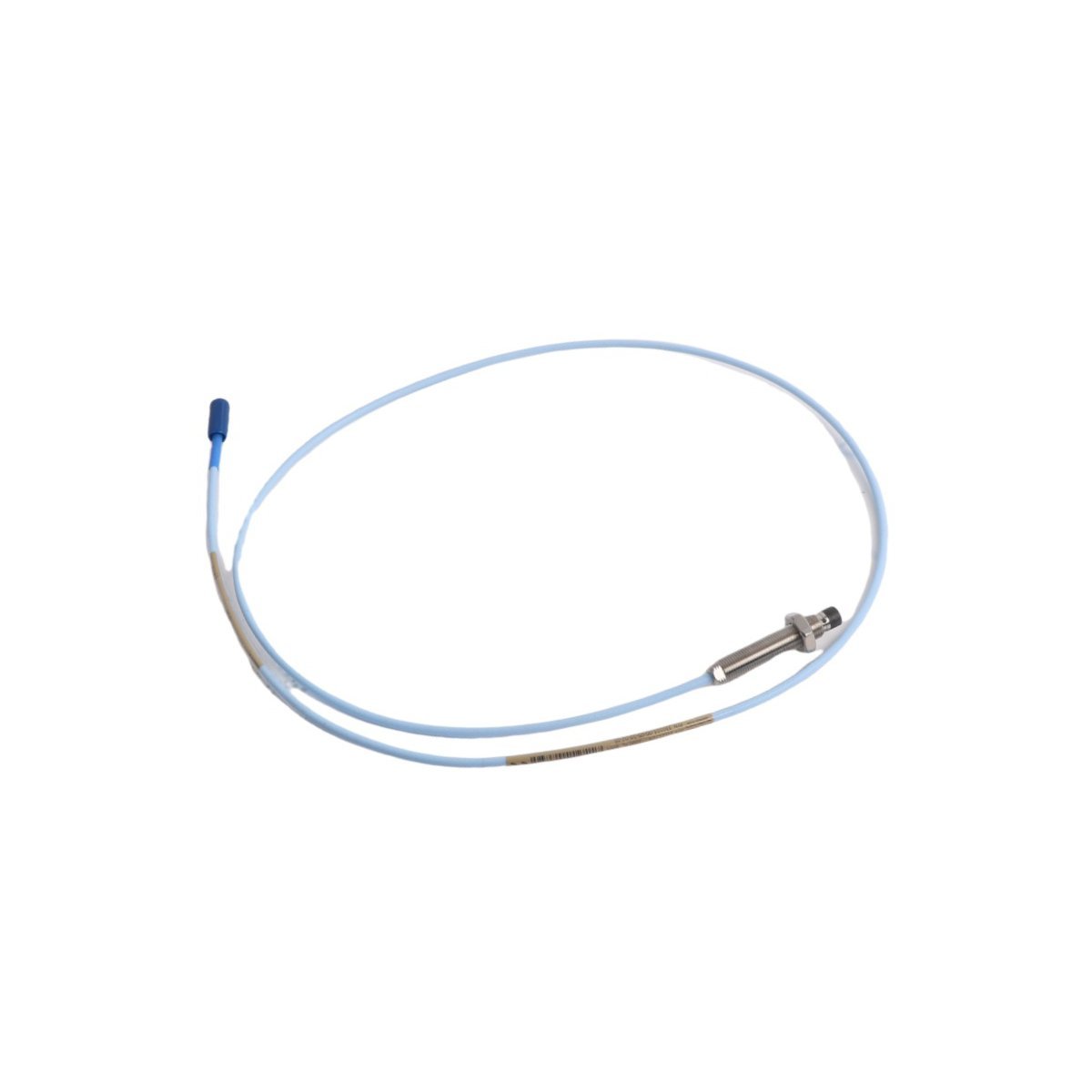

330103-00-05-10-10-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
The 330103-00-05-10-10-02-00 is a non-contact eddy-current proximity probe engineered for shaft vibration and position monitoring.
Moreover, it delivers high-resolution displacement measurements in harsh rotating machinery environments such as turbines and compressors.
Therefore, it integrates seamlessly with the 3300 XL monitoring system to support continuous condition-based maintenance programs.

### Technical Specifications

### Typical Applications
– Steam and gas turbine shaft vibration monitoring
– Centrifugal compressor axial position and thrust bearing clearance measurement
– Large motor rotor eccentricity and runout assessment
– Gearbox input/output shaft displacement analysis

### FAQ
What is the standard sensing range for this probe?
The nominal sensing range is 2.0 mm (0.08 in) with a linear output over 0–2.0 mm.

Is calibration required before installation?
Yes, each probe must be calibrated with its matching extension cable and前置器 (proximity driver) per API 670 requirements.

Can this probe operate in high-temperature environments?
It is rated for continuous operation up to +121 °C (250 °F); derating applies above that temperature.

Does it require a specific前置器 model?
Yes, it is designed for use with the 3300 XL 11 mm or 8 mm前置器 (e.g., 330180-50-00 or 330180-00-00).

What thread size is used for mounting?
The probe features a standard 1/4–28 UNF–2A threaded body for secure mechanical mounting.
