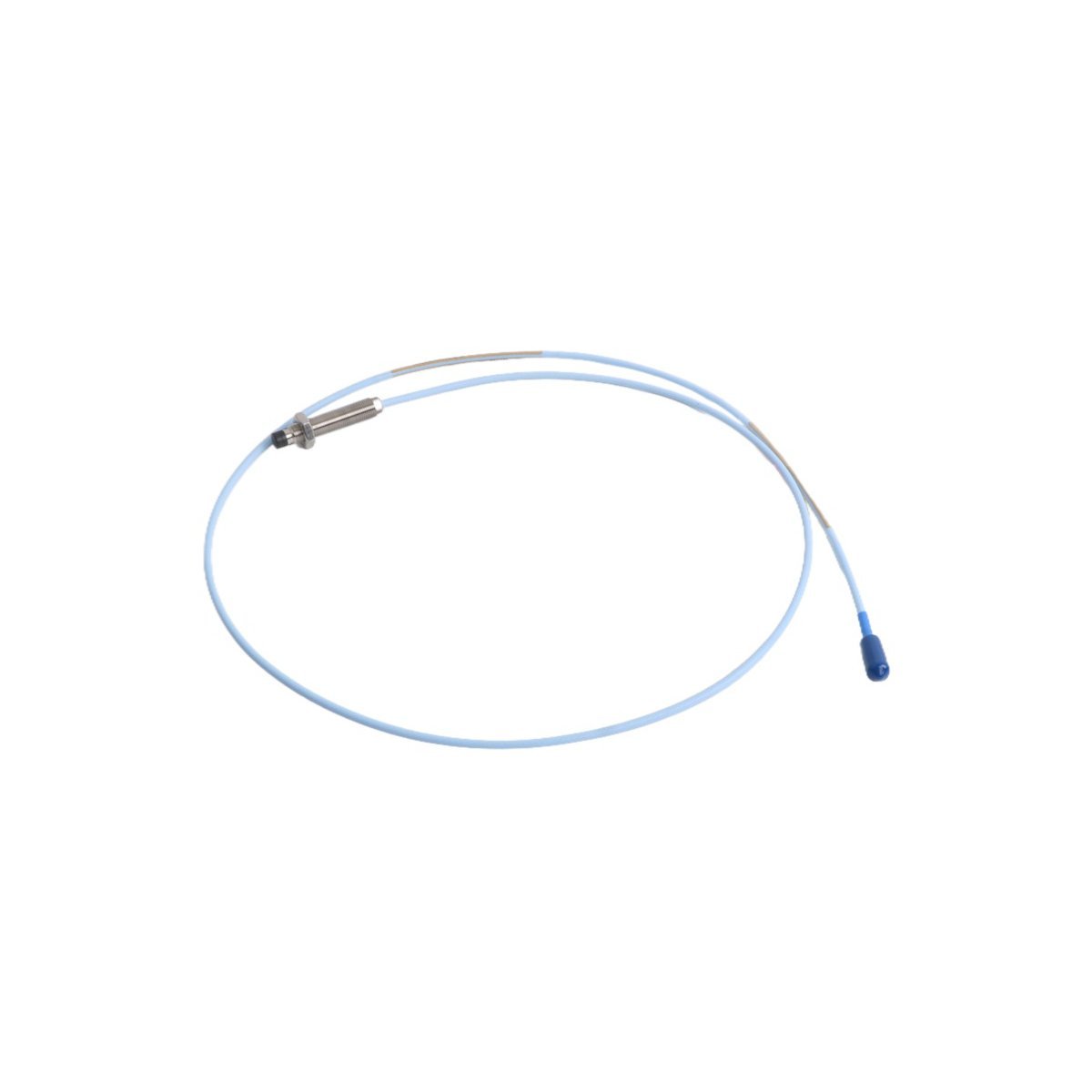

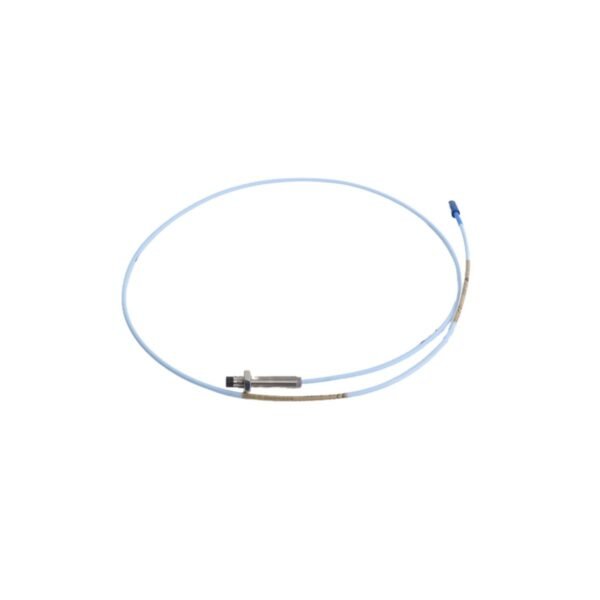

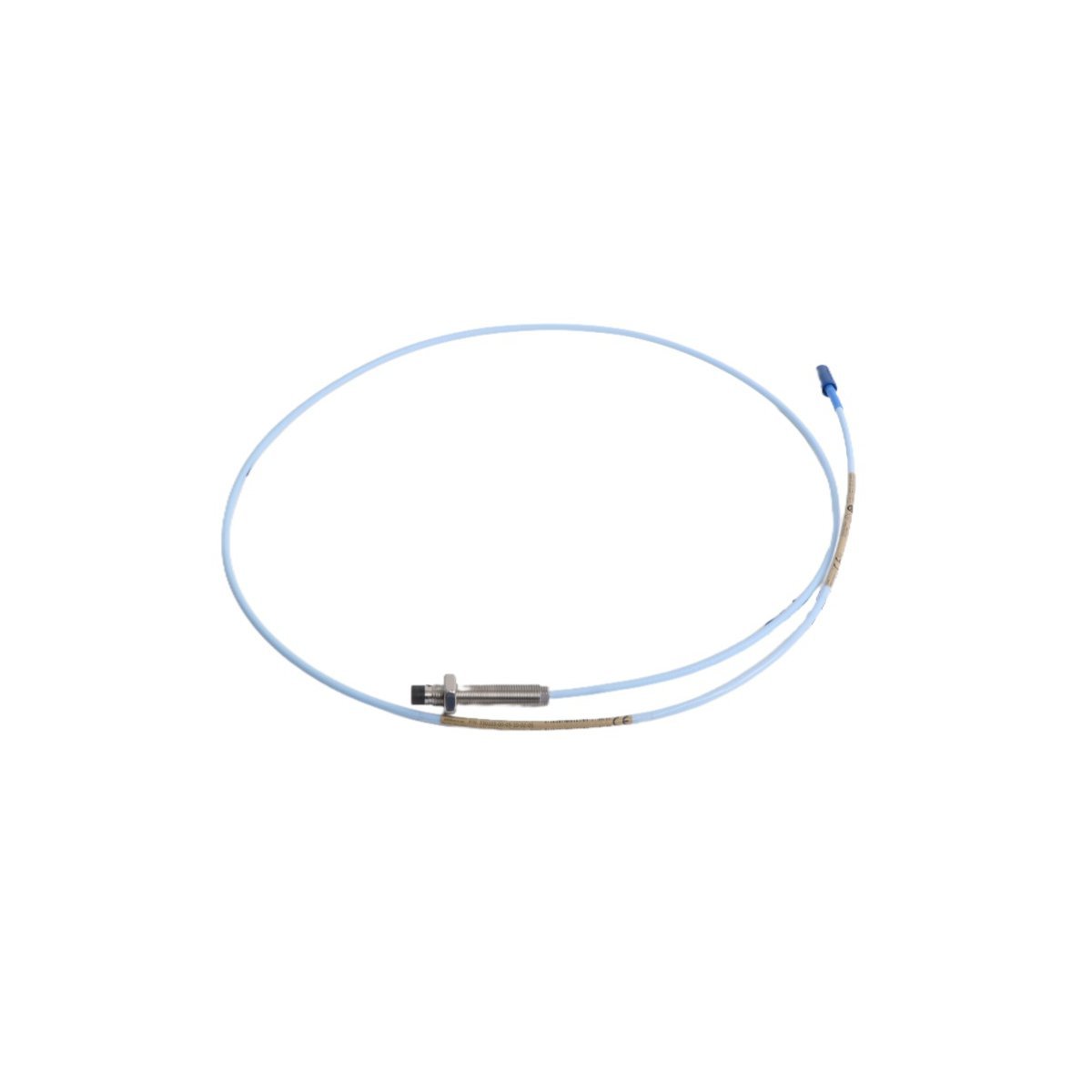

330103-00-05-10-02-05 | Bently Nevada | 3300 XL 8 mm Probe

### Product Description
This is a non-contact eddy current proximity probe designed for vibration and position monitoring in rotating machinery.
Moreover, it delivers high-resolution displacement measurements for shaft relative vibration and axial position in critical turbomachinery applications.
Therefore, it integrates seamlessly with the Bently Nevada 3300 XL monitoring system and supports continuous condition monitoring in harsh industrial environments.

### Technical Specifications

### Typical Applications
– Gas turbine shaft vibration monitoring
– Steam turbine axial position and differential expansion measurement
– Compressor shaft relative displacement analysis
– Large motor and generator bearing housing vibration assessment
– Critical pump shaft orbit and runout evaluation

### FAQ
What is the standard output sensitivity of this probe?
The probe has a nominal sensitivity of 4.0 V/mm (100 mV/mil) at 80 kHz.

Is calibration required before installation?
Yes, each probe must be calibrated with its matching extension cable and前置器 (proximity driver) per API 670.

Can this probe operate in high-temperature environments?
It is rated for continuous operation up to +121 °C (250 °F); derating applies above that temperature.

Does it require a specific前置器 (proximity driver)?
Yes, it requires a 3300 XL series monitor or compatible前置器 (e.g., 3300 XL 50/55 mV/mil or 4.0 V/mm drivers).

What is the recommended gap voltage range?
The linear operating range is –2.0 to –18.0 V DC, with a nominal gap voltage of –10.0 V DC.
