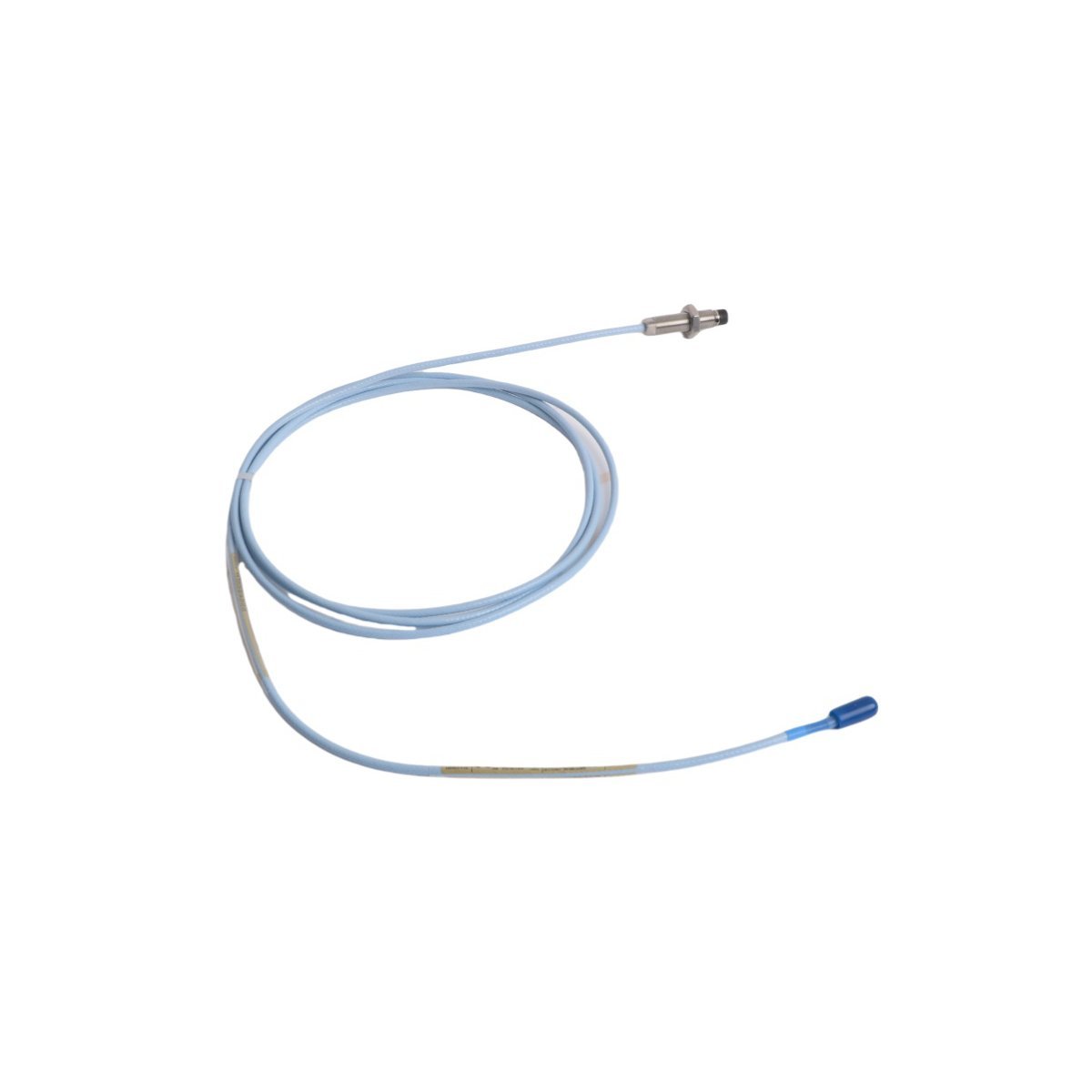

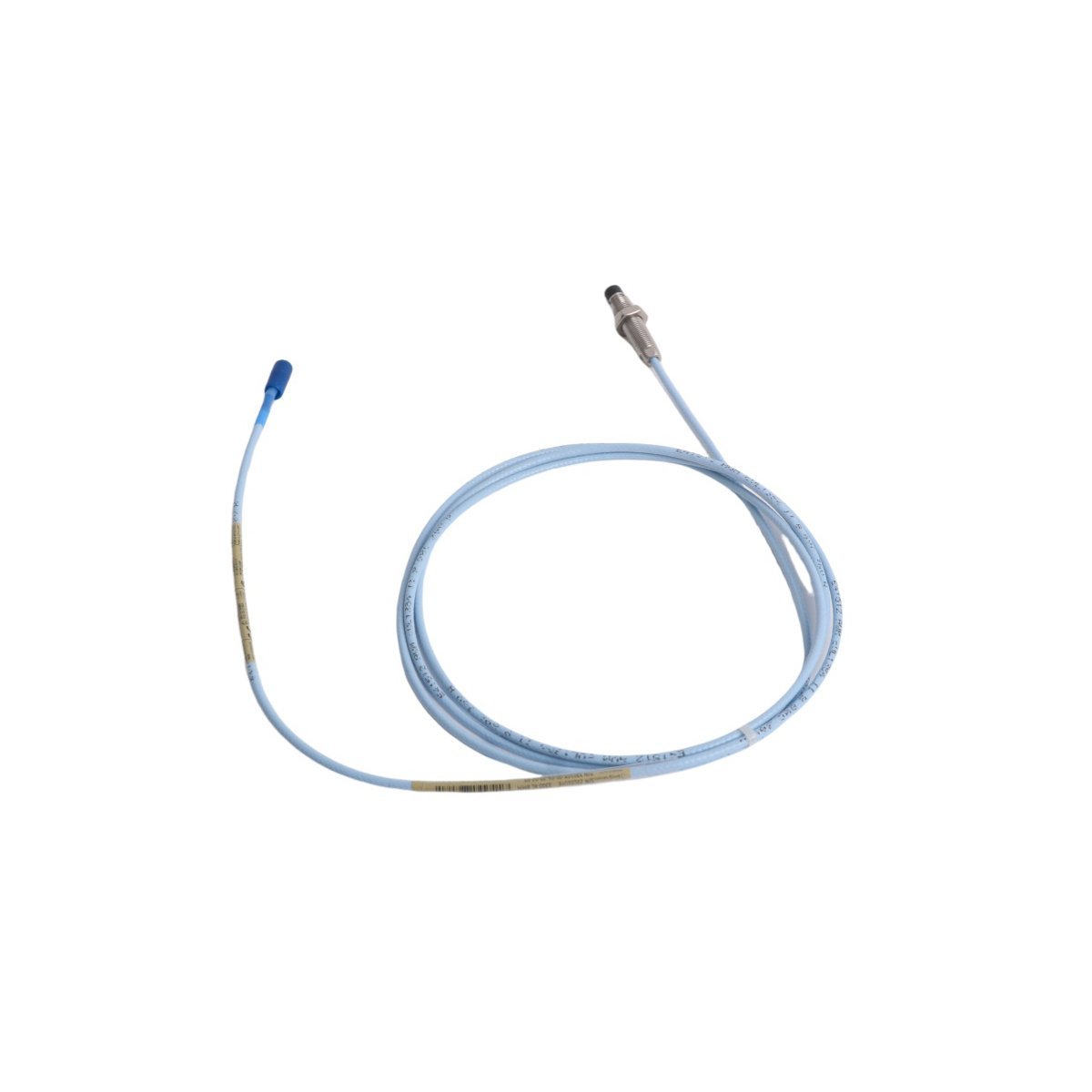

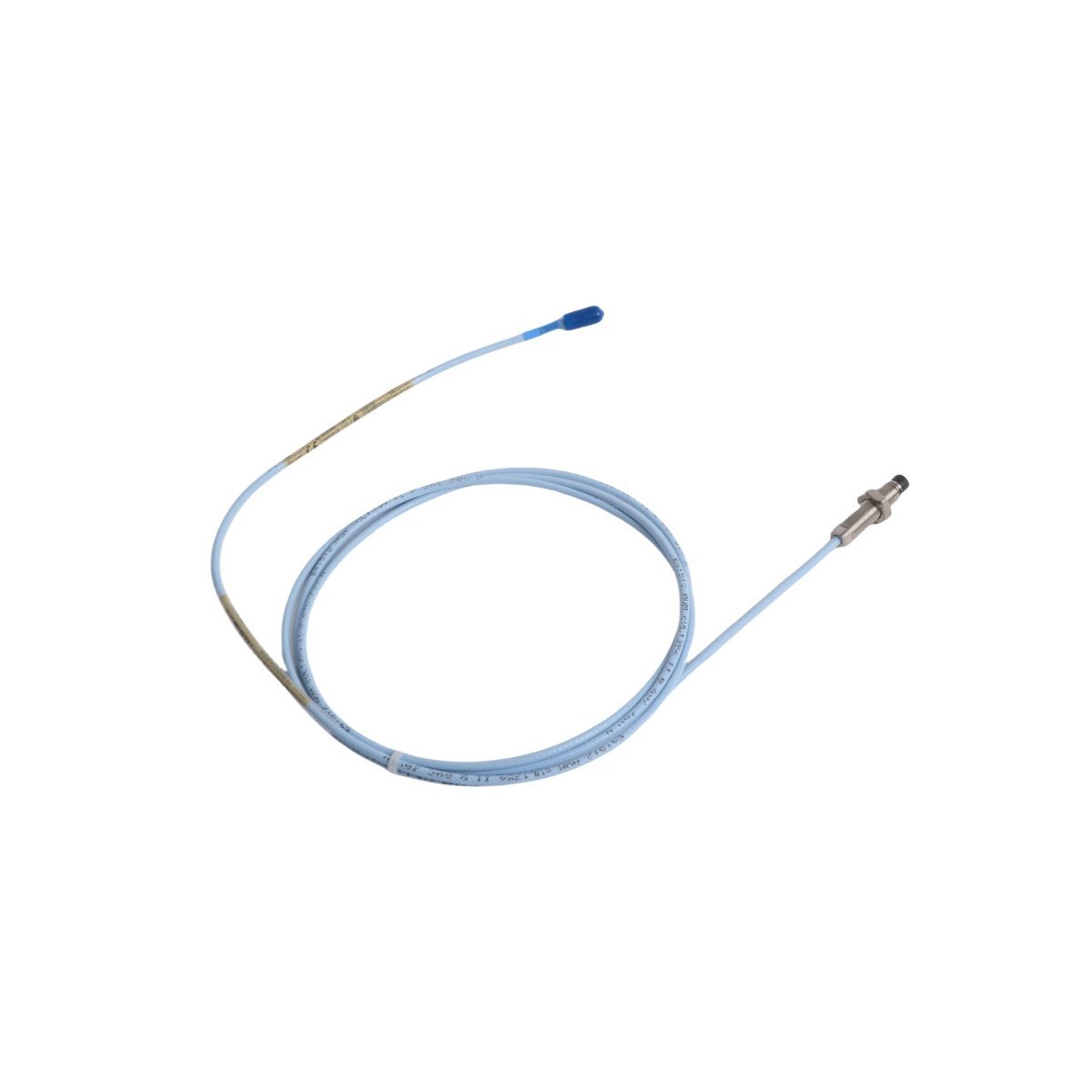

The Bently Nevada 330103-00-04-20-02-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Manufactured by Baker Hughes (under the Bently Nevada brand—a globally recognized leader in condition monitoring and predictive maintenance solutions), this probe belongs to the trusted 3300 XL 8 mm series, renowned for its exceptional stability, repeatability, and immunity to environmental interference. Designed specifically for integration with the 3300 XL 8 mm Proximitor® transducer systems, the probe delivers linear output proportional to target displacement within a calibrated range of ±2.0 mm (±0.079 in), enabling accurate shaft position, vibration amplitude, and gap voltage measurements essential for asset health assessment. The probe features a robust stainless steel housing with a chemically resistant PTFE-insulated coaxial cable, ensuring long-term reliability in harsh environments—including exposure to oil, steam, high temperatures (up to +121°C / +250°F at the probe tip), and electromagnetic noise. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with full certification documentation, including sensitivity (7.87 V/mm or 200 mV/mil), linearity error (<±0.5% FS), and thermal drift performance (<0.05%/°C). As a new, factory-fresh component, the 330103-00-04-20-02-05 is backed by a comprehensive 24-month limited warranty covering material defects and workmanship—affirming Bently Nevada’s commitment to operational integrity and lifecycle support. Originating from the United States, this probe adheres to ISO 9001:2015 certified manufacturing protocols and complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions) standards, making it suitable for global deployment across energy, power generation, petrochemical, aerospace, and marine propulsion sectors.

Detailed Specifications

Key Features

• High-Fidelity Signal Integrity: Utilizes proprietary eddy-current technology with optimized coil geometry and precision-matched electronics to minimize phase shift and harmonic distortion—even under dynamic load conditions.
• Environmental Resilience: Hermetically sealed stainless steel probe body and fluoropolymer (PTFE)-insulated cable resist corrosion, hydrocarbon immersion, and thermal cycling in turbine casings, compressor housings, and gearboxes.
• NIST-Traceable Calibration: Each probe ships with individual calibration certificate (including serial-numbered linearity curve, sensitivity slope, and temperature compensation data) validated per ISO/IEC 17025 requirements.
• Plug-and-Play Compatibility: Fully interoperable with Bently Nevada 3300 XL, 3500, and System 1 platforms—enabling seamless channel configuration, alarm setting, and historical trend analysis without field recalibration.
• Enhanced Mechanical Stability: Precision-ground mounting threads and integrated strain relief eliminate microphonic noise and ensure consistent probe-to-target alignment over decades of operation.
• Diagnostic Readiness: Supports advanced diagnostics including gap voltage trending, self-test functionality via Proximitor, and compatibility with Bently Nevada’s Asset Health Monitoring (AHM) software suite.
• Sustainable Lifecycle Support: Backed by Baker Hughes’ global service network—including technical consultation, firmware updates, repair/refurbishment programs, and obsolescence management through 2035.

Applications

• Steam & Gas Turbines: Real-time monitoring of thrust collar position, radial vibration, and differential expansion in power generation assets (e.g., GE Frame 7/9, Siemens SGT-800).
• Centrifugal Compressors: Shaft displacement and orbit analysis in oil & gas transmission, LNG liquefaction, and refinery process units to prevent catastrophic bearing failure.
• Aeroderivative Engines: Critical clearance monitoring in aviation-derived industrial gas turbines used in peaking power plants and offshore platforms.
• Large Electric Motors & Generators: Rotor eccentricity detection, air-gap monitoring, and dynamic balancing verification during commissioning and routine maintenance.
• Petrochemical Pumps & Gearboxes: High-frequency vibration capture for early-stage bearing defect identification, misalignment detection, and lubrication health assessment.
• Marine Propulsion Systems: Shaft runout and axial float measurement in main reduction gears and controllable-pitch propeller actuators aboard naval and commercial vessels.
• Research & Test Benches: Precision displacement metrology in R&D labs validating rotor dynamics models, modal analysis, and active magnetic bearing control algorithms.
