Description

Technical Overview

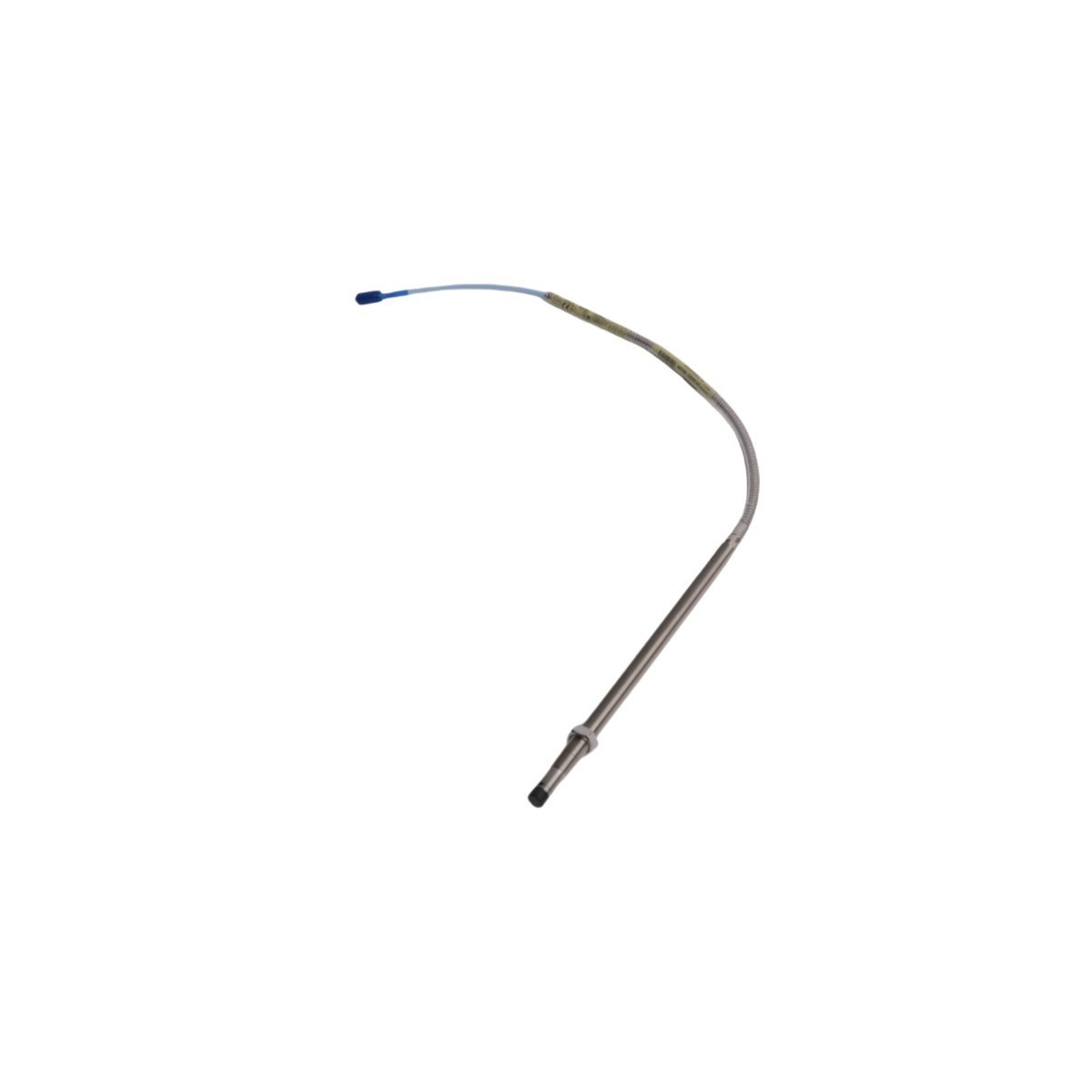

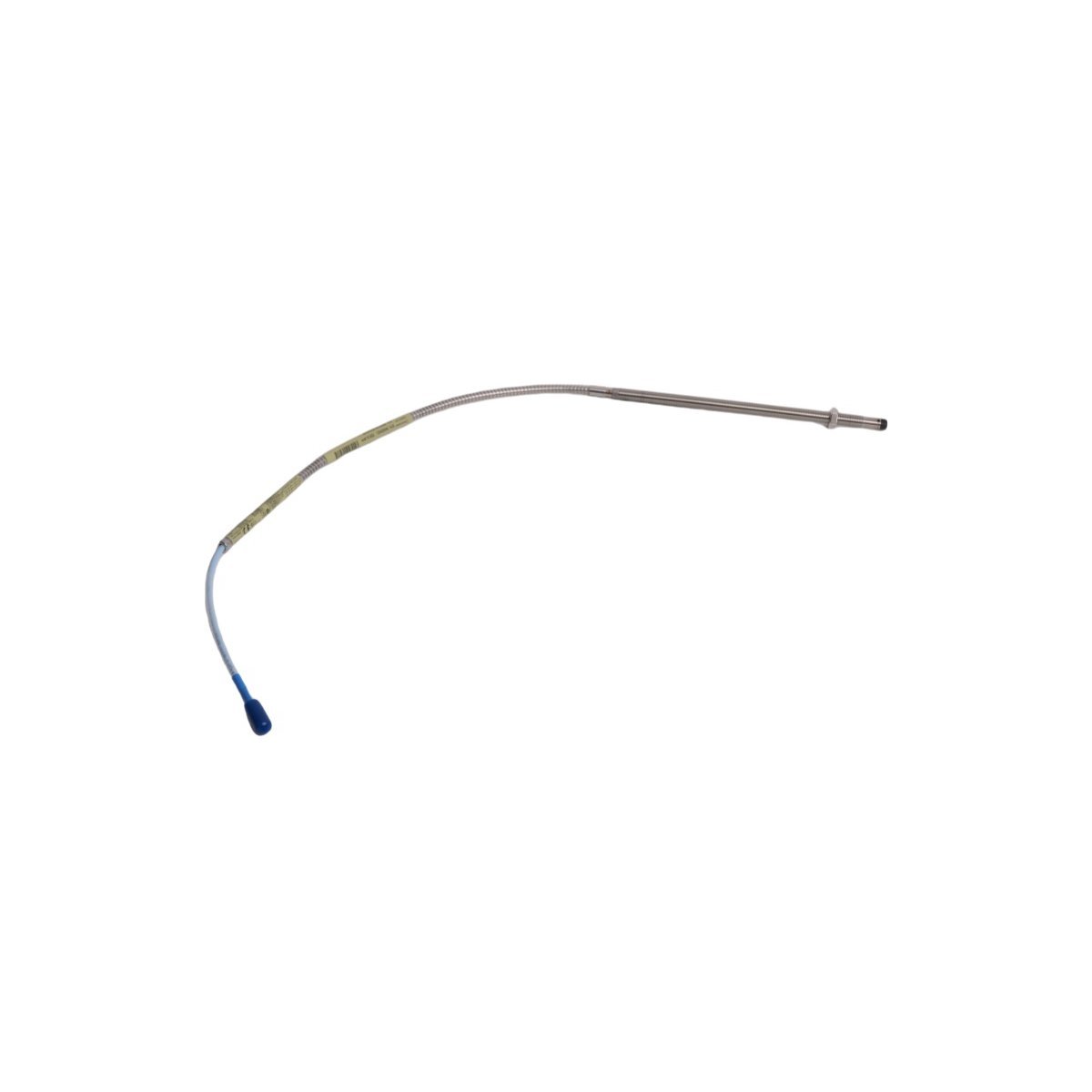

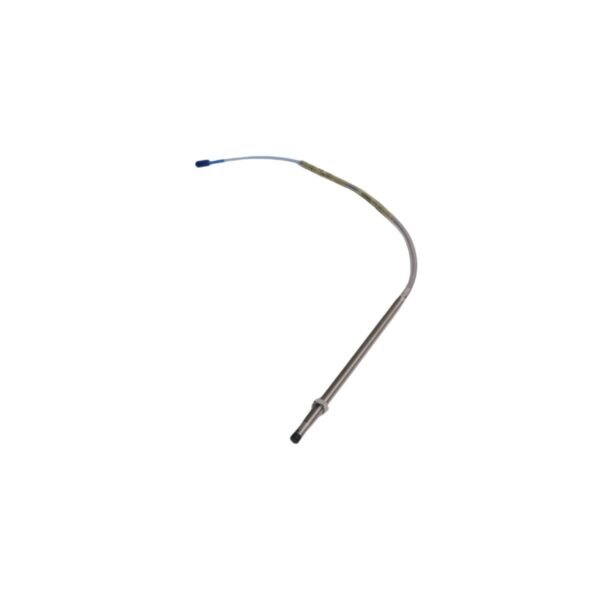

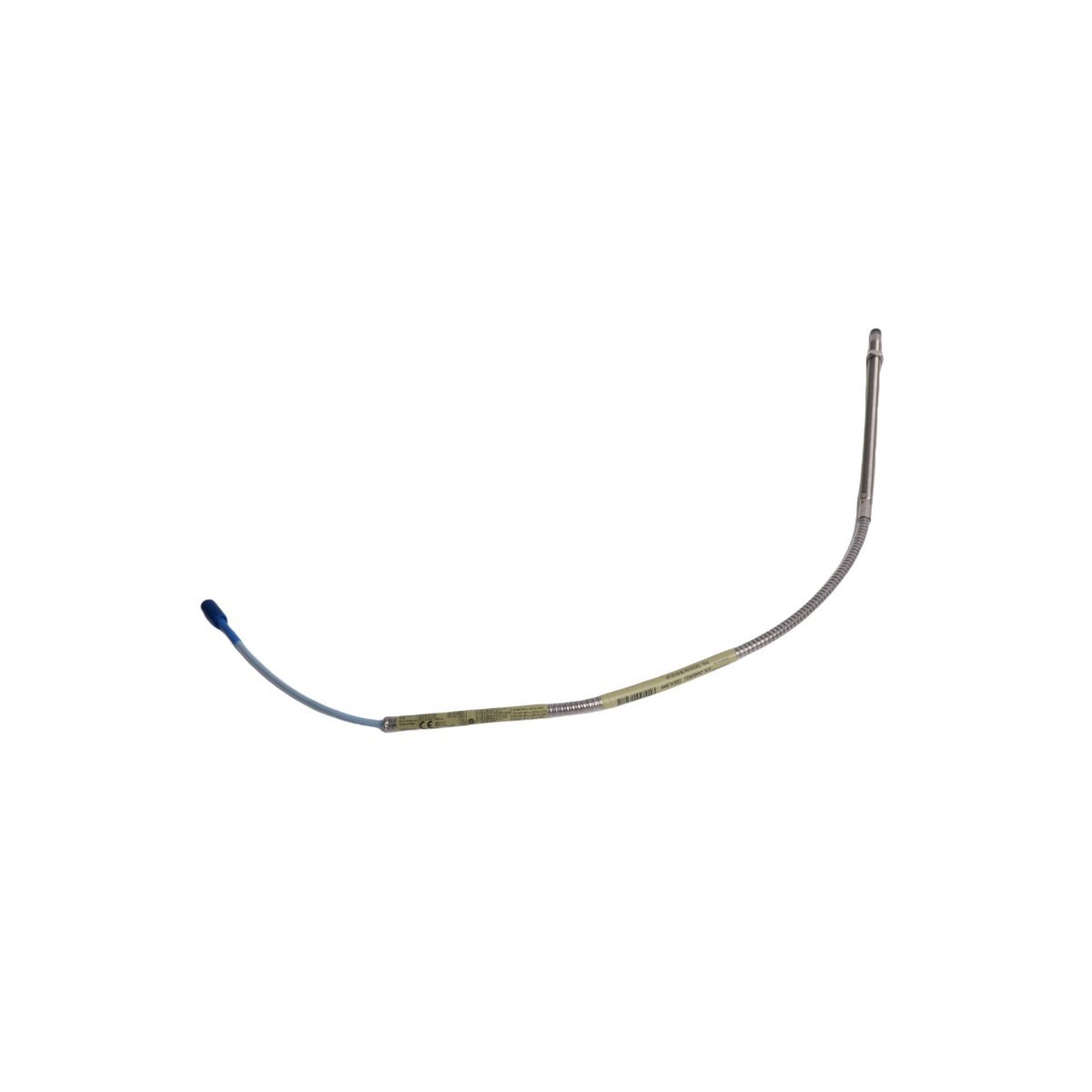

The Bently Nevada 330102-04-16-10-02-00 is a high-precision, non-contact eddy-current proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in critical rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe is part of the industry-standard 3300 XL series—renowned for exceptional stability, repeatability, and immunity to environmental interference. Designed specifically for integration with the 3300 XL 8 mm sensor system architecture, the probe delivers linear output over its calibrated range with minimal temperature drift and robust electromagnetic compatibility (EMC). Its stainless steel housing, hermetically sealed construction, and optimized coil geometry ensure long-term reliability in harsh industrial environments—including high-vibration zones, elevated ambient temperatures (up to +121 °C), and exposure to oil, steam, and corrosive process media. The probe operates on the fundamental principle of eddy-current displacement measurement: as the target shaft (typically 4140 or 4340 steel) moves relative to the probe tip, changes in the magnetic field induce proportional variations in impedance, which are converted into a highly accurate DC voltage signal (−2 to −18 V DC) via the associated 3300 XL extension cable and monitor. This model is supplied new and factory-certified, meeting all applicable IEC 61000-4, ISO 10816, and API 670 (4th Edition) standards for machinery protection systems. Backed by a comprehensive 24-month limited warranty, it guarantees performance consistency across its entire service life.

Detailed Specifications

Key Features

• Industry-Leading Accuracy & Stability: Delivers ±1 % linearity error over full range and thermal zero shift <0.1 %/°C—ensuring consistent measurements across seasonal and operational temperature fluctuations.
• Ruggedized Industrial Construction: Hermetically sealed 316 stainless steel body with integrated ceramic insulator resists corrosion, mechanical impact, and contamination from lubricating oils, hydrocarbons, and condensate.
• API 670 Compliance Ready: Fully compatible with Bently Nevada 3300 XL monitoring systems and certified for use in API RP 670-compliant machinery protection applications—including turbomachinery, compressors, pumps, and steam turbines.
• Optimized Electromagnetic Immunity: Engineered with balanced coil design and grounded shielding to reject EMI/RFI up to 30 V/m (per IEC 61000-4-3), eliminating false alarms in electrically noisy plant environments.
• Plug-and-Play Integration: Pre-calibrated and matched to standard 3300 XL extension cables and monitors—no field recalibration required; reduces commissioning time by up to 70 % versus legacy probes.
• Traceable Metrology: Each unit ships with a factory calibration certificate traceable to National Institute of Standards and Technology (NIST) standards, including individual sensitivity, linearity, and thermal drift data.
• Sustainable Lifecycle Support: Backed by Baker Hughes’ global service network, including technical documentation, firmware updates, repair services, and obsolescence management per IEEE 1680.2 guidelines.

Applications

• Turbomachinery Monitoring: Real-time shaft vibration and thrust position measurement in gas turbines, steam turbines, and aeroderivative engines per ISO 10816-3 and API 612 requirements.
• Rotating Equipment Protection: Critical input for machinery protection systems (MPS) safeguarding centrifugal compressors, axial-flow fans, and large electric motors against catastrophic failure due to imbalance, misalignment, or bearing wear.
• Differential Expansion Monitoring: Paired with dual-probe configurations to detect thermal growth differentials between casings and rotors in high-pressure turbine sections.
• Orbit Analysis & Rotor Dynamics: Enables high-fidelity orbit plot generation when used with dual-plane probe sets, supporting advanced diagnostics such as rub detection, resonance identification, and modal analysis.
• OEM Integration: Widely specified by original equipment manufacturers for embedded condition monitoring in new-build rotating equipment, ensuring seamless compliance with OEM performance and safety specifications.
• Power Generation Asset Management: Integral to digital twin implementations and predictive analytics platforms (e.g., Baker Hughes Digital Power Plant), feeding structured, time-synchronized data for AI-driven failure forecasting and remaining useful life (RUL) estimation.
• Refining & Petrochemical Process Safety: Deployed in API RP 500/505 classified areas (Class I, Div 1, Group C/D) with appropriate conduit and barrier systems to support SIL-2 functional safety loops per IEC 61511.
