Technical Overview

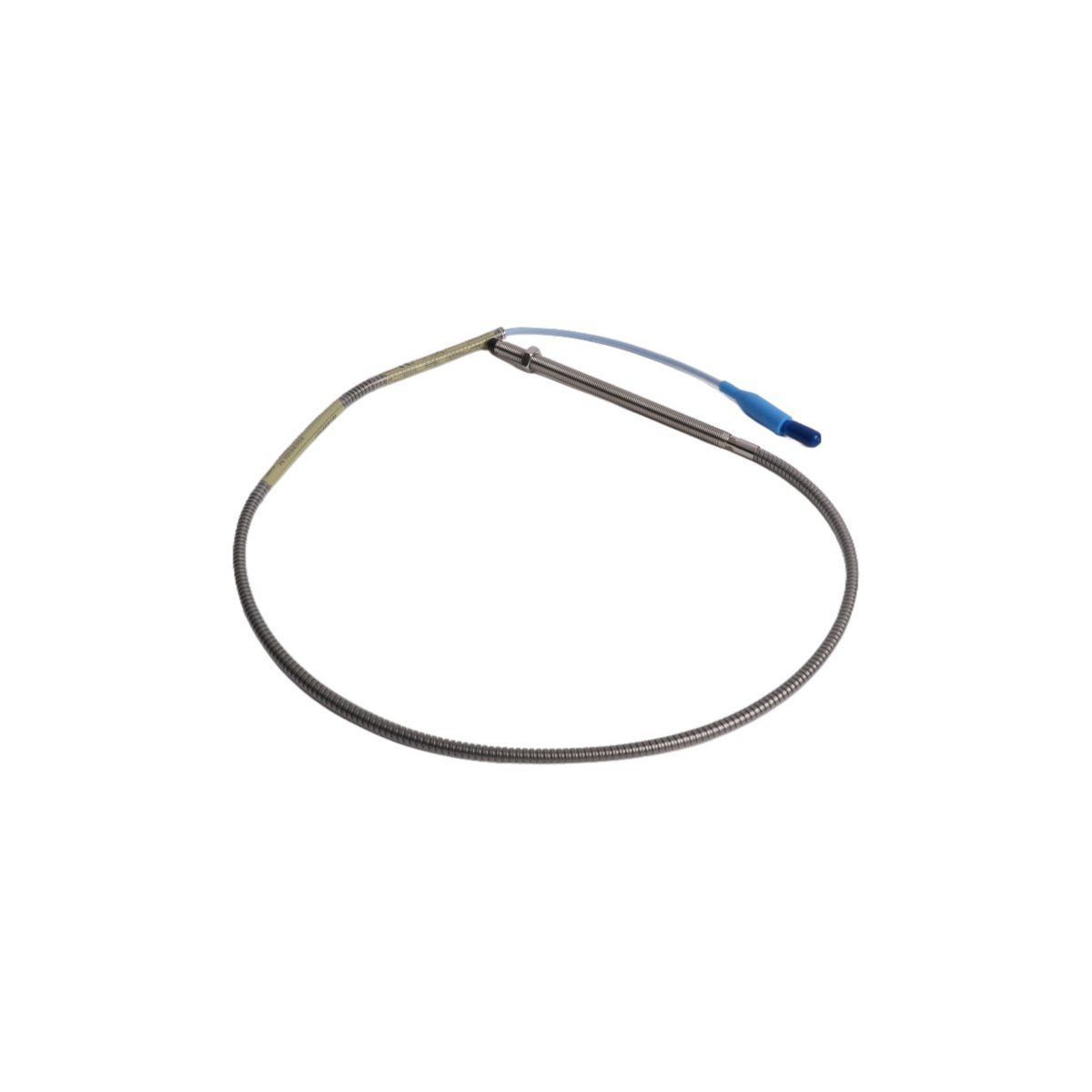

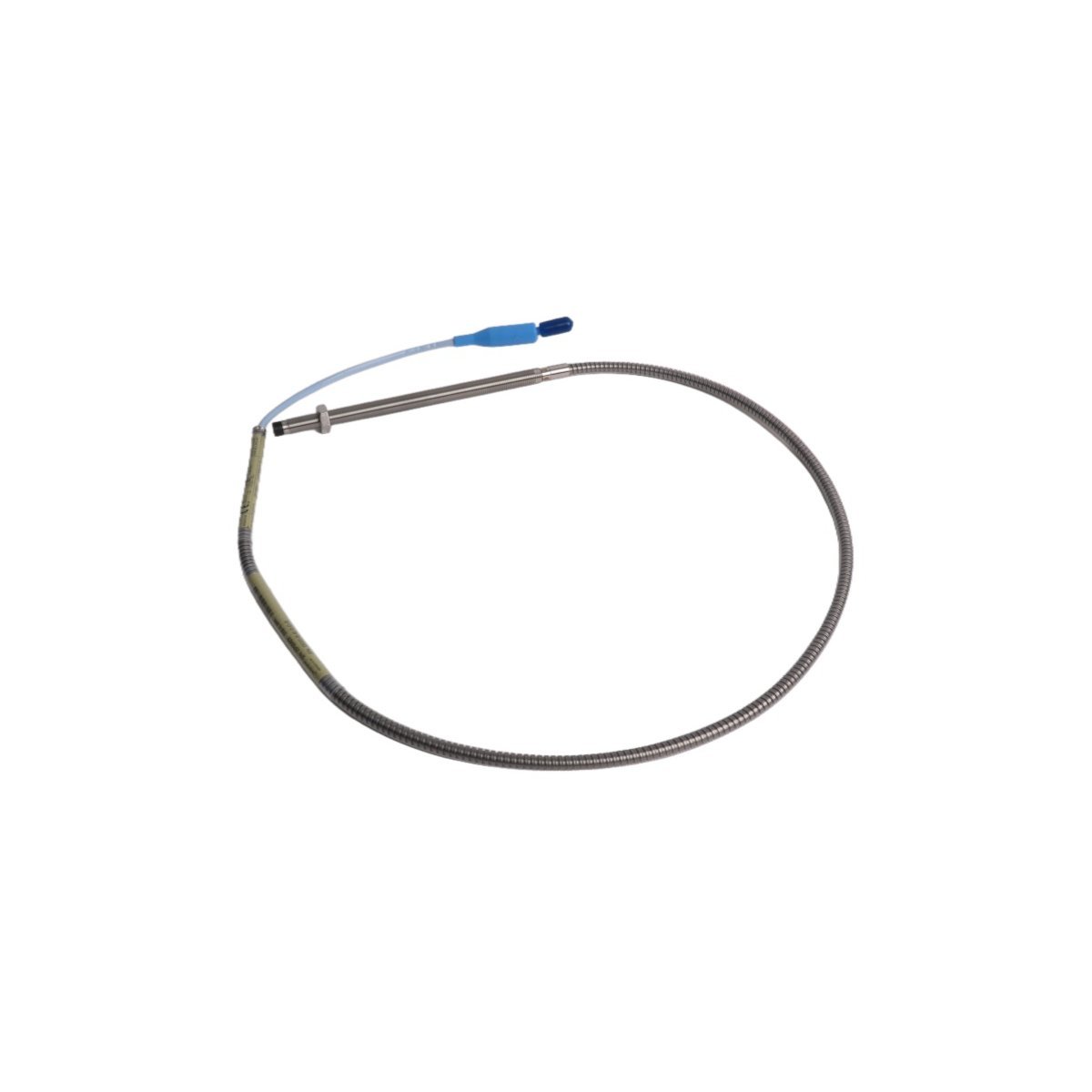

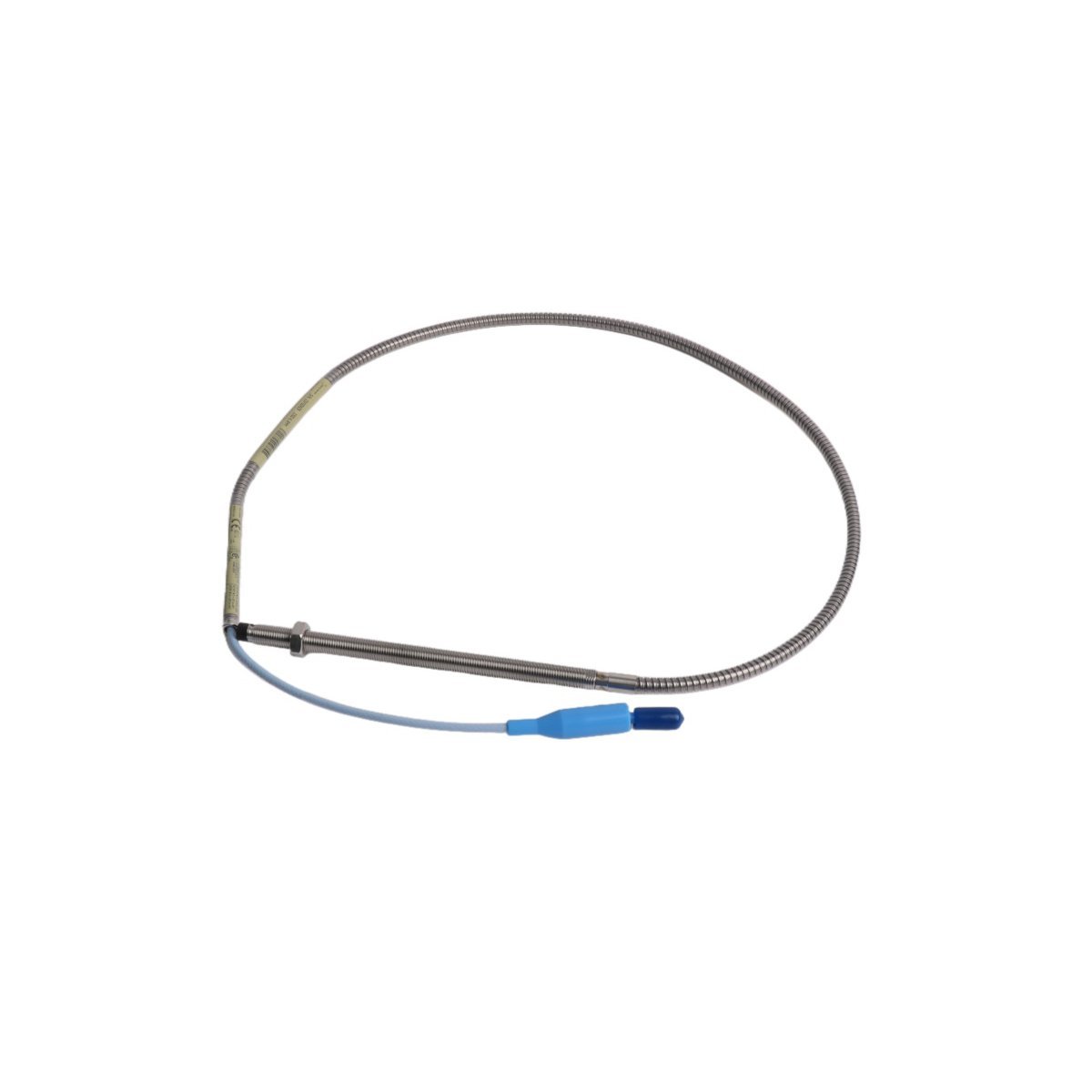

The Bently Nevada 330102-00-68-05-02-05 is a high-precision, non-contact eddy-current proximity probe engineered for critical machinery protection and condition monitoring in demanding industrial environments. As part of the trusted 3300 XL 8 mm probe family, this sensor delivers exceptional linearity, thermal stability, and immunity to electromagnetic interference—making it ideal for turbomachinery, compressors, steam/gas turbines, and large electric motors. Its robust stainless steel housing and hermetically sealed design ensure long-term reliability in harsh conditions, including exposure to oil mist, high vibration, and extreme temperature fluctuations.

This probe is optimized for integration with Bently Nevada’s 3300 XL monitoring systems and compatible with all 3300 series monitors (e.g., 3300 NSV, 3500, and System 1™ platforms). It operates on the principle of eddy-current displacement measurement, providing real-time, high-fidelity data on shaft vibration, axial position, and differential expansion. The probe’s 8 mm diameter sensing tip enables accurate measurements within a 2.0 mm linear range—ideal for tight installation spaces without compromising signal integrity or resolution.

Detailed Specifications

• Model Number: 330102-00-68-05-02-05
• Brand: Bently Nevada (Baker Hughes)
• Type: 3300 XL 8 mm Eddy-Current Proximity Probe
• Sensing Diameter: 8 mm
• Linear Range: 2.0 mm (0.08 in)
• Null Point Distance: 1.0 mm (0.04 in) from target surface
• Output Sensitivity: 4.0 V/mm (100 mV/mil)
• Operating Temperature: –30 °C to +120 °C (–22 °F to +248 °F)
• Environmental Rating: IP67 (dust-tight and water-resistant)
• Housing Material: 316 stainless steel
• Cable Length: 5 meters (standard), integral coaxial cable with Teflon® insulation
• Electrical Connection: Integral 10-32 UNF connector (compatible with 3300 XL extension cables)

Operational Capabilities

The 330102-00-68-05-02-05 excels in continuous, real-time asset health monitoring across mission-critical applications. Its high signal-to-noise ratio and low phase shift enable precise detection of sub-micron shaft displacements—essential for early fault identification in journal bearings, thrust collars, and seal assemblies. When deployed in dual-probe configurations, it supports orbit analysis and full-spectrum vibration diagnostics. The probe maintains calibration stability over time, minimizing drift-related false alarms and reducing scheduled recalibration intervals by up to 40% compared to legacy probes.

It is fully compliant with API RP 670 (4th Edition) for machinery protection systems and meets IEC 61508 SIL 2 requirements when used in safety-rated loops with appropriate system architecture. Its compatibility with Bently Nevada’s Asset Health Management software suite allows seamless integration into predictive maintenance workflows—including automated trend analysis, alarm logic configuration, and remote diagnostics via System 1™.

Technical FAQ

Q: Is the 330102-00-68-05-02-05 compatible with older 3300 series monitors?

A: Yes—this probe is backward-compatible with all 3300 series monitors (including 3300/16, 3300/20, and 3300/25), provided the monitor firmware is version 4.0 or later and the correct 3300 XL extension cable is used.

Q: Can this probe be used in explosive atmospheres?

A: Not inherently. While the probe itself is intrinsically safe when paired with an approved IS barrier (e.g., 3300 IS Barrier Module), it must be installed as part of a certified system meeting ATEX/IECEx Zone 1 or Class I Div 1 requirements. Consult your system integrator for full certification documentation.

Q: What is the recommended target material and surface finish?

A: Optimal performance requires a ferromagnetic target (e.g., 4140 steel or equivalent) with a surface finish of ≤ 0.8 µm Ra. Non-ferrous targets (e.g., titanium or aluminum) require recalibration and yield reduced sensitivity and range.
