Technical Overview

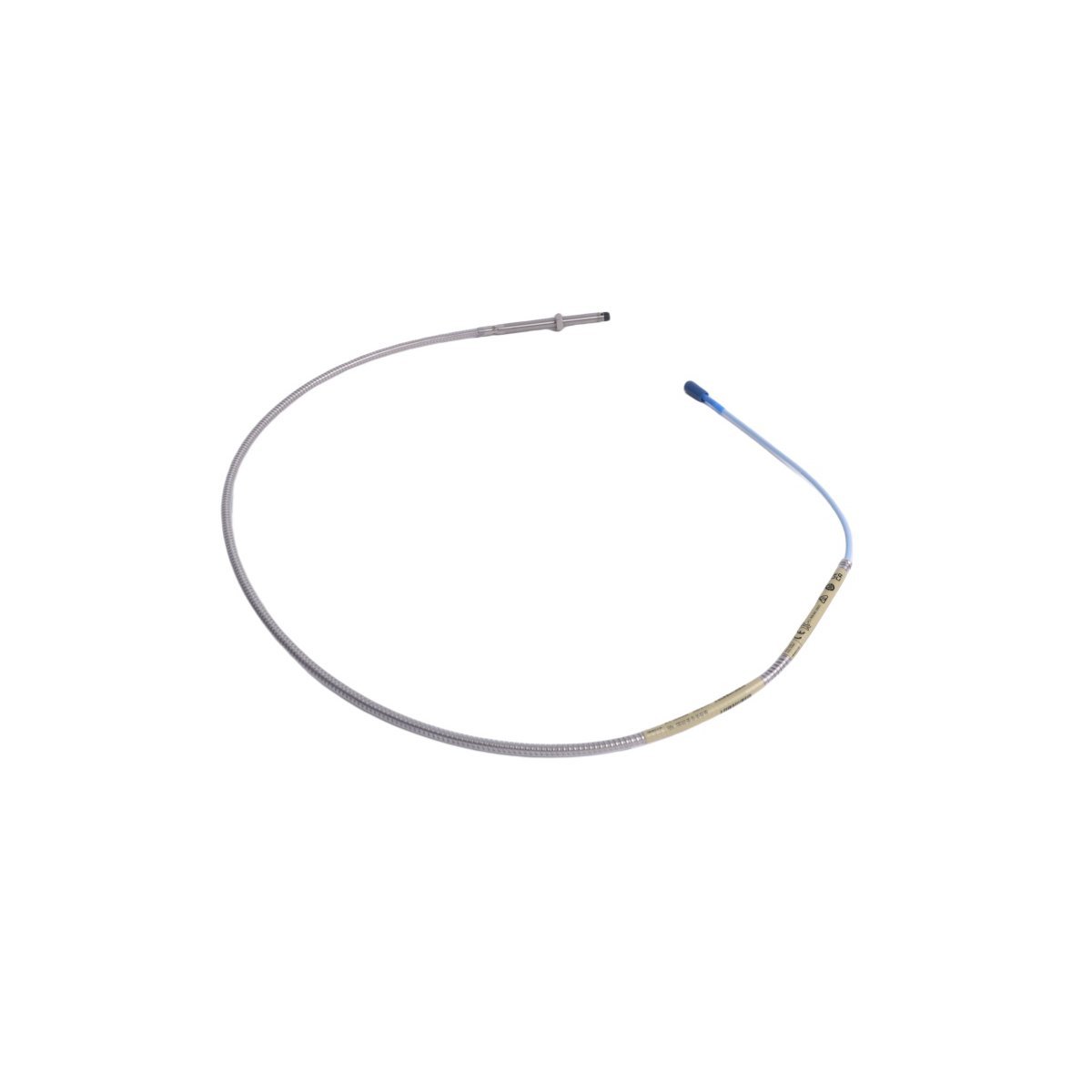

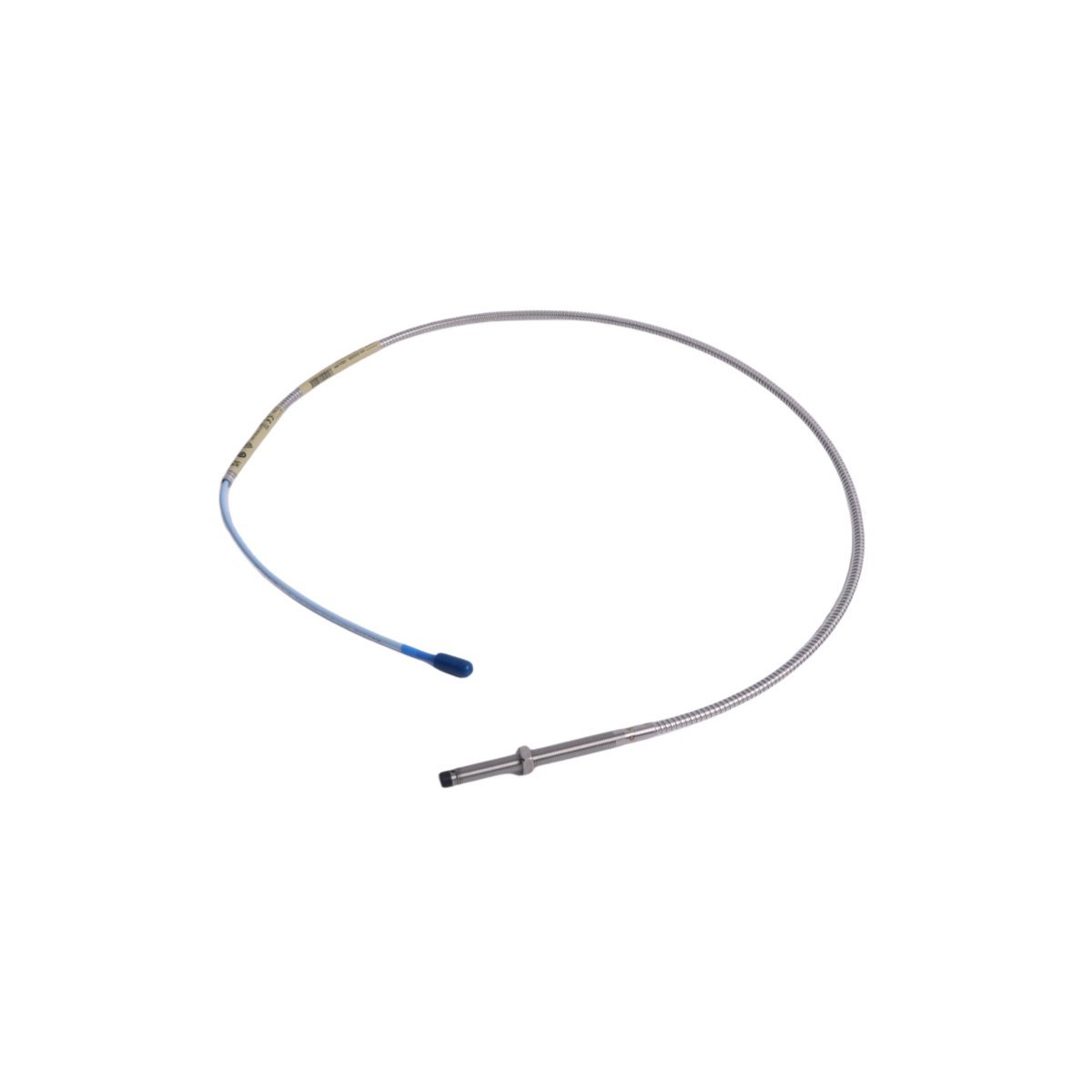

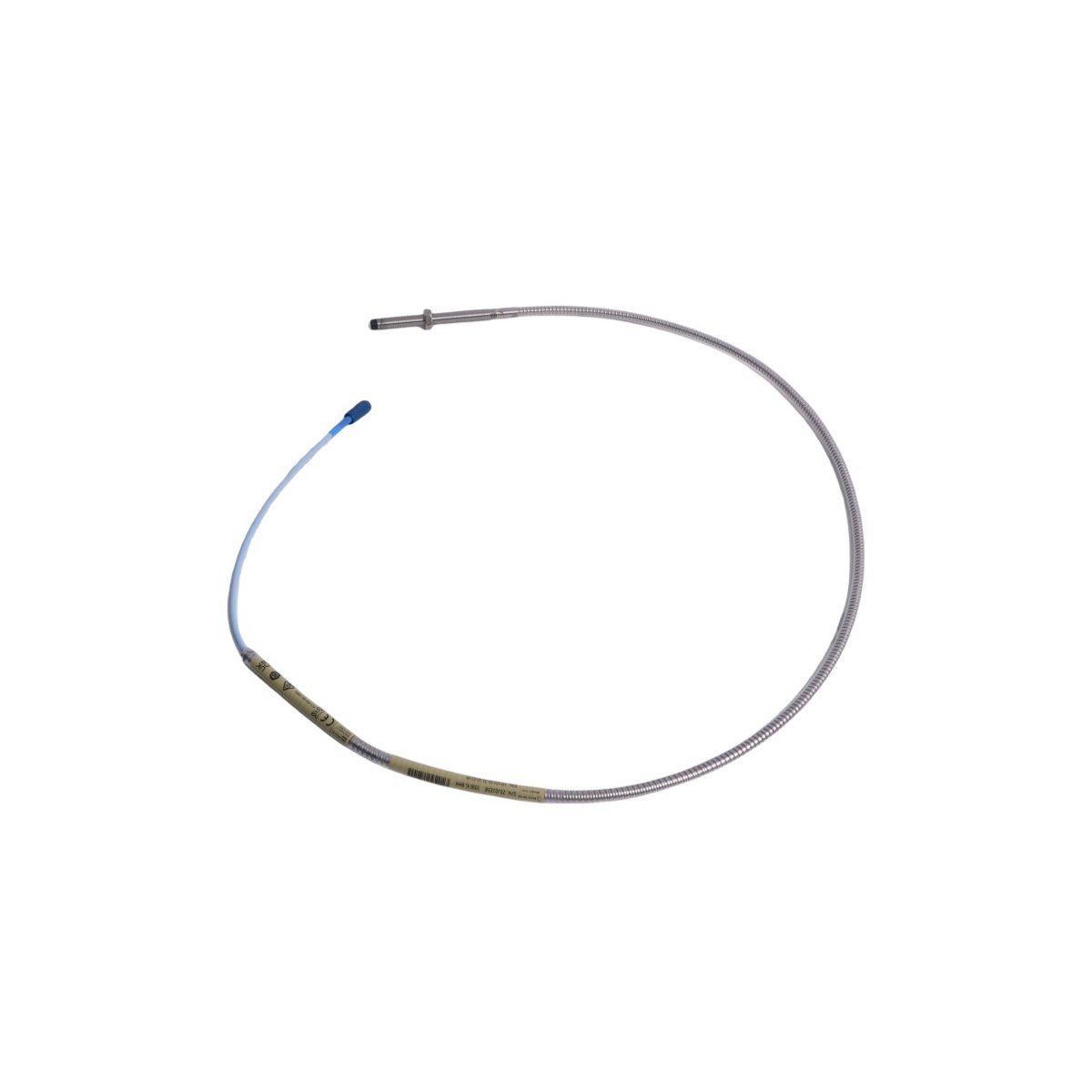

The Bently Nevada 330102-00-36-05-02-05 is a high-precision proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Designed to meet the stringent demands of power generation, oil & gas, petrochemical, and heavy industrial environments, this probe delivers exceptional signal fidelity and long-term stability under extreme thermal, mechanical, and electromagnetic conditions. Its robust stainless steel construction and hermetically sealed design ensure reliable operation in harsh settings—including high humidity, corrosive atmospheres, and exposure to hydrocarbons and process fluids.

Operating as part of the industry-standard 3300 XL 25 mm eddy-current sensing system, the 330102-00-36-05-02-05 probe pairs seamlessly with compatible Bently Nevada monitors and前置器 (proximity transducers) to provide real-time shaft position, vibration amplitude, and relative displacement data. With a nominal sensing range of 25 mm and optimized frequency response up to 10 kHz, it supports advanced condition monitoring strategies including orbit analysis, phase measurement, and startup/shutdown trending—enabling predictive maintenance and minimizing unplanned downtime. Calibration traceability to NIST standards ensures compliance with ISO 10816 and API 670 requirements for machinery protection systems.

Key Features

• High-Accuracy Eddy-Current Sensing: Delivers linear, repeatable output across its full 25 mm range with ≤±1% full-scale linearity error.
• Ruggedized Industrial Design: 316 stainless steel housing, integral 5-meter low-noise coaxial cable, and IP68-rated environmental sealing for extended service life.
• System Compatibility: Fully interoperable with Bently Nevada 3300 XL, 3500, and System 1 platforms—supports hot-swap configuration and automatic probe identification via Smart Probe Technology™.
• Temperature Stability: Compensated for thermal drift from –40°C to +125°C ambient, ensuring consistent performance across wide operational envelopes.
• EMI/RFI Immunity: Meets IEC 61000-4-3 and IEC 61000-4-6 standards for electromagnetic compatibility in electrically noisy plant environments.

Specifications

• Part Number: 330102-00-36-05-02-05
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: Non-contact Proximity Probe (Eddy Current, 25 mm Range)
• Warranty: 24-month limited warranty against defects in materials and workmanship
