330102-00-20-15-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

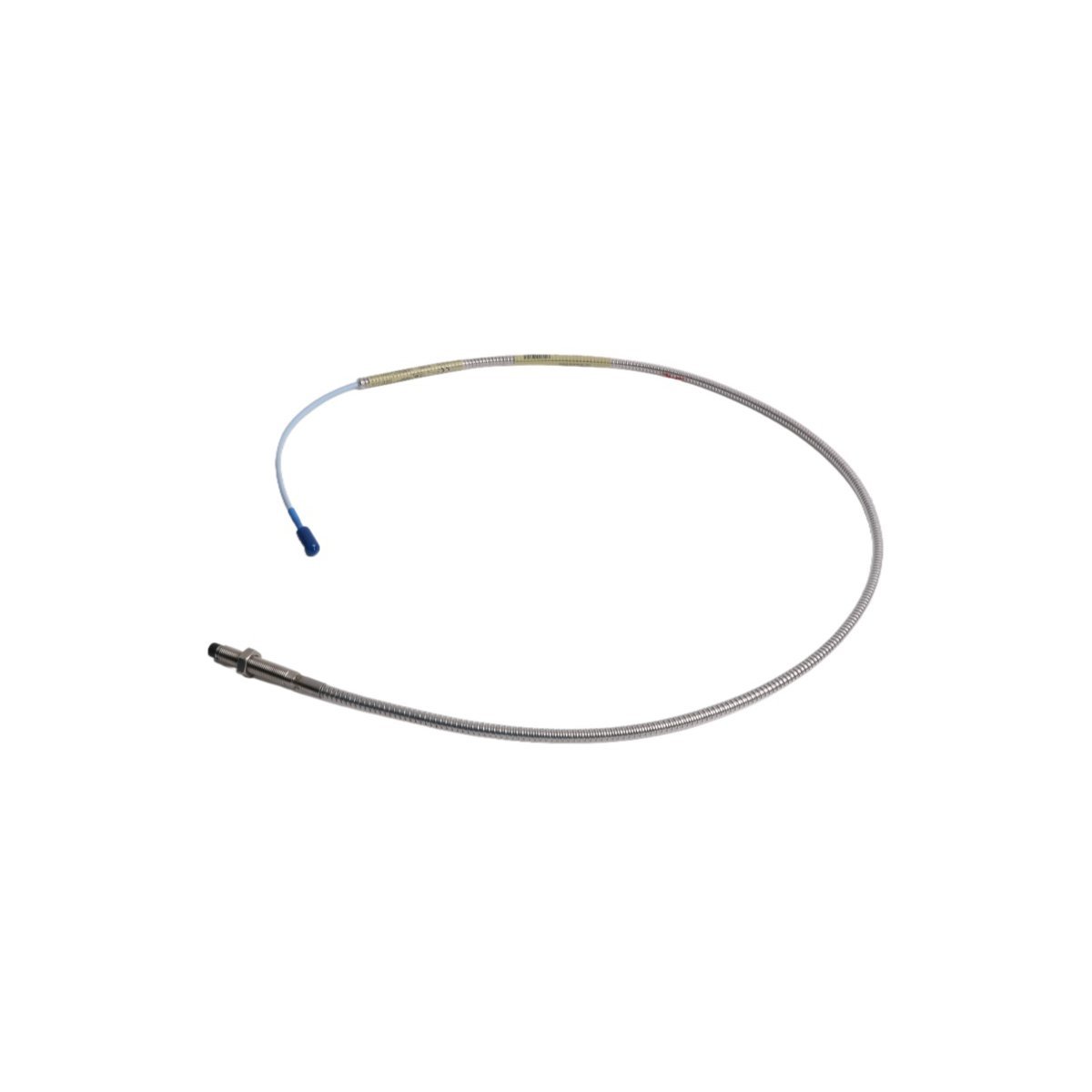

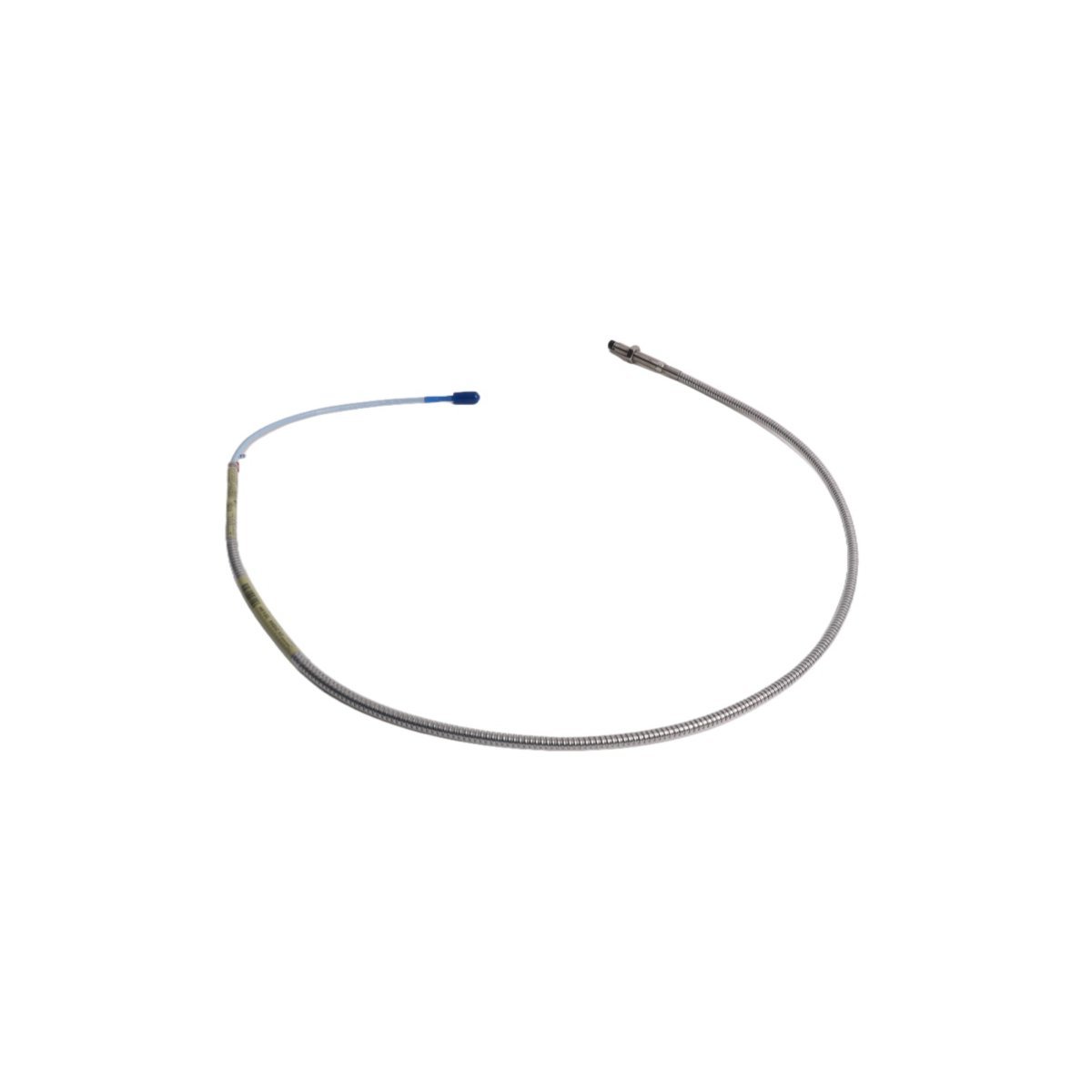

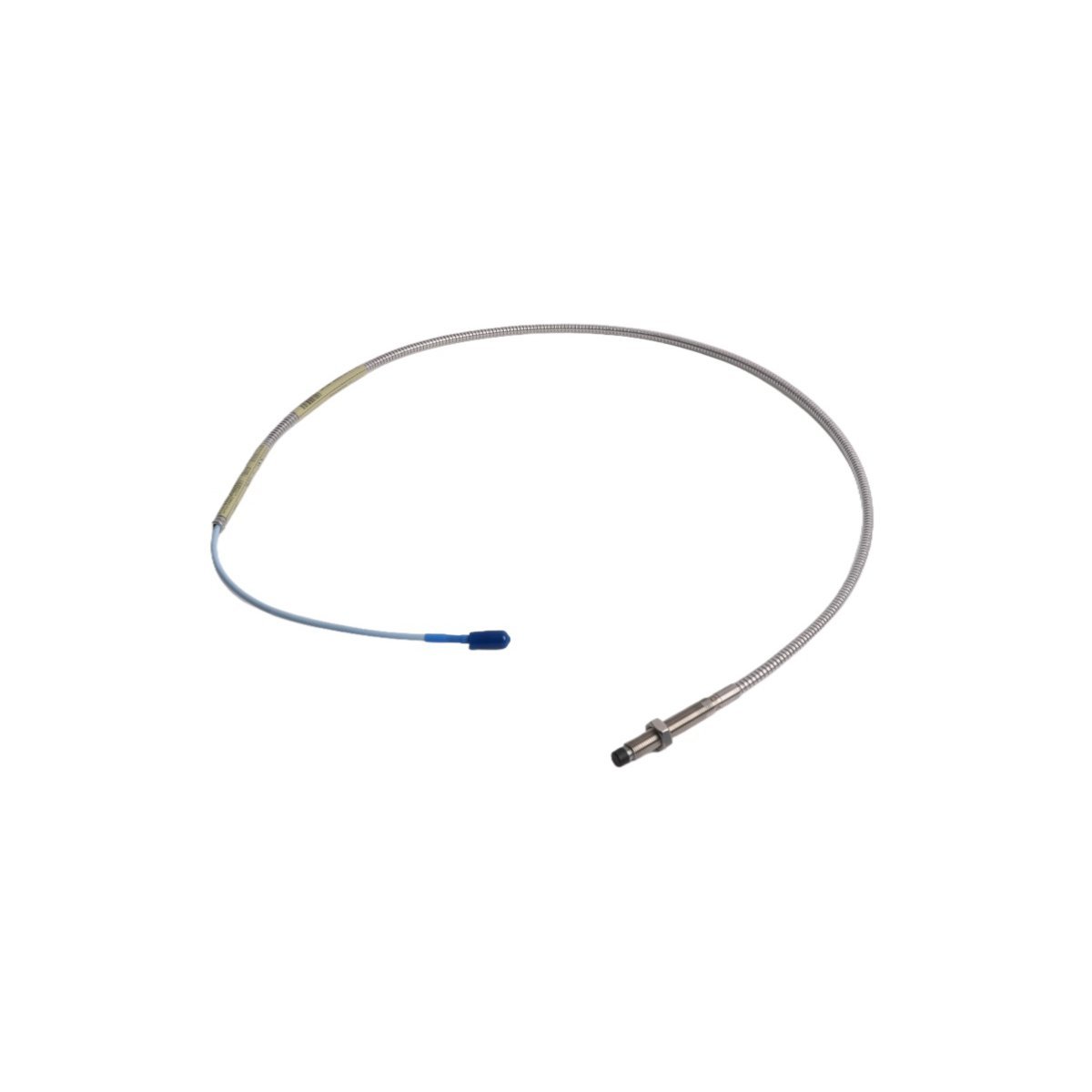

The 330102-00-20-15-02-00 is a non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL series. It delivers high-fidelity displacement and vibration measurements for rotating machinery.
Moreover, it is engineered for continuous monitoring of shaft position, vibration, and axial thrust in critical turbomachinery applications. Therefore, it integrates seamlessly with 3300 series monitors and supports API 670 compliance. In addition, its 8 mm diameter sensing tip enables precise measurement in constrained mechanical spaces.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and shaft position in steam and gas turbines
– Measuring axial position and thrust bearing wear in centrifugal compressors
– Detecting shaft orbit and dynamic motion in large electric motors and generators
– Supporting condition monitoring and machine protection per API 670 standards

### FAQ
What is the standard cable length for this probe?
The probe ships with a 5-meter integral coaxial cable rated for industrial environments.

Is calibration required before installation?
Yes—each probe must be calibrated with its matching extension cable and monitor using a certified calibration kit.

Can this probe operate in high-temperature environments?
It is rated for continuous operation up to +120 °C at the probe tip; derating applies above that temperature.

Does it require a separate前置 amplifier?
No—the 3300 XL system uses built-in oscillator-demodulator circuitry in the monitor; no external前置 amplifier is needed.

Is the probe compatible with legacy 3300 monitors?
Yes, it is backward compatible with all 3300 series monitors, including 3300 NSV and 3300 XL rack-based systems.
