Description

Technical Overview

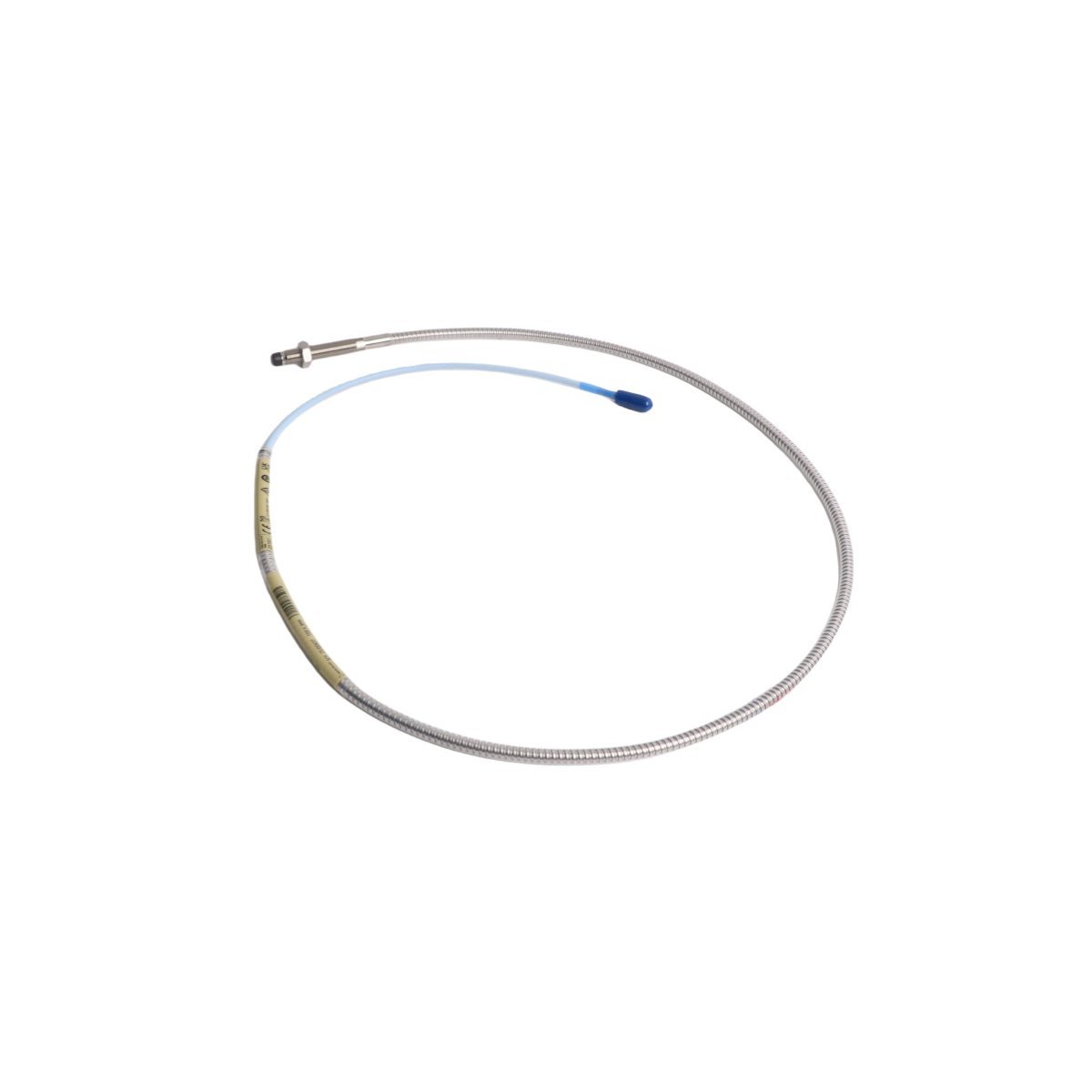

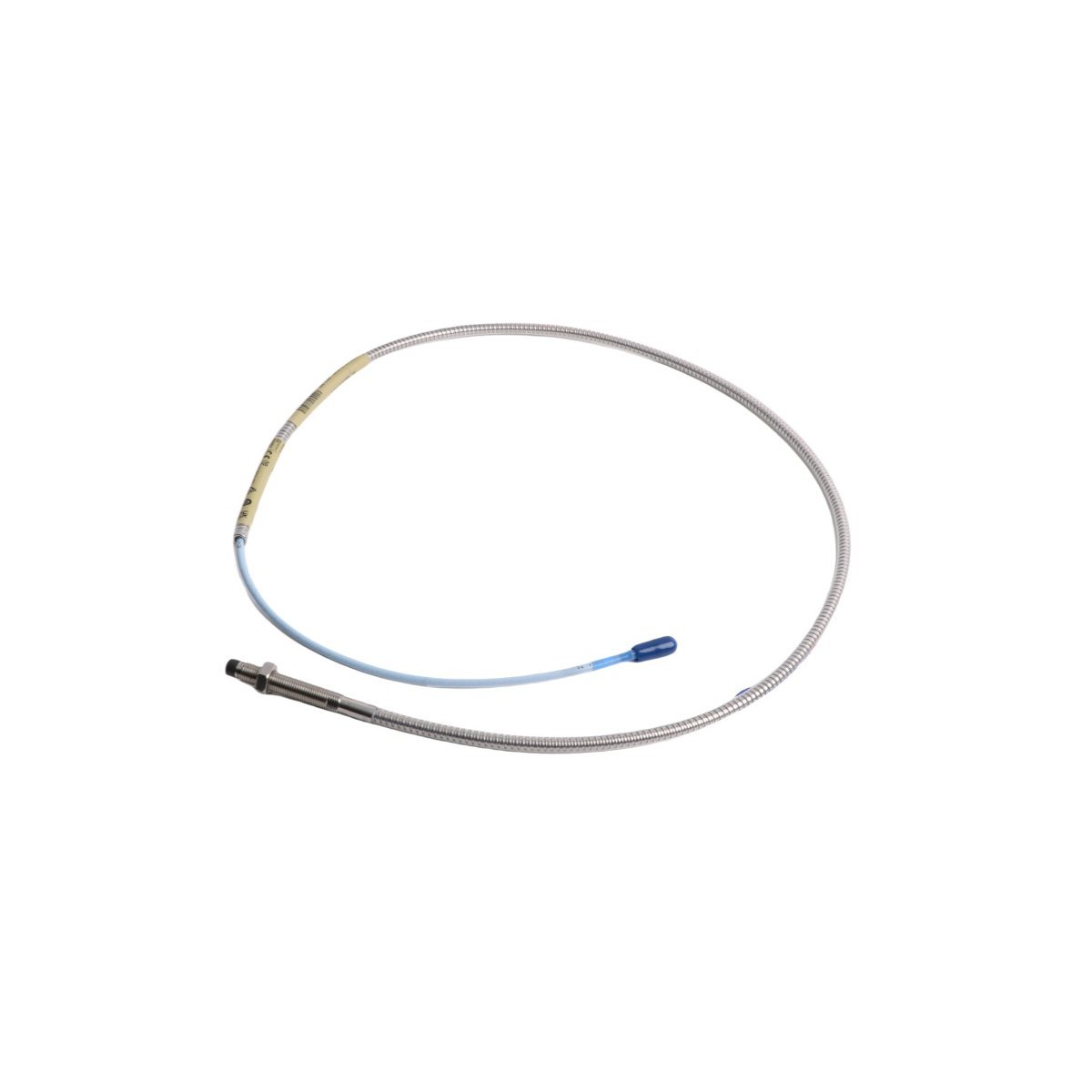

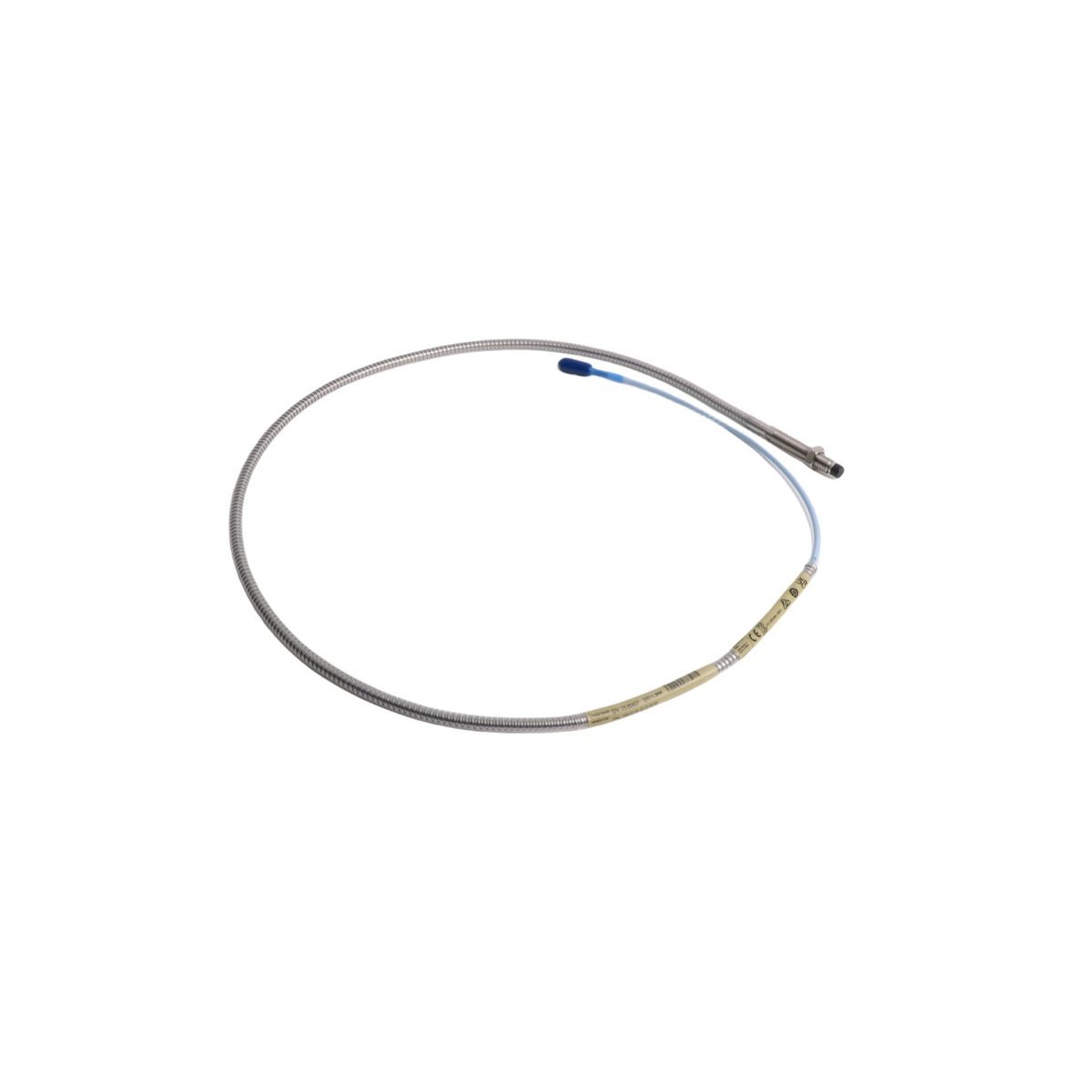

The Bently Nevada 330102-00-20-10-02-00 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Manufactured by Baker Hughes (under the Bently Nevada brand—a globally recognized leader in condition monitoring and machinery protection systems), this probe is part of the trusted 3300 XL 8 mm sensor family, designed to deliver exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity. The probe operates on the eddy-current principle, generating a high-frequency electromagnetic field that interacts with conductive target surfaces—typically ferromagnetic shafts—to produce a proportional output voltage signal. Its robust construction, optimized coil geometry, and precision-machined stainless steel housing ensure long-term reliability in harsh environments characterized by extreme temperatures, high vibration, oil mist, steam, and chemical exposure. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with a unique calibration certificate specifying sensitivity, linearity error, and temperature coefficients. The 330102-00-20-10-02-00 is intended for use exclusively with compatible Bently Nevada 3300 XL series monitors and前置器 (proximity transducers), forming an integral component of comprehensive asset health management strategies across power generation, oil & gas, petrochemical, pulp & paper, and marine propulsion sectors.

Detailed Specifications

Key Features

• Precision Calibration Integrity: Each probe ships with a unique, NIST-traceable calibration certificate documenting individualized sensitivity, linearity deviation, thermal drift coefficients, and phase response—ensuring measurement repeatability across global installations.
• Enhanced Environmental Resilience: Hermetically sealed housing, 316 stainless steel construction, and fully potted internal electronics provide IP68-rated ingress protection against water immersion, hydrocarbon-based lubricants, hydrogen sulfide (H₂S), and salt spray corrosion.
• Optimized Electromagnetic Compatibility (EMC): Integrated RF filtering, double-shielded coaxial cable, and differential signaling architecture deliver >60 dB common-mode rejection and immunity to VFD-induced noise, arc welding interference, and radio frequency disturbances.
• Plug-and-Play Integration: Fully compatible with all Bently Nevada 3300 XL 8 mm system components—including 3300 XL 8 mm Proximitor® Transducers (e.g., 330180-50-00), 3500/22M monitors, and System 1™ software—enabling seamless configuration via Asset Manager or Machinery Health Manager.
• Long-Term Stability: Advanced coil winding techniques and thermally matched materials reduce zero-shift to <0.25% FSR/year and sensitivity drift to <0.15% FSR/°C—minimizing recalibration frequency and lifecycle cost of ownership.
• Global Support Infrastructure: Backed by Baker Hughes’ worldwide network of certified service centers offering on-site calibration, repair, reverse engineering, and predictive maintenance analytics integration.

Applications

• Steam and Gas Turbine Monitoring: Radial vibration, axial position, and differential expansion measurements on high-pressure turbine shafts, thrust collars, and bearing housings in combined-cycle and cogeneration plants.
• Centrifugal Compressor Protection: Real-time shaft displacement tracking for surge detection, clearance monitoring, and anti-surge valve control logic in upstream oil & gas processing and LNG liquefaction trains.
• Large Motor and Generator Sets: Rotor eccentricity, air-gap monitoring, and bearing wear assessment in 10+ MW synchronous motors used in mining conveyors, steel mill rolling stands, and desalination plant pumps.
• Reciprocating Machinery Diagnostics: Crosshead displacement, piston rod runout, and cylinder liner wear analysis in high-horsepower natural gas compressors and refinery hydrotreating units.
• Marine Propulsion Systems: Shaft alignment verification, propeller hub vibration, and gear mesh monitoring aboard naval vessels, cruise liners, and offshore support vessels operating under dynamic sea-state conditions.
• Renewable Energy Infrastructure: Critical bearing health monitoring in large-scale wind turbine gearboxes and pitch/yaw drive mechanisms—supporting ISO 10816-3 compliance and predictive O&M planning.
