Description

Technical Overview

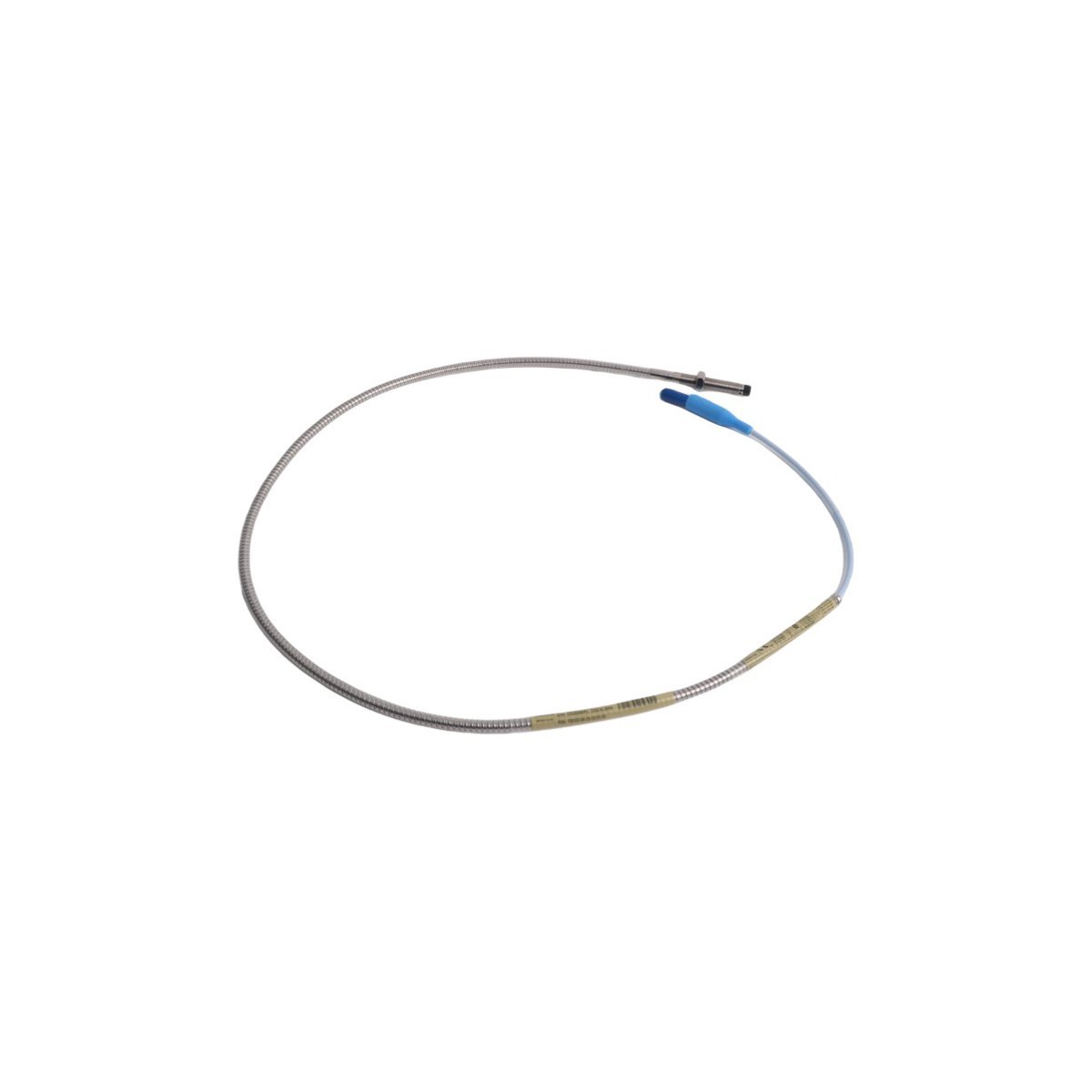

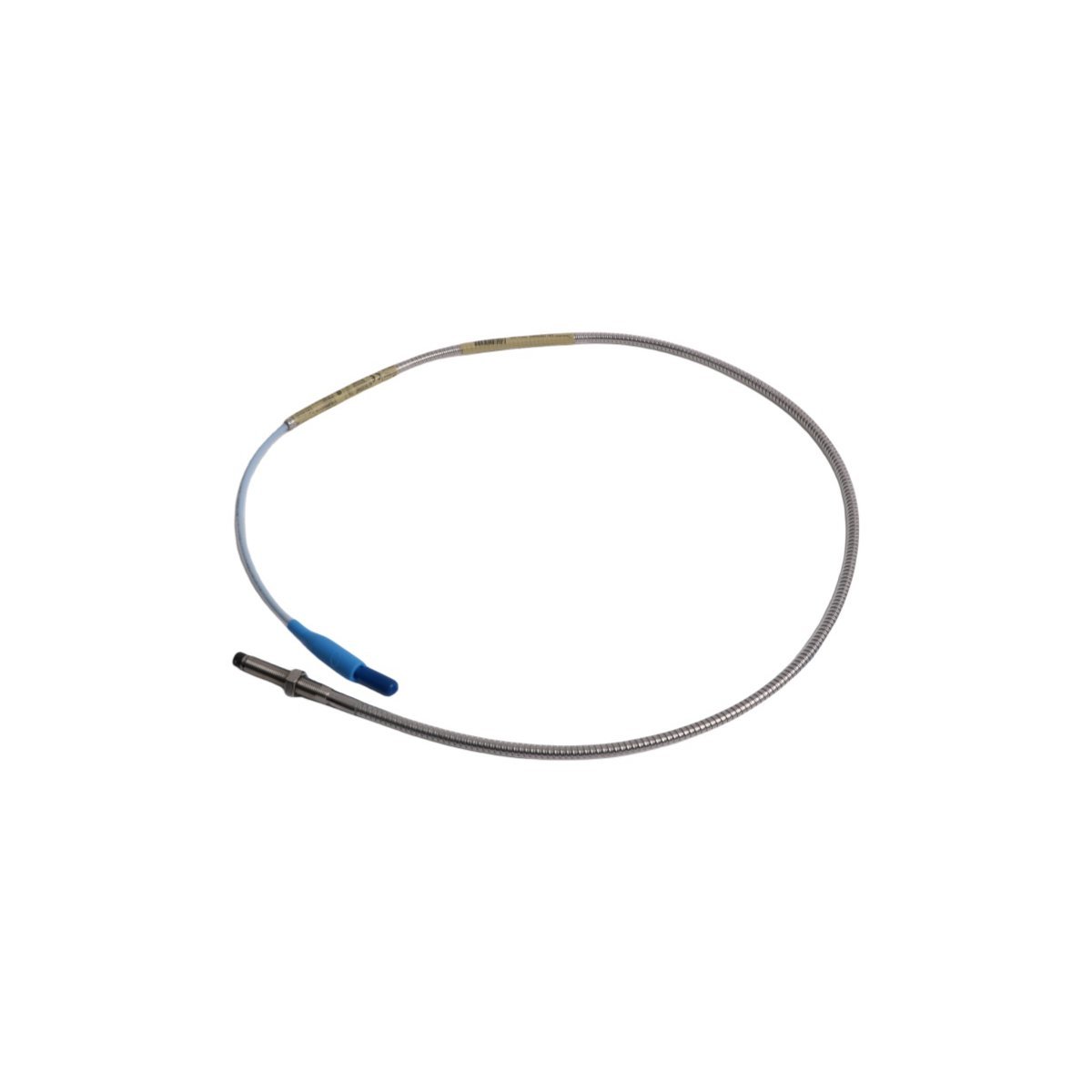

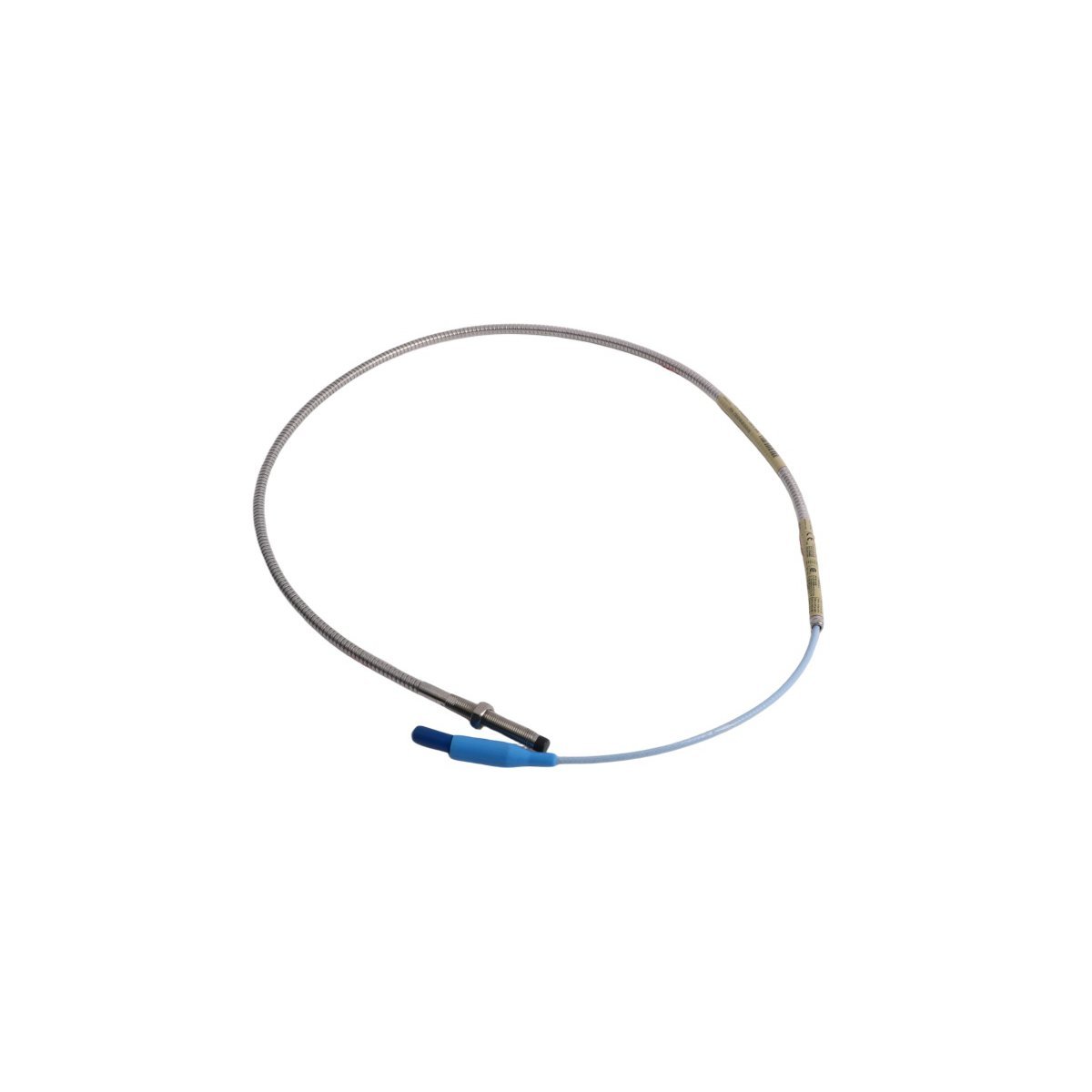

The Bently Nevada 330102-00-20-10-01-05 is a high-precision 3300 XL 8 mm proximity probe engineered for mission-critical machinery monitoring in industrial automation, power generation, oil & gas, and heavy manufacturing environments. As part of the industry-standard 3300 XL series, this probe delivers exceptional stability, repeatability, and immunity to electromagnetic interference—ensuring reliable shaft vibration, axial position, and differential expansion measurements under demanding operational conditions. Its robust stainless steel housing and integral 5-meter low-noise coaxial cable are designed for long-term durability in high-temperature, high-vibration, and chemically aggressive settings.

This probe operates on the eddy-current principle and is calibrated for use exclusively with Bently Nevada 3300 XL 8 mm extension cables and monitors (e.g., 3300 NSV, 3500 system). The standardized 8 mm diameter sensing tip provides optimal balance between resolution and standoff range (typically 0.25–2.5 mm), enabling accurate detection of minute rotor displacements while maintaining consistent sensitivity across its linear range. With factory calibration traceable to NIST standards and integrated thermal compensation, the 330102-00-20-10-01-05 ensures measurement integrity over time—reducing unplanned downtime and supporting predictive maintenance strategies aligned with ISO 10816 and API 670 guidelines.

Key Features

• High-Stability Eddy-Current Sensing: Precision-machined 8 mm probe tip with temperature-compensated electronics for consistent output across operating temperatures (−30 °C to +120 °C).
• Industrial-Rated Construction: Hermetically sealed 316 stainless steel body and PTFE-insulated integral cable rated for continuous exposure to moisture, oil, and corrosive vapors.
• System Compatibility: Fully interoperable with Bently Nevada 3300 XL 8 mm extension cables (e.g., 330130-00-00-10-02-05) and 3300/3500 monitoring platforms—ensuring seamless integration into existing asset protection systems.
• Factory-Calibrated Performance: Supplied with individual calibration certificate (including sensitivity, linearity error, and frequency response data) for audit-ready compliance and system validation.

Specifications

• Part Number: 330102-00-20-10-01-05
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL 8 mm Proximity Probe with integral 5 m cable
• Warranty: 24-month limited warranty covering material and workmanship defects under normal industrial use

Contact us for bulk pricing and availability
