330102-00-10-10-01-05 | Bently Nevada | 3300 XL 8 mm Probe

### Product Description

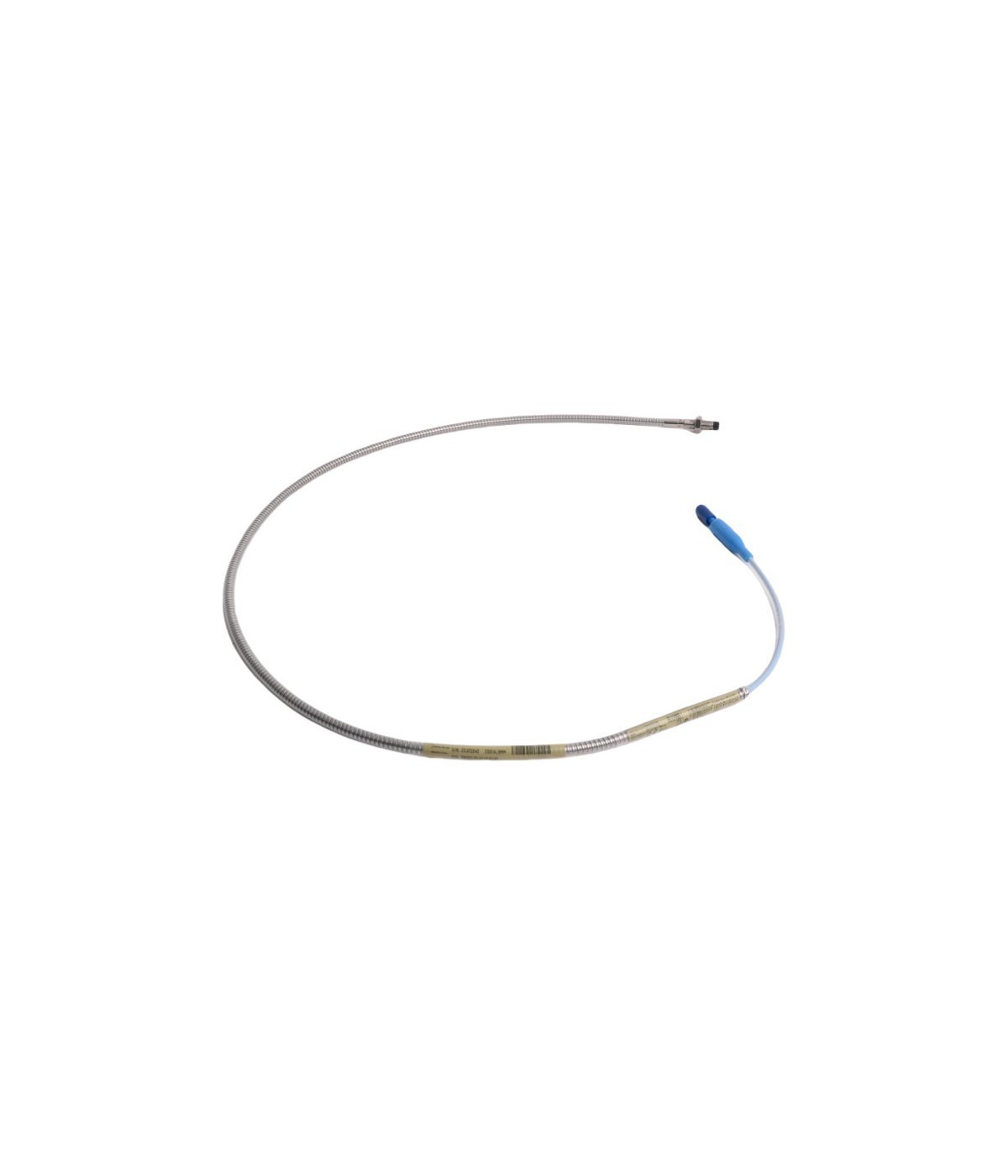

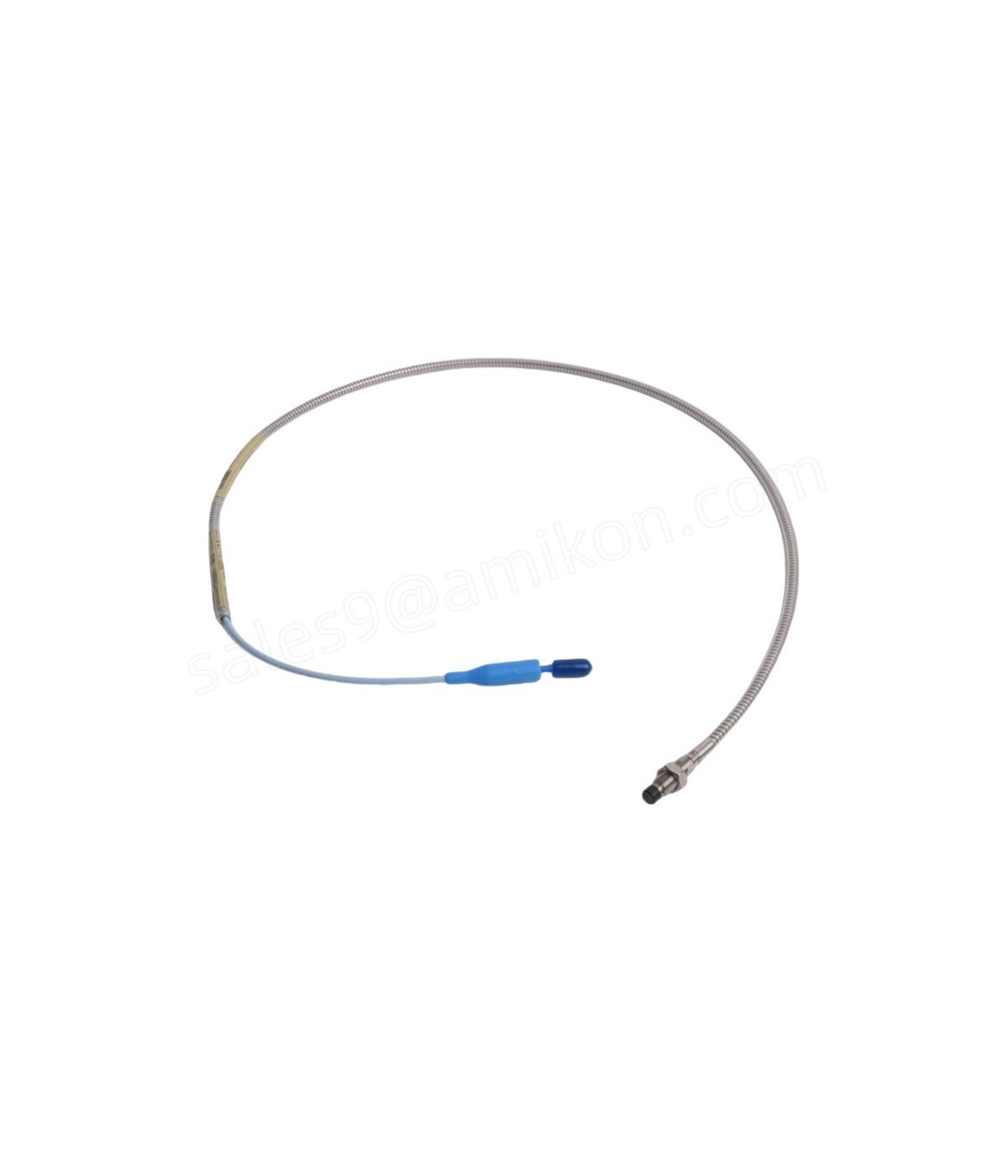

This is a non-contact eddy-current proximity probe designed for continuous vibration and position monitoring in rotating machinery. It forms part of the Bently Nevada 3300 XL system and interfaces with standard 3300 series monitors.
Moreover, it delivers high-resolution displacement measurements for shaft relative vibration, axial position, and differential expansion in critical turbomachinery. Therefore, it is commonly deployed in gas turbines, steam turbines, compressors, and large motors requiring API 670 compliance. In addition, its robust 8 mm diameter sensing tip ensures stable operation under high temperature and electromagnetic interference conditions.

### Technical Specifications

### Typical Applications
– Gas turbine shaft vibration monitoring per API 670
– Steam turbine axial position and thrust bearing monitoring
– Centrifugal compressor radial and axial displacement measurement
– Large motor rotor position and runout verification

### FAQ
What is the standard output sensitivity for this probe?
The probe has a nominal sensitivity of 4.0 V/mm (100 mV/mil) when used with a 3300 XL monitor and appropriate extension cable.

Is calibration required before installation?
Yes — each probe must be calibrated with its matching extension cable and monitor channel using the supplied calibration kit or certified lab procedure.

Can this probe operate at elevated temperatures?
The probe is rated for continuous operation up to +121 °C (250 °F); derating applies above this temperature.

Does it require a specific前置 amplifier?
It requires a 3300 XL series proximity transducer (e.g., 330180-50-00), not standard 3300 non-XL modules.
