Technical Overview

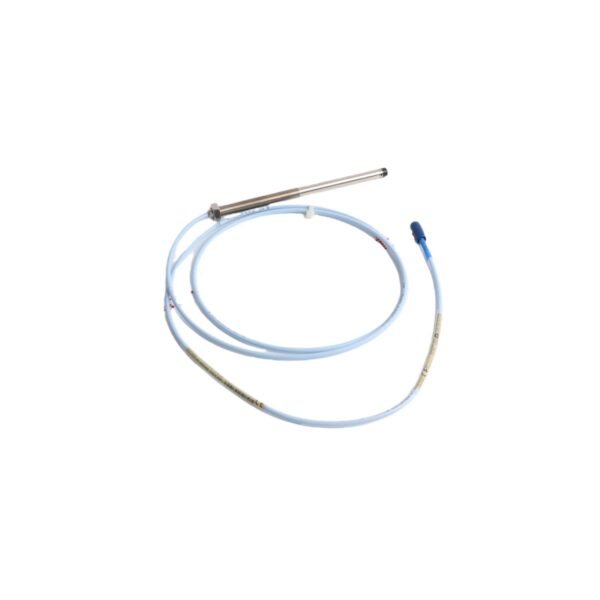

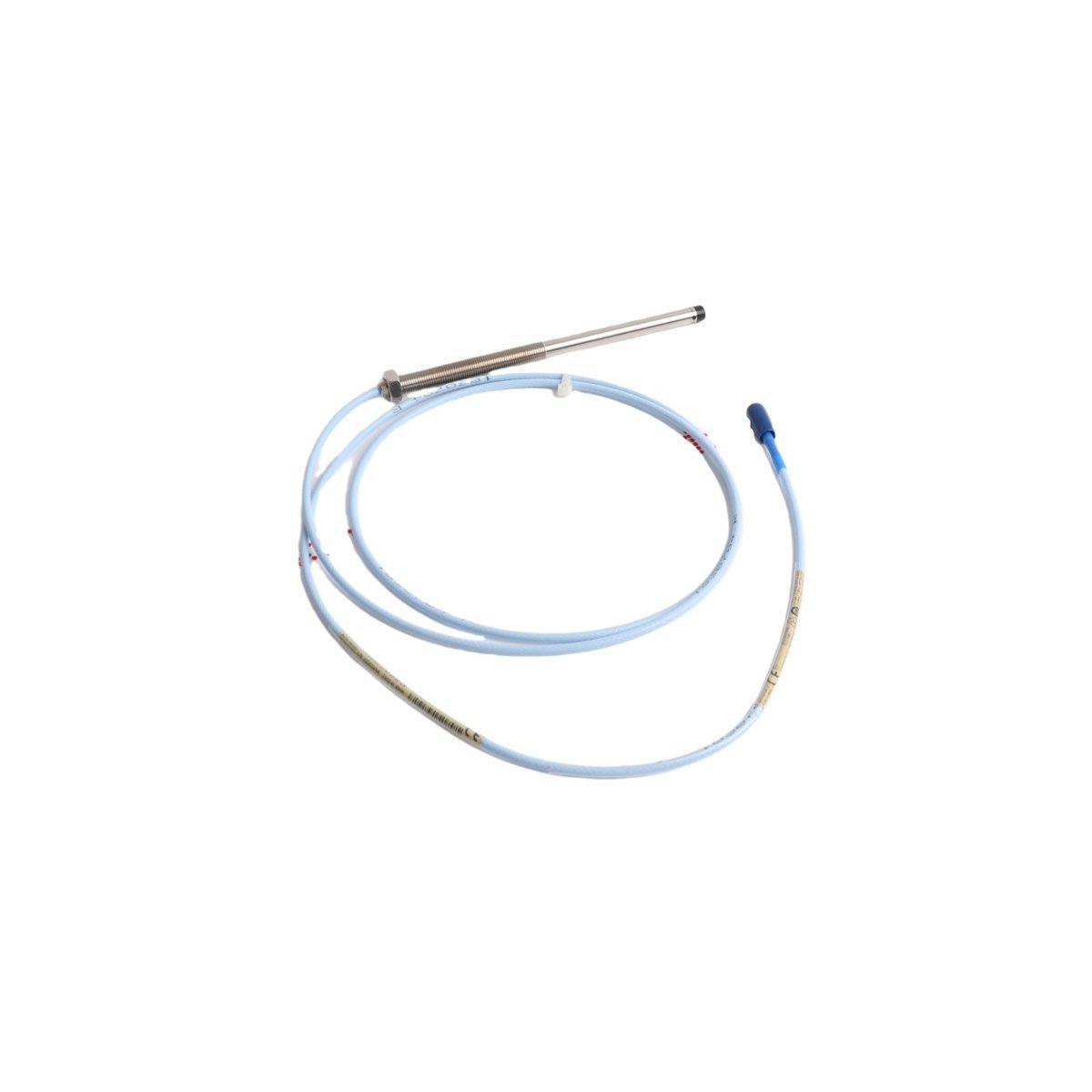

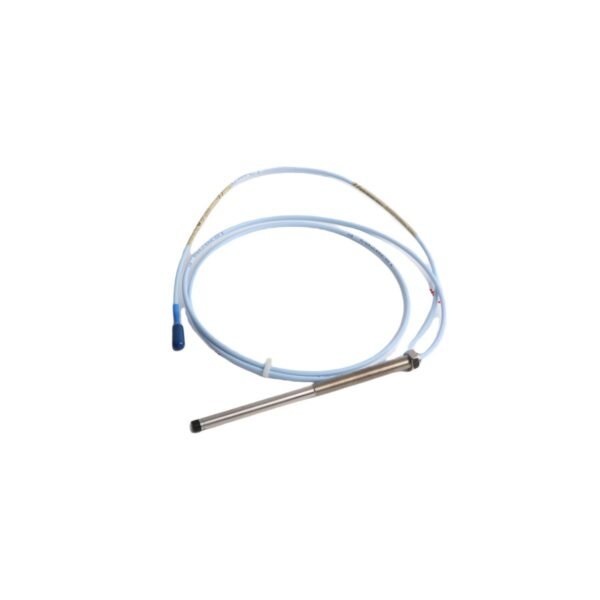

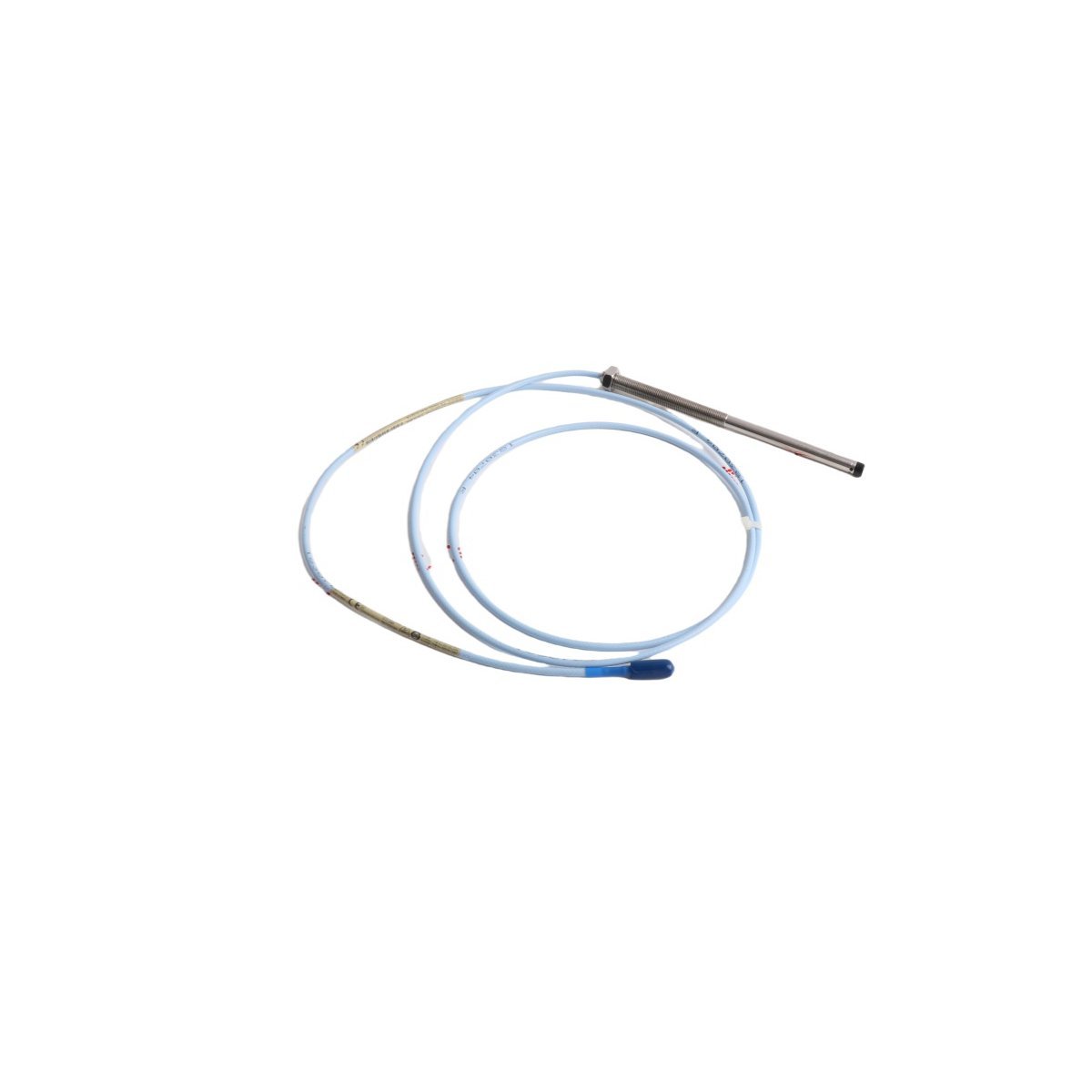

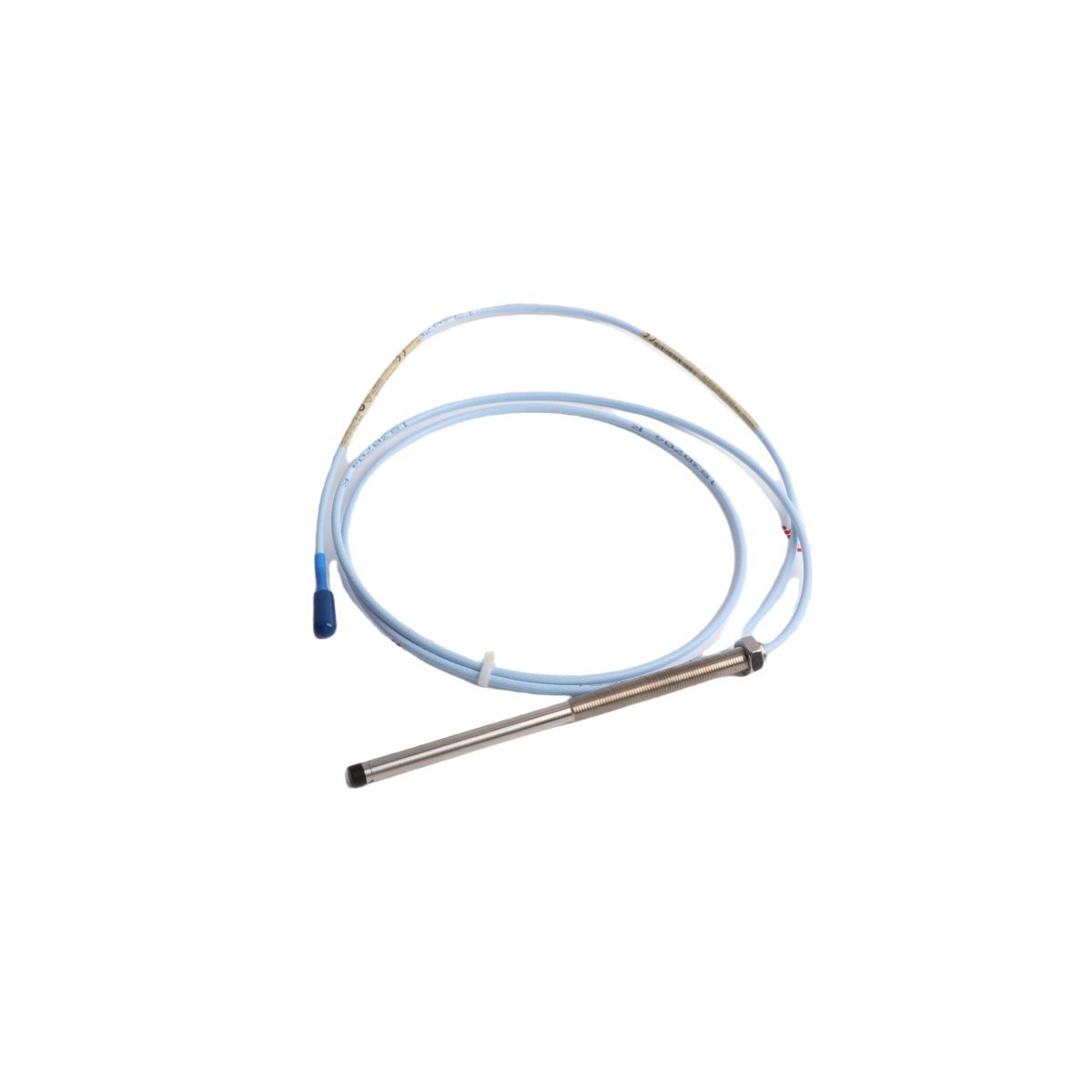

The Bently Nevada 330101-30-60-05-01-05 is a high-precision 3300 XL 8 mm proximity probe engineered for mission-critical machinery monitoring in demanding industrial environments. Designed as part of the industry-leading 3300 XL series, this probe delivers exceptional linearity, temperature stability, and electromagnetic interference (EMI) immunity—ensuring reliable vibration and position measurements on rotating equipment such as turbines, compressors, motors, and pumps. Its robust construction features a stainless steel housing and PTFE-insulated cable, enabling consistent performance in high-temperature, high-vibration, and corrosive settings common in power generation, oil & gas, and heavy manufacturing facilities.

This probe operates in conjunction with the 3300 XL 8 mm eddy-current transducer system, providing non-contact displacement measurements with a standard linear range of 2.0 mm (0.08 in) and a sensitivity of 4.0 V/mm (100 mV/mil). The integrated 30–60–05–01–05 configuration denotes its specific mechanical and electrical attributes: a 30 mm probe body length, 60 mm cable length, 5 mH nominal inductance, 1 mΩ DC resistance, and 5 V dc output compliance—optimized for seamless integration into existing Bently Nevada 3300 monitoring systems. Rigorous factory calibration and traceable NIST documentation ensure measurement accuracy within ±1% full scale across the operating temperature range of –30°C to +120°C.

Key Features

• High-Performance Sensing: 8 mm diameter active sensing element with superior resolution (0.25 µm typical) and repeatability for precise shaft vibration and axial position monitoring.
• Industrial-Grade Durability: Hermetically sealed stainless steel probe tip and fluoropolymer-jacketed cable rated for continuous operation in harsh mechanical and chemical environments.
• System Compatibility: Fully compatible with Bently Nevada 3300/3300 XL monitoring systems, including 3300 Rack, 3500 System, and Asset Management software platforms.
• EMI/RFI Immunity: Engineered with advanced shielding and balanced differential signaling to maintain signal integrity in electrically noisy plant environments.
• Quick-Connect Interface: Standard 10-32 UNF threaded mounting and integral coaxial connector simplify installation, alignment, and field replacement without recalibration.

Specifications

• Part Number: 330101-30-60-05-01-05
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL 8 mm Proximity Probe
• Warranty: 24-month limited warranty against defects in materials and workmanship

Contact us for bulk pricing and availability
