Description

Technical Overview

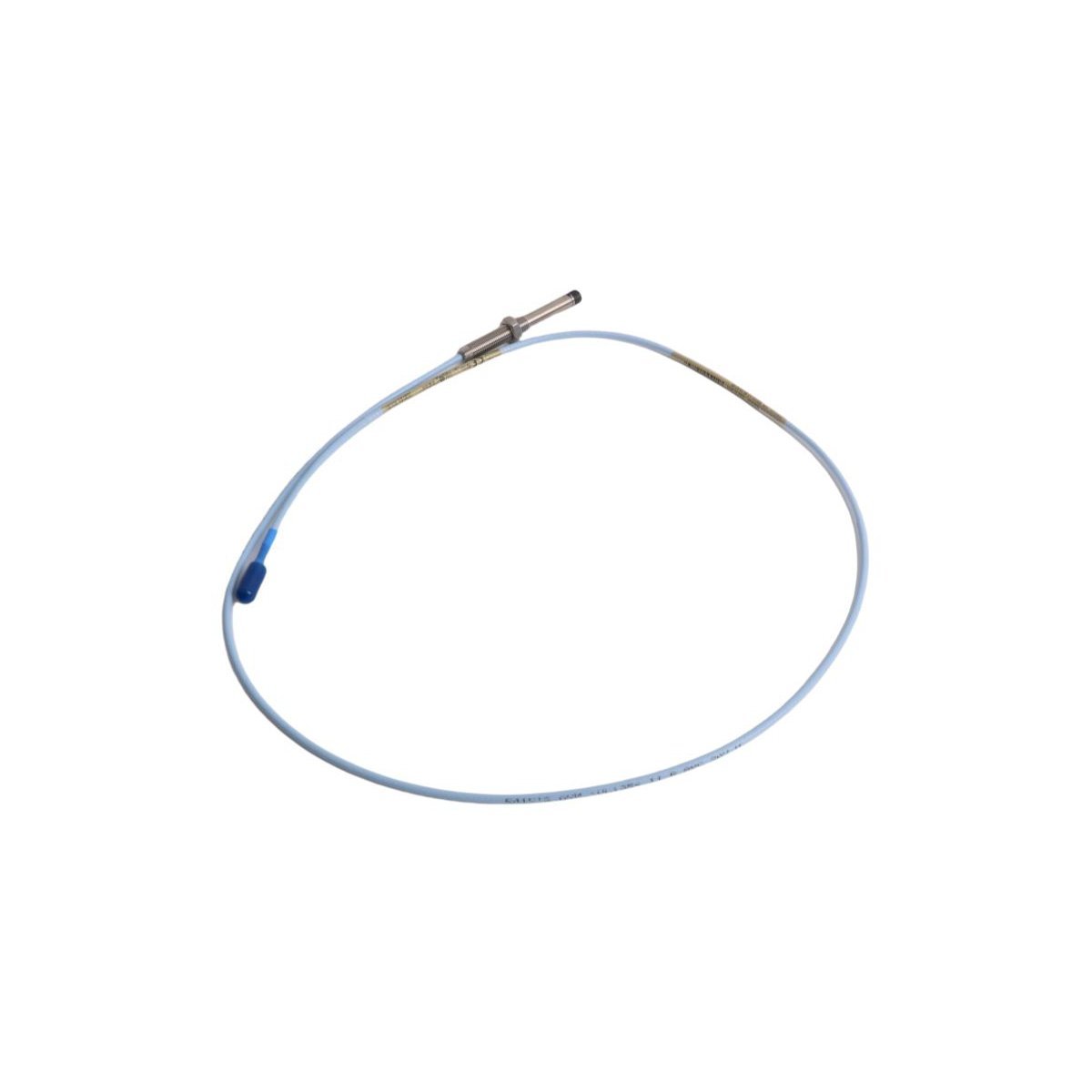

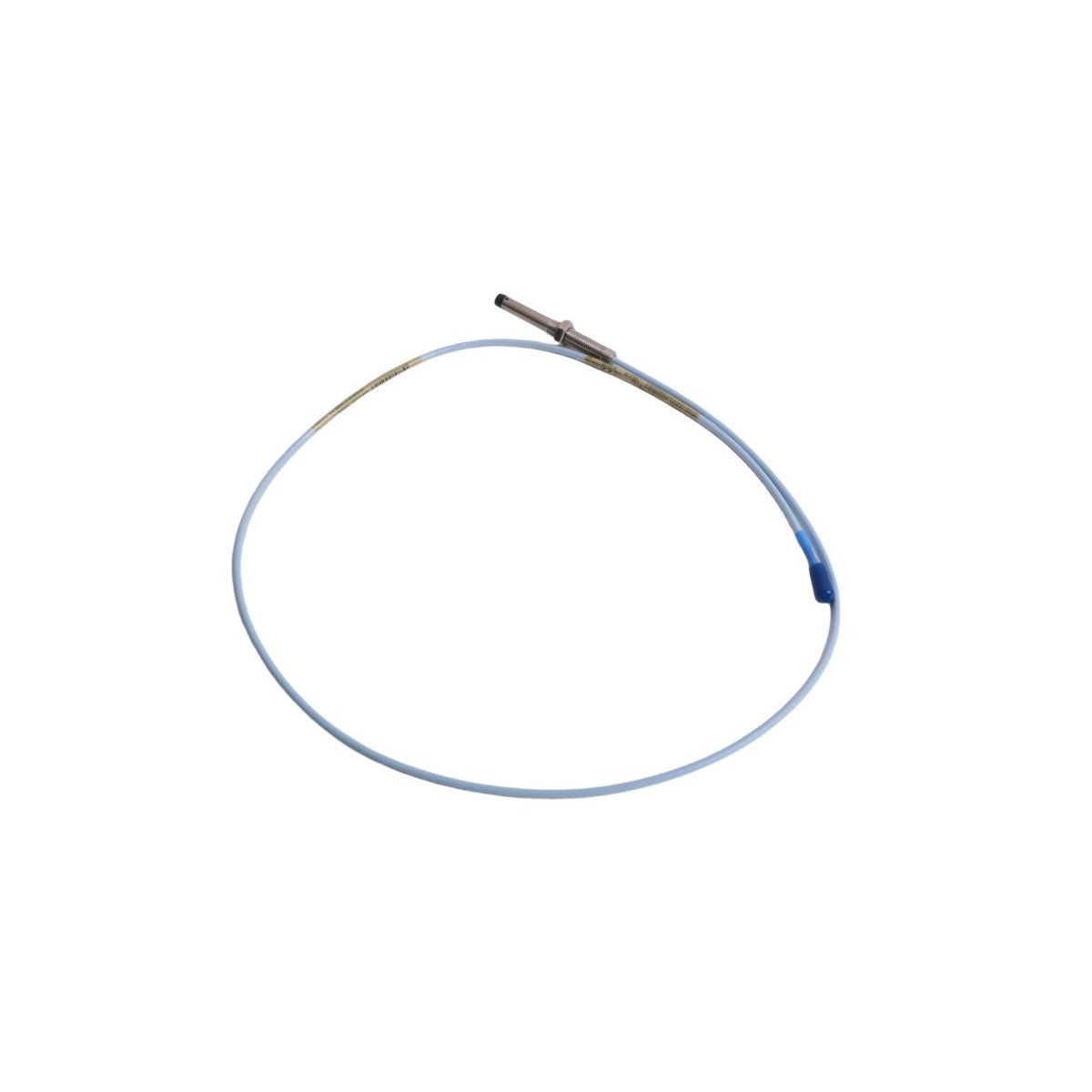

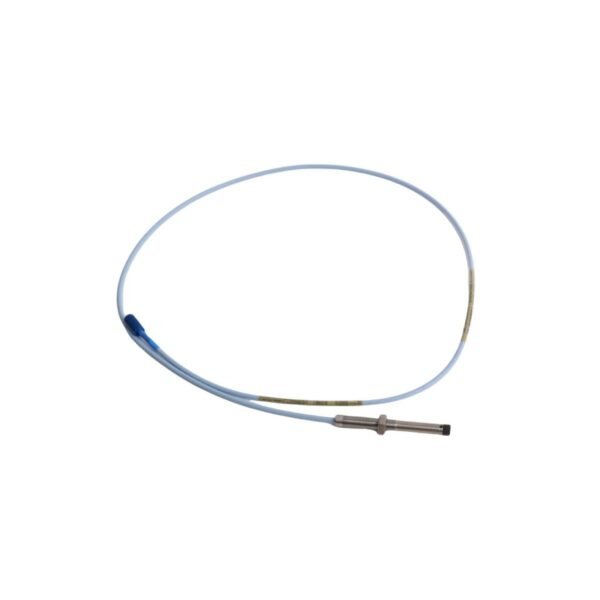

The Bently Nevada 330101-12-30-10-02-05 is a high-precision, ruggedized proximity probe engineered for continuous shaft vibration and position monitoring in mission-critical rotating machinery. As part of the trusted 3300 XL 8 mm Proximity Probe System, this model delivers exceptional signal stability, temperature resilience, and long-term calibration integrity—essential for predictive maintenance programs in power generation, oil & gas, petrochemical, and heavy industrial applications.

Designed to operate seamlessly with the 3300 XL 8 mm extension cables and 3300 XL 8 mm proximitor transducers, the probe features a stainless steel housing, hermetically sealed construction, and optimized electromagnetic field geometry for accurate gap measurement across a nominal 2.0 mm linear range. Its robust design ensures reliable performance under extreme environmental conditions—including exposure to high-pressure steam, corrosive vapors, and wide ambient temperature fluctuations (–30°C to +120°C).

Detailed Specifications

• Model Number: 330101-12-30-10-02-05
• Brand: Bently Nevada (a Baker Hughes business)
• Probe Type: 3300 XL 8 mm Non-Contacting Proximity Probe
• Nominal Sensing Range: 2.0 mm (0.08 in)
• Linear Output Range: 2.0 mm (±1.0 mm from nominal gap)
• Sensitivity: 4.0 V/mm (100 mV/mil) ±5%
• Operating Temperature: –30°C to +120°C (probe tip); –40°C to +85°C (connector)
• Environmental Rating: IP67 (when mated with compatible connector)
• Construction: Austenitic stainless steel housing; PTFE-insulated coaxial cable; gold-plated MIL-C-5015 connector
• Cable Length: 5.0 meters (standard, integral)
• Calibration: Factory-calibrated per API 670 (4th Edition) and ISO 10816 standards

Operational Capabilities

The 330101-12-30-10-02-05 excels in real-time, non-intrusive monitoring of shaft dynamics—including radial vibration, axial position, differential expansion, and keyphasor timing. Its high signal-to-noise ratio and low phase shift enable precise phase analysis for balancing and fault diagnostics. When integrated into a full 3300 XL monitoring system, it supports advanced alarm logic, event trending, and seamless data export to DCS, PLC, or asset management platforms via Modbus or Ethernet/IP.

This probe is especially suited for high-speed turbomachinery—including steam turbines, gas compressors, centrifugal pumps, and large motors—where sub-micron resolution and long-term repeatability are non-negotiable. Its optimized frequency response (DC to 10 kHz) captures both slow drifts and high-frequency bearing faults, empowering reliability engineers to detect incipient failures before forced outages occur.

Technical FAQ

Q: Is the 330101-12-30-10-02-05 compatible with legacy 3300 series monitors?

A: Yes—it is fully backward-compatible with all 3300 series proximitor transducers and monitoring systems, including 3300 NSV, 3300 XL, and 3500 platforms, provided firmware and configuration align with API 670 requirements.

Q: Can this probe be used in hazardous areas?

A: The probe itself is not intrinsically safe, but when installed with an approved IS barrier and certified 3300 XL IS-capable proximitor (e.g., 3300 XL 8 mm IS Transducer), it meets Class I, Div 1, Groups A–D and ATEX/IECEx Zone 1 requirements.

Q: What is the recommended recalibration interval?

A: Bently Nevada recommends recalibration every 24 months under normal operating conditions—or after any mechanical impact, extreme thermal cycling, or performance deviation exceeding ±3% of full-scale output.
