Product Description

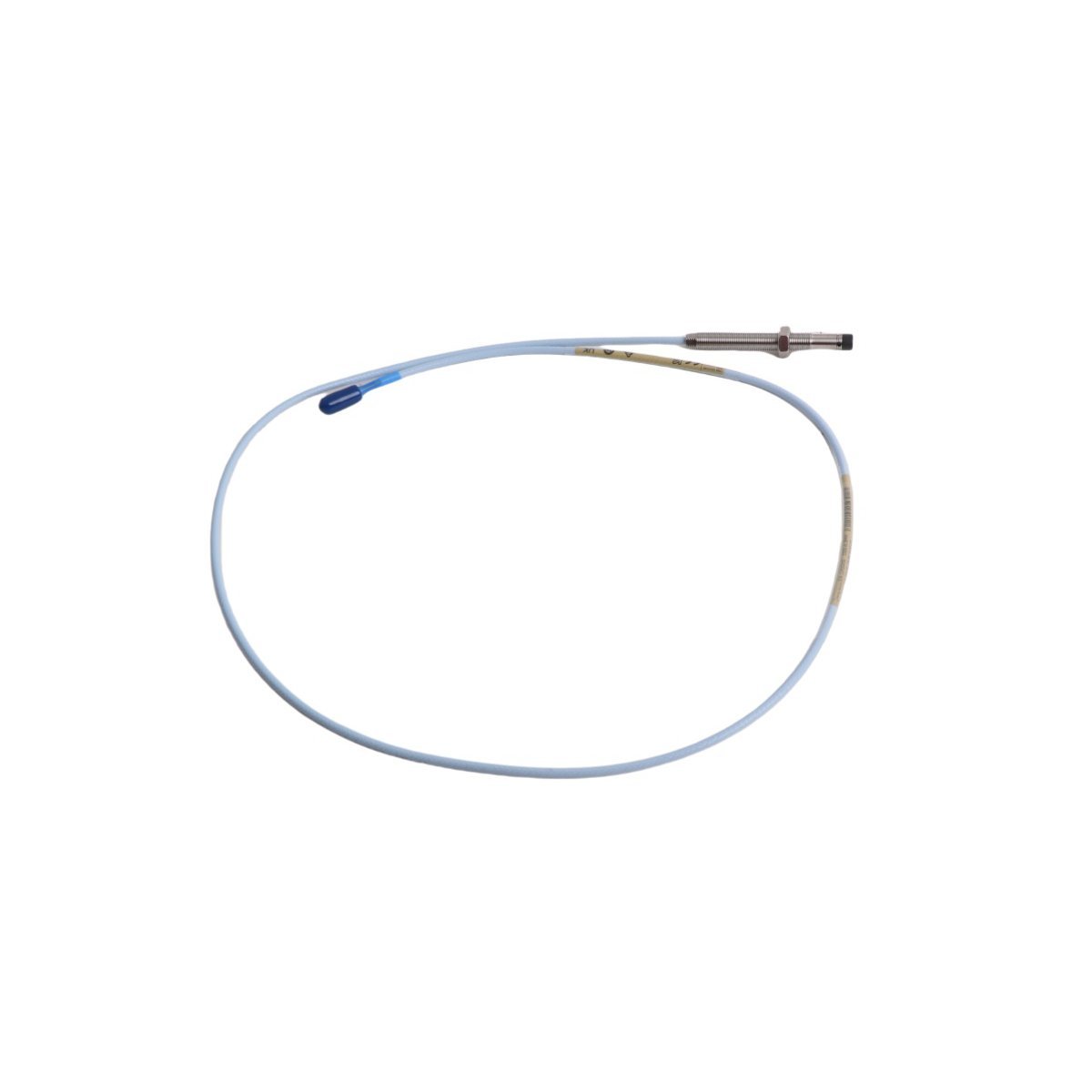

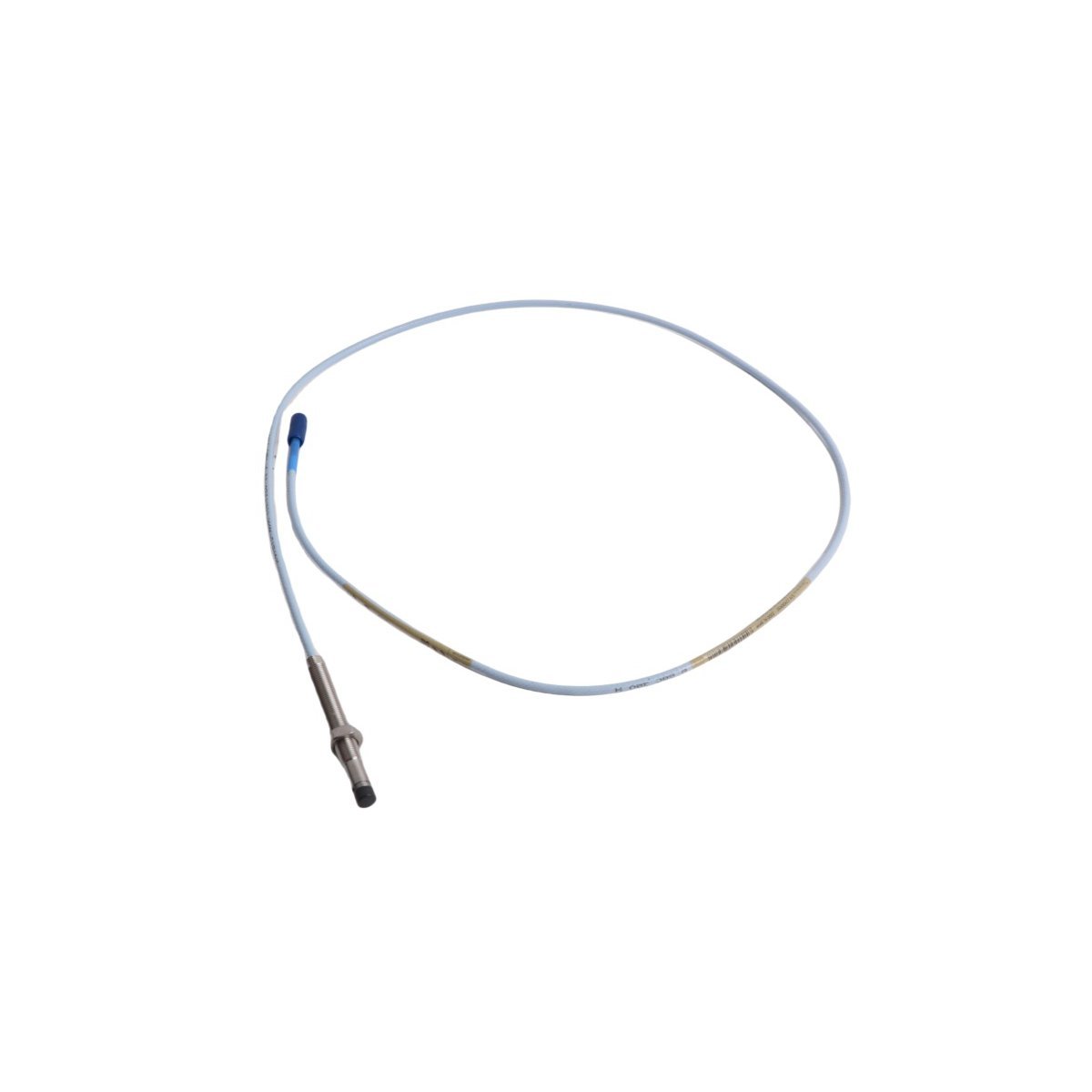

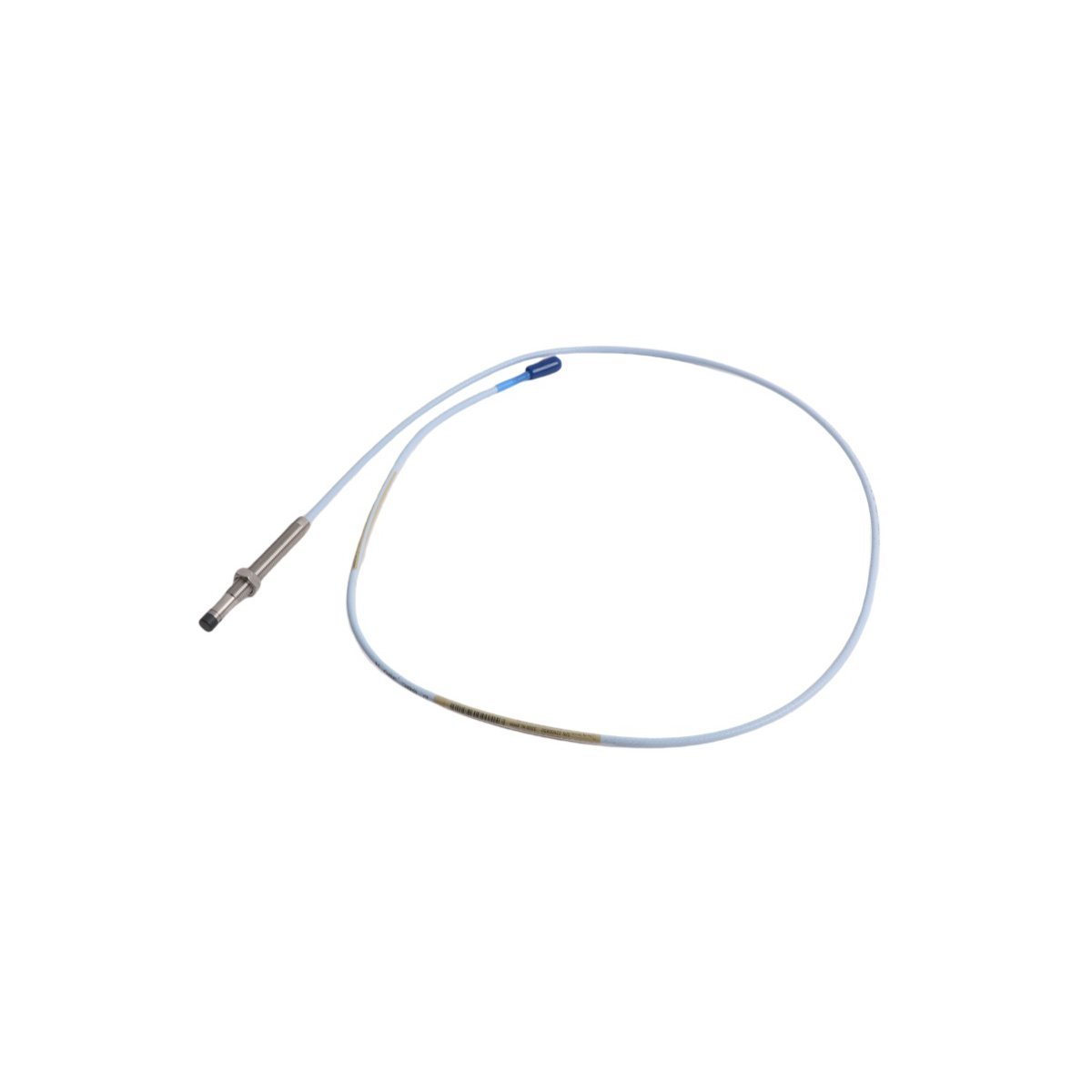

The Bently Nevada 330101-04-16-10-02-05 is a high-precision, 8 mm diameter proximity probe from the industry-leading 3300 XL Proximity Transducer System. Engineered for continuous, non-contact vibration and position monitoring in demanding rotating machinery environments, this probe delivers exceptional linearity, temperature stability, and electromagnetic interference (EMI) immunity. Designed for seamless integration with 3300 XL series monitors and system interfaces, it supports critical asset health monitoring across power generation, oil & gas, petrochemical, and heavy industrial applications.

Key Benefits

• Enhanced Reliability: Stainless steel construction and hermetically sealed design ensure long-term operation in harsh environments—including high humidity, oil mist, and extreme temperatures (–30 °C to +120 °C).
• Optimized Performance: Features improved sensitivity and reduced thermal drift versus legacy 3300 probes—enabling tighter control margins and earlier fault detection.
• Plug-and-Play Compatibility: Fully interchangeable with existing 3300 XL systems; no recalibration or system reconfiguration required when replacing or upgrading.

Typical Applications

This probe is routinely deployed for shaft displacement monitoring (axial position, radial vibration), thrust bearing wear detection, and differential expansion measurement on steam turbines, gas turbines, centrifugal compressors, large motors, and gearboxes. It meets API 670 (4th Edition) requirements for machinery protection systems and is widely specified in OEM turbine packages.

Detailed Specifications

Operational Capabilities

High-Fidelity Signal Integrity

Utilizing advanced eddy-current technology and precision-machined stainless steel housings, the 330101-04-16-10-02-05 maintains ±0.5% linearity across its full range and exhibits less than 0.05% thermal drift per °C—ensuring consistent accuracy during transient thermal events.

Robust Environmental Resilience

Rated IP68 for immersion resistance and qualified to MIL-STD-810G for shock/vibration, this probe withstands mechanical stress, chemical exposure (including hydrocarbon-based lubricants), and EMI up to 30 V/m—critical for installations near VFDs, switchgear, and high-power motors.

System-Level Integration Readiness

Pre-calibrated and supplied with NIST-traceable calibration certificate, the probe supports immediate commissioning into 3300 XL 25 mm, 50 mm, or 90 mm monitor racks. Supports dual-channel configurations for redundancy and differential measurements without additional signal conditioning.

Technical FAQ

Is this probe compatible with legacy 3300 series monitors?

Yes—the 330101-04-16-10-02-05 is fully backward-compatible with all 3300 series monitors (including 3300/16, 3300/20, and 3300/25), provided the system firmware is v4.0 or later. No hardware modifications are needed.

What is the recommended mounting torque for the probe body?

The standard 8 mm probe thread requires a mounting torque of 3.5–4.5 N·m (31–40 in-lb). Over-torquing may deform the sensing coil and compromise calibration accuracy.

Can this probe be used for gap voltage measurement in hydroelectric generator thrust bearings?

Absolutely. Its stable low-noise output, wide dynamic range, and immunity to oil film variability make it ideal for precise axial position monitoring in vertical-shaft hydro units—commonly referenced in IEEE 115 and IEC 60034-27-2 compliance testing.
