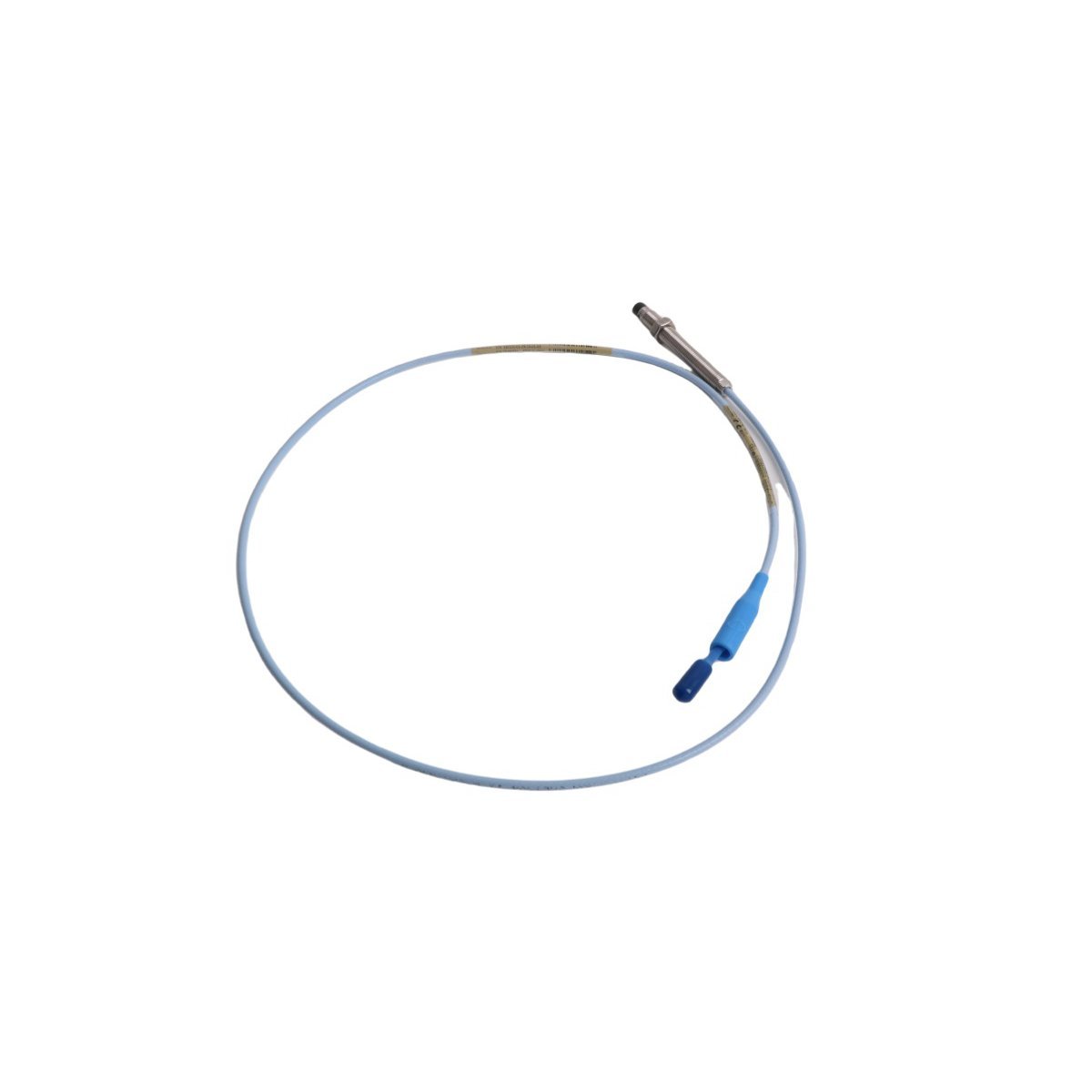

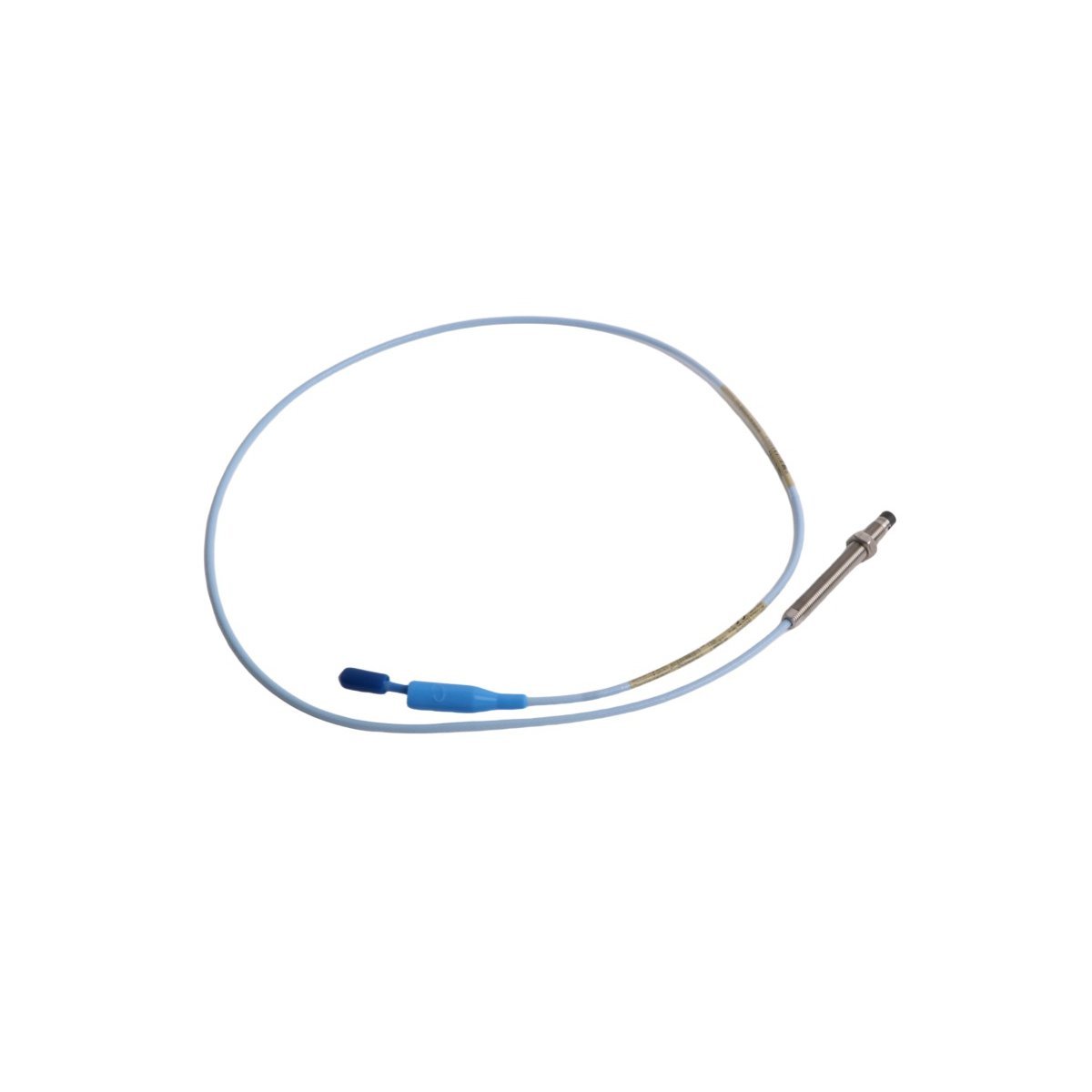

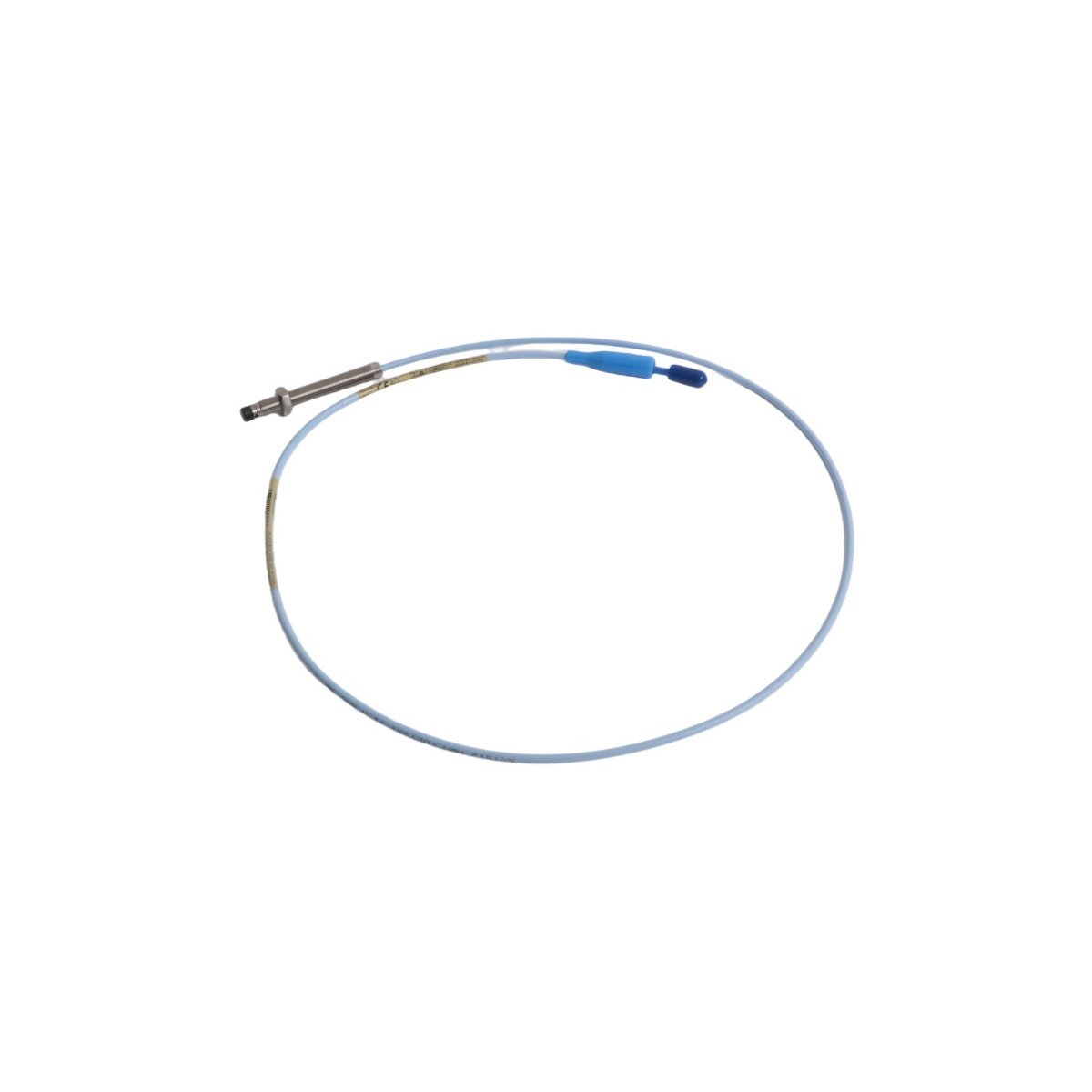

The Bently Nevada 330101-01-29-10-01-05 Proximity Probe is a high-precision, non-contact displacement sensor engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe forms the foundational sensing element of the industry-standard 3300 XL 25 mm proximity transducer system. Designed to operate within the rigorous demands of critical infrastructure—including power generation turbines, centrifugal compressors, steam and gas turbines, and large electric motors—the 330101-01-29-10-01-05 delivers exceptional linearity, thermal stability, and long-term repeatability across extreme industrial environments. Its robust stainless steel construction ensures resistance to corrosion, mechanical wear, and electromagnetic interference (EMI), while its optimized coil geometry enables superior signal-to-noise ratio and minimal phase shift—critical for accurate orbit analysis and machine protection logic. This probe is supplied in new, factory-fresh condition, fully calibrated per API 670 (4th Edition) and ISO 10816 standards, and backed by a comprehensive 24-month limited warranty covering material defects and workmanship. Originating from the United States, each unit undergoes stringent quality control at Baker Hughes’ ISO 9001:2015–certified manufacturing facility in Minden, Nevada, ensuring full traceability and compliance with RoHS and REACH directives.

Detailed Specifications

Key Features

• Precision Eddy Current Technology: Utilizes advanced coil design and proprietary ferrite core materials to deliver sub-micron resolution and ultra-low hysteresis for deterministic shaft dynamics measurement.
• Extended Thermal Stability: Engineered with matched thermal expansion coefficients between coil, housing, and cable to minimize zero-shift and sensitivity drift over wide ambient temperature fluctuations.
• EMI/RFI Immunity: Integrated double-shielded coaxial cable and grounded stainless steel housing provide >100 dB common-mode rejection—ideal for installations near VFDs, switchgear, and high-current bus ducts.
• Plug-and-Play Integration: Fully compatible with Bently Nevada 3300 XL, 3500, and System 1 platforms; supports seamless hot-swap replacement without recalibration when used with matching 330180-series extension cables.
• Corrosion-Resistant Construction: 316 stainless steel housing and hermetically sealed coil assembly ensure reliable operation in humid, saline, or chemically aggressive environments—including offshore platforms and pulp & paper mills.
• Traceable Calibration Certificate: Each probe ships with NIST-traceable calibration data including individual linearity curves, frequency response plots, and thermal drift coefficients—essential for ISO 17025-compliant asset integrity programs.
• Optimized Mechanical Interface: Precision-ground 1.0-12 UNF thread with torque-controlled installation specification (25–30 N·m) ensures consistent gap setting and eliminates thread galling during repeated maintenance cycles.

Applications

• Steam and Gas Turbines: Monitoring radial vibration (bearing journals), thrust collar position, and differential expansion between casing and rotor in combined-cycle and peaking plants.
• Centrifugal Compressors & Pumps: Critical shaft displacement tracking in petrochemical refineries, LNG facilities, and pipeline transmission stations to prevent catastrophic mechanical contact.
• Large Electric Motors & Generators: Detection of bearing wear, misalignment, and electromagnetic eccentricity in high-inertia drive systems exceeding 5 MW capacity.
• Aerospace Ground Test Stands: High-fidelity transient analysis of turbine engine components under simulated operational loads and thermal soak conditions.
• Hydropower Units: Axial and radial position monitoring of Francis and Kaplan turbine runners exposed to abrasive silt-laden water flow.
• Nuclear Power Plant Auxiliary Systems: Safety-grade monitoring of main coolant pump shafts and feedwater pump rotors meeting ASME OM Code and IEEE 383 requirements.
• Condition-Based Maintenance Programs: Enabling automated fault detection, severity trending, and remaining useful life (RUL) estimation via integration with cloud-based analytics platforms such as Baker Hughes Asset Performance Management (APM) software.
