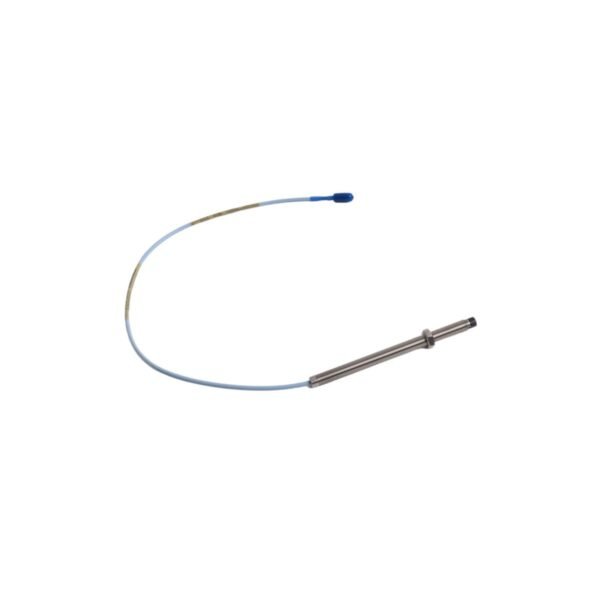

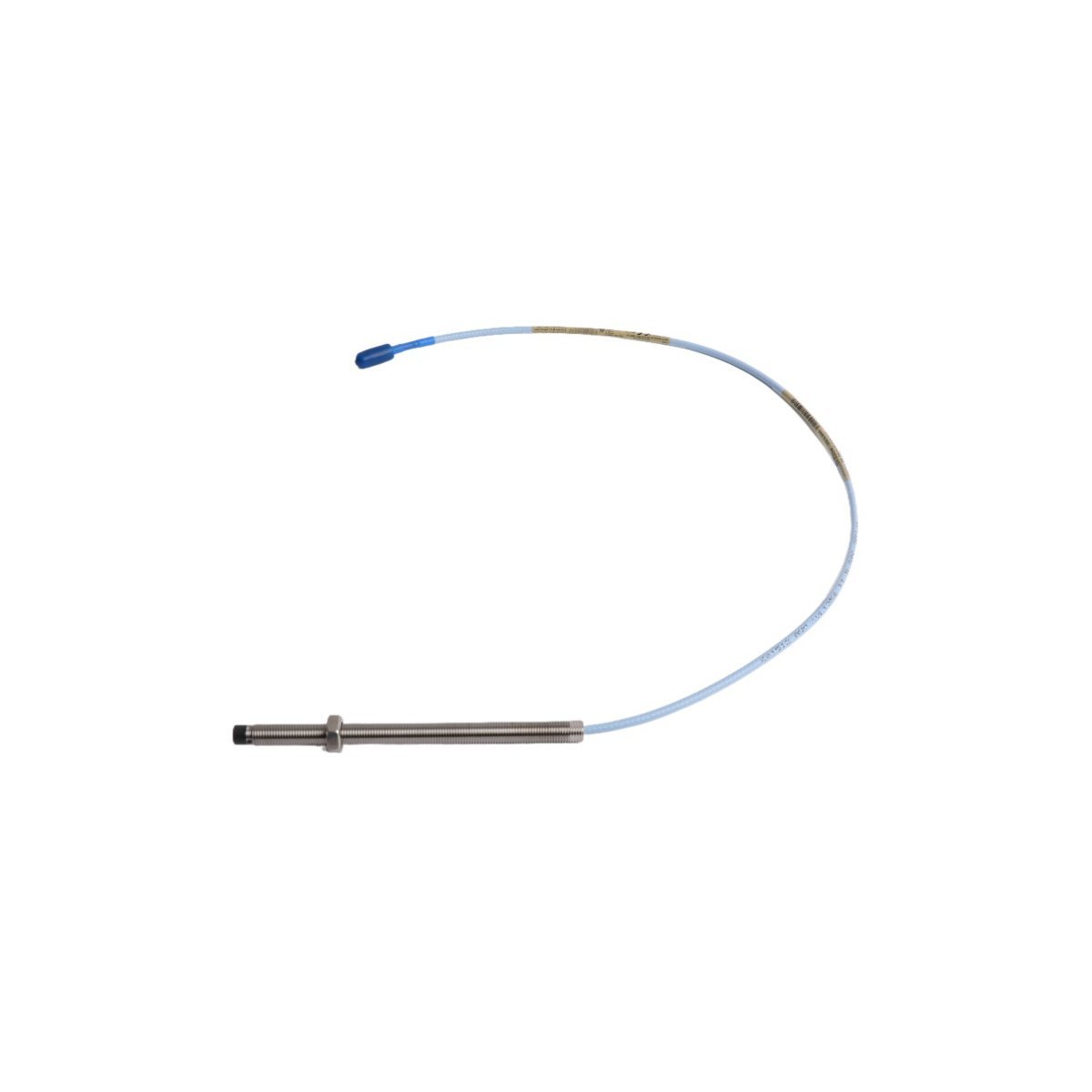

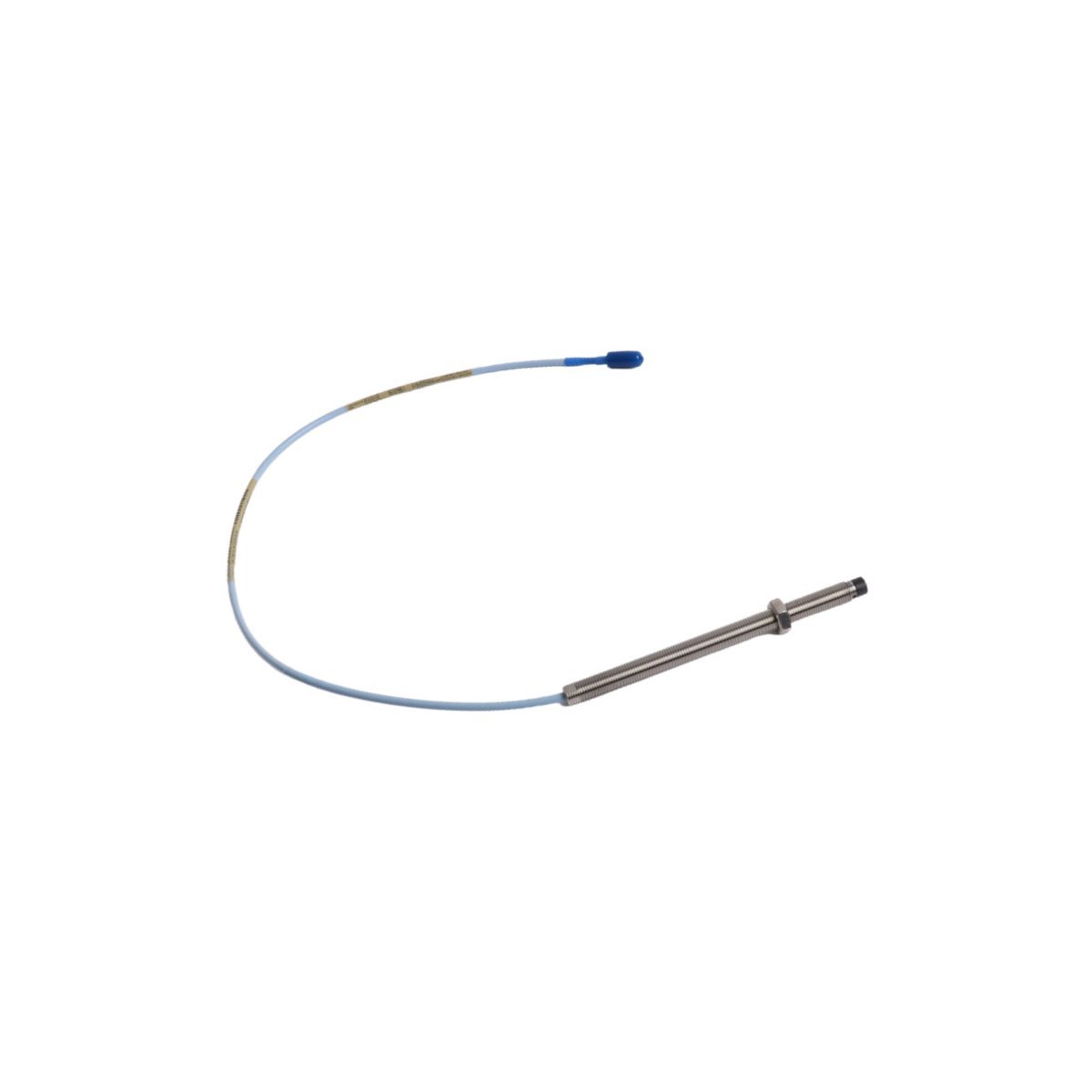

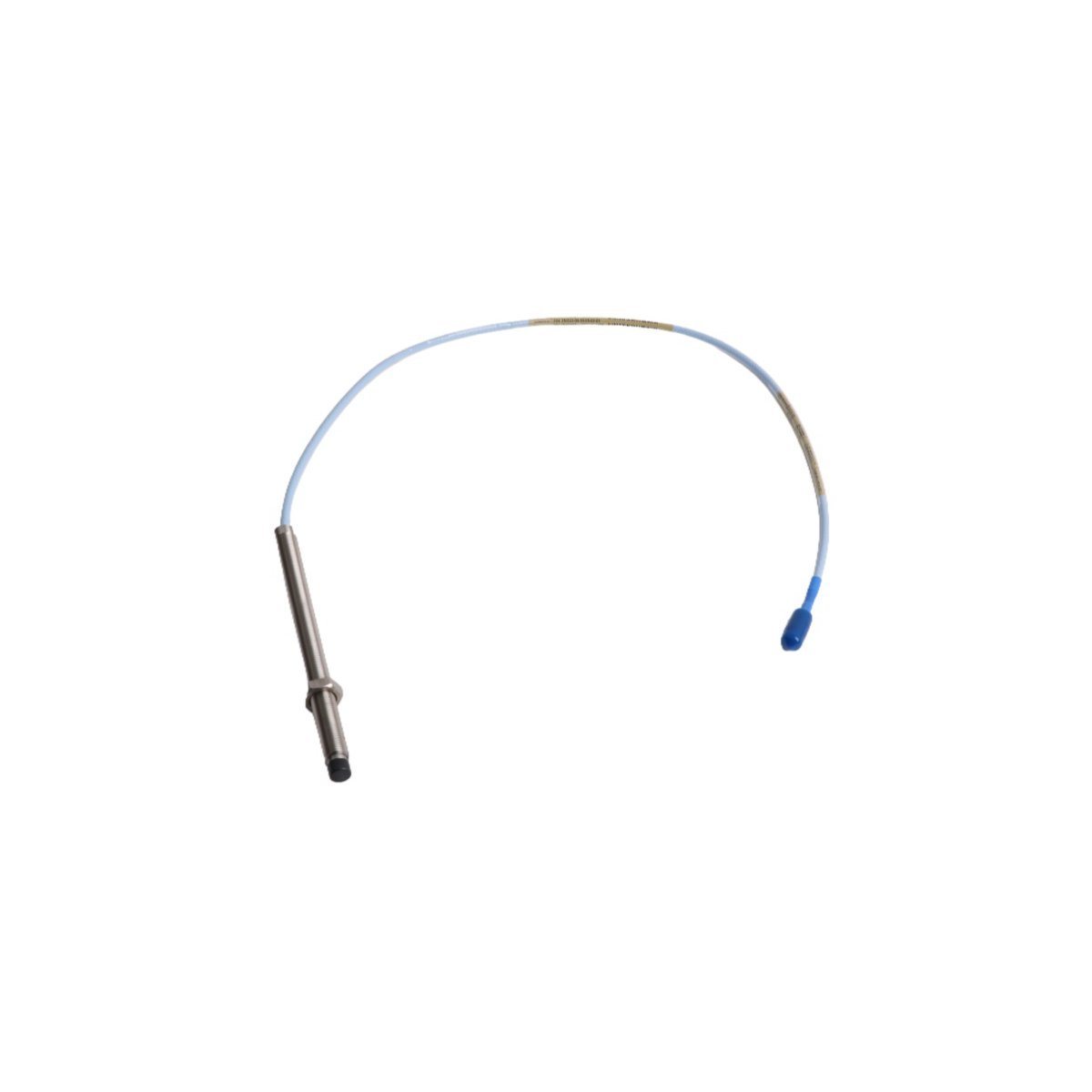

The Bently Nevada 330101-00-59-10-01-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and position monitoring of rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in condition monitoring and predictive maintenance solutions, this probe is part of the trusted 3300 XL 8 mm sensor family—designed to deliver exceptional stability, repeatability, and electromagnetic interference (EMI) immunity in demanding plant environments. The probe operates on the eddy-current principle, generating a high-frequency electromagnetic field that interacts with conductive target surfaces (typically ferromagnetic shafts or disks) to produce a linear, analog output proportional to the gap distance. Its robust construction, optimized coil geometry, and precision-machined stainless steel housing ensure long-term calibration integrity—even under extreme thermal cycling, mechanical shock, and corrosive atmospheres. This particular unit is supplied in New Surplus Condition, meaning it is unused, factory-fresh, and sourced directly from authorized Baker Hughes distribution channels or certified OEM inventory pools. Each probe undergoes rigorous pre-shipment verification—including zero-gap calibration, frequency response validation, and insulation resistance testing—to guarantee full compliance with API 670 (4th Edition) and ISO 10816 standards. Backed by a comprehensive 24-month limited warranty, the 330101-00-59-10-01-05 provides operational confidence for mission-critical applications across oil & gas, power generation, petrochemical, and heavy industrial sectors. Measuring 102.0 mm in overall length with a nominal diameter of 8.0 mm, the probe weighs only 85 grams and is manufactured in the United States—ensuring adherence to stringent ASME, RoHS, and REACH regulatory frameworks. Its compact form factor facilitates installation in space-constrained bearing housings while maintaining optimal signal-to-noise ratio and minimal phase shift across its specified frequency bandwidth (0–10 kHz).

Detailed Specifications

Key Features

• Precision 8 mm Sensing Tip: Optimized coil design delivers superior linearity (<±0.5% FS), minimal hysteresis (<0.1% FS), and exceptional thermal drift compensation (<0.01% FS/°C) over the full operating range.
• 3300 XL System Compatibility: Fully interoperable with Bently Nevada 3300/3500/3600 monitoring systems, including 3300 XL 8 mm extension cables (e.g., 330130-00-00-10-02-05) and proximitor modules (330780-50-00-00).
• Hermetically Sealed Construction: Laser-welded 316 stainless steel housing with ceramic insulator ensures IP68-rated ingress protection against moisture, oil mist, and particulate contamination.
• EMI/RFI Immunity: Integrated multi-layer shielding and common-mode rejection circuitry suppress noise from VFDs, SCR drives, and radio-frequency sources—validated per IEC 61000-4-3 (Level 3, 10 V/m).
• Traceable Calibration: Supplied with NIST-traceable calibration certificate (as-built data sheet), documenting actual sensitivity, linearity error, and thermal coefficients measured at three temperature points.
• Long-Term Stability: Zero-shift performance maintained at <±0.25 µm/year under continuous operation—enabling extended recalibration intervals and reduced lifecycle cost of ownership.
• Easy Integration & Commissioning: Standard M8 mounting thread, consistent null point alignment, and plug-and-play compatibility simplify retrofitting into legacy 3300 installations without system reconfiguration.

Applications

• Rotating Equipment Protection: Real-time shaft vibration monitoring for centrifugal compressors, steam/gas turbines, and large electric motors per API 670 requirements for trip-class instrumentation.
• Thrust Position Monitoring: Accurate axial displacement measurement of thrust collars in hydroelectric generators and process pumps to prevent catastrophic bearing failure.
• Orbit Analysis & Dynamic Balancing: Dual-probe configurations enable full orbit plotting, phase analysis, and modal identification for advanced diagnostics and balancing corrections.
• Startup/Shutdown Supervision: Critical speed detection, run-up/run-down analysis, and overspeed verification during commissioning and maintenance turnarounds.
• Condition-Based Maintenance (CBM): Integration with Bently Nevada System 1™ software for trend-based health assessment, fault pattern recognition (e.g., misalignment, imbalance, looseness), and remaining useful life estimation.
• Hazardous Area Installations: Approved for use in Class I, Division 1, Groups C & D environments when paired with intrinsically safe barriers (e.g., ISB-1000), supporting offshore platforms and refinery units.
• Renewable Energy Systems: Wind turbine gearbox and main bearing monitoring, where reliability, low maintenance, and immunity to electromagnetic noise are essential.
