Description

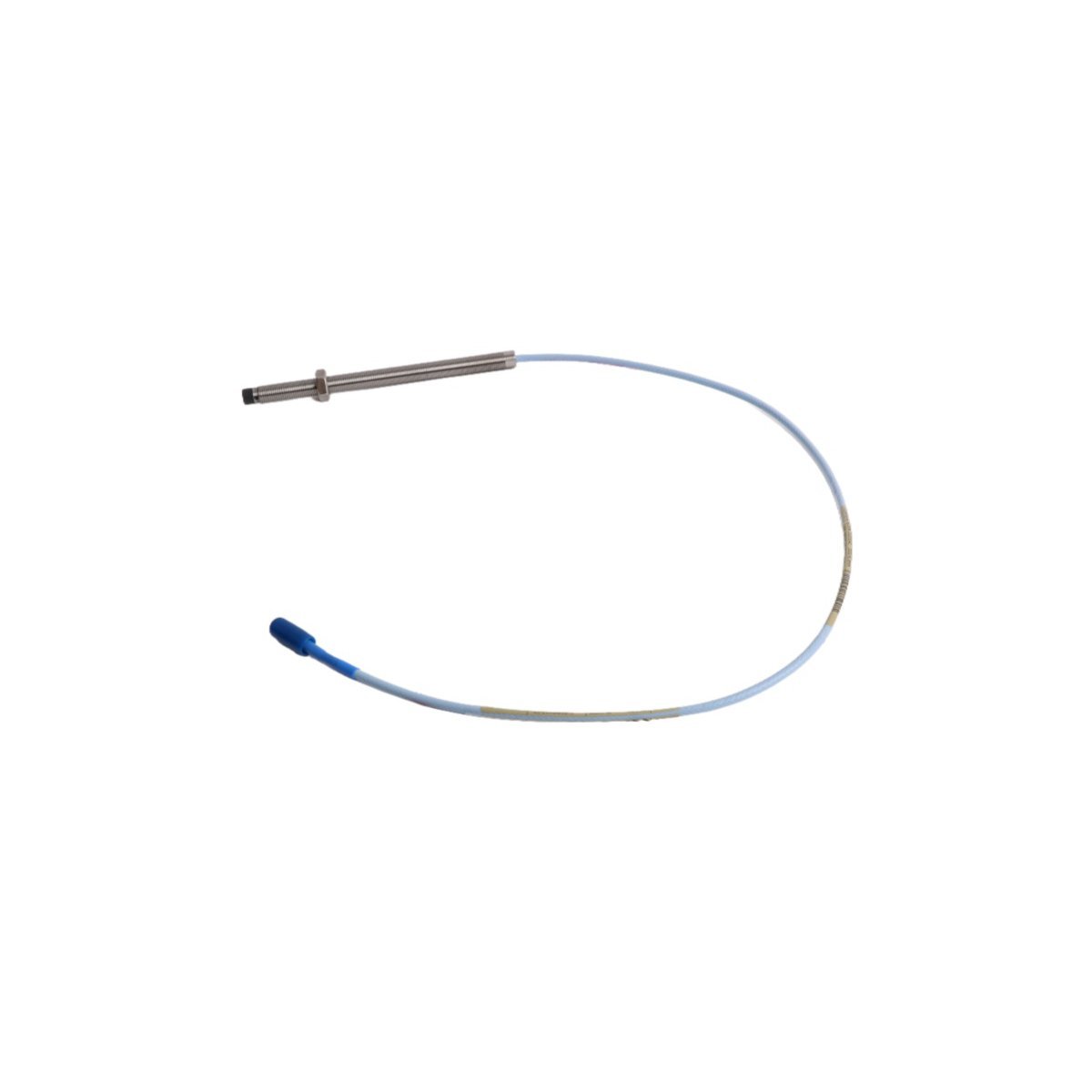

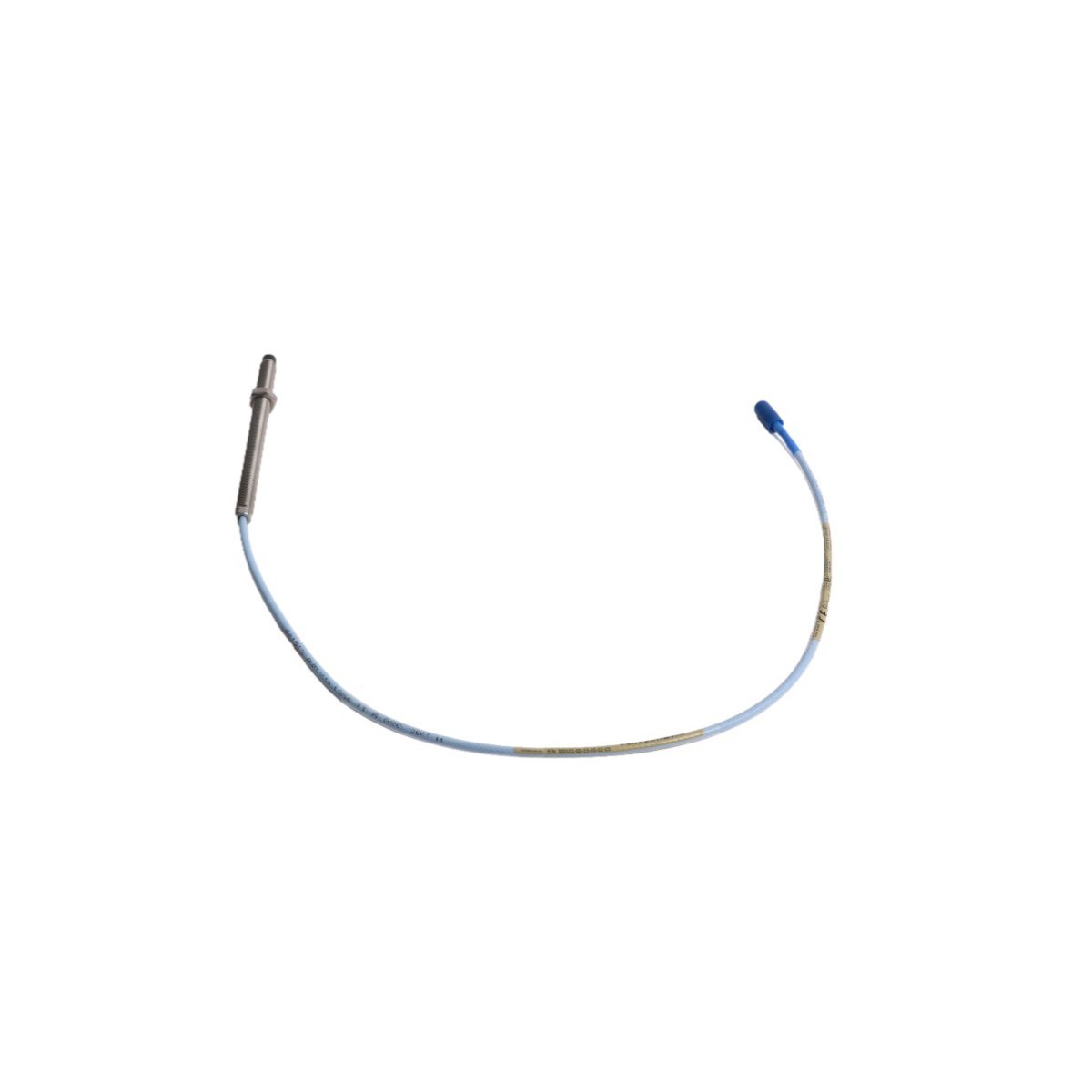

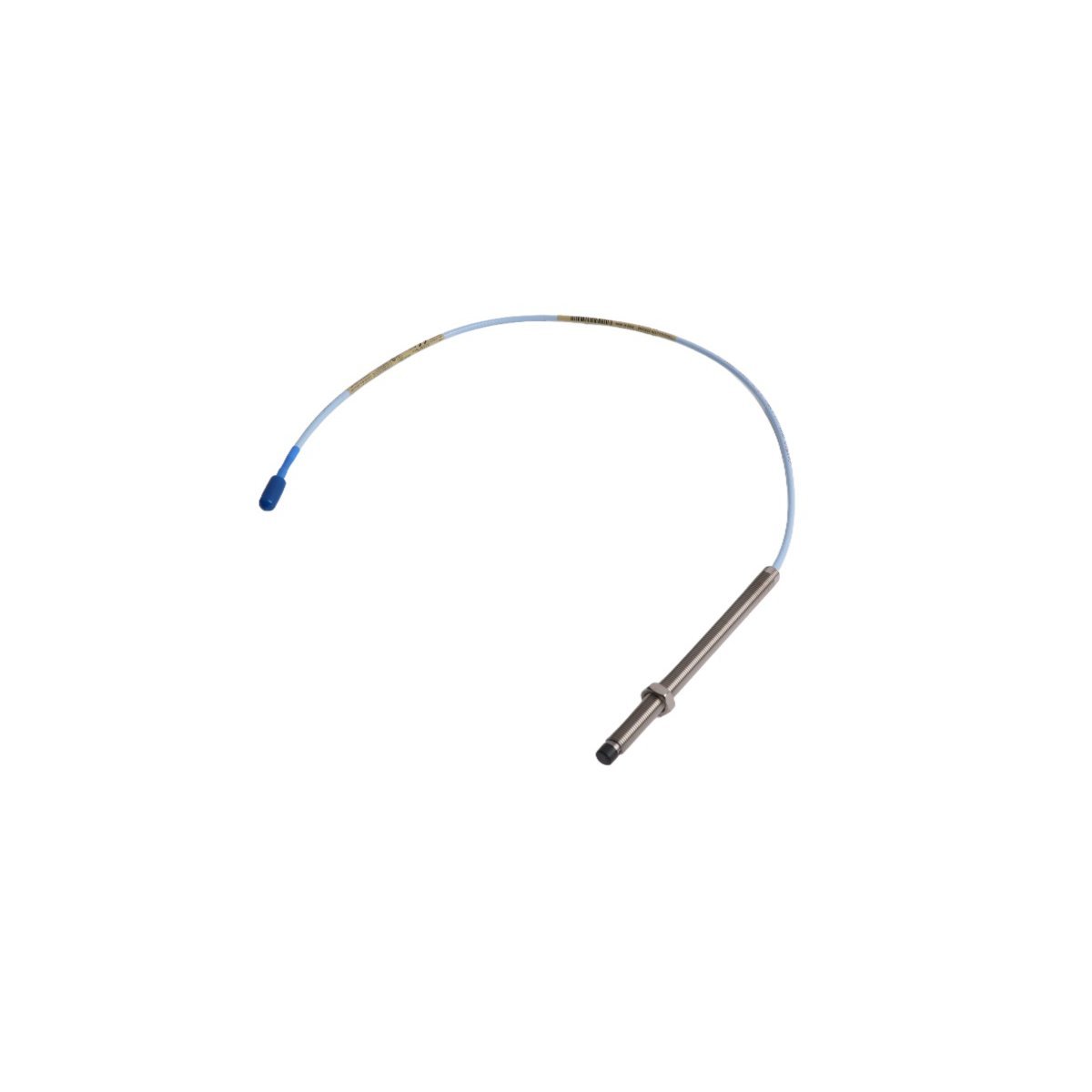

330101-00-53-10-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
This is a high-precision eddy-current proximity probe designed for non-contact displacement and vibration measurement.
Moreover, it delivers stable, linear output for monitoring shaft position, vibration, and axial thrust in rotating machinery.
Therefore, it is routinely integrated into turbine, compressor, and motor protection systems within continuous process environments.

### Technical Specifications

### Typical Applications
– Steam and gas turbine shaft vibration and axial position monitoring
– Centrifugal compressor rotor dynamics and thrust bearing clearance verification
– Large electric motor shaft runout and gap measurement during startup and operation
– Critical pump train displacement sensing in oil, gas, and power generation facilities

### FAQ
What is the standard operating temperature range?
–40 °C to +125 °C ambient, with probe tip rated to +200 °C for short-term exposure.

Is this probe compatible with all 3300 XL monitor modules?
Yes, it is fully compatible with 3300 XL 16-channel and 3300 XL 2-channel monitors.

Does the probe require a specific extension cable?
Yes, it must be used with Bently Nevada 3300 XL series coaxial extension cables (e.g., 330130-040-00-00).

What is the nominal sensitivity?
8.0 V/mm at 10 kHz, calibrated per API 670 requirements.

Can it be used in hazardous areas?
No—this probe is not intrinsically safe or explosion-proof; use only in general-purpose locations unless paired with appropriate certified barriers.
