330101-00-53-05-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

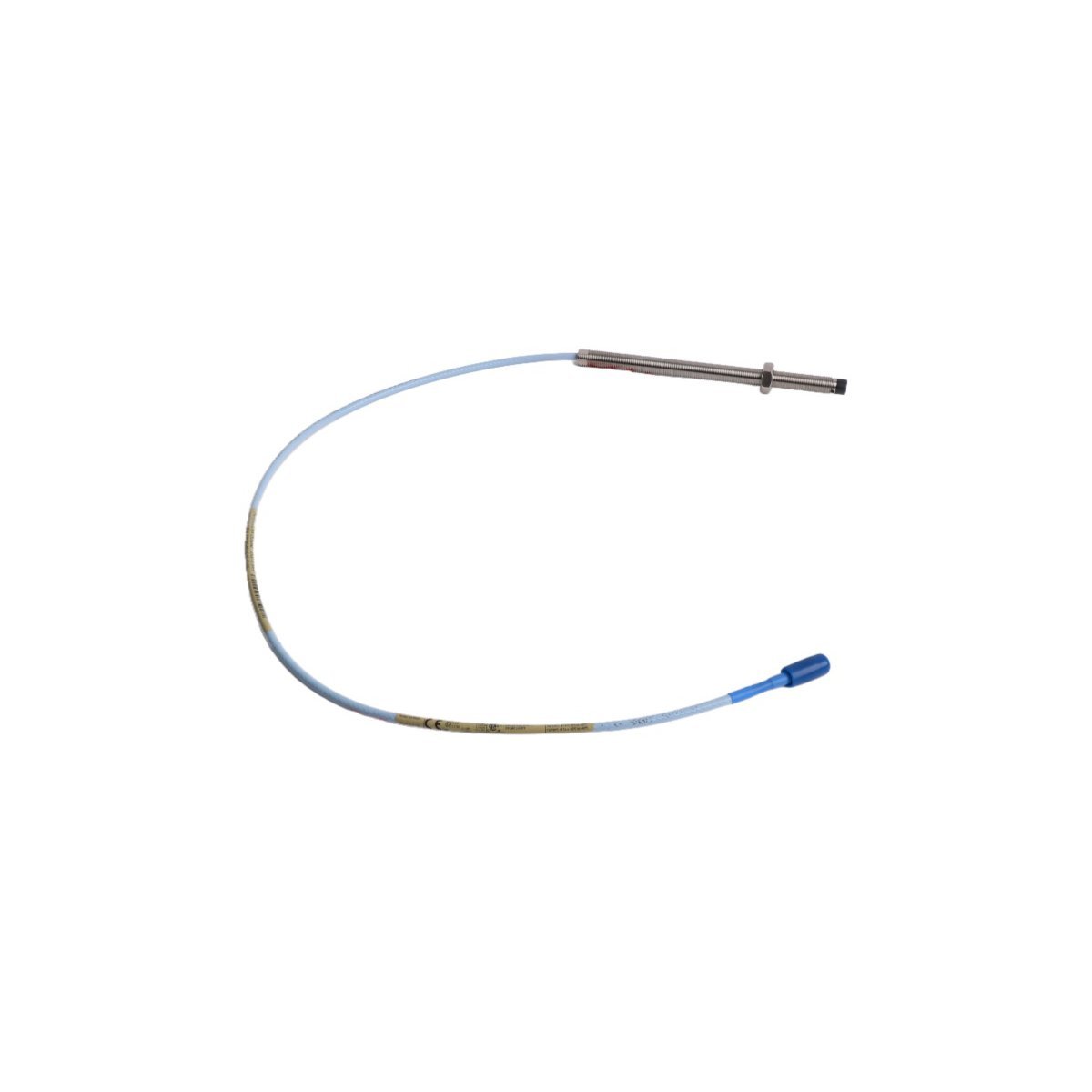

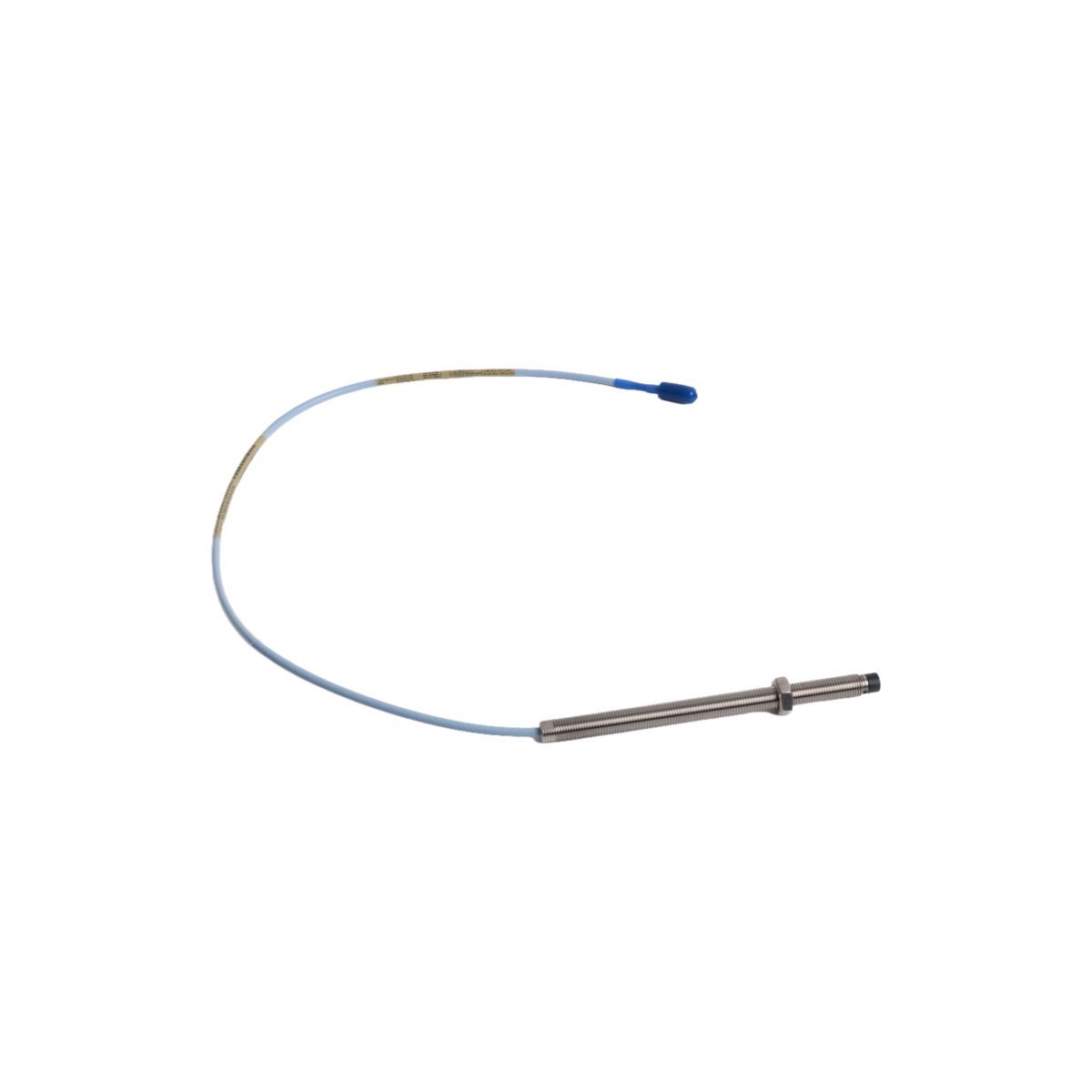

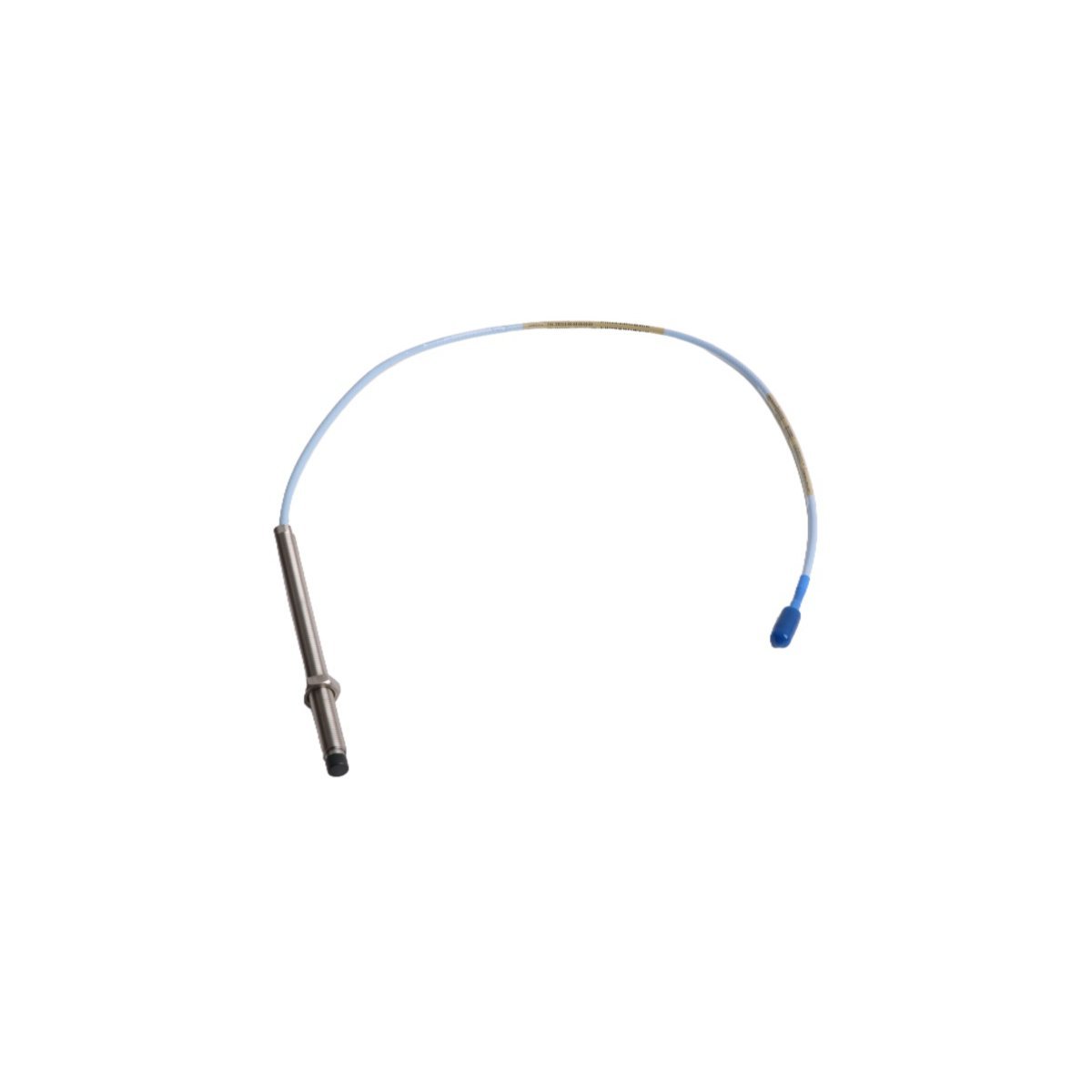

This is a high-precision eddy-current proximity probe designed for non-contact displacement and vibration monitoring of rotating machinery.
Moreover, it delivers stable, linear output for shaft position, vibration, and gap measurements in harsh industrial environments.
Therefore, it is commonly integrated into condition monitoring systems for turbines, compressors, and motors to support predictive maintenance strategies.

### Technical Specifications

### Typical Applications
– Steam and gas turbine shaft vibration and axial position monitoring
– Centrifugal compressor radial and thrust bearing clearance measurement
– Motor and generator rotor eccentricity and runout verification
– Gearbox shaft displacement analysis during startup and steady-state operation

### FAQ
What is the standard operating temperature range?
–40 °C to +125 °C ambient, with derating above 85 °C for extended life.

Is this probe compatible with all 3300 XL series monitors?
Yes, it is fully compatible with 3300 XL 2-channel and 4-channel monitor modules.

Does the probe require calibration before installation?
No—factory-calibrated for use with Bently Nevada 3300 XL extension cables and monitors; no field calibration needed.

What is the nominal sensing range?
2.0 mm (0.08 in) full-scale linear range, optimized for 8 mm diameter targets.

Can it be used with non-ferrous target materials?
It is calibrated for 4140 steel; accuracy degrades with non-ferrous or low-permeability materials without recalibration.
