Description

Technical Overview

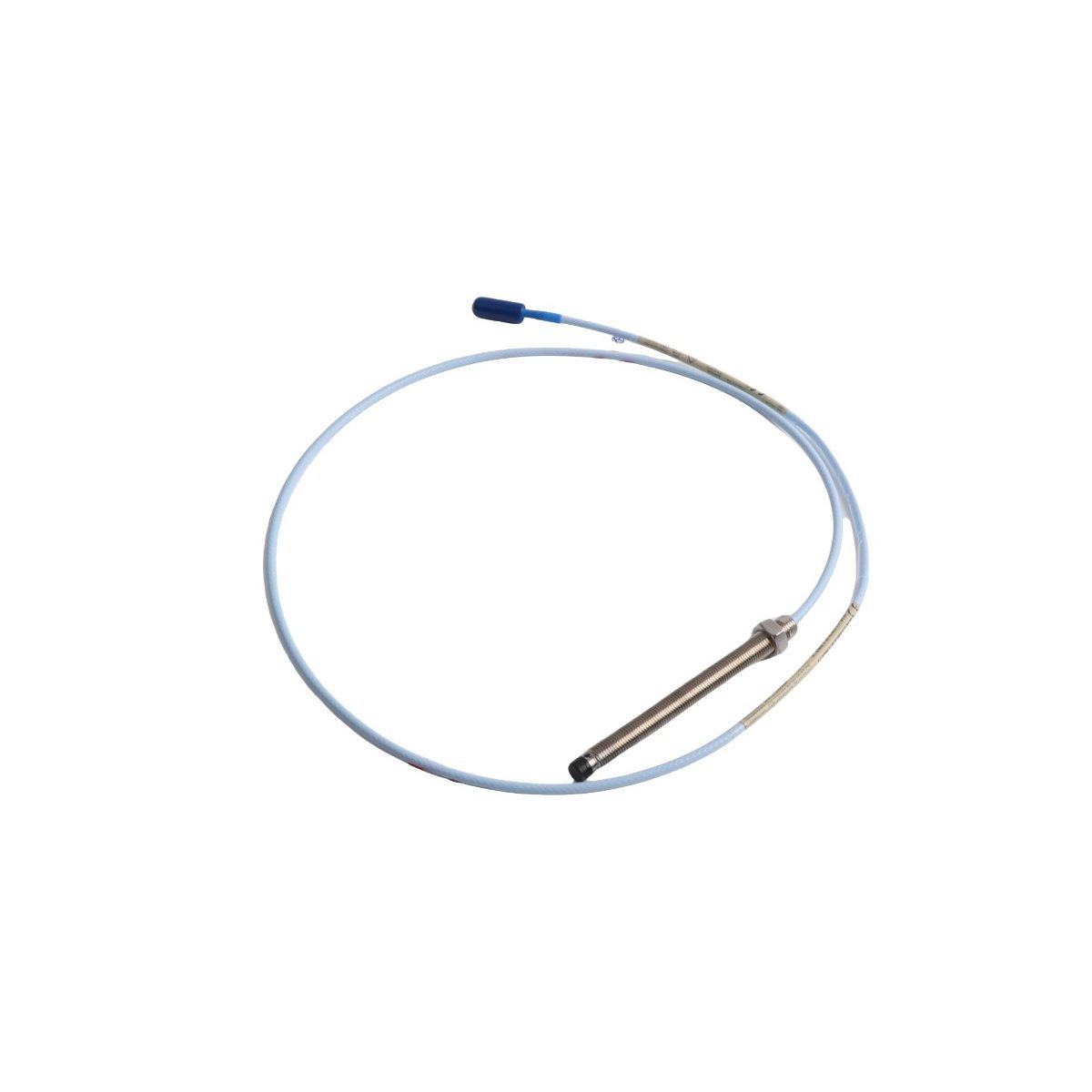

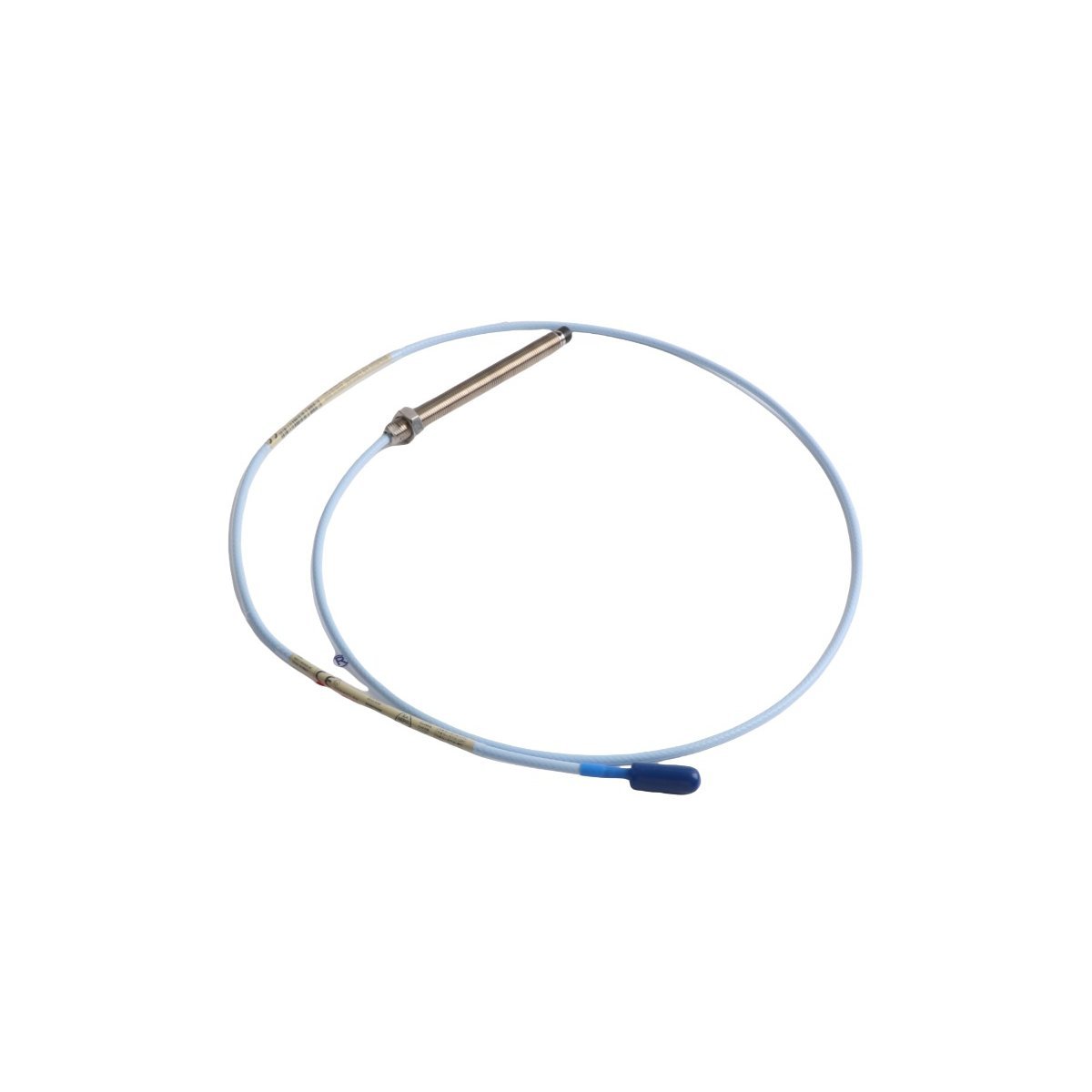

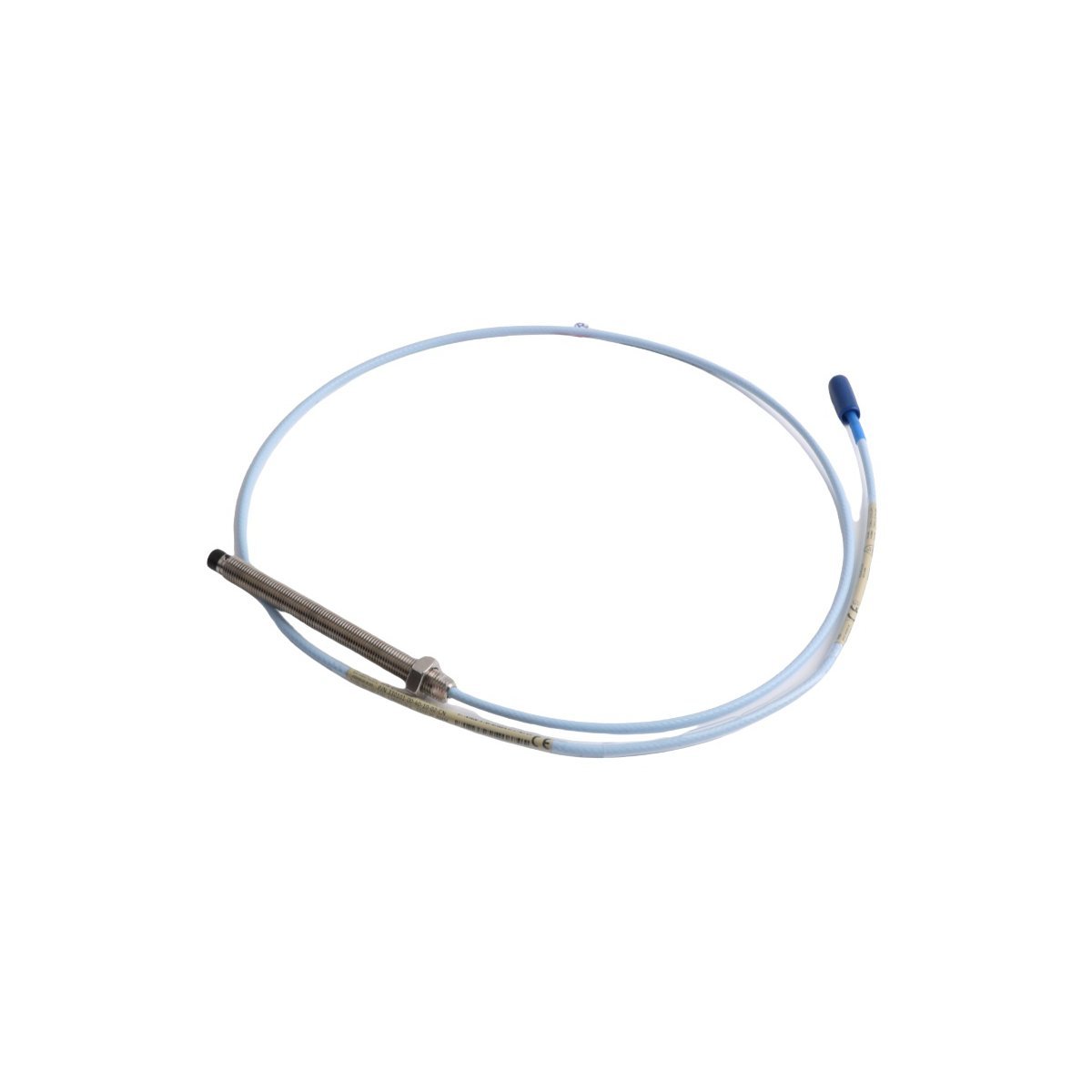

The Bently Nevada 330101-00-48-20-12-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact displacement and vibration monitoring of rotating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset protection and condition monitoring solutions—this probe belongs to the trusted 3300 XL 8 mm sensor family. Designed for integration with the 3300 XL 8 mm eddy-current monitoring system, it delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity across demanding operational environments. The probe operates on the principle of eddy-current technology, generating a high-frequency electromagnetic field that interacts with conductive target surfaces (typically ferromagnetic shafts), enabling accurate measurement of dynamic shaft motion—including radial vibration, axial position, differential expansion, and thrust bearing wear. Its robust stainless steel housing, optimized coil geometry, and precision-machined tip ensure long-term repeatability and minimal drift over time—even under extreme temperature fluctuations, high humidity, and mechanical shock conditions typical in power generation, oil & gas, petrochemical, and heavy industrial facilities. This unit is supplied in new, factory-fresh condition, rigorously tested per API 670 (4th Edition) and IEEE 1128 standards, and backed by a comprehensive 24-month limited warranty. As a Made-in-USA product, it complies with stringent U.S. manufacturing quality controls and export compliance regulations (EAR99). With compact dimensions of 12.7 mm (0.5 in) diameter × 101.6 mm (4.0 in) overall length and a lightweight construction of just 142 g (5.0 oz), the 330101-00-48-20-12-05 enables flexible mounting in space-constrained locations without compromising signal integrity or mechanical reliability.

Detailed Specifications

Key Features

• High-Fidelity Signal Integrity: Precision-wound sensing coil and low-noise coaxial cable minimize signal attenuation and external noise coupling—critical for detecting sub-micron shaft motions in turbomachinery.
• Thermal Stability Engineering: Advanced coil compensation and hermetically sealed ceramic insulator prevent thermal drift, ensuring consistent calibration across wide ambient temperature swings.
• Ruggedized Industrial Construction: 316 stainless steel probe body with IP68-rated environmental sealing resists corrosion, steam, hydrocarbon exposure, and mechanical abrasion in harsh process environments.
• Plug-and-Play System Integration: Fully compatible with Bently Nevada 3300 XL 8 mm monitors (e.g., 3300/16, 3300/20, 3300/25), requiring no field recalibration when paired with matching extension cables and preamplifiers.
• Optimized Mechanical Design: M10 × 1.0 thread ensures secure mounting in confined spaces; chamfered tip geometry improves alignment tolerance and reduces edge-effect errors during installation.
• Traceable Calibration & Documentation: Each unit ships with NIST-traceable calibration certificate, serial-number-matched test data, and full compliance documentation for ISO 9001 and API Q1 audits.
• Long-Term Reliability: Rated for >100,000 hours MTBF under continuous operation—validated through accelerated life testing per MIL-STD-810H.

Applications

• Gas & Steam Turbine Monitoring: Real-time radial vibration and axial position measurement for critical turbine shafts in combined-cycle and cogeneration power plants.
• Centrifugal Compressors: Detection of surge onset, bearing degradation, and rotor instability in refinery and pipeline compression stations.
• Petrochemical Pump Trains: Monitoring differential expansion between casing and rotor in high-pressure, high-temperature API 610 pumps.
• Large Electric Motors & Generators: Evaluation of air gap variation, eccentricity, and frame vibration in synchronous machines exceeding 5 MW capacity.
• Hydroelectric Units: Axial thrust monitoring and guide bearing wear assessment in vertical Francis and Kaplan turbines.
• Marine Propulsion Systems: Shaft orbit analysis and misalignment detection in naval and commercial vessel main engines and reduction gears.
• Condition-Based Maintenance Programs: Enabling predictive analytics, digital twin synchronization, and automated alarm logic within Bently Nevada System 1® and Enterprise Asset Management (EAM) platforms.
