Technical Overview

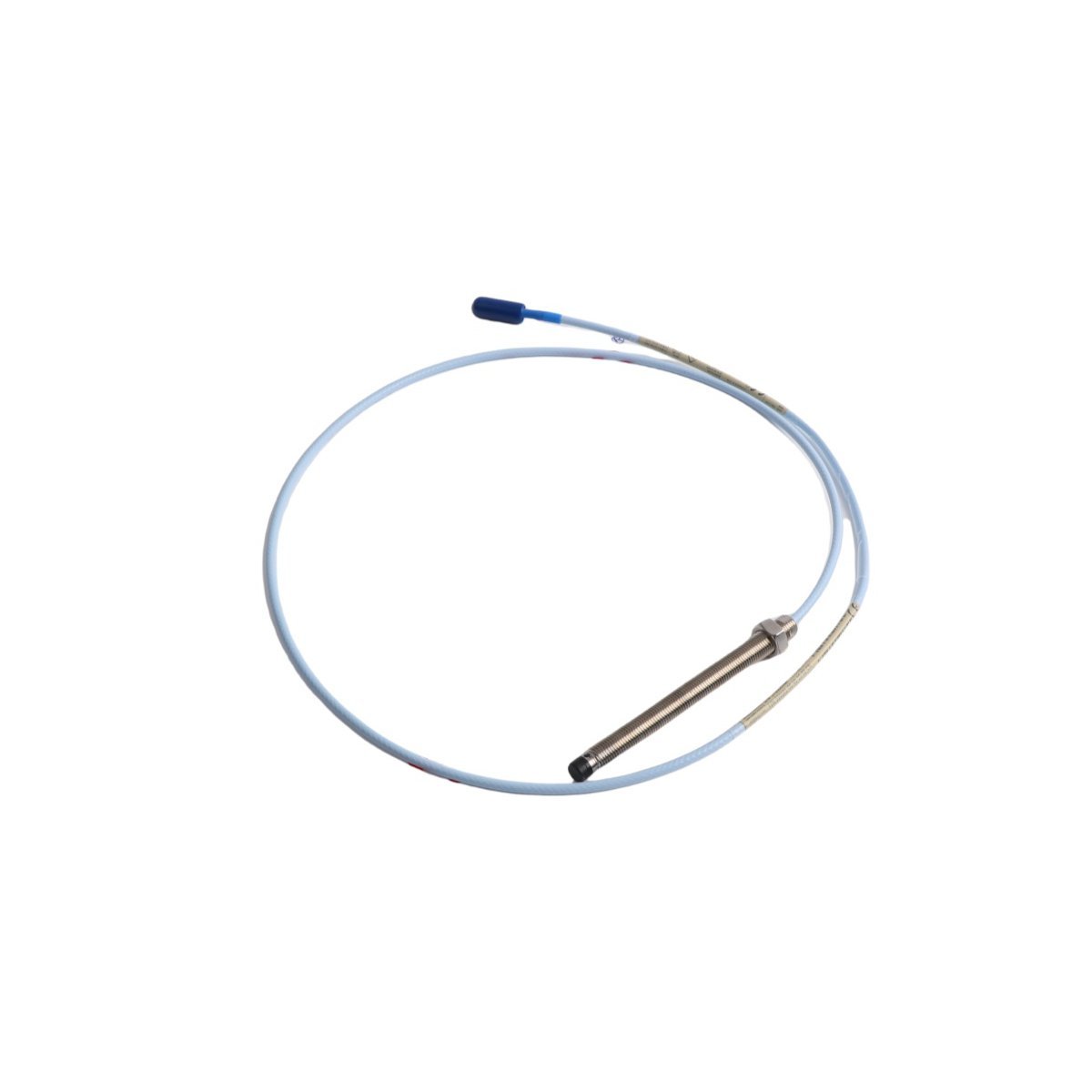

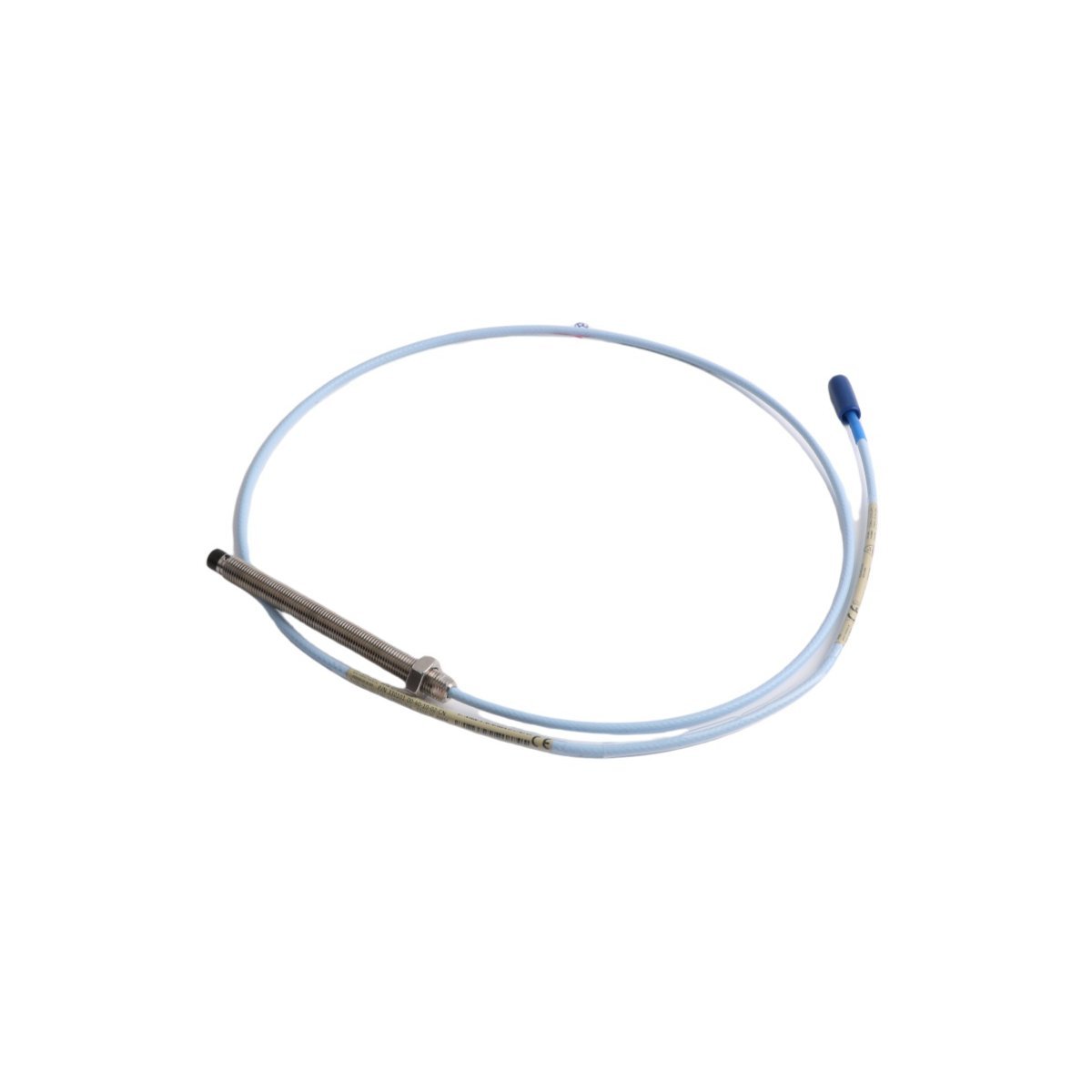

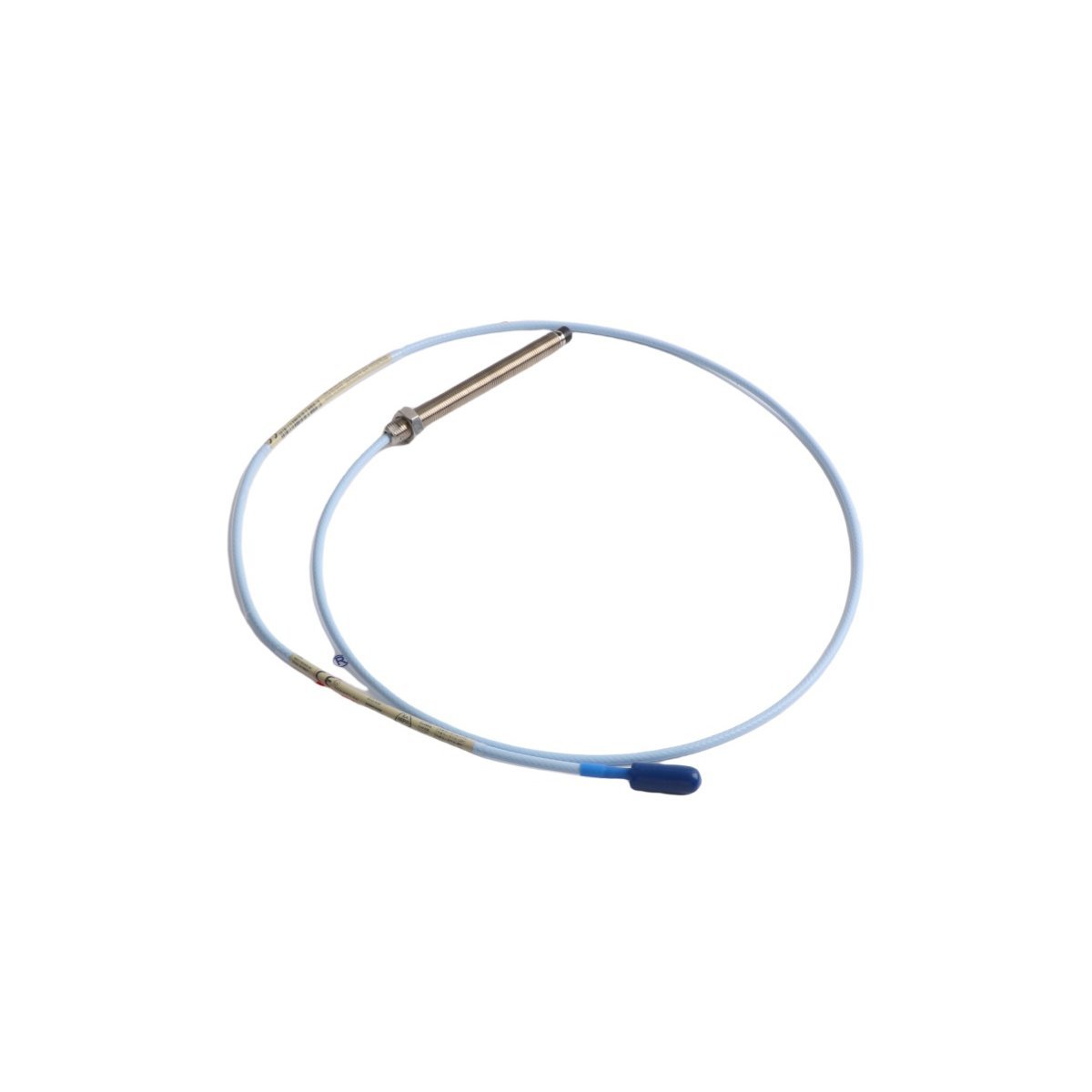

The Bently Nevada 330101-00-48-10-02-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in mission-critical rotating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring since 1961—this probe is part of the trusted 3300XL family, specifically designed to deliver superior signal integrity, thermal stability, and long-term reliability in harsh industrial environments. The probe features an 8 mm diameter sensing tip optimized for standard shaft diameters (≥76 mm), enabling accurate measurement of radial vibration, axial position, differential expansion, and thrust bearing wear. Its robust construction integrates a hermetically sealed, corrosion-resistant stainless steel housing (316 SS) with a PTFE-insulated coaxial cable rated for continuous operation from –55 °C to +125 °C ambient temperatures. The probe operates exclusively with compatible 3300XL extension cables and前置器 (proximity transducers), ensuring full compliance with API 670 (4th Edition) and ISO 10816 standards for machinery protection systems. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is shipped with a certified calibration report documenting sensitivity (7.87 V/mm or 200 mV/mil), linearity error (<±0.5% FS), and frequency response (0–10 kHz). As a new, factory-fresh component, the 330101-00-48-10-02-05 carries a comprehensive 24-month limited warranty covering material defects and workmanship, reinforcing its status as a premium OEM-specified solution for predictive maintenance programs across oil & gas, power generation, petrochemical, and marine propulsion sectors.

Detailed Specifications

Key Features

• OEM-Validated Precision: Factory-calibrated to Bently Nevada’s stringent specifications with ≤±0.5% linearity error—ensuring repeatable, API-compliant measurements critical for machinery protection system (MPS) integrity.
• Enhanced Thermal Stability: Proprietary coil winding and ceramic substrate design minimize thermal drift (<0.05%/°C), maintaining accuracy across wide ambient temperature swings typical in turbine enclosures and compressor skids.
• Ruggedized Industrial Construction: 316 stainless steel housing with laser-welded sealing resists steam, hydrocarbons, caustic washdowns, and salt-laden atmospheres—certified IP68 rated when properly installed with mating cable gland.
• Optimized 8 mm Sensing Geometry: Engineered for optimal signal-to-noise ratio on medium-to-large shafts (76–250 mm); delivers superior resolution at low amplitudes (<0.25 µm RMS) without saturation during high-g events.
• Plug-and-Play Integration: Fully interoperable with all 3300XL series前置器 (e.g., 3300 XL 25 mm, 3300 XL 50 mm) and extension cables—eliminates field recalibration and reduces commissioning time by up to 40%.
• Extended Service Life: Gold-plated TNC connector and PTFE dielectric ensure >100,000 mating cycles and 20+ years of operational service life under continuous duty—reducing total cost of ownership (TCO) and unplanned downtime.
• Global Regulatory Compliance: Certified to meet electromagnetic compatibility (EMC), hazardous area (ATEX/IECEx optional variants available), and environmental directives—including RoHS 3, REACH, and WEEE.

Applications

• Steam & Gas Turbines: Real-time monitoring of radial vibration (bearing housings), axial position (thrust collars), and differential expansion (casing-to-rotor) in GE, Siemens, and Mitsubishi units operating above 3000 RPM.
• Centrifugal Compressors: Critical detection of surge onset, imbalance, misalignment, and bearing degradation in pipeline, refinery, and LNG liquefaction trains per API 617 requirements.
• Large Electric Motors & Generators: Shaft orbit analysis and eccentricity tracking for IEEE 841- and NEMA MG-1-compliant machines exceeding 500 HP, especially in combined-cycle power plants.
• Petrochemical Pumps & Gearboxes: High-frequency fault detection (bearing cage defects, gear tooth wear) using broadband vibration spectra captured via integrated 3300XL monitoring systems.
• Marine Propulsion Systems: Vibration surveillance of main reduction gears and propeller shafts aboard naval vessels and commercial tankers—withstanding shock, vibration, and corrosive seawater exposure.
• Condition-Based Maintenance (CBM) Programs: Foundational sensor in IIoT-enabled platforms (e.g., Bently Nevada System 1, AMS Machinery Manager) for automated alerting, trend analytics, and remaining useful life (RUL) forecasting.
