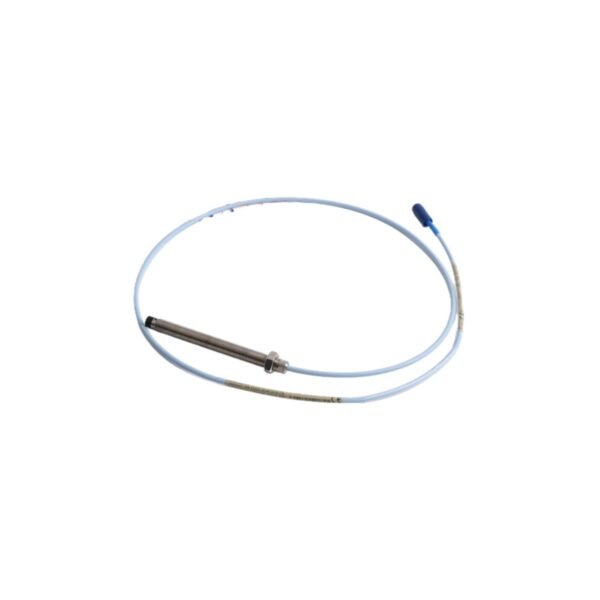

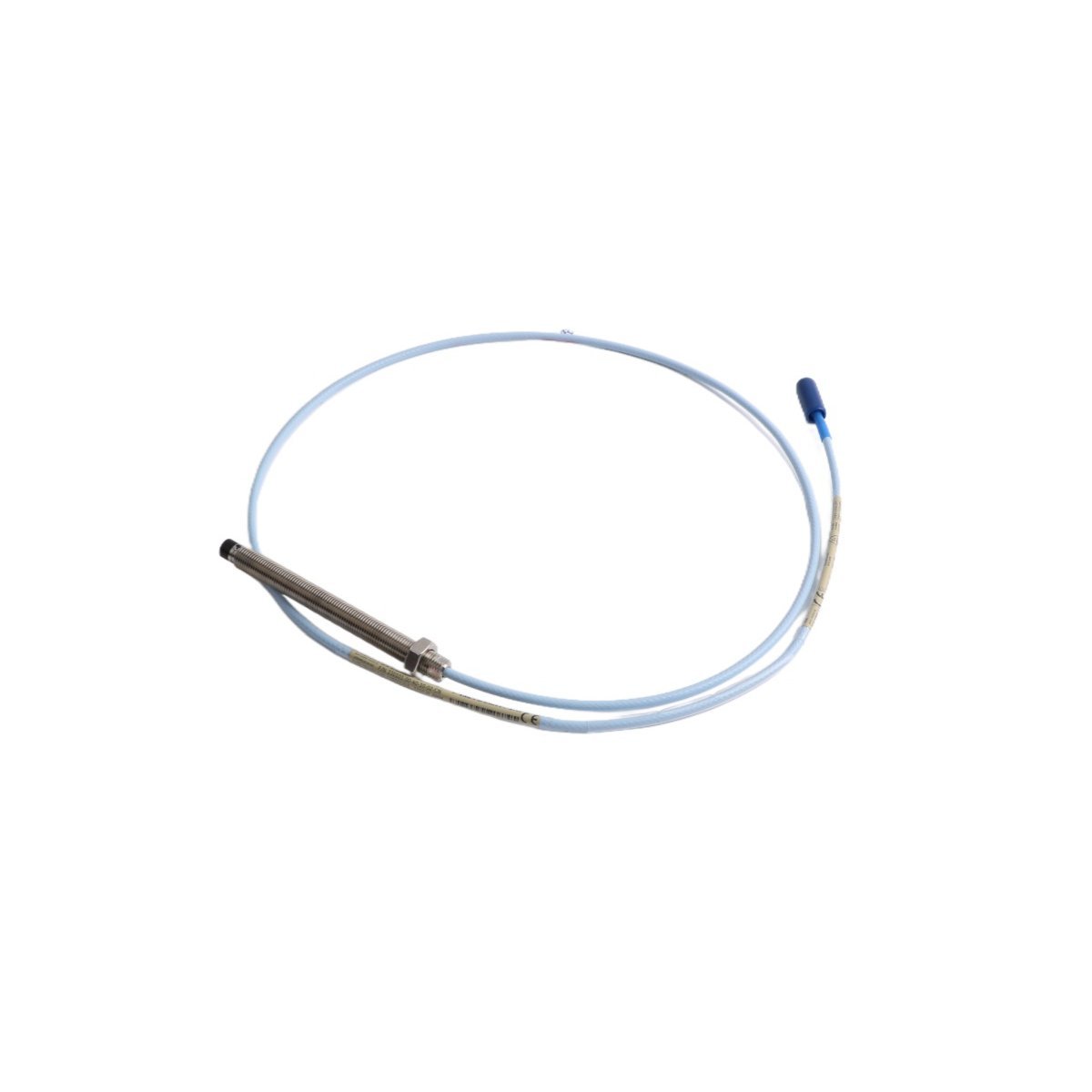

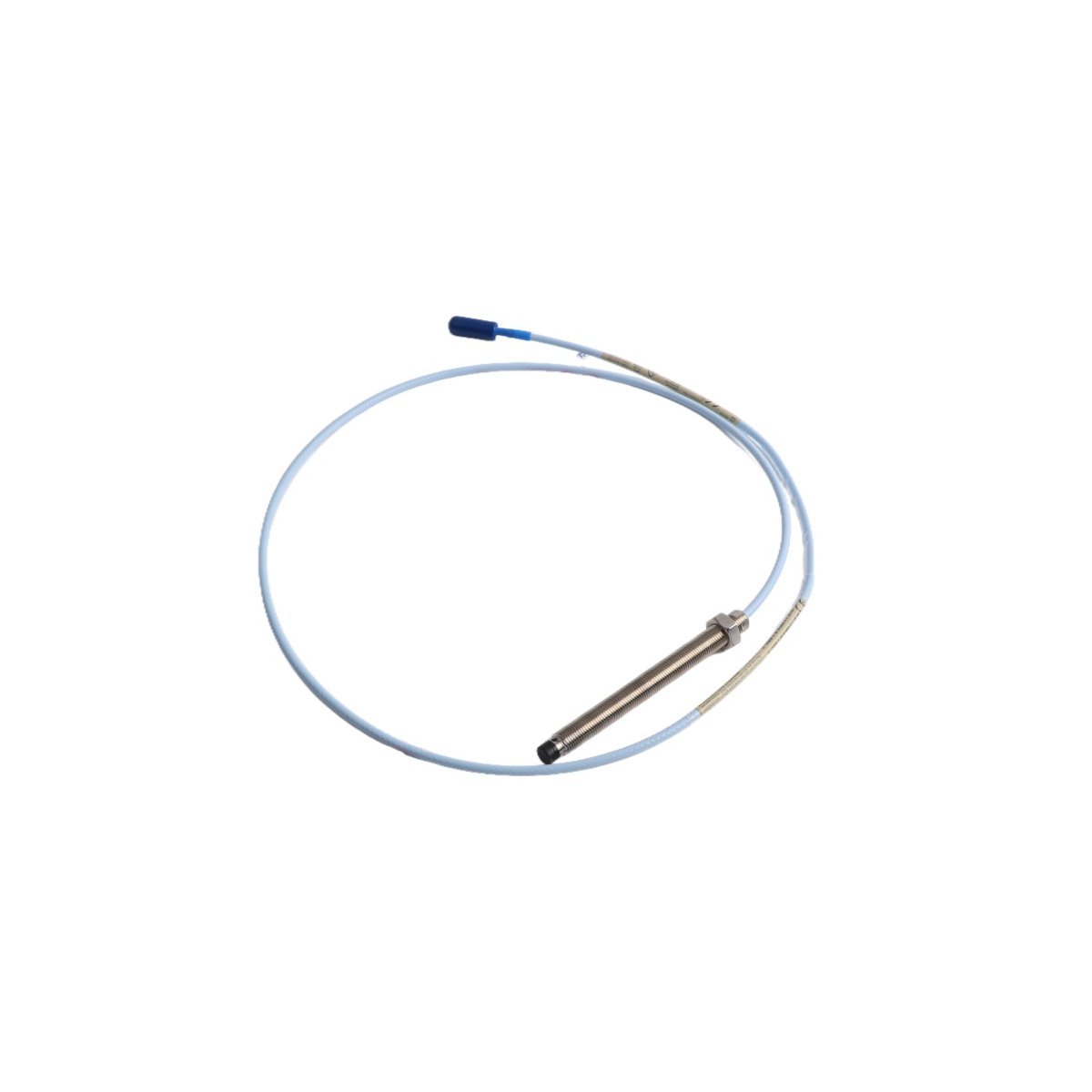

The Bently Nevada 330101-00-44-10-02-05 is a high-precision, industrial-grade proximity probe engineered as part of the renowned 3300 XL 8 mm sensor family. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in machinery protection and condition monitoring systems, this probe delivers exceptional reliability, repeatability, and long-term stability in demanding rotating equipment environments. Designed for integration with the 3300 XL 8 mm eddy-current transducer system, it operates on the principle of electromagnetic induction to non-invasively measure dynamic and static displacement of conductive target surfaces—primarily shafts, rotors, and thrust collars—with sub-micron resolution. Its robust construction features a stainless steel housing, PTFE-insulated coaxial cable, and hermetically sealed probe tip, ensuring consistent performance across extreme temperatures (−40 °C to +121 °C), high-vibration zones, and corrosive or oil-saturated atmospheres common in power generation, oil & gas, petrochemical, and marine propulsion applications. The probe is supplied new, factory-calibrated, and traceable to NIST standards, guaranteeing compliance with API 670 (4th Edition) and ISO 10816 vibration monitoring requirements. As a critical component within comprehensive asset health management strategies, the 330101-00-44-10-02-05 enables predictive maintenance, real-time shaft orbit analysis, and early fault detection—including imbalance, misalignment, bearing wear, and rub events—thereby minimizing unplanned downtime and extending equipment service life.

Detailed Specifications

Key Features

• High-Fidelity Signal Integrity: Utilizes precision-wound coil geometry and proprietary core materials to deliver ultra-low noise (< 50 µV RMS), minimal phase shift, and exceptional signal-to-noise ratio—critical for accurate orbit plot generation and cascade spectrum analysis.
• Extended Environmental Resilience: IP68-rated probe tip with ceramic insulator and vacuum-deposited gold coating resists oxidation, oil immersion, steam cleaning, and thermal cycling without drift or hysteresis.
• Plug-and-Play System Integration: Fully compatible with 3300 XL 8 mm extension cables, 3300 XL 8 mm proximitor modules (e.g., 3300 XL 8 mm Proximitor 14–16 VDC), and Bently Nevada System 1™ software suite for seamless configuration, diagnostics, and trending.
• Factory-Calibrated Precision: Each unit undergoes individual dynamic calibration using laser interferometry and certified reference targets, with full documentation traceable to NIST and ISO/IEC 17025-accredited labs.
• Robust Mechanical Design: 304 stainless steel probe body with integrated strain relief and reinforced cable exit ensures mechanical durability under continuous vibration up to 100 g peak and shock loads exceeding 500 g.
• Compliance-Ready Performance: Meets or exceeds API RP 670 (Machinery Protection Systems), ISO 20816-1 (Vibration Assessment), and IEC 61000-6-2/6-4 (EMC immunity/emission) standards for mission-critical installations.
• Long-Term Stability: Drift specification of ≤0.5% full scale per year under continuous operation, validated through accelerated life testing per MIL-STD-810G.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, axial position, differential expansion, and casing growth in utility-scale and industrial turbines operating at speeds up to 36,000 RPM.
• Centrifugal Compressors & Pumps: Detecting bearing degradation, seal rubs, and rotor instability in upstream oil & gas, LNG liquefaction, and refinery service compressors.
• Electric Motors and Generators: Assessing air-gap variation, stator eccentricity, and shaft deflection in high-horsepower motors (>5 MW) and synchronous generators.
• Aero-Derivative Engines: Supporting health monitoring in marine propulsion and distributed power generation where compact footprint and high-frequency response are essential.
• Test Stands and R&D Facilities: Enabling high-fidelity modal analysis, balancing validation, and transient event capture during prototype development and certification testing.
• Renewable Energy Systems: Critical shaft monitoring in large wind turbine gearboxes and direct-drive generators exposed to variable loading and harsh environmental conditions.
