Description

Technical Overview

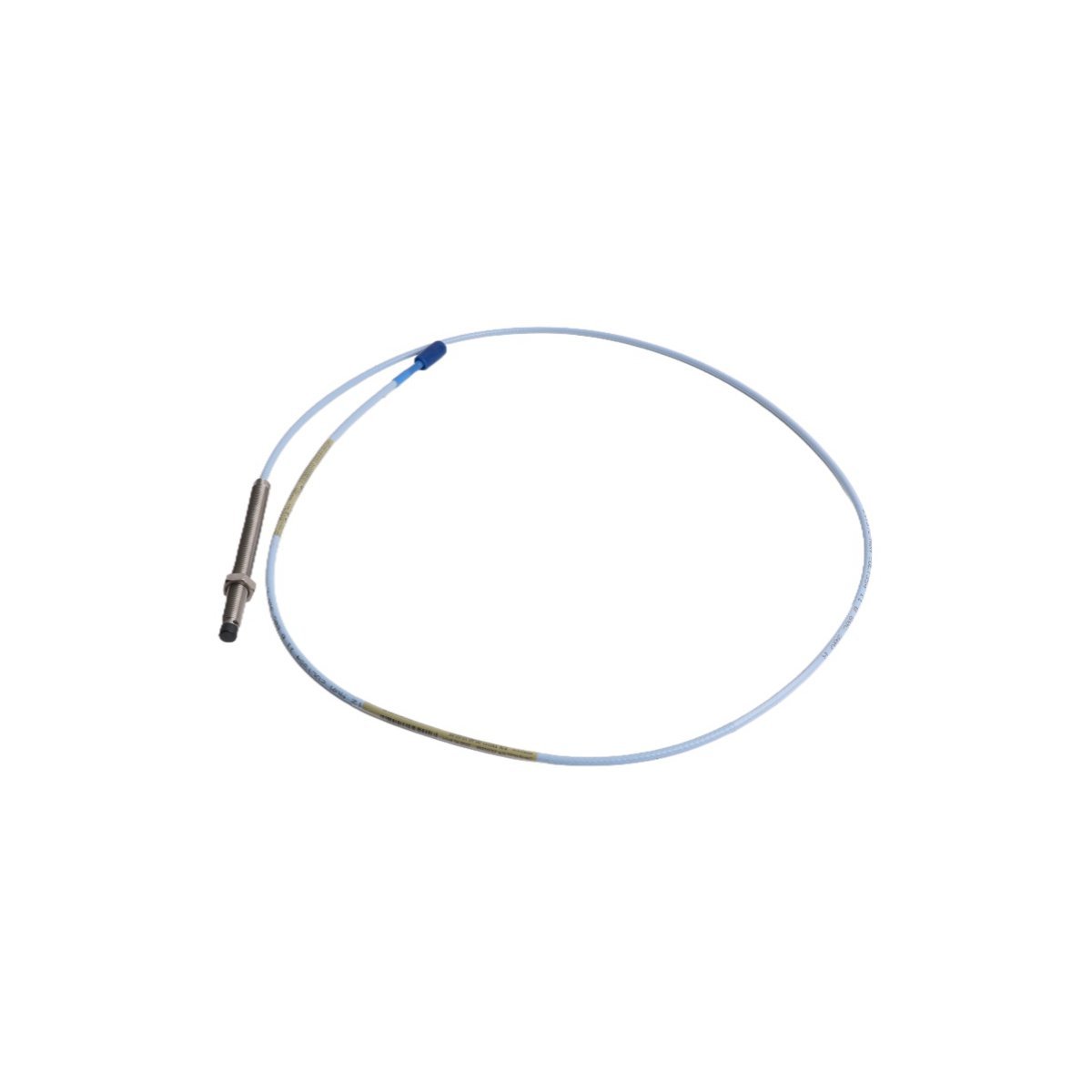

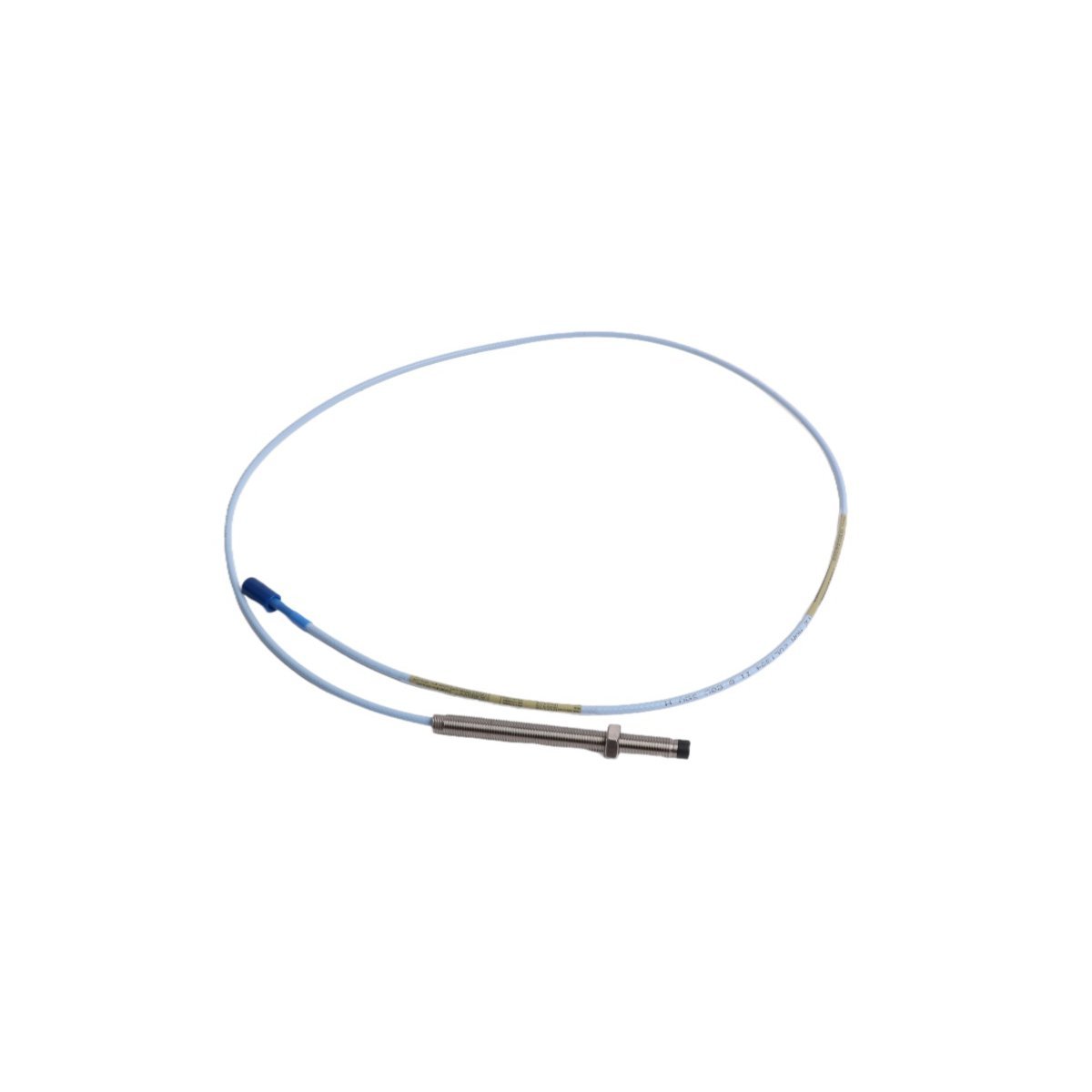

The Bently Nevada 330101-00-40-10-02-05 is a high-precision, industrial-grade 8 mm eddy-current proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Manufactured by Baker Hughes (under the globally recognized Bently Nevada brand), this probe forms an integral component of the 3300 XL 8 mm sensor system — widely deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities. Designed to operate within demanding environmental conditions—including extreme temperatures, high humidity, corrosive atmospheres, and intense electromagnetic interference—the 330101-00-40-10-02-05 delivers exceptional linearity, repeatability, and long-term stability. Its robust stainless steel construction (AISI 416 or equivalent) ensures mechanical durability and resistance to wear, while its optimized coil geometry and precision-wound sensing element provide superior signal-to-noise ratio and minimal phase shift across the full dynamic range. This probe is supplied pre-calibrated to meet API 670 (4th Edition) and ISO 10816 standards for machinery protection systems, ensuring seamless integration with Bently Nevada 3300/3500 series monitors and compatible third-party condition monitoring platforms. All units are rigorously tested per IEC 61000-4 electromagnetic compatibility (EMC) directives and undergo 100% functional validation prior to shipment. The probe is offered in new, factory-fresh condition, backed by a comprehensive 24-month limited warranty covering material defects and workmanship under normal use and proper installation protocols.

Detailed Specifications

Key Features

• Precision Calibration Traceability: Each probe is individually calibrated using NIST-traceable reference standards; calibration certificate includes linearity error (< ±0.3%), sensitivity tolerance (< ±1.5%), and thermal drift data.
• Enhanced Environmental Resilience: Hermetically sealed coil assembly with epoxy encapsulation prevents moisture ingress, while PTFE cable withstands hydrocarbon exposure, steam cleaning, and UV degradation.
• Optimized Electromagnetic Immunity: Integrated RFI/EMI filtering and balanced coil design reduce susceptibility to electrical noise from VFDs, SCR drives, and arc welding equipment.
• Plug-and-Play Compatibility: Fully interoperable with Bently Nevada 3300/3500/3600 monitor systems, as well as Emerson DeltaV, Siemens Desigo, and GE Bently Nevada System 1 platforms via standard 3300 XL interface protocols.
• Long-Term Stability: Aged >72 hours under thermal cycling (−25 °C ↔ +105 °C) to minimize post-installation drift; typical zero-shift < 0.005 mm/year under continuous operation.
• Installation Flexibility: Threaded M8 × 0.75 mounting interface enables secure integration into tight spaces; optional lockwire holes and anti-rotation flats support ASME PCC-2 compliant installations.
• Sustainability-Ready Design: Halogen-free materials, recyclable stainless steel housing, and RoHS 3-compliant components align with global ESG procurement mandates and circular economy objectives.

Applications

• Gas & Steam Turbine Monitoring: Radial vibration, axial position, and differential expansion measurement on journal and thrust bearings in combined-cycle and cogeneration plants.
• Centrifugal Compressors: Real-time shaft orbit analysis, unbalance detection, and surge precursor identification in upstream oil & gas processing and LNG liquefaction trains.
• Large Electric Motors & Generators: Stator-to-rotor clearance verification, rotor eccentricity assessment, and bearing wear trending in utility-scale wind and hydroelectric installations.
• Petrochemical Pumps & Gearboxes: High-frequency fault detection (e.g., gear tooth cracks, bearing cage defects) via broadband displacement spectra acquisition up to 10 kHz.
• Machinery Protection Systems (MPS): Primary sensor for API 670-compliant shutdown logic, including vibration trip (Zone C/D), axial position alarms, and keyphasor synchronization.
• Predictive Maintenance Programs: Integration with cloud-based CMMS and IIoT platforms (e.g., Baker Hughes Digital Twin, Siemens MindSphere) for AI-driven failure mode forecasting and remaining useful life (RUL) estimation.
