330101-00-40-05-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

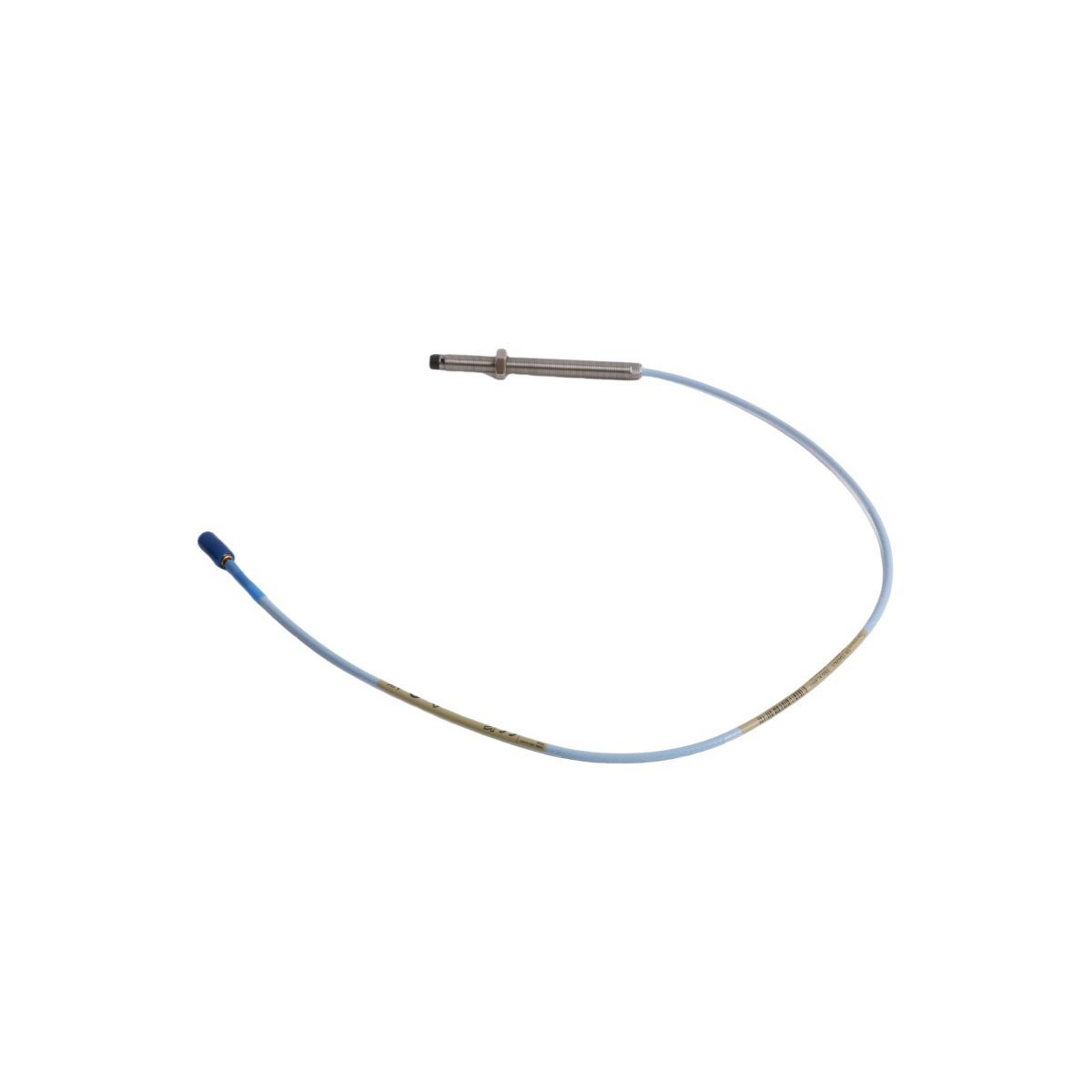

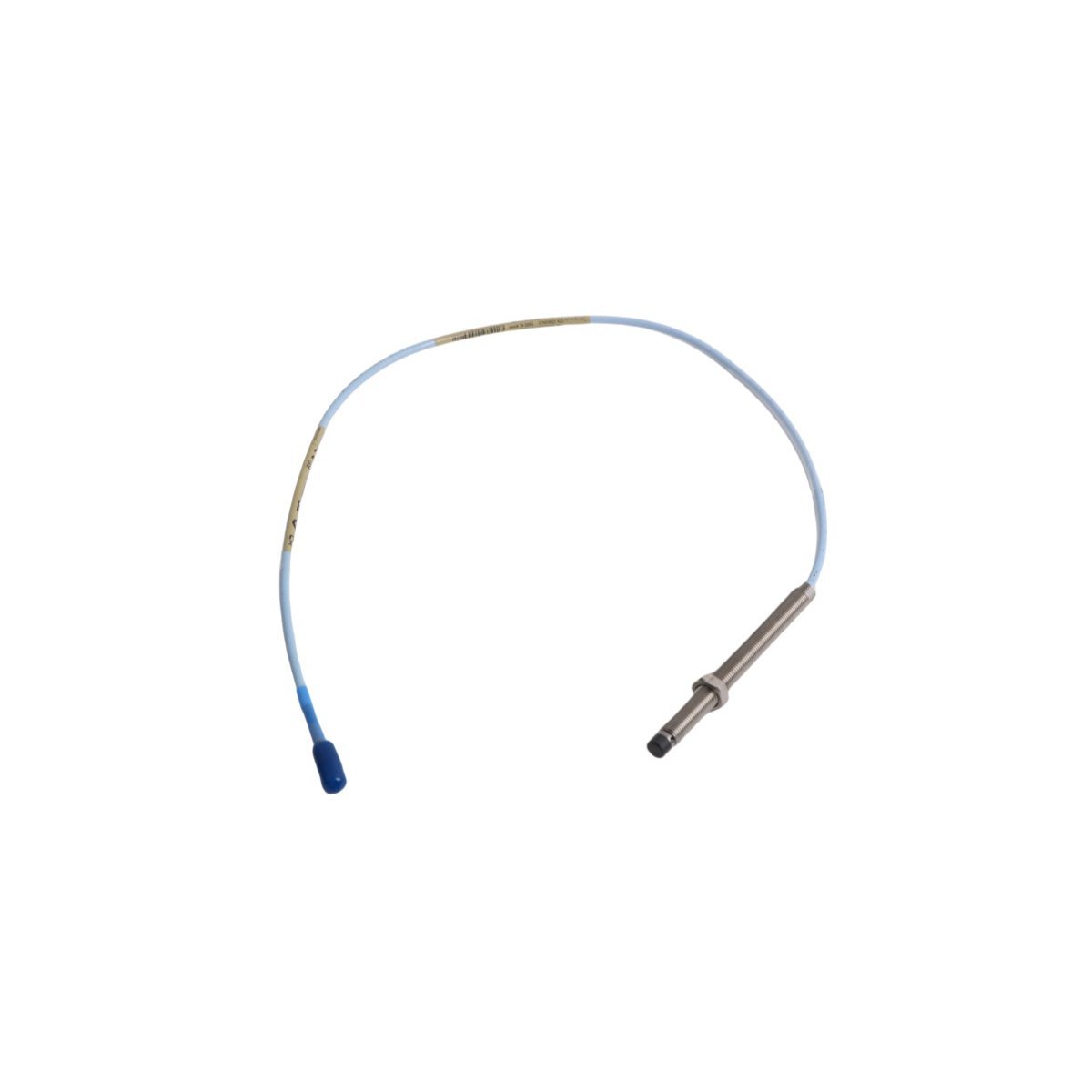

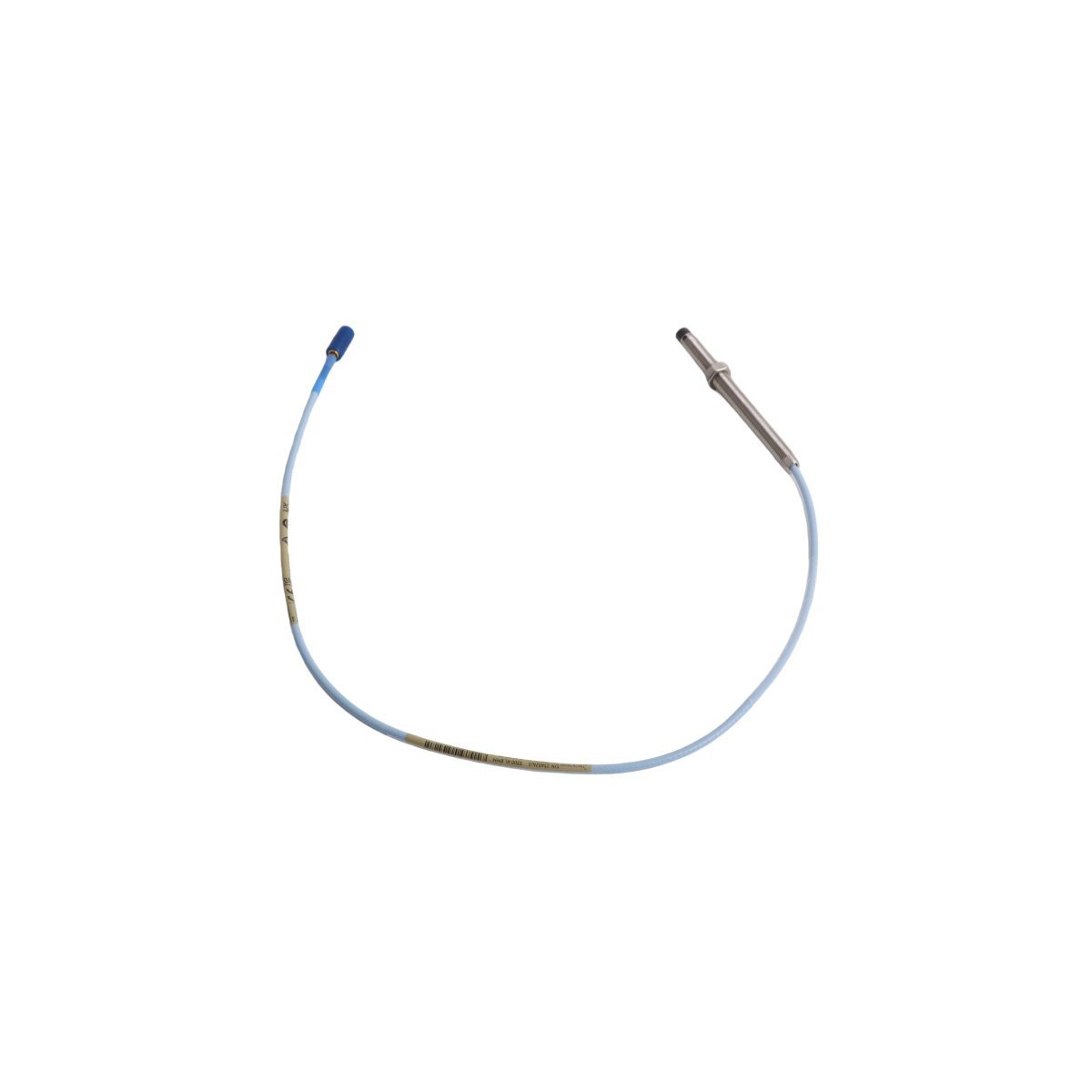

The 330101-00-40-05-02-00 is a non-contact eddy-current proximity probe engineered for high-precision shaft vibration and position measurement.
Moreover, it delivers stable, linear output in harsh industrial environments where reliability and repeatability are critical.
Therefore, it integrates directly with the 3300 XL monitoring system for continuous machinery health assessment.
In addition, its 8 mm diameter sensing tip supports standard API 670-compliant installation on rotating equipment.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration on steam turbine shafts per API 670
– Measuring axial position and thrust bearing wear in centrifugal compressors
– Detecting shaft runout and dynamic displacement in large electric motors
– Providing input signals for emergency shutdown systems in critical rotating machinery

### FAQ
What is the operating temperature range?
−40 °C to +125 °C ambient, with probe body rated to +175 °C for short-term exposure.

Is this probe compatible with legacy 3300 series monitors?
Yes, it is fully compatible with all 3300, 3300 XL, and 3500 monitoring systems.

Does it require a specific extension cable?
Yes, use only Bently Nevada 330130-series coaxial extension cables to maintain calibration integrity.

What is the nominal sensitivity?
4.0 V/mm (100 mV/mil) at 10 kHz, calibrated per ASTM E1445.

Can it be used in hazardous areas?
No—this probe is not intrinsically safe or explosion-proof; use only in non-hazardous locations unless paired with an approved barrier system.
