Technical Overview

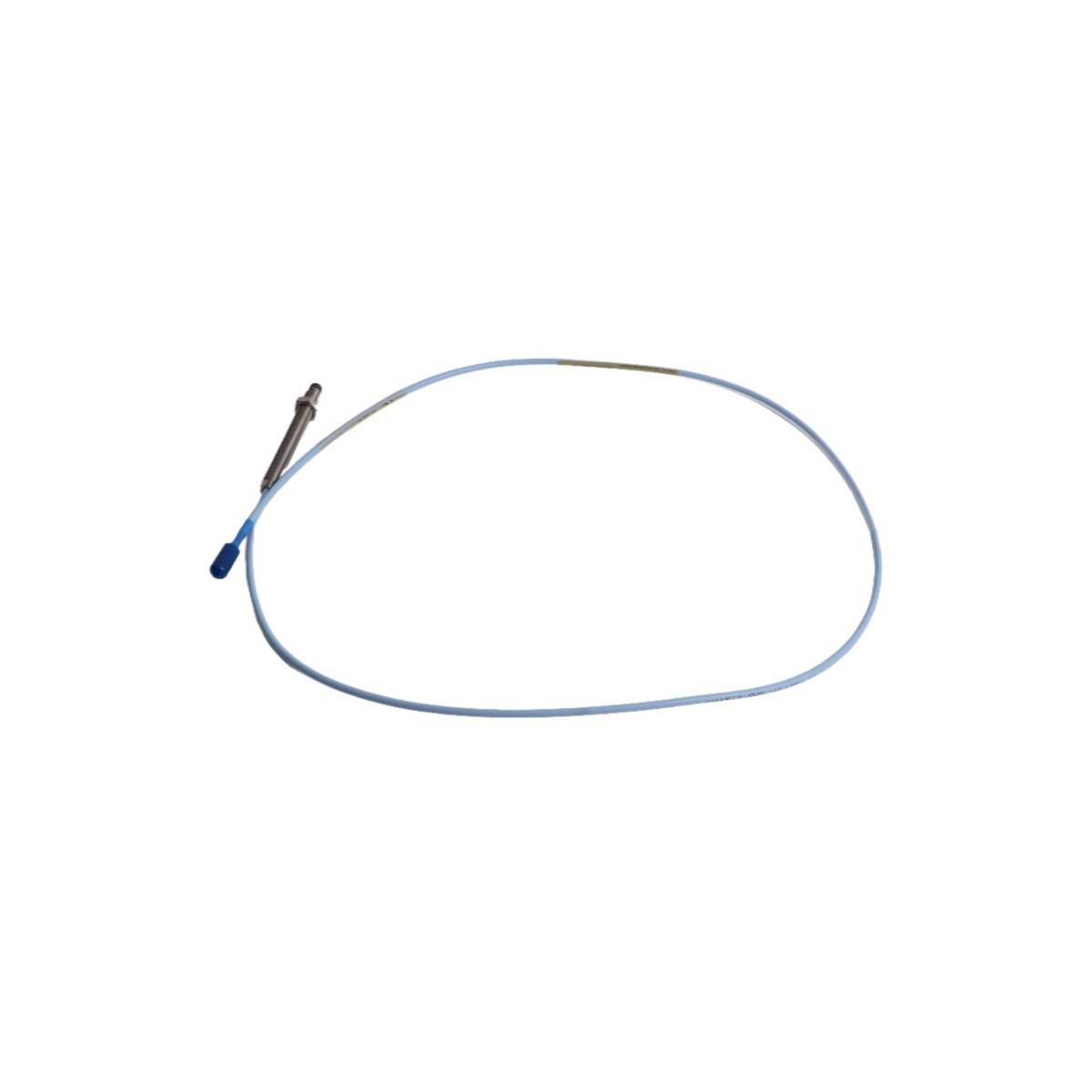

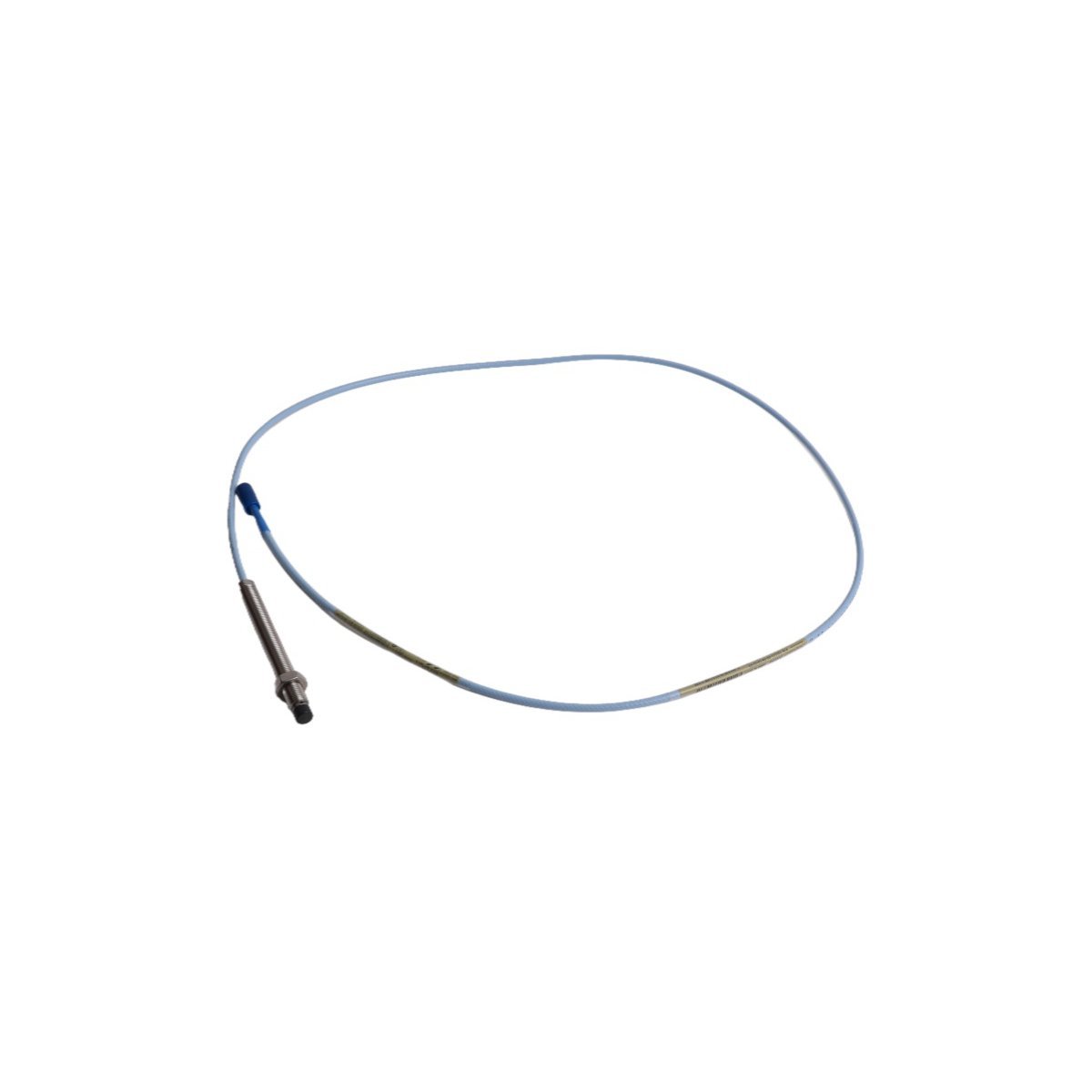

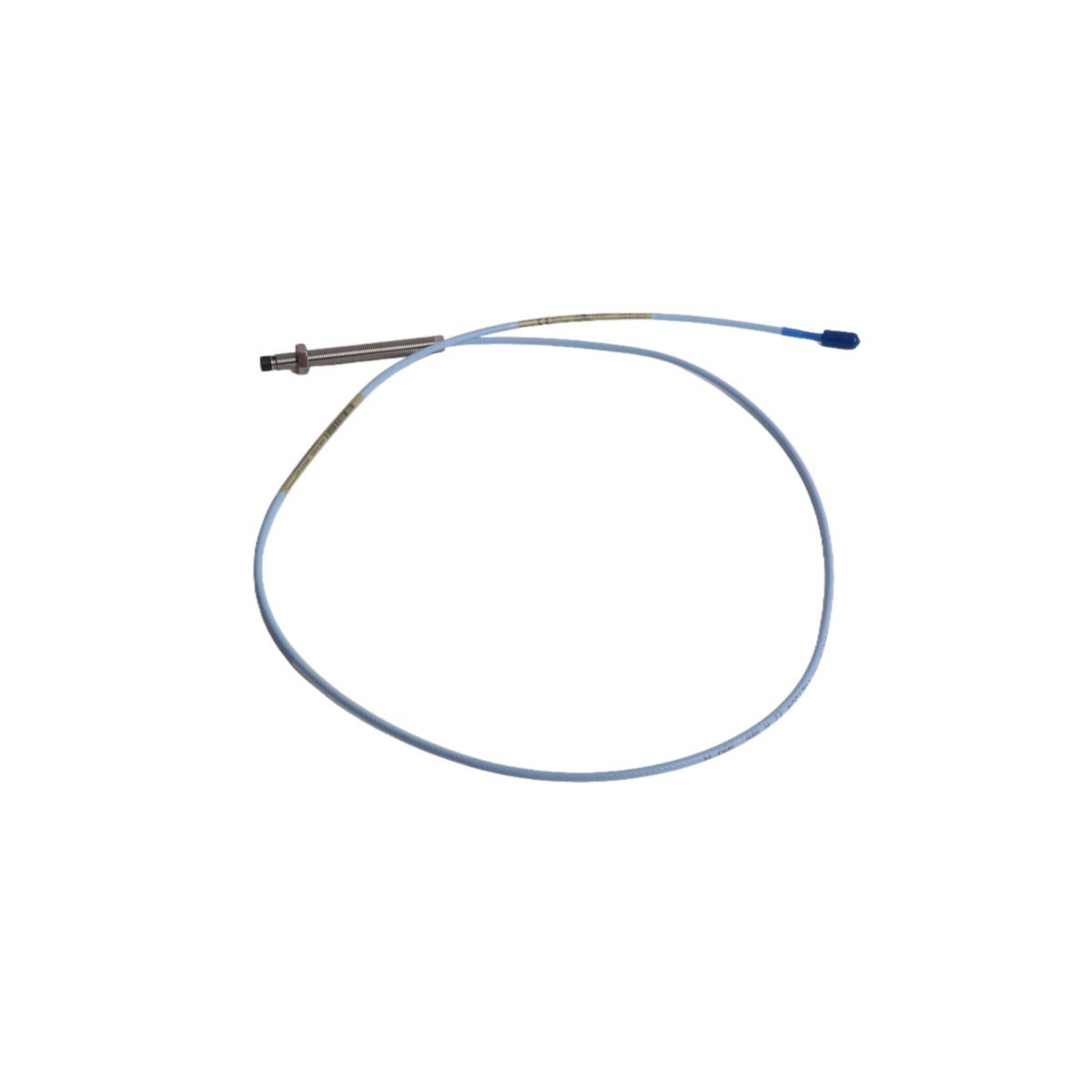

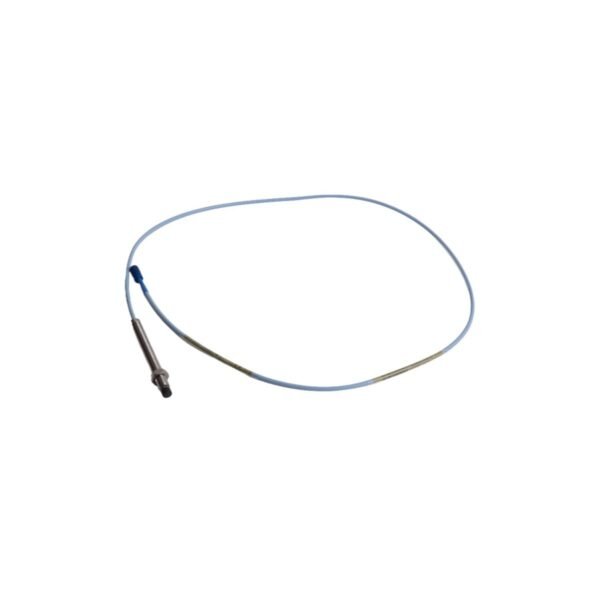

The Bently Nevada 330101-00-33-10-12-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in mission-critical rotating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring since 1961—this probe is part of the trusted 3300 XL 8 mm sensor family, specifically designed to deliver exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity in demanding industrial environments. The probe operates on the eddy-current principle, generating a high-frequency electromagnetic field that interacts with conductive target materials (typically ferromagnetic shafts or disks) to produce analog voltage outputs proportional to gap distance. Its robust construction, precision-machined stainless steel housing, and hermetically sealed design ensure long-term reliability in extreme conditions—including high temperatures (up to +121 °C ambient), aggressive chemical exposure, and high-vibration zones. This model is supplied in New Surplus Condition, meaning it is unused, factory-fresh inventory sourced directly from authorized Baker Hughes distribution channels, complete with original packaging, calibration documentation, and full traceability. Each unit carries a comprehensive 24-month limited warranty covering material defects and workmanship, reinforcing its suitability for safety-integrated systems where uptime, accuracy, and compliance with API 670 (4th Edition) and ISO 10816 standards are non-negotiable. With dimensions of 8 mm nominal diameter × 100 mm overall length and a lightweight yet durable mass of 115 g, the probe facilitates easy integration into tight mechanical clearances without compromising structural integrity. Proudly manufactured in the United States of America, this sensor exemplifies American engineering excellence, rigorous quality control (AS9100D and ISO 9001:2015 certified production), and adherence to stringent export compliance regulations (EAR99).

Detailed Specifications

Key Features

• High-Fidelity Signal Integrity: Ultra-low noise floor (< 1.5 mV RMS) and ±0.5% linearity across full range ensure precise shaft orbit analysis and dynamic clearance measurement for predictive maintenance programs.
• Thermal Stability: Compensated design maintains calibration accuracy within ±1% over −40 °C to +100 °C operating range—critical for turbine, compressor, and motor applications subject to rapid thermal cycling.
• EMI/RFI Immunity: Integral electrostatic and electromagnetic shielding meets IEC 61000-4-3 (Level 3) and IEC 61000-4-6 (Level 3), preventing signal corruption in high-noise electrical substations or VFD-driven environments.
• Corrosion-Resistant Construction: 316 stainless steel body and PTFE cable jacket resist degradation from steam, hydrocarbons, solvents, and salt-laden atmospheres—ideal for offshore platforms and chemical processing plants.
• Plug-and-Play Integration: Fully compatible with Bently Nevada 3300/3500/3600 monitoring systems, as well as third-party PLCs and DCS platforms via standard 3300 XL extension cables and前置器 (proximity transducers).
• Traceable Calibration: Supplied with NIST-traceable calibration certificate (as-tested data at 23 °C), including sensitivity, linearity, and frequency response curves for audit-ready compliance.
• Optimized Mechanical Interface: Standard 10-32 UNF mounting thread enables secure, repeatable installation with torque specification of 2.5–3.5 N·m—minimizing micro-motion drift during operation.

Applications

• Gas & Steam Turbines: Monitoring radial vibration, axial position, and differential expansion in power generation assets compliant with NERC PRC-005 and ISO 13373-3 standards.
• Centrifugal Compressors: Detecting surge onset, bearing wear, and misalignment in petrochemical refineries and LNG facilities through high-resolution shaft displacement trending.
• Large Electric Motors & Generators: Providing real-time rotor eccentricity and air-gap monitoring to prevent catastrophic stator-rotor contact in critical drive systems.
• Aerospace Ground Support Equipment: Enabling precision runout verification and balancing of jet engine test stands per SAE ARP4754A requirements.
• Marine Propulsion Systems: Supporting Class-approved condition monitoring on naval vessels and commercial ships under ABS, DNV, and LR guidelines.
• Pharmaceutical & Food Processing Machinery: Delivering hygienic, non-invasive monitoring in sanitary environments where lubricant contamination must be avoided.
• R&D and Test Benches: Serving as a reference-grade sensor in laboratory vibration shakers, modal analysis rigs, and academic research platforms requiring metrological-grade repeatability.
